GB/T 37335-2019 PDF EnglishUS$130.00 · In stock · Download in 9 seconds
GB/T 37335-2019: Design guidelines for structural full penetration weld of self-elevating drilling units Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

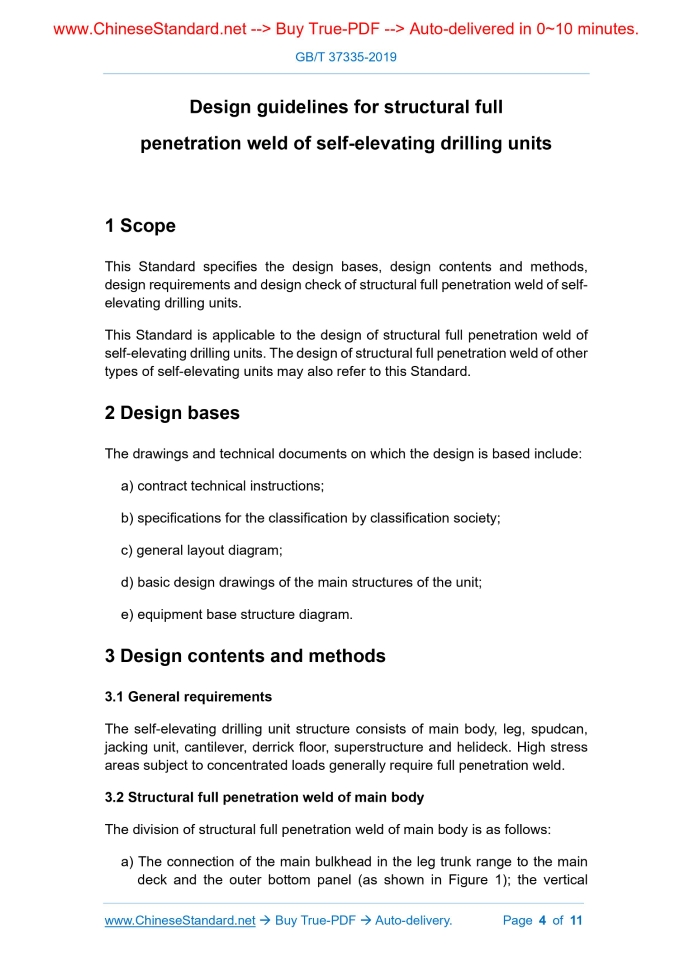

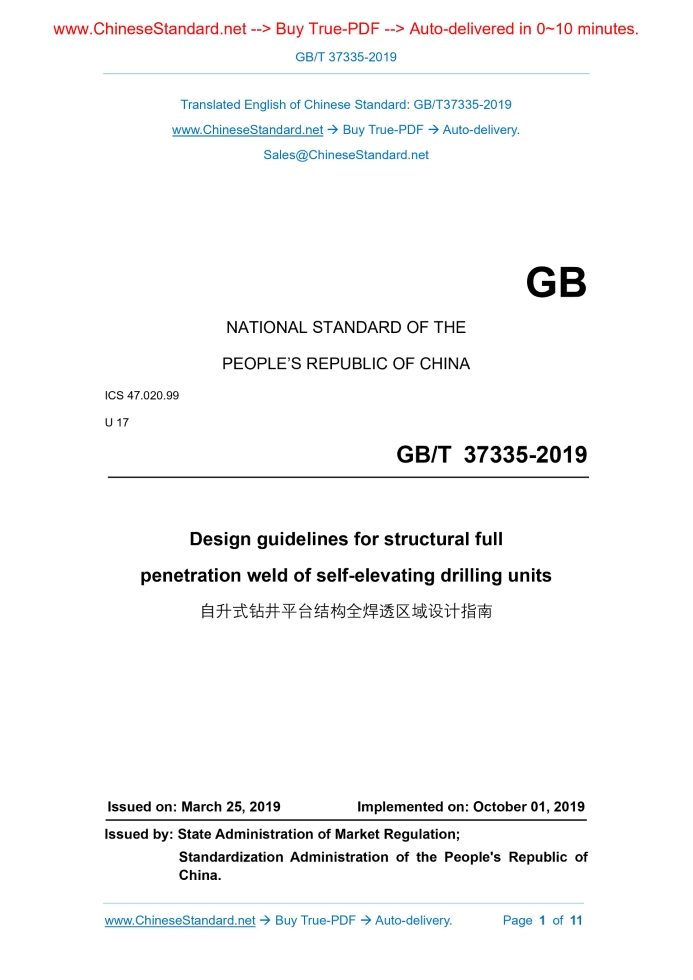

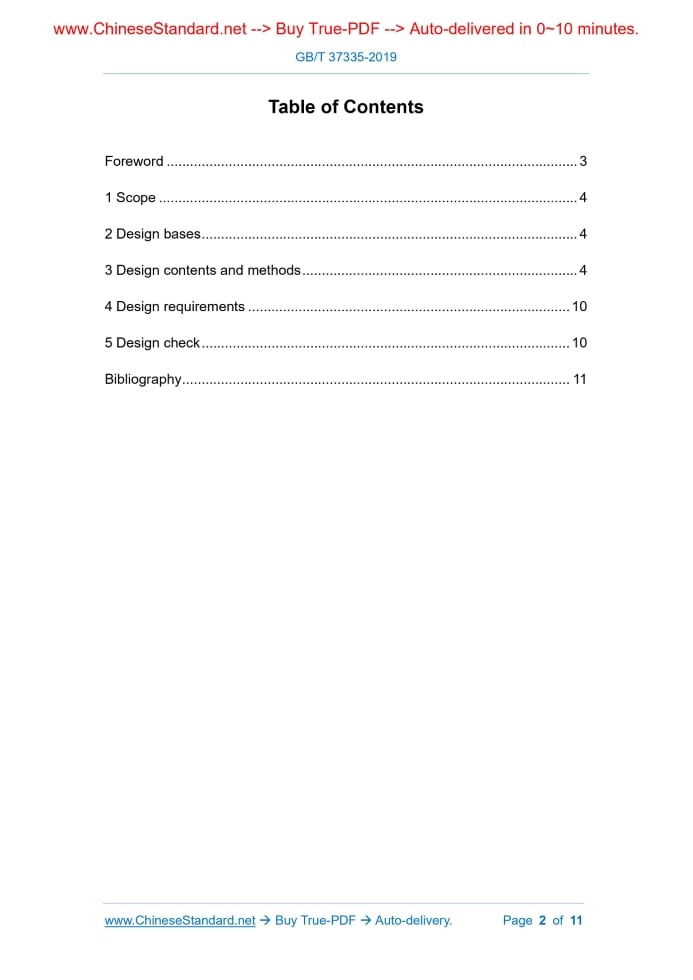

Similar standardsGB/T 37335-2019: Design guidelines for structural full penetration weld of self-elevating drilling units---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37335-2019 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 47.020.99 U 17 Design guidelines for structural full penetration weld of self-elevating drilling units ISSUED ON: MARCH 25, 2019 IMPLEMENTED ON: OCTOBER 01, 2019 Issued by: State Administration of Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Design bases ... 4 3 Design contents and methods ... 4 4 Design requirements ... 10 5 Design check ... 10 Bibliography ... 11 Design guidelines for structural full penetration weld of self-elevating drilling units1 ScopeThis Standard specifies the design bases, design contents and methods, design requirements and design check of structural full penetration weld of self- elevating drilling units. This Standard is applicable to the design of structural full penetration weld of self-elevating drilling units. The design of structural full penetration weld of other types of self-elevating units may also refer to this Standard.2 Design basesThe drawings and technical documents on which the design is based include: a) contract technical instructions; b) specifications for the classification by classification society; c) general layout diagram; d) basic design drawings of the main structures of the unit; e) equipment base structure diagram.3 Design contents and methods3.1 General requirements The self-elevating drilling unit structure consists of main body, leg, spudcan, jacking unit, cantilever, derrick floor, superstructure and helideck. High stress areas subject to concentrated loads generally require full penetration weld. 3.2 Structural full penetration weld of main body The division of structural full penetration weld of main body is as follows: a) The connection of the main bulkhead in the leg trunk range to the main deck and the outer bottom panel (as shown in Figure 1); the vertical a) The connection of the jacking unit’s peripheral wall to the main deck and the outer bottom panel (as shown in Figure 1); the vertical connection of the ends of the jacking unit’s peripheral wall (as shown in Figure 2); b) The connection of the main partitions inside the jacking unit to the peripheral wall; c) The connection of the ends of the main support structure on the back of the upper and lower guides; d) The connection of the jacking gear flange sleeve to the jacking unit’s peripheral wall; e) The connection of the ends of the main support structure on the back of the locking anti-rack support buttress. 3.6 Structural full penetration weld of cantilever The division of the structural full penetration weld of cantilever is as follows: a) The connection of the longitudinal I-beam web to the upper and lower panels (as shown in Figure 5); b) The connection of the V-shaped plates to the longitudinal I-beam web and the upper and lower panels (as shown in Figure 5); c) The connection of the main components of cantilever’s sliding base. 3.9 Structural full penetration weld of helideck Helideck structures generally do not require full penetration weld. If the unit uses the truss-type tube support structure, the connection at the support tube end requires full penetration weld. NOTE: When considering the division of full penetration weld, it is also necessary to refer to the opinion of the on-site surveyor of classification society.4 Design requirements4.1 The full penetration weld diagram shall clearly show the joints and range of full penetration welds and use clear markings. 4.2 If the structure (such as main body, spudcan and jacking unit) has more full penetration welds, or the full penetration weld is not clearly indicated in the corresponding structure drawings, the full penetration weld diagram of the structure shall be drawn separately. 4.3 The full penetration weld of other structures (such as leg, cantilever, derrick floor, superstructure and helideck) is mainly concentrated on the key nodes of the structure and is generally indicated in the node detail of the corresponding structure drawings.5 Design check5.1 Whether it meets the relevant requirements in the contract technical instructions. 5.2 Whether it complies with the specifications for the classification by classification society. 5.3 Whether it correctly implements the design drawings and technical documents. 5.4 Whether it complies with the stress conditions and stress levels of the various structures of the self-elevating drilling unit. 5.5 Whether it has a comprehensive assessment of suitability, processability and economy of the structural system. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37335-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37335-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37335-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37335-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37335-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37335-2019?A step-by-step guide to download PDF of GB/T 37335-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37335-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
