MH
CIVIL AVIATION INDUSTRY STANDARD
ICS 75.100
E 34
Specification for aero and aero-derived gas turbine engine
lubricants
Issued on: JUNE 29, 2012
Implemented on: NOVEMBER 01, 2012
Issued by. Civil Aviation Administration of China

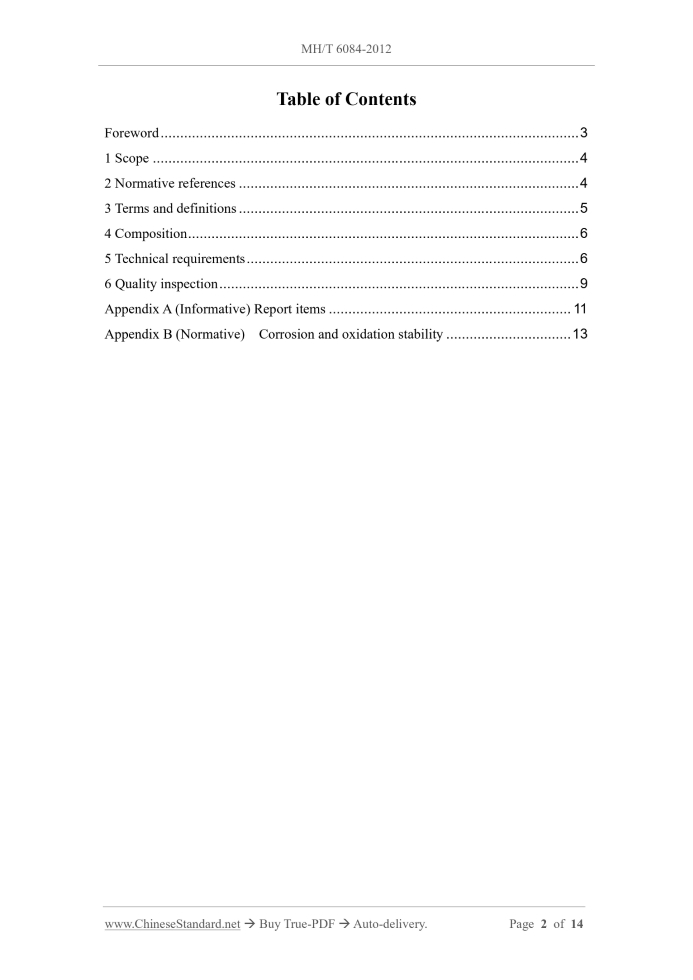

Table of Contents
Foreword... 3
1 Scope... 4
2 Normative references... 4
3 Terms and definitions... 5
4 Composition... 6
5 Technical requirements... 6
6 Quality inspection... 9
Appendix A (Informative) Report items... 11
Appendix B (Normative) Corrosion and oxidation stability... 13

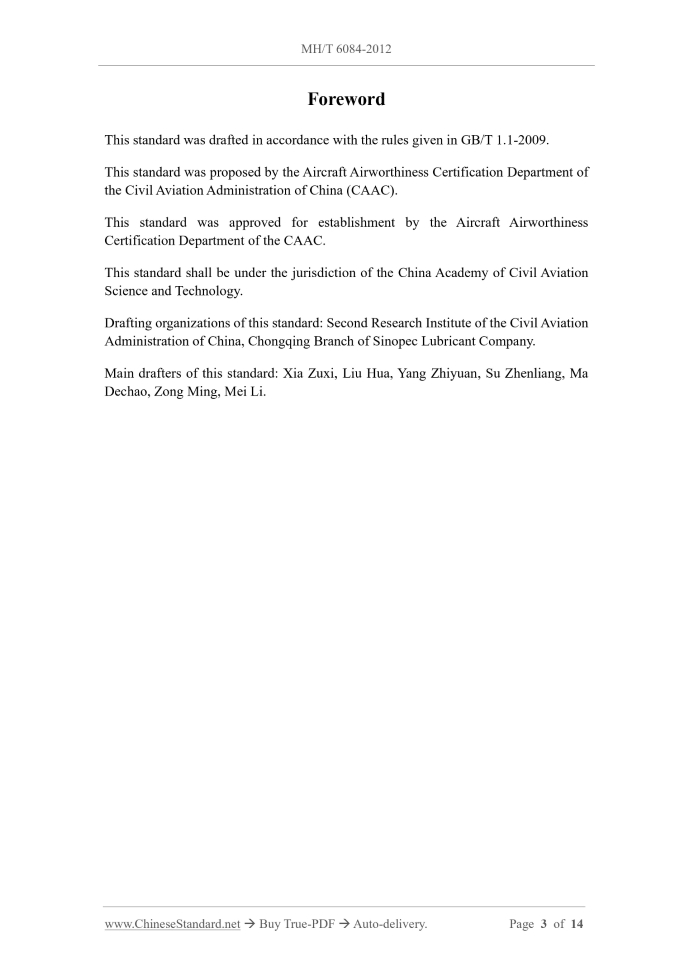

Foreword
This standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This standard was proposed by the Aircraft Airworthiness Certification Department of
the Civil Aviation Administration of China (CAAC).
This standard was approved for establishment by the Aircraft Airworthiness
Certification Department of the CAAC.
This standard shall be under the jurisdiction of the China Academy of Civil Aviation
Science and Technology.
Drafting organizations of this standard. Second Research Institute of the Civil Aviation
Administration of China, Chongqing Branch of Sinopec Lubricant Company.
Main drafters of this standard. Xia Zuxi, Liu Hua, Yang Zhiyuan, Su Zhenliang, Ma
Dechao, Zong Ming, Mei Li.
Specification for aero and aero-derived gas turbine engine
lubricants
1 Scope
This standard specifies the composition, technical requirements, and quality inspection
requirements for aero and aero-derived gas turbine engine lubricants (5 centistokes
grade) (hereinafter referred to as turbine engine lubricant).
This standard applies to the production of aero and aero-derived gas turbine engine
lubricants.
2 Normative references
The following documents are essential to the application of this document. For the dated
documents, only the versions with the dates indicated are applicable to this document;
for the undated documents, only the latest version (including all the amendments) is
applicable to this standard.
ASTM D 92 Standard test method for flash and fire points by Cleveland open cup
tester
ASTM D 97 Standard test method for pour point of petroleum products
ASTM D 445 Standard test method for kinematic viscosity of transparent and
opaque liquids (and calculation of dynamic viscosity)
ASTM D 892 Standard test method for foaming characteristics of lubricating oils
ASTM D 972 Standard test method for evaporation loss of lubricating greases and
oils
ASTM D 2532 Standard test method for viscosity and viscosity change after
standing at low temperature of aircraft turbine lubricants
ASTM D 2603 Standard test method for sonic shear stability of polymer-containing
oils
Def Stan 05-50 Part 61.Method 9.Protection against oxidation stability
Def Stan 05-50 Part 61.Method 22.Method for evaluating the compatibility of gas
turbine engine lubricants with elastomers
Def Stan 05-50 Part 61.Method 24.Evaluation of the compatibility of mixtures of
base oils, additives, etc. in gas turbine engine lubricants
FED-STD-791 Method 3010 Solid particle contamination in aircraft turbine engine
lubricants (Gravimetric procedure)
FED-STD-791 Method 3410 High-temperature deposition and degradation
properties of aircraft turbine engine fuel
FED-STD-791 Method 3411 Thermal stability and corrosion resistance of aircraft
turbine engine lubricants
FED-STD-791 Method 3604 Swelling properties of synthetic rubber using aircraft
turbine engine lubricants
FED-STD-791 Method 5308 Corrosion resistance and oxidation stability of light
oils (Metal cube)
FED-STD-791 Method 6508 Load-carrying capacity of lubricants (Ryder gearbox)
SAE AIR 4978 Temporary methods for assessing the load carrying capacity of
aircraft propulsion system lubricating oils
SAE ARP 5088 Test method for the determination of total acidity in polyol ester and
diester gas turbine lubricants by automatic potentiometric titration
SAE ARP 5996 Evaluation of coking propensity of aviation lubricants using the
single phase flow technique
3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Standard performance capability class
SPC
A type of lubricant that meets general usage requirements.
3.2
High performance capability class
HPC
A type of lubricant that meets engine operating conditions and/or service life
requirements, which is suitable for higher temperatures.
3.3
Batch
A group of base oils, additives, or finished lubricants that have undergone final
analysis and testing.
4 Composition
Turbine engine lubricants shall use polyol ester compounds as base oil and shall not
contain barium or titanium-based organic compounds. If tricresyl phosphate (TCP)
additives are used, the mass fraction of ortho-isomers shall not exceed 0.2%.
All chemical components of turbine engine lubricants shall comply with the laws,
regulations, environmental and toxicological requirements of the country of production
and sale; it shall have a Material Safety Data Sheet (MSDS) or other relevant
documentation to cover these requirements.
5 Technical requirements
The physical, chemical, stability, deposition, tribological properties of the turbine
engine lubricant shall meet the requirements of Tables 1 ~ 5, respectively. The items
listed in Appendix A can be included in the report.
......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
