GB/T 7000.204-2023 PDF EnglishUS$275.00 · In stock · Download in 9 seconds
GB/T 7000.204-2023: Luminaires - Part 2-4: Particular requirements - Portable general purpose luminaires Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 7000.204: Historical versions

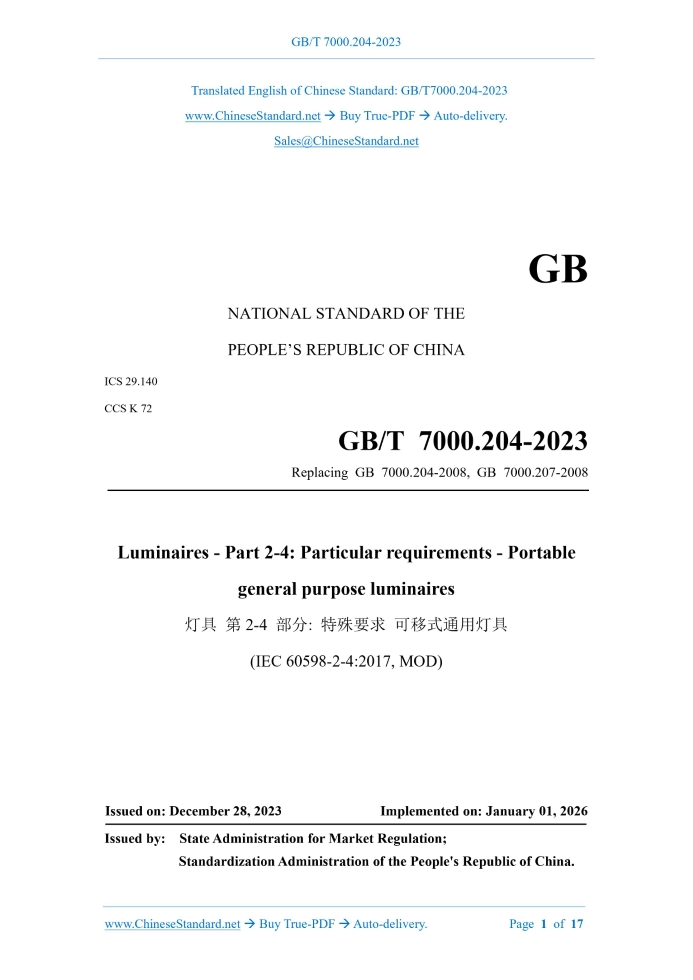

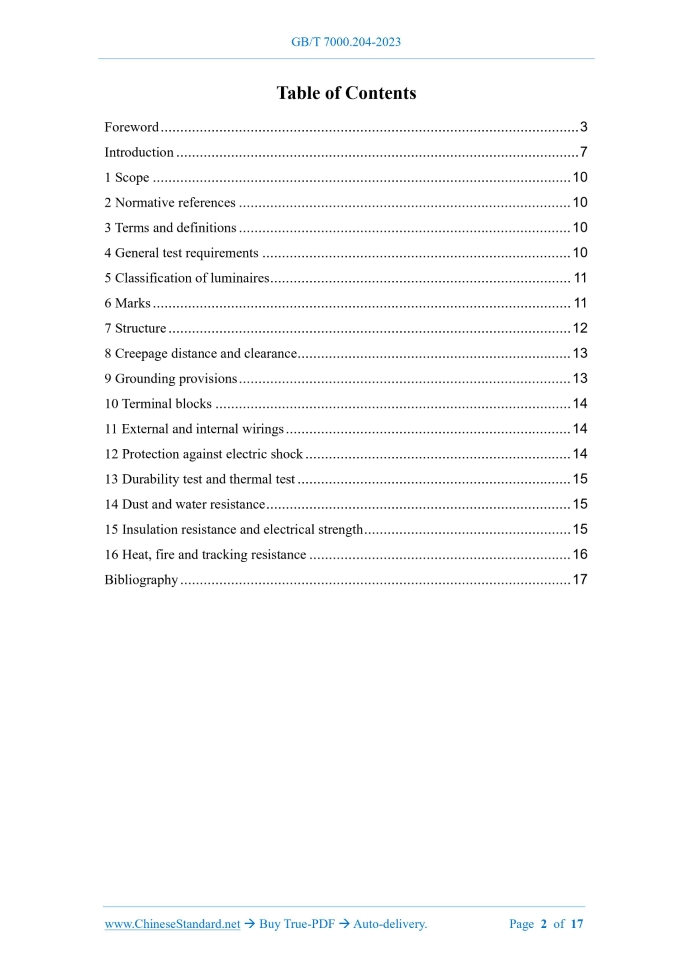

Similar standardsGB/T 7000.204-2023: Luminaires - Part 2-4: Particular requirements - Portable general purpose luminaires---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT7000.204-2023 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.140 CCS K 72 Replacing GB 7000.204-2008, GB 7000.207-2008 Luminaires - Part 2-4: Particular requirements - Portable general purpose luminaires (IEC 60598-2-4:2017, MOD) ISSUED ON: DECEMBER 28, 2023 IMPLEMENTED ON: JANUARY 01, 2026 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 Introduction ... 7 1 Scope ... 10 2 Normative references ... 10 3 Terms and definitions ... 10 4 General test requirements ... 10 5 Classification of luminaires ... 11 6 Marks ... 11 7 Structure ... 12 8 Creepage distance and clearance ... 13 9 Grounding provisions ... 13 10 Terminal blocks ... 14 11 External and internal wirings ... 14 12 Protection against electric shock ... 14 13 Durability test and thermal test ... 15 14 Dust and water resistance ... 15 15 Insulation resistance and electrical strength ... 15 16 Heat, fire and tracking resistance ... 16 Bibliography ... 17ForewordThis document was drafted in accordance with the rules given in GB/T 1.1-2020 "Directives for standardization - Part 1: Rules for the structure and drafting of standardizing documents". This document is Part 2-4 of GB(/T) 7000. The following parts of GB(/T) 7000 have been published: - Luminaires -- Part 1: General requirements and tests (GB/T 7000.1-2023); - Luminaires -- Part 2-1: Particular requirements -- Fixed general purpose luminaires (GB/T 7000.201-2023); - Luminaires -- Part 2-2: Particular requirements -- Recessed luminaires (GB/T 7000.202-2023); - Luminaires -- Part 2-3: Particular requirements -- Luminaires for road and street lighting (GB 7000.203-2013); - Luminaires -- Part 2-4: Particular requirements -- Portable general purpose luminaires (GB/T 7000.204-2023); - Luminaires -- Part 2-5: Particular requirements -- Floodlights (GB/T 7000.205- 2023); - Luminaires -- Part 2-6: Particular requirements -- Luminaires with built-in trans- formers for filaments luminaires (GB 7000.6-2008); - Luminaires -- Part 2-8: Particular requirements -- Handlamps (GB/T 7000.208- 2023); - Safety requirements for photo and film luminaires (non-professional) (GB 7000.19-2005); - Luminaires -- Part 2-10: Particular requirements -- Portable luminaires for children (GB 7000.4-2007); - Luminaires -- Part 2-11: Particular requirements -- Aquarium luminaires (GB/T 7000.211-2023); - Luminaires -- Part 2-12: Particular requirements -- Mains socket-outlet mounted nightlights (GB/T 7000.212-2023); - Luminaires -- Part 2-13: Particular requirements -- Ground recessed luminaires (GB/T 7000.213-2023); - Luminaires -- Part 2-14: Particular requirements -- Luminaires for cold cathode Luminaires - Part 2-4: Particular requirements - Portable general purpose luminaires1 ScopeThis document specifies the requirements for portable general purpose luminaires. This document applies to portable general purpose luminaires for indoor and/or outdoor use (e.g., garden use) with a power supply voltage not exceeding 250V and using electric light sources as light sources. This document does not apply to hand luminaires.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 7000.1, Luminaires -- Part 1: General requirements and tests (GB/T 7000.1- 2023, IEC 60598-1:2020, MOD) GB/T 16842-2016, Protection of persons and equipment by enclosures -- Probe for verification (IEC 61032:1997, IDT)3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in Part 11 apply. 3.1 candlestick luminaires A portable general purpose luminaire with bulbs connected in series, fixedly mounted and dispersed on free-standing racks. NOTE: Candlestick luminaires are available with E5 or E10 lamp bases.4 General test requirementsThe provisions of Part 1, Chapter 0 apply. The tests required in Part 1 shall be performed 1 "Part 1" mentioned in this document refers to GB/T 7000.1.10 Terminal blocksThe provisions of Chapters 14 and 15 of Part 1 shall apply.11 External and internal wiringsThe provisions of Chapter 5 of Part 1 shall apply with the following modifications. 11.1 The requirement that "the cord anchor shall be at least partially fixed to the luminaire or be an integral part of the luminaire" does not apply to table luminaires made of glass or ceramic for indoor use. 11.2 For indoor Class I and Class II portable general purpose luminaires with a mass less than 1 kg, a rated current not exceeding 2.5 A, and a flexible cable length not exceeding 2 m, the nominal cross-sectional area of the copper core conductor of the flexible cable shall not be less than 0.5 mm2. 11.3 Outdoor portable general purpose luminaires that are not provided with flexible cables or cords and plugs shall provide wiring terminals, flexible cord fixing frames and wire inlets for the correct connection of flexible cables or cords. NOTE: Wiring regulations in various countries may require that Class II portable general purpose outdoor luminaires be equipped with a non-detachable flexible cable or cord and plug. Compliance shall be checked by inspection and, where necessary, by the tension and torque tests required by Part 1, Chapter 5. 11.4 For Class I and Class II portable general purpose luminaires for outdoor use, the non-detachable flexible cable or cord shall not be lower than the model of 245 IEC 57. NOTE: In Australia and New Zealand, polyvinyl chloride (PVC) insulated cables are suitable for outdoor use. Compliance shall be checked by inspection.12 Protection against electric shockPart 1, Chapter 8 a s well as the following provisions shall apply. Class I portable general purpose luminaires using bayonet lamp holders shall comply with one of the following two provisions: 1) When the lamp is assembled in normal use, the test finger shall not touch the lamp cap of the bulb; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 7000.204-2023 be delivered?Answer: The full copy PDF of English version of GB/T 7000.204-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 7000.204-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 7000.204-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 7000.204-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 7000.204-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 7000.204-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 7000.204-2023?A step-by-step guide to download PDF of GB/T 7000.204-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 7000.204-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
