GB/T 5567-2013 PDF English
GB/T 5567: Historical versions
| Standard ID | USD | BUY PDF | Delivery | Standard Title (Description) | Status |
| GB/T 5567-2013 | 90 | Add to Cart | Auto, 9 seconds. | Rubber and plastics hoses and hose assemblies -- Determination of resistance to vacuum | Valid |
| GB/T 5567-2006 | 239 | Add to Cart | 3 days | Rubber and plastics hoses and hose assemblies -- Determination of suction resistance | Obsolete |
| GB/T 5567-1994 | 199 | Add to Cart | 2 days | Rubber and plastics hoses and hose assemblies--Determination of suction resistance | Obsolete |
| GB 5567-1985 | 199 | Add to Cart | 2 days | Rubber hose--Test method for vacuum resistance | Obsolete |
GB/T 5567-2013: Rubber and plastics hoses and hose assemblies -- Determination of resistance to vacuum
---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT5567-2013

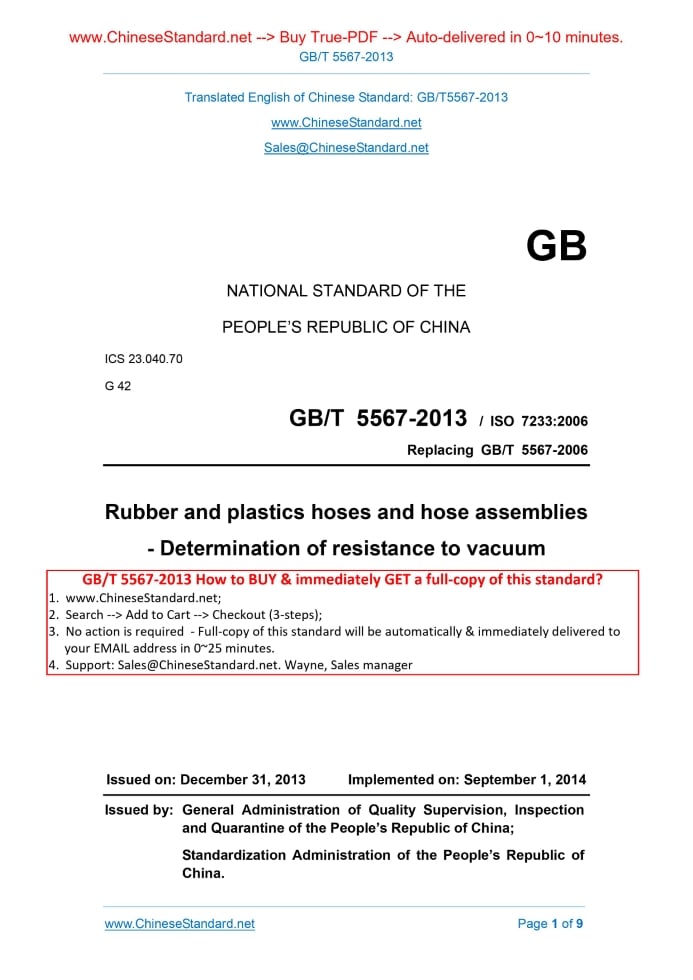

GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 23.040.70 G 42 GB/T 5567-2013 / ISO 7233.2006 Replacing GB/T 5567-2006 Rubber and plastics hoses and hose assemblies - Determination of resistance to vacuum (ISO 7233.2006, IDT) Issued on: DECEMBER 31, 2013 Implemented on: SEPTEMBER 1, 2014 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China; Standardization Administration of the People’s Republic of China.

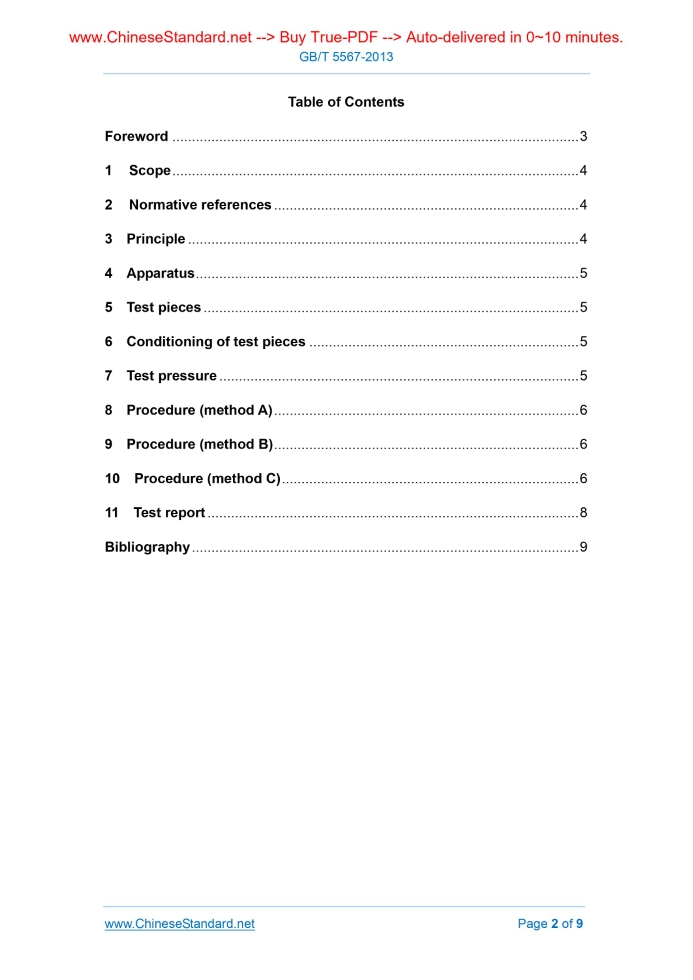

Table of Contents
Foreword... 3 1 Scope... 4 2 Normative references... 4 3 Principle... 4 4 Apparatus... 5 5 Test pieces... 5 6 Conditioning of test pieces... 5 7 Test pressure... 5 8 Procedure (method A)... 6 9 Procedure (method B)... 6 10 Procedure (method C)... 6 11 Test report... 8 Bibliography... 9Foreword

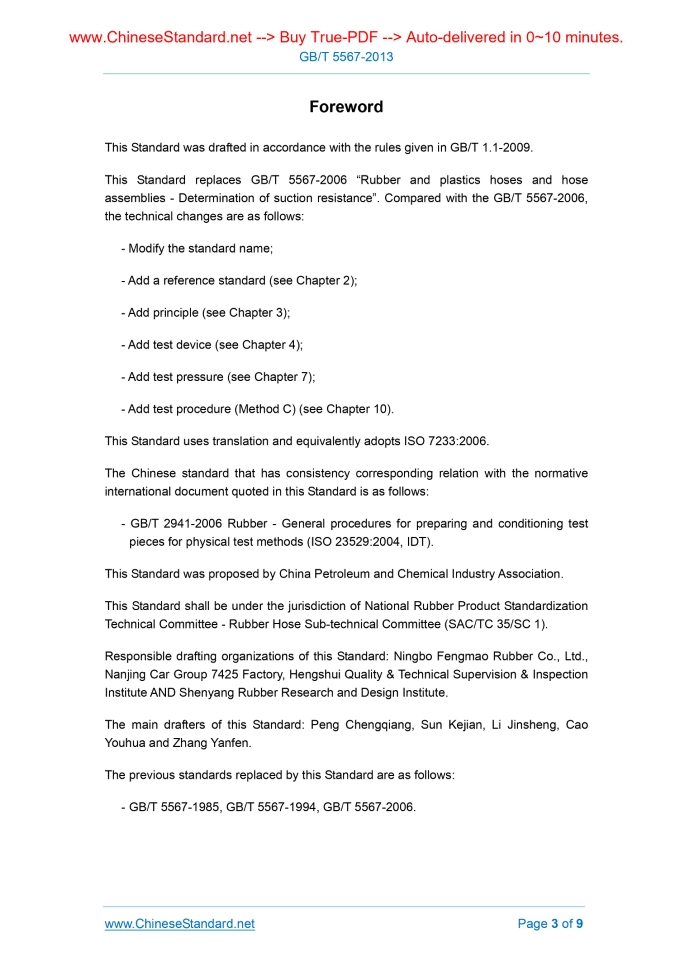

This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 5567-2006 “Rubber and plastics hoses and hose assemblies - Determination of suction resistance”. Compared with the GB/T 5567-2006, the technical changes are as follows. - Modify the standard name; - Add a reference standard (see Chapter 2); - Add principle (see Chapter 3); - Add test device (see Chapter 4); - Add test pressure (see Chapter 7); - Add test procedure (Method C) (see Chapter 10). This Standard uses translation and equivalently adopts ISO 7233.2006. The Chinese standard that has consistency corresponding relation with the normative international document quoted in this Standard is as follows. - GB/T 2941-2006 Rubber - General procedures for preparing and conditioning test pieces for physical test methods (ISO 23529.2004, IDT). This Standard was proposed by China Petroleum and Chemical Industry Association. This Standard shall be under the jurisdiction of National Rubber Product Standardization Technical Committee - Rubber Hose Sub-technical Committee (SAC/TC 35/SC 1). Responsible drafting organizations of this Standard. Ningbo Fengmao Rubber Co., Ltd., Nanjing Car Group 7425 Factory, Hengshui Quality & Technical Supervision & Inspection Institute AND Shenyang Rubber Research and Design Institute. The main drafters of this Standard. Peng Chengqiang, Sun Kejian, Li Jinsheng, Cao Youhua and Zhang Yanfen. The previous standards replaced by this Standard are as follows. - GB/T 5567-1985, GB/T 5567-1994, GB/T 5567-2006. Rubber and plastics hoses and hose assemblies - Determination of resistance to vacuum WARNING – The personnel who use this Standard shall have the practical working experience in a regular laboratory. This Standard does not indicate all possible safety issues. Users have the responsibility to take appropriate safety and health measures, and to ensure that the conditions comply with relevant national regulations.1 Scope
This Standard specifies three methods for determining the resistance to vacuum of hoses and hose assemblies manufactured from plastic or rubber. Applicable dimensions of hoses for each method are as follows. ۛ method A — for hoses of nominal bore up to and including 80 mm; ۛ method B — for hoses of nominal bore greater than 80 mm; ۛ method C — for hoses of all dimensions. Methods A and B can also be used to check the adhesion of the lining to the reinforcement (delamination) in a length of hard-wall hose or hose assembly.2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 9573-2013 Rubber and plastics hoses and hose assemblies - Methods of measurement of the dimensions of hoses and the lengths of hose assemblies (ISO 4671.2007, IDT) ISO 23529 Rubber - General procedures for preparing and conditioning test pieces for physical test methods3 Principle
The test methodology for determining the resistance to vacuum of plastic and rubber Bibliography [1] ISO 8330, Rubber and plastics hoses and hose assemblies - Vocabulary ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
