GB/T 3191-2019: Extrusion rods and bars of aluminium and aluminium alloys Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 3191: Historical versions

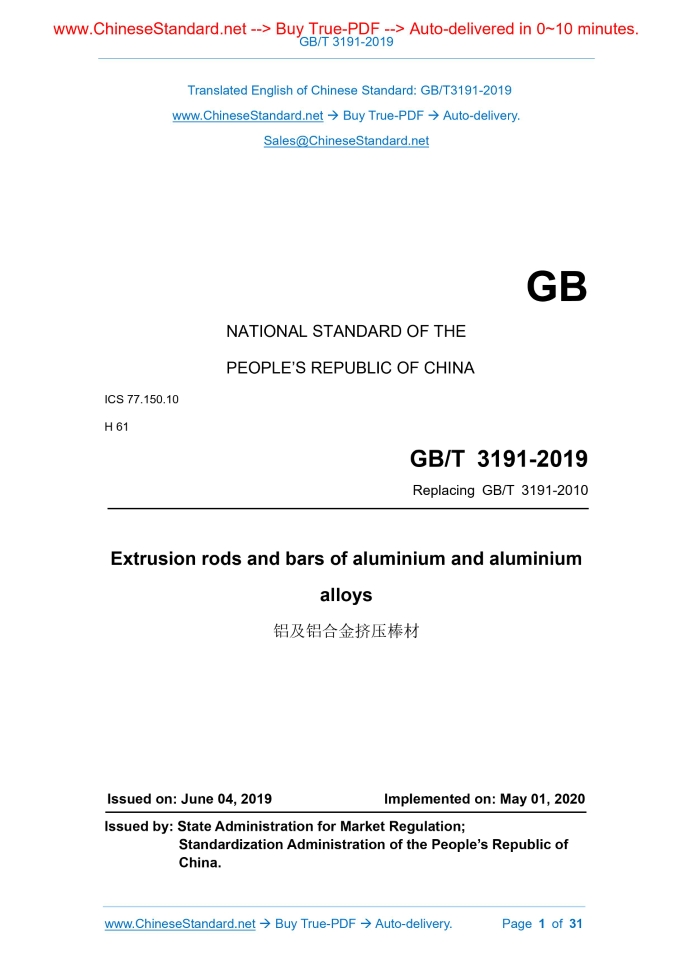

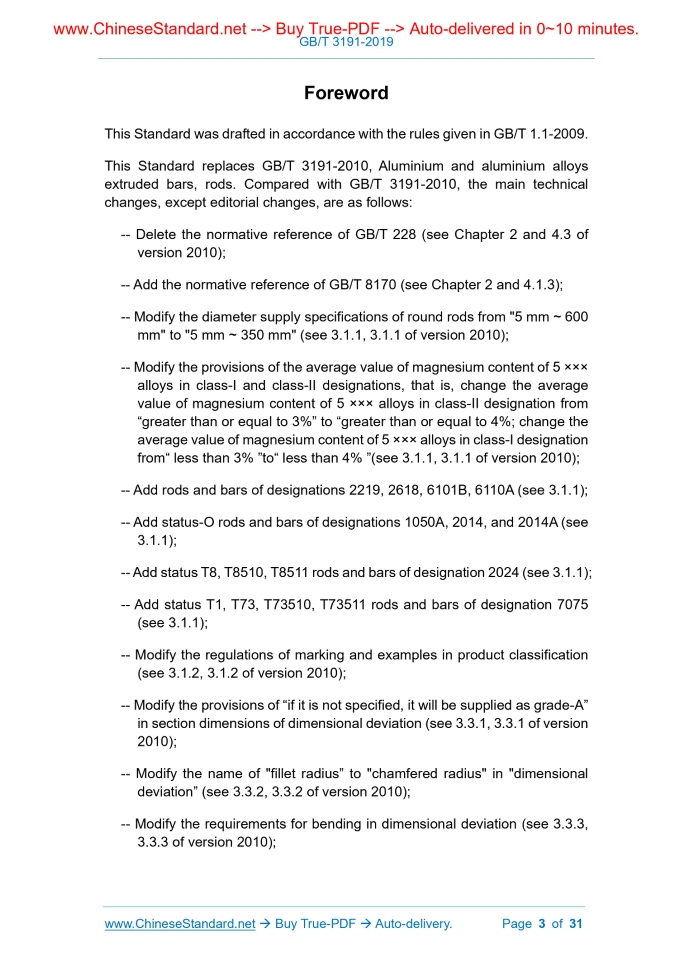

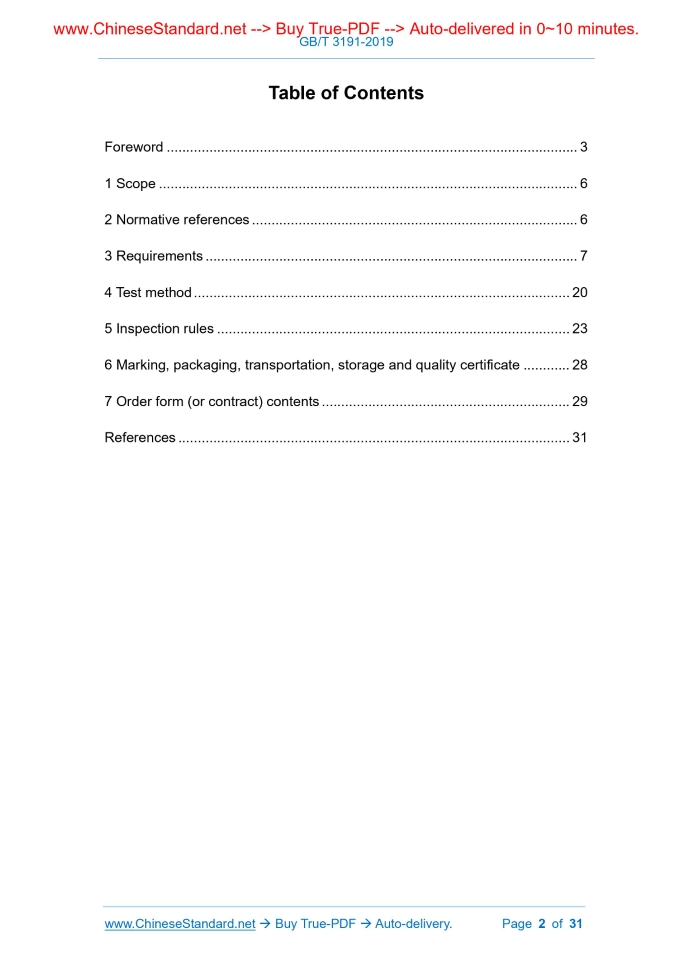

GB/T 3191-2019: Extrusion rods and bars of aluminium and aluminium alloys---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3191-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.150.10 H 61 Replacing GB/T 3191-2010 Extrusion rods and bars of aluminium and aluminium alloys Issued on. JUNE 04, 2019 Implemented on. MAY 01, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 6 2 Normative references... 6 3 Requirements... 7 4 Test method... 20 5 Inspection rules... 23 6 Marking, packaging, transportation, storage and quality certificate... 28 7 Order form (or contract) contents... 29 References... 311 ScopeThis Standard specifies the requirements, test methods, inspection rules and marking, packaging, transportation, storage, quality certificate and order form (or contract) contents of extrusion rods and bars of aluminium and aluminium alloys. This Standard applies to extrusion round rods, square rods and hexagonal rods (hereinafter referred to as “rods and bars") of aluminium and aluminium alloys.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document. GB/T 2039, Metallic materials - Uniaxial creep testing method in tension GB/T 3190, Wrought aluminum and aluminum alloy - Chemical composition GB/T 3199, Wrought aluminium and aluminium alloy products - Packing, marking, transporting and storing GB/T 3246.1, Inspection method for structure of wrought aluminum and aluminum alloy products - Part 1.Inspection method for microstructure GB/T 3246.2, Inspection method for structure of wrought aluminum and aluminum alloy products - Part 2.Inspection method for macrostructure GB/T 6519, Ultrasonic inspection of wrought aluminium and magnesium alloy products GB/T 7999, Optical emission spectrometric analysis method of aluminum and aluminum alloys GB/T 8170, Rules of rounding off for numerical values & expression and judgment of limiting values3 Requirements3.1 Product classification 3.1.1 Designation, supply status and dimensions The designation, supply status and dimensions of the rods and bars shall comply with the requirements of Table 1.Rods and bars of other designations, supply statuses and dimensions, if required, shall be negotiated between the supplier and the buyer, and specified in the order form (or contract). 3.1.2 Marking and examples Product markings are expressed in the order of product name, number of this Standard, designation, status and dimensions. Examples of markings are as follows. 3.8 Macro-structure 3.8.1 Cracks, shrinkage, and porosity are not permitted on the macro-structure samples of the rods and bars. 3.8.2 The layer depth on the macro-structure sample of the rods and bars shall not exceed half the negative deviation of the diameter of the rods and bars. When unlayered rods and bars are required, it shall be negotiated between the supplier and the buyer and indicated in the order form (or contract). 3.8.3 Point defects such as bright grains, non-metallic inclusions, foreign metallic inclusions, white spots and primary crystals on the macro-structure sample of the rods and bars shall comply with provisions in Table 11. 3.10 Appearance quality 3.10.1 Cracks, bubbles or corrosive spots are not permitted on the surface of the rod. 3.10.2 Peeling on the surface of the rods and bars, if any, shall be removed; however, the diameter of the round rods and the thickness of the square rods or hexagonal rods after removal must not exceed the allowable deviation range.4 Test method4.1 Chemical composition 4.1.1 Perform routine chemical analysis only on the numerically specified elements other than those in the columns of the “Al” and “Other” of corresponding designations in GB/T 3190.When the mass fraction of the non- routine analysis element is suspected to exceed the limit value of this Standard, the producer shall analyze these elements. 4.1.2 The analysis method of chemical composition shall comply with requirements of GB/T 20975 or GB/T 7999; the arbitration analysis shall adopt the methods which are specified in GB/T 20975. 4.2 Dimensional deviation 4.2.1 Section dimensions For the diameter of the round rods, and the thickness of the square rods or the hexagonal rods, use a caliper whose accuracy is not less than 0.02 mm or a measuring instrument of corresponding accuracy to perform the measurement. 4.2.2 Chamfer radius of square rods or hexagonal rods For the chamfer radius of square rods or hexagonal rods, use measuring tools such as calipers, micrometers, R gauges whose corresponding accuracy is not less than 0.1 mm or special instruments to measure. 4.2.3 Vertical bending Place the rod on the platform; when it becomes stable by its dead weight, place a 1 000 mm-long ruler (or knife ruler) against the surface of the rod along the length of the rod; use a feeler gauge to measure the maximum gap value hs between the surface of the rod and the ruler (or knife ruler); then, hs is the bending of the length of every 1 000 mm. 4.2.5 Twisting degree For the twisting degree of square or hexagonal rods, place the rod on the platform and make one end of it close to the platform. When the rod is stable by its own weight, measure the gap values T1 and T2 between the two ends of the rod's raised ends and the platform, as the twisting degree of the rod, as shown in Figure 3.Use calipers, feelers or special tools to measure. 4.3 Room-temperature tensile mechanical properties Perform the room-temperature tensile test according to the method that is specified in GB/T 16865. 4.4 High-temperature endurance tensile mechanical properties Perform the high-temperature endurance tensile mechanical properties according to the provisions in GB/T 2039. 4.5 Ultrasonic flaw detection performance Perform the ultrasonic flaw detection in accordance with GB/T 6519. 4.8 Appearance quality Visually inspect the appearance quality under natural scattered light. If necessary, use dimensional measurement tools to define the defect size; determine the defect depth by grinding.5 Inspection rules5.1 Inspection and acceptance 5.1.1 The product shall be inspected by the supplier to ensure that the product quality complies with the requirements of this Standard and the order form (or the contract); the supplier shall fill in the quality certificate. 5.1.2 The buyer shall inspect the received products in accordance with the provisions of this Standard. If the test result is inconsistent with the provisions of this Standard and the order form (or the contract), a written form shall be submitted to the supplier; 5.2 Batch Products shall be submitted for acceptance in batches. Each batch shall consist of products of the same designation, status and dimensions; the weight of each batch is not limited. 5.3 Weight The products shall be weighed on the scales (unless it is otherwise agreed by the supplier and the buyer). 5.4 Inspection items 5.4.1 Each batch of products, before being delivered, shall be inspected for chemical composition, dimensional deviation, room-temperature tensile mechanical properties and appearance quality. 5.4.2 For rods and bars whose diameter or thickness is not less than 20.00 mm, the macro-structure of each batch shall be inspected; for rods and bars whose macro-structure is less than 20.00 mm, the macro-structure shall be guaranteed by the supplier process. 5.4.3 Each batch of off-quenched rods and bars shall be inspected for microstructure. 5.4.4 When the buyer indicates in the order form (or contract) that the inspection of ultrasonic flaw detection performance is required, the inspection of ultrasonic flaw detection shall be performed. 5.6 Determination of the inspection result 5.6.1 When the chemical composition of any sample is unqualified, if the melting order of the rods and bars can be distinguished, judge the melting order of rods and bars that is represented by the sample as unqualified; inspect other melting orders of rods and bars in turn, and deliver the qualified ones. If the melting order cannot be distinguished, judge the batch as unqualified. 5.6.2 When the dimensional deviation of any of the samples is unqualified, judge the batch of rods and bars as unqualified. 6 Marking, packaging, transportation, storage and quality certificate 6.1 Marking 6.1.1 Product marking 6.1.2 Package marking The package marking of the product shall comply with the provisions of GB/T 3199. 6.2 Packaging The rods and bars are not oiled or packed with paper. When the buyer requires oiling or padding, it shall be specified in the order form (or contract). Other packaging requirements are in accordance with GB/T 3199. 6.3 Transportation and storage The transportation and storage of the rods and bars shall comply with the provisions of GB/T 3199. 6.4 Quality certificate Each batch of products shall be accompanied by a product quality certificate, which indicates. a) the name of the supplier; b) product name. c) designation, status, dimensions; d) product batch number or date of manufacture; e) net weight or number of pieces; f) various of analysis and test results; g) the inspection stamp of the supplier's quality inspection department; h) code of this Standard; i) date of packaging (or date of manufacture).7 Order form (or contract) contentsThe order form (or contract) that orders the materials which are listed in this Standard shall include the following. a) product name. b) designation, status and dimensions. c) weight (or number of pieces). d) special requirements of the buyer. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3191-2019 be delivered?Answer: The full copy PDF of English version of GB/T 3191-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3191-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3191-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3191-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 3191-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 3191-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 3191-2019?A step-by-step guide to download PDF of GB/T 3191-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3191-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
