GB/T 23131-2019 PDF EnglishUS$230.00 · In stock · Download in 9 seconds
GB/T 23131-2019: Household and similar electrical toilets Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 23131: Historical versions

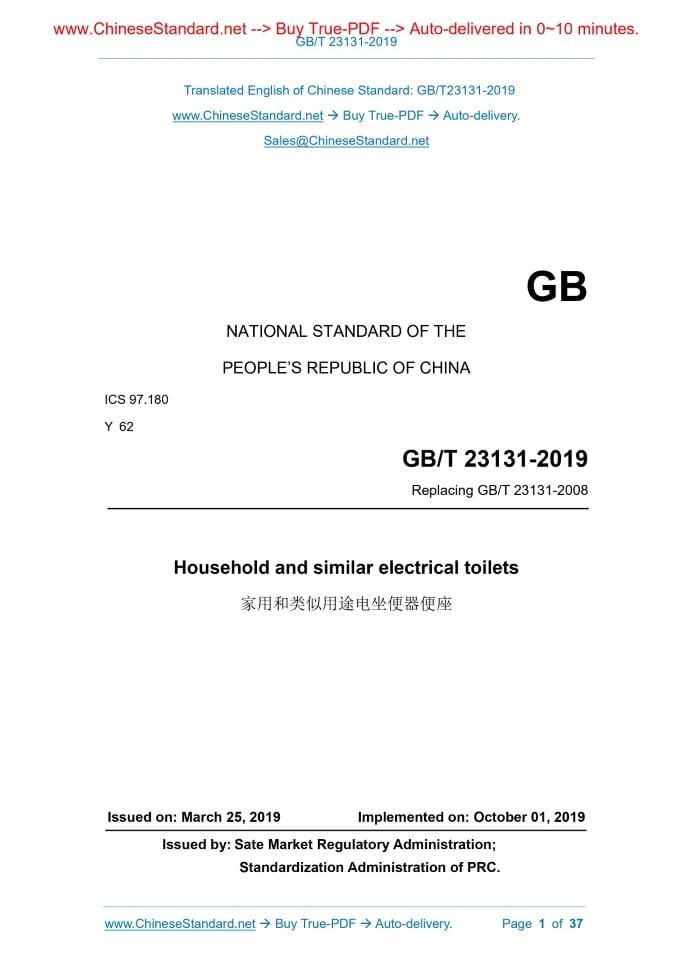

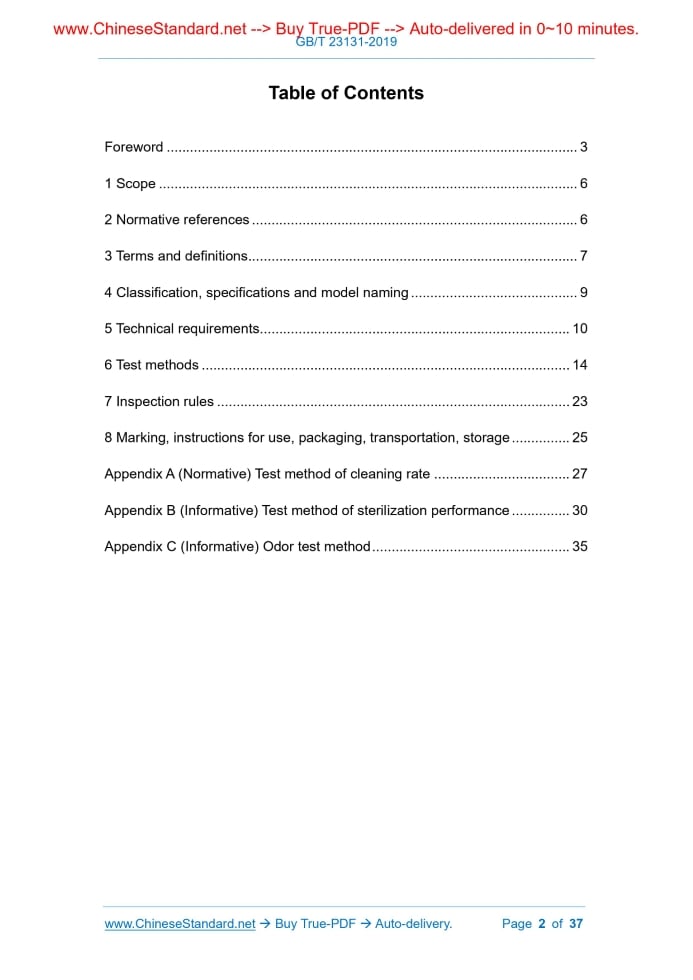

Similar standardsGB/T 23131-2019: Household and similar electrical toilets---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT23131-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.180 Y 62 Replacing GB/T 23131-2008 Household and similar electrical toilets Issued on. MARCH 25, 2019 Implemented on. OCTOBER 01, 2019 Issued by. Sate Market Regulatory Administration; Standardization Administration of PRC. Table of ContentsForeword... 3 1 Scope... 6 2 Normative references... 6 3 Terms and definitions... 7 4 Classification, specifications and model naming... 9 5 Technical requirements... 10 6 Test methods... 14 7 Inspection rules... 23 8 Marking, instructions for use, packaging, transportation, storage... 25 Appendix A (Normative) Test method of cleaning rate... 27 Appendix B (Informative) Test method of sterilization performance... 30 Appendix C (Informative) Odor test method... 351 ScopeThis standard specifies the terms and definitions, classification, specifications and model naming, technical requirements, test methods, inspection rules, markings, instructions for use, packaging, transportation and storage of household and similar electrical toilets. This standard applies to single-phase electrical toilets that are used in households and similar places and which have a rated voltage not exceeding 250 V. This standard does not apply to ceramic toilets and electrical toilets for medical use.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard. GB/T 191 Packaging - Pictorial marking for handling of goods GB/T 1019 General requirements for the package of household and similar electrical appliances GB/T 2828.1 Sampling procedures for inspection by attributes -Part 1. Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection GB/T 4214.1 Test method for noise of household and similar electrical appliances - General requirements3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Electrical toilets The appliances which are driven by electric power and clean the residual excrement of the human body by water, has the single-function or multi- function such as blowing or seat heating, etc. (hereinafter referred to as "electrical toilets"). 3.2 Standard operation mode The standard operation process which is used to measure such items as cleaning rate, energy consumption, water consumption, etc. 3.3 Cleaning rate The percentage of simulated human excretion as removed in standard operation mode. 3.4 Spray water flow consumption The amount of water as consumed by the electrical toilet per unit time in the specified cleaning mode. 3.5 Energy consumption The amount of electricity as consumed by the electrical toilet in the standard operation mode. 3.6 Water consumption The amount of water as consumed by the electrical toilet in the standard operation mode.4 Classification, specifications and model naming4.1 Classification 4.1.1 According to the control method, it is divided into. 4.1.2 According to the cleaning and heating method, it is divided into. 4.1.3 According to the functional forms, it is divided into. 4.2 Specifications The specifications of the electrical toilet are expressed in the model number as the maximum spray water flow consumption of the electrical toilet, in the unit of milliliters per minute (mL/min). 4.3 Model naming Example. ZPJ680-FRQC-A represents an instant-heating electrical toilet with air blowing, seat heating, nozzle self-cleaning and environmental deodorization, a maximum spray water flow consumption of 680 mL/min, the manufacturer design code of A.5 Technical requirements5.1 Conditions of use 5.1.1 The use of electrical toilet shall meet the following requirements. 5.1.2 Test run The electrical toilet shall run well for one cycle. 5.2 Cleaning performance 5.2.1 Cleaning rate 5.2.1.1 The cleaning rate shall be not less than 90.0%. 5.2.2 Spray water flow consumption The actual measured value of the maximum spray water flow consumption of the electrical toilet shall not be less than 95% of the stated value. 5.3 Blowing performance 5.3.1 Blowing temperature The maximum temperature of the air blowing outlet shall be not more than 65 °C. 5.3.2 Air blowing volume 5.4 Seat's heating performance 5.4.1 Seat's surface temperature In the highest temperature mode of the electrical toilet, the temperature of all test points shall not exceed 45 °C. 5.4.2 Seat's surface temperature uniformity The difference between the measured value of each point of the electrical toilet and the average temperature shall not exceed 5 K. 5.5 Energy consumption 5.6 Water consumption 5.7 Durability 5.7.1 The durability of the electrical toilet shall not be less than 25000 times. 5.7.2 The durability of the electrical toilet is divided into four grades. A, B, C, D from high to low, as shown in Table 6. Table 6 -- Grading of durability 5.9 Structure and materials 5.9.1 The surface of the electrical toilet in contact with the human body shall be smooth. When used normally, it shall not scratch the human skin. 5.9.2 Under normal working conditions, the cleaning system of the electrical toilet operates normally without jamming. 5.9.3 Water supply components and heating water tanks shall not leak.6 Test methods6.1 Test requirements 6.1.1 Unless otherwise specified, the test environmental conditions shall meet. 6.1.2 Power supply. Single-phase AC sine wave, the fluctuation range of voltage and frequency shall not exceed ±2% of the rated value. 6.1.3 Water source temperature. (15 ± 2) °C. 6.1.8 Instrumentation and accuracy shall meet the following requirements. 6.2 Cleaning performance 6.2.1 Cleaning rate The electrical toilet is tested in accordance with the provisions of Appendix A in the standard operation mode. 6.2.4 Response time of outlet water temperature In the standard operation mode of the electrical toilet, place the temperature sensor in the water outlet direction of the nozzle, at a position 10 mm away from the nozzle's outlet, to record the time from the abrupt temperature change of the temperature sensor in contact with cleaning water flow to a temperature of 35 °C. 6.3 Air blowing performance 6.3.1 Blowing temperature Requirements for test environment temperature. (23 ± 2) °C. Follow the steps below to measure the air blowing temperature. 6.3.2 Air blowing volume Follow the steps below to measure the air blowing speed and air blowing volume. 6.5.2 Calculation of energy consumption Record the energy consumption for the entire period. calculate the energy consumption according to formula (4). 6.7 Durability According to the instructions for use, the flushing water temperature and intensity are set to the highest gear, the air blowing function is set to the highest gear. Rinse the buttocks for 30 s, bidet for 30 s (if there is no such function, use the buttocks rinsing function to rinse it for another 30 s). If there is air blowing function, run it for 30 s. The above operation modes form a test cycle. The time interval between different cycles is 30 s. After the test is completed, the electrical toilet can still complete the functions as specified in the instructions for use. 6.8 Antibacterial, mildew-proof, sterilization, deodorization ability 6.8.1 The antibacterial rate and mildew-proof grade of the material shall be in accordance with the provisions of GB 21551.2. 6.9 Structure and materials Use visual inspection of each item in 5.9.1 ~ 5.9.3 to confirm whether they comply with requirements. The item in 5.9.4 is tested according to the method of Appendix A of GB 21551.1-2008.7 Inspection rules7.1 Inspection requirements Products shall pass the test in accordance with this standard before they can be put into production in batches. 7.4 Exit-factory inspection 7.4.1 Each product is subject to exit-factory inspection and can be exit-factory after passing the inspection. 7.5 Type test 7.5.1 In addition to the requirements specified in GB 4706.1, GB 4706.53-2008 and GB/T 4343.2, the type test of the product shall also comply with the relevant requirements of chapter 5. 7.5.2 Type test shall be carried out in one of the following cases. 7.5.3 The period of the type test shall be determined by the manufacturer itself. The sample shall be randomly selected from the products that have passed the exit-factory inspection.8 Marking, instructions for use, packaging, transportation, storage8.1 Marking The marking of the product shall comply with the corresponding provisions of GB 4706.1 and GB 4706.53-2008 as related to the "marking". 8.2 Instructions for use In addition to the corresponding provisions of GB 4706.1, GB 4706.53-2008 and GB/T 5296.2, the instructions for use of the product shall also include. 8.3 Packaging The packaging shall be in accordance with the conditions as specified in GB/T 191 and GB/T 1019.In addition to the product's implemented standards GB 4706.1, GB 4706.53-2008 and this standard, it shall also include. 8.4 Transportation During the transportation of the product, it is strictly forbidden to expose to rain, damp, violent collision. 8.5 Storage Packaged products shall be stored in a warehouse at room temperature, ventilated and dry, free of corrosive gases. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 23131-2019 be delivered?Answer: The full copy PDF of English version of GB/T 23131-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 23131-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 23131-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 23131-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 23131-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 23131-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 23131-2019?A step-by-step guide to download PDF of GB/T 23131-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 23131-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
