GB/T 18158-2019: Specifications of amusement rides merry-go-round category Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 18158: Historical versions

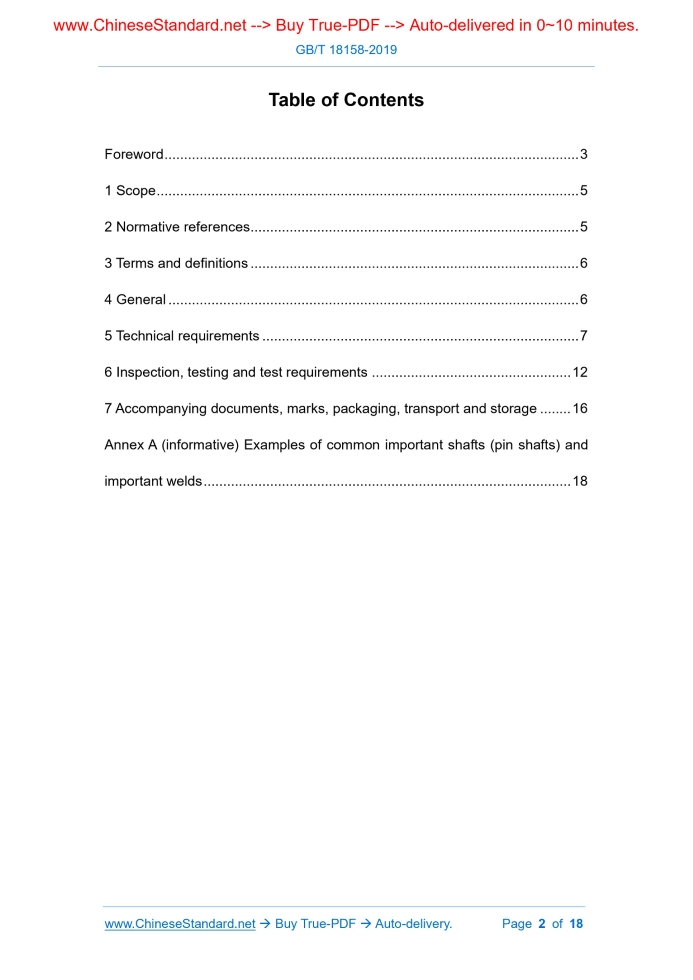

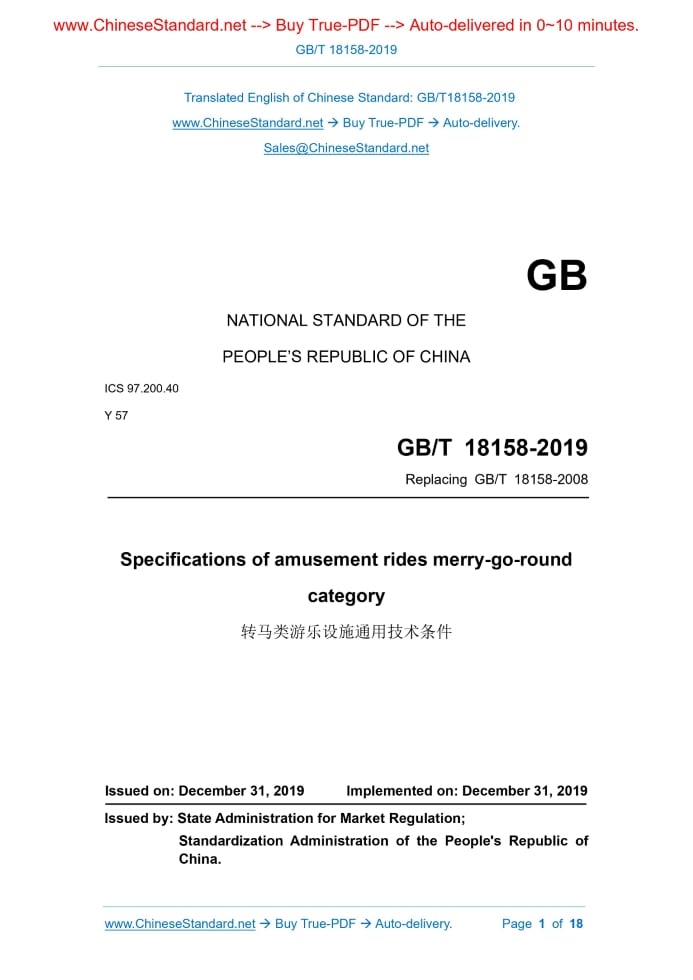

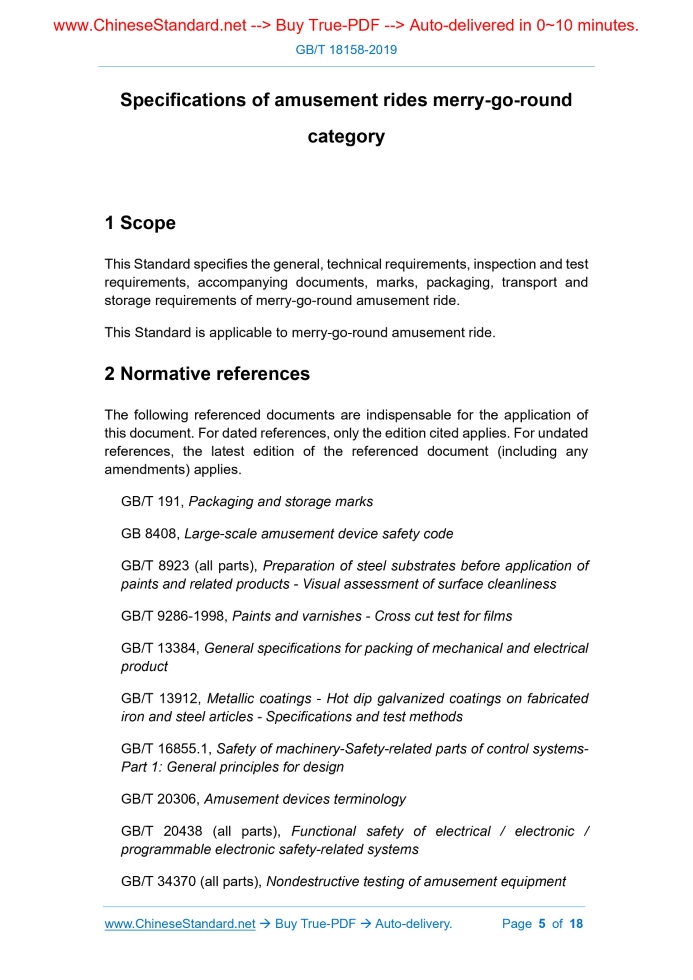

Similar standardsGB/T 18158-2019: Specifications of amusement rides merry-go-round category---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT18158-2019GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.200.40 Y 57 Replacing GB/T 18158-2008 Specifications of amusement rides merry-go-round category Issued on. DECEMBER 31, 2019 Implemented on. DECEMBER 31, 2019 Issued by. State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 6 4 General... 6 5 Technical requirements... 7 6 Inspection, testing and test requirements... 12 7 Accompanying documents, marks, packaging, transport and storage... 16 Annex A (informative) Examples of common important shafts (pin shafts) and important welds... 181 ScopeThis Standard specifies the general, technical requirements, inspection and test requirements, accompanying documents, marks, packaging, transport and storage requirements of merry-go-round amusement ride. This Standard is applicable to merry-go-round amusement ride.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 191, Packaging and storage marks GB 8408, Large-scale amusement device safety code GB/T 8923 (all parts), Preparation of steel substrates before application of paints and related products - Visual assessment of surface cleanliness GB/T 9286-1998, Paints and varnishes - Cross cut test for films GB/T 13384, General specifications for packing of mechanical and electrical product3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 20306 as well as the followings apply. 3.1 merry-go-round series A merry-go-round amusement ride that the equipment rotating platform rotates around the central vertical column, and the loading system is installed on the rotating platform with a certain stroke up and down. 3.2 rotating cup series A merry-go-round amusement ride that the equipment rotating platform rotates at a fixed inclination around the central vertical column, and the loading system is installed on the rotating platform to spin. 3.5 fail-safe A mode that after the equipment fails, its control system or mechanical mechanism system can maintain a safe state or transfer to a safe state to avoid larger failures or accidents. 3.6 single point of failure A certain part, structural connection point or electrical component on the amusement device, of which its failure shall cause the entire equipment to fail or seriously endanger the safety of passengers.4 General4.1 The design, manufacture, installation, transformation, repair, test and inspection, marks, packaging, transport and storage of merry-go-round amusement ride shall comply with relevant provisions of GB 8408 and relevant requirements of this Standard.5 Technical requirements5.1 Basic requirements 5.1.1 The design documents for merry-go-round amusement ride shall at least include design instructions, design calculations, operation and maintenance instructions, risk assessment reports, design verification outlines and a full set of design drawings that meet relevant national standards. 5.1.5 Important shafts (pin shafts) that are difficult to inspect and detect shall be designed for infinite life. 5.2 Machinery and structure 5.2.1 For merry-go-round amusement ride that uses peripheral transmission, the track surface shall be smooth. The gap at the butt joint of the track shall not be greater than 2mm. The height difference shall not exceed 1mm. 5.2.6 For merry-go-round amusement ride that has passenger restraint device, the safety distance is not less than 500mm outside the inner surface of the seat. 5.2.7 For merry-go-round series, the second floor and above platforms shall have separate entrance and exit. The opening direction of the entrance and exit doors shall be the same as the direction in which passengers enter. The entrance and exit doors shall be equipped with locking devices. Passengers cannot open the doors by themselves during operation. They shall have anti- pinching function. 5.2.12 The foundation of mobile amusement rides shall meet the requirements of equipment carrying capacity. The base frame shall meet the equipment’s anti-skid requirements. 5.2.13 The important shafts (pin shafts) and important welds of merry-go-round series shall be non-destructively tested. Non-destructive testing methods and requirements are implemented in accordance with GB/T 34370.For examples of common important shafts (pin shafts) and important welds, see Annex A. 5.3 Ride system 5.3.1 The frame of the passenger device shall be made of metal materials. Seats shall be made of rubber, wood or fiberglass materials. 5.3.6 In accordance with acceleration zone requirements in GB 8408, the merry-go-round series with acceleration in area 4 or area 5, shall be equipped with two independent passenger restraint devices or a fail-safe passenger restraint device. The locking device shall be redundant and easy to check. 5.4 Electrical control system 5.4.1 Safety-related electrical control systems shall comply with the fail-safe principle. When the system has faults such as signal acquisition error, control line disconnection, power supply line disconnection or short circuit, the system shall be guided to safety. 5.4.2 The selection of safety components of the control system shall meet the requirements of GB/T 16855.1.The selection of hardware and software in the electrical and electronic programmable devices of the control system shall meet the requirements of GB/T 20438.6 Inspection, testing and test requirements6.1 Basic requirements 6.1.1 The manufacturer shall formulate specific inspection, testing and test plans based on relevant standards, design documents, manufacturing processes and equipment characteristics. 6.1.2 After each product is installed and debugged, it shall be inspected, tested according to the formulated plan. All items are qualified before delivery for use. 6.1.3 The wind speed during the test shall not be greater than 8m/s. 6.1.7 After the test, the parts with problems or doubts shall be inspected, and the causes of the problems found shall be identified in time, and measures shall be taken, and detailed records shall be made. 6.1.8 After each inspection, an inspection report shall be prepared. The inspection report shall at least contain the following information. 6.1.9 The manufacturer shall keep product inspection reports and related records, drawings, quality certification documents and technical documents. 6.2 Machinery and structure 6.2.1 For merry-go-round series using peripheral transmission, measure the gap between rail docking positions. The measurement position is not less than 3.Take the maximum value. 6.3 Ride system 6.3.1 The passenger restraint device test shall be carried out under full load conditions. The restraint device shall work. For amusement facilities with two sets of restraint devices, each set of restraint devices shall function independently. Each set of restraint device shall be tested not less than 3 times. 6.4 Electrical control system 6.4.1 For merry-go-round series, when the rotating platform of the multi-layer carousel allows independent rotation, test the independent control function of each layer under full load conditions. Test the interlocking function of the safety confirmation button and equipment start of the rotating platform on the second layer and above. Test the function of automatically aligning with the stairway when the rotating platform on the second layer and above stops automatically. The test shall be carried out not less than 3 times. 6.5 Emergency rescue 6.5.1 The emergency rescue inspection shall include the effectiveness and timeliness of rescue devices and rescue measures under various foreseeable working conditions in the plan. 6.7 Whole machine 6.7.1 Macro visual inspection shall include all machinery and structures, loading systems, electrical control systems, emergency rescue, surface protection and so on. 6.7.2 Static parameters such as the number of passengers, the number of layers, and the number of cabins in the main technical parameters of merry-go- round series can be obtained through macroscopic visual inspection. 6.7.3 The speed test shall be carried out under full load conditions. After the merry-go-round series are running smoothly, use a stopwatch to measure the time required for continuous operation for 5 weeks. Calculate the rotating speed according to formula (1). Repeat the test 3 times. Take the average value.7 Accompanying documents, marks, packaging, transport and storage7.1 Accompanying documents, marks 7.1.1 The product shall include at least the following accompanying documents before delivery, and shall be placed in the control cabinet box or the host box. 7.1.2 The merry-go-round series shall have product nameplates at prominent locations. 7.2 Packaging, transport and storage 7.2.1 The packaging of merry-go-round series products and their parts and components shall comply with the relevant regulations of GB/T 191 and GB/T 13384. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 18158-2019 be delivered?Answer: The full copy PDF of English version of GB/T 18158-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 18158-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 18158-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 18158-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 18158-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 18158-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 18158-2019?A step-by-step guide to download PDF of GB/T 18158-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 18158-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
