GB 32051-2024 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB 32051-2024: Norm of energy consumption per unit production of titanium dioxide and iron oxide pigments Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 32051: Historical versions

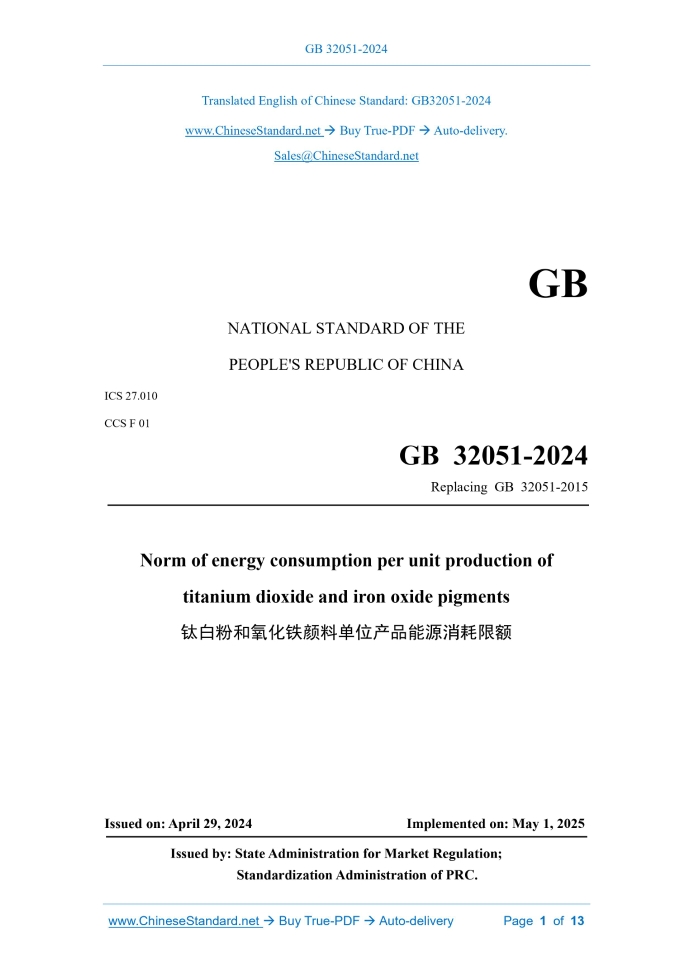

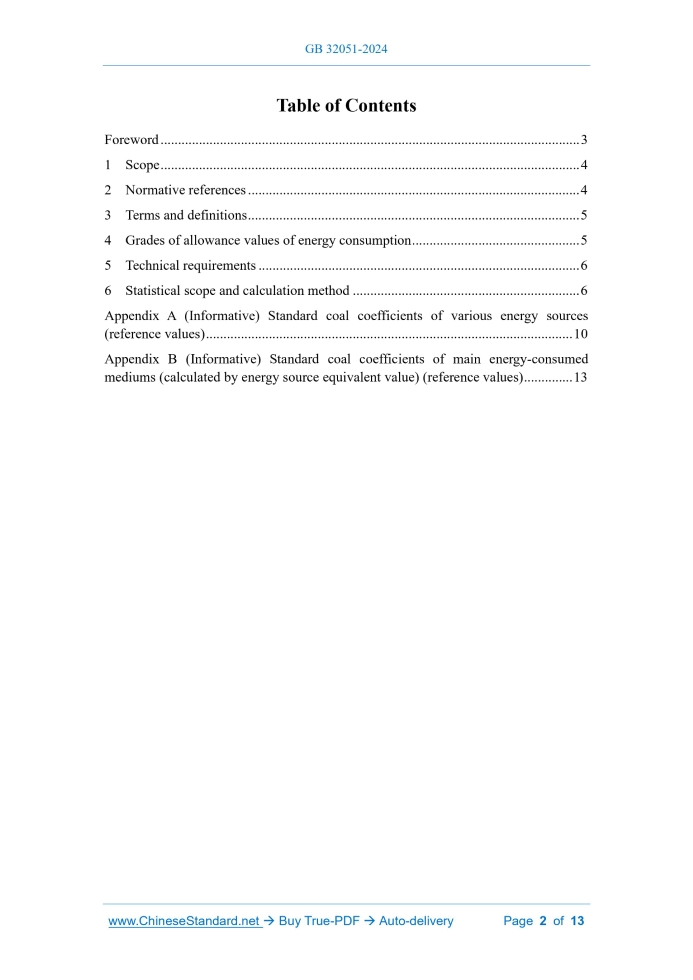

Similar standardsGB 32051-2024: Norm of energy consumption per unit production of titanium dioxide and iron oxide pigments---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB32051-2024 GB NATIONAL STANDARD OF THE PEOPLE'S REPUBLIC OF CHINA ICS 27.010 CCS F 01 Replacing GB 32051-2015 Norm of energy consumption per unit production of titanium dioxide and iron oxide pigments Issued on: APRIL 29, 2024 Implemented on: MAY 1, 2025 Issued by. State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 5 4 Grades of allowance values of energy consumption... 5 5 Technical requirements... 6 6 Statistical scope and calculation method... 6 Appendix A (Informative) Standard coal coefficients of various energy sources (reference values)... 10 Appendix B (Informative) Standard coal coefficients of main energy-consumed mediums (calculated by energy source equivalent value) (reference values)... 13 Norm of energy consumption per unit production of titanium dioxide and iron oxide pigments1 ScopeThis document specifies the grades of allowance values, technical requirements, statistical scope and calculation method for the energy consumption per unit products of titanium dioxide and iron oxide pigments (referred to as energy consumption). This document is applicable to the calculation and assessment of energy consumption of production enterprises of titanium dioxide produced by the sulfate process with ilmenite, titanium concentrate or acid-soluble titanium slag as the main raw materials, titanium dioxide produced by the chloride process with natural rutile, artificial rutile or high-titanium chloride slag and chlorine as the main raw materials, and iron oxide pigments with scrap iron, ferrous sulfate, nitric acid and sulfuric acid as the main raw materials, as well as the energy consumption control of new projects and renovation and expansion projects. This document is not applicable to the hydrochloric acid method for the production of titanium dioxide chloride and the low-grade blast furnace titanium-containing slag low- temperature titanium dioxide chloride production process.2 Normative referencesThe provisions of the following documents constitute the essential clauses of this document through normative references in this text. Among them, for referenced documents with dates, only the versions corresponding to the dates are applicable to this document; for referenced documents without dates, the latest versions (including all amendments) are applicable to this document. GB/T 1706 Titanium dioxide pigments GB/T 1863 Iron oxide pigments GB/T 2589 General rules for calculation of the comprehensive energy consumption GB/T 12723 General principles for establishing allowance of energy consumption per unit throughput3 Terms and definitionsThe terms and definitions defined in GB/T 12723 and the following apply to this document. 3.1 comprehensive energy consumption of titanium dioxide During the reporting period, the total amount of various energy actually consumed in production within the titanium dioxide production boundary. 3.2 comprehensive energy consumption per unit products of titanium dioxide The comprehensive energy consumption of titanium dioxide (3.1) expressed by per unit of throughput. 3.3 comprehensive energy consumption of iron oxide pigments During the reporting period, the total amount of various energy actually consumed in the production within the iron oxide pigment production boundary. 3.4 comprehensive energy consumption per unit products of iron oxide pigments The comprehensive energy consumption of iron oxide pigments (3.3) expressed by per unit of throughput.4 Grades of allowance values of energy consumption4.1 Grades of allowance values of titanium dioxide energy consumption The grades of allowance values of titanium dioxide energy consumption are as specified in Table 1, among which Grade 1 has the lowest energy consumption. 4.2 Grades of allowance values of energy consumption of iron oxide pigments The grades of allowance values of energy consumption of iron oxide pigments are in accordance with the provisions of Table 2, among which Grade 1 has the lowest energy consumption.5 Technical requirements5.1 The energy consumption limit values for existing titanium dioxide and iron oxide pigment manufacturers shall comply with the Grade 3 requirements in Table 1 and Table 2 respectively. 5.2 The energy consumption access values for new construction or renovation and expansion of titanium dioxide and iron oxide pigment manufacturers shall comply with the Grade 2 requirements in Table 1 and Table 2 respectively.6 Statistical scope and calculation method6.1 Statistical scope 6.1.1 General provisions The comprehensive energy consumption of titanium dioxide and iron oxide pigment products shall include the energy consumption of the production system, the energy consumption of the auxiliary production system and the energy consumption of the ancillary production system. The statistics and accounting of energy consumption shall include all production links, auxiliary production and ancillary production systems, and shall neither be repeated nor omitted. 6.1.2 Energy consumption of production system 6.1.2.1 Energy consumption of titanium dioxide production system The energy consumption of all processes from the titanium raw materials (ilmenite, acid-soluble titanium slag, natural rutile, artificial rutile or titanium chloride slag, etc.), raw materials such as sulfuric acid or chlorine, and energy such as steam, water, electricity, and natural gas entering the production process after calculation to titanium dioxide finished products being packaged and transported to the warehouse. a) Energy consumption of production system of titanium dioxide by sulfuric acid method. Energy consumption of all equipment and processes involving in the entry of titanium raw materials (ilmenite, titanium concentrate and acid- soluble titanium slag, etc.) and sulfuric acid into production, the acidolysis, purification, concentration, hydrolysis, water washing, calcination, post- treatment and other main processes, and the packaging and transportation to the warehouse of the finished products. b) Energy consumption of production system of titanium dioxide by chloride process. The energy consumption of all production processes including the reaction of titanium raw materials (natural rutile, artificial rutile or high titanium chloride slag) and petroleum coke with chlorine or chlorine returned from oxidation in a chlorination furnace to generate titanium tetrachloride, the obtaining of refined titanium tetrachloride from the purification and refinement of titanium tetrachloride, the production of titanium dioxide semi- finished products from refined titanium tetrachloride being oxidized with high-temperature oxygen in the gas phase, the post-processing, coating, water washing, filtering, drying, and air flow pulverization of titanium dioxide semi- finished products, and final packaging into finished products for storage. 6.1.2.2 Energy consumption of iron oxide pigment production system The energy consumption of all processes from the raw materials such as scrap iron, ferrous sulfate, nitric acid, sulfuric acid and water, and energy such as steam, electricity and natural gas enter the production process after metering to the packaging and transportation of the finished iron oxide pigment to the warehouse. 6.1.3 Energy consumption of auxiliary production systems The energy consumption of auxiliary production systems shall include the energy consumption of technological processes, facilities and equipment serving the production system, mainly the energy consumption of power supply, machine repair, water supply, gas supply, heat supply, refrigeration, instrument repair, lighting, warehouses and raw material sites within the factory, as well as safety, environmental protection, energy-saving and other facilities. 6.1.4 Energy consumption of ancillary production systems The energy consumption of the ancillary production system shall include the energy consumption of the production command system (factory headquarters) specially configured for the production system and the departments and units within the factory that provide production services, mainly facilities such as the dispatching room, office, operation room, control room, lounge, changing room, bathhouse, central control analysis, product inspection, and maintenance. 6.1.5 Recycled energy The recycling of the waste heat, waste energy and chemical reaction heat generated in the production boundary of titanium dioxide and iron oxide pigments are not included in the energy consumption. For the recycling by devices outside the boundary area that are recycled and utilized, the actual energy sent out shall be deducted from the energy consumption within the boundary area. The processes of producing sulfuric acid products such as sulfuric acid from sulfur and pyrite do not fall under the category of titanium dioxide production processes, and their energy consumption is not included in the comprehensive energy consumption of titanium dioxide. The energy consumption of the waste acid concentration process in the titanium dioxide production process is included in the comprehensive energy consumption per unit products of titanium dioxide, but it is separately counted in the energy consumption statistics process and not subject to assessment. 6.2 Calculation method 6.2.1 The calculation of comprehensive energy consumption shall comply with the provisions of GB/T 2589. 6.2.2 The calorific value of various energy sources is converted into a unified unit of measurement, kilograms of standard coal equivalent (kgce). The calorific value of various energy sources is based on the calorific value actually measured by the enterprise during the reporting period. If there is no actual measurement condition, the reference standard coal coefficients of various energy sources given in Appendix A or Appendix B shall be used for conversion. 6.2.3 The comprehensive energy consumption (E) of titanium dioxide and iron oxide pigment products is calculated according to formula (1). Where. E -- Comprehensive energy consumption of titanium dioxide and iron oxide pigment products, in kilograms of standard coal equivalent (kgce); m -- The number of energy types input; ei -- the physical quantity of the i-th energy consumed in the production of titanium dioxide and iron oxide pigment products, in kilograms (kg); ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 32051-2024 be delivered?Answer: The full copy PDF of English version of GB 32051-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 32051-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB 32051-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 32051-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 32051-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 32051-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 32051-2024?A step-by-step guide to download PDF of GB 32051-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 32051-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
