GB 30253-2024 PDF EnglishUS$740.00 · In stock · Download in 9 seconds
GB 30253-2024: Minimum allowable values of energy efficiency and energy efficiency grades for permanent magnet synchronous motors Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 30253: Historical versions

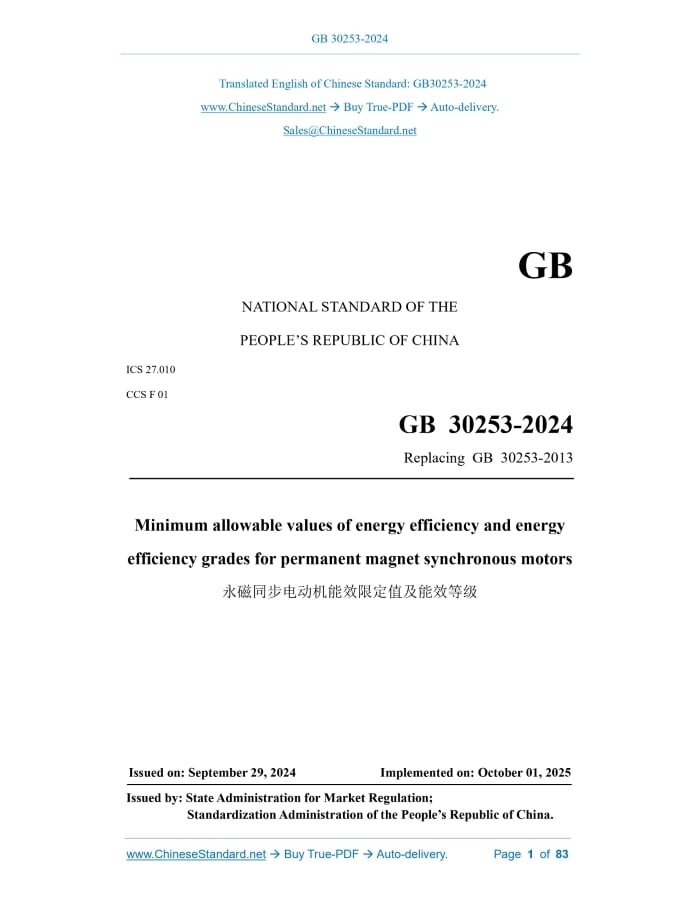

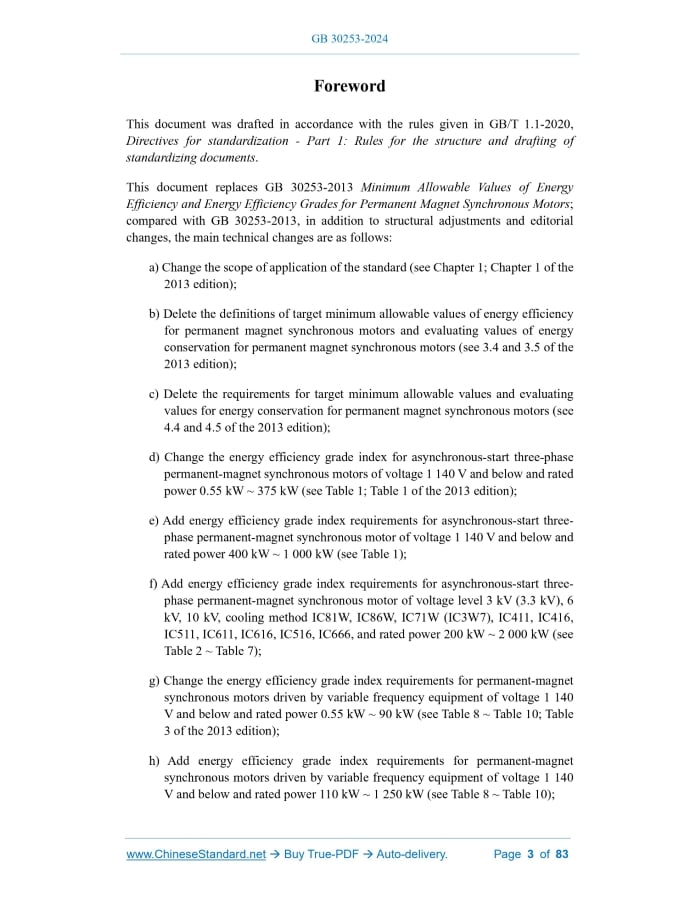

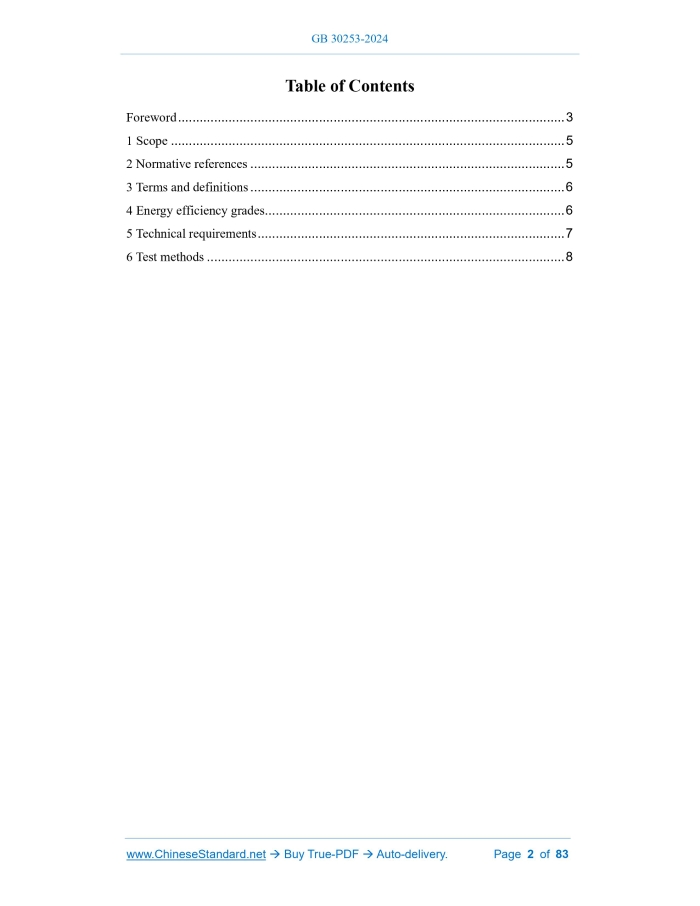

GB 30253-2024: Minimum allowable values of energy efficiency and energy efficiency grades for permanent magnet synchronous motors---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB30253-2024 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 27.010 CCS F 01 Replacing GB 30253-2013 Minimum allowable values of energy efficiency and energy efficiency grades for permanent magnet synchronous motors Issued on. SEPTEMBER 29, 2024 Implemented on. OCTOBER 01, 2025 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 6 4 Energy efficiency grades... 6 5 Technical requirements... 7 6 Test methods... 8ForewordThis document was drafted in accordance with the rules given in GB/T 1.1-2020, Directives for standardization - Part 1.Rules for the structure and drafting of standardizing documents. This document replaces GB 30253-2013 Minimum Allowable Values of Energy Efficiency and Energy Efficiency Grades for Permanent Magnet Synchronous Motors; compared with GB 30253-2013, in addition to structural adjustments and editorial changes, the main technical changes are as follows. a) Change the scope of application of the standard (see Chapter 1; Chapter 1 of the 2013 edition); b) Delete the definitions of target minimum allowable values of energy efficiency for permanent magnet synchronous motors and evaluating values of energy conservation for permanent magnet synchronous motors (see 3.4 and 3.5 of the 2013 edition); c) Delete the requirements for target minimum allowable values and evaluating values for energy conservation for permanent magnet synchronous motors (see 4.4 and 4.5 of the 2013 edition); d) Change the energy efficiency grade index for asynchronous-start three-phase permanent-magnet synchronous motors of voltage 1 140 V and below and rated power 0.55 kW ~ 375 kW (see Table 1; Table 1 of the 2013 edition); e) Add energy efficiency grade index requirements for asynchronous-start three- phase permanent-magnet synchronous motor of voltage 1 140 V and below and rated power 400 kW ~ 1 000 kW (see Table 1); f) Add energy efficiency grade index requirements for asynchronous-start three- phase permanent-magnet synchronous motor of voltage level 3 kV (3.3 kV), 6 kV, 10 kV, cooling method IC81W, IC86W, IC71W (IC3W7), IC411, IC416, IC511, IC611, IC616, IC516, IC666, and rated power 200 kW ~ 2 000 kW (see Table 2 ~ Table 7); g) Change the energy efficiency grade index requirements for permanent-magnet synchronous motors driven by variable frequency equipment of voltage 1 140 V and below and rated power 0.55 kW ~ 90 kW (see Table 8 ~ Table 10; Table 3 of the 2013 edition); h) Add energy efficiency grade index requirements for permanent-magnet synchronous motors driven by variable frequency equipment of voltage 1 140 V and below and rated power 110 kW ~ 1 250 kW (see Table 8 ~ Table 10); i) Add energy efficiency grade index requirements for permanent-magnet synchronous motors driven by variable frequency equipment of voltage level 3 kV (3.3 kV), 6 kV, 10 kV, cooling method IC81W, IC86W, IC71W (IC3W7), IC411, IC416, IC511, IC611, IC616, IC516, IC666, and rated power 200 kW ~ 2 000 kW (see Table 11 ~ Table 28); j) Change the requirements for minimum allowable values of energy efficiency for permanent magnet synchronous motors for elevators (see Table 29; Table 2 of the 2013 edition); k) Change the test method for asynchronous-start three-phase permanent-magnet synchronous motors [see Chapter 6a); Chapter 5 of the 2013 edition]; l) Add the test method for permanent-magnet synchronous motors driven by variable frequency equipment [see Chapter 6 b)]. Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying patents. This document shall be under the jurisdiction of Standardization Administration of the People’s Republic of China. This document was first published in 2013, and this is the first revision. Minimum allowable values of energy efficiency and energy efficiency grades for permanent magnet synchronous motors1 ScopeThis document specifies the energy efficiency grades, technical requirements and test methods for permanent magnet synchronous motors. This document is applicable to permanent magnet synchronous motors for general or explosion-proof purposes in continuous working mode, including the following scope. a) Asynchronous-start three-phase permanent-magnet synchronous motor powered by 50 Hz three-phase AC power supply, of voltage level 1 140 V and below, rated power 0.55 kW ~ 1 000 kW, and pole number 2 poles ~ 16 poles; b) Asynchronous-start three-phase permanent-magnet synchronous motor powered by 50 Hz three-phase AC power supply, of voltage 3 kV (3.3 kV), 6 kV and 10 kV, cooling method IC81W, IC86W, IC71W (IC3W7), IC411, IC416, IC511, IC611, IC616, IC516 and IC666, rated power 200 kW ~ 2 000 kW and pole number 4 poles ~ 12 poles; c) Permanent-magnet synchronous motor driven by variable frequency equipment powered by variable frequency power supply, of voltage 1 140 V and below, rated power 0.55 kW ~ 1 250 kW, and rated speed 45 r/min ~ 6 000 r/min; d) Permanent-magnet synchronous motor driven by variable frequency equipment powered by variable frequency power supply, of voltage 3 kV (3.3 kV) and 6 kV, 10 kV, cooling method IC81W, IC86W, IC71W (IC3W7), IC411, IC416, IC511, IC611, IC616, IC516, IC666, rated power 200 kW and above, and rated speed 45 r/min ~ 3 000 r/min; e) Permanent magnet synchronous motor for elevators powered by variable frequency power supply, of voltage 1 140 V and below, and rated power 0.55 kW ~ 110 kW.2 Normative referencesThe following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 755, Rotating electrical machines - Rating and performance GB/T 22669-2008, Test procedures for three-phase permanent magnet synchronous machines GB/T 32877-2022, Specific test methods for determining losses and efficiency of converter-fed AC motors3 Terms and definitionsFor the purposes of this document, the following terms and definitions apply. 3.1 asynchronous-start three-phase permanent-magnet synchronous motor A permanent magnet synchronous motor that is started using the asynchronous torque generated by the starting winding at a certain frequency and voltage. 3.2 permanent-magnet synchronous motor driven by variable frequency equipment A permanent magnet synchronous motor driven by a frequency converter. 3.3 minimum allowable values of energy efficiency for permanent magnet synchronous motors The lowest standard value of efficiency allowed for permanent magnet synchronous motors under the test conditions specified in the standard.4 Energy efficiency gradesThe energy efficiency of permanent magnet synchronous motors is divided into 3 grades, among which grade 1 is the highest energy efficiency. The measured efficiency of permanent magnet synchronous motors of various grades under the specified test method shall not be lower than the requirements in Table 1 ~ Table 29. Within the specified range, the efficiency of motors whose rated power and rated speed are not listed in the table is determined by linear interpolation.5 Technical requirementsThe minimum allowable values of energy efficiency for permanent magnet synchronous motors are as follows. a) The measured efficiency of asynchronous-start three-phase permanent-magnet synchronous motors of voltage level 1 140 V and below at rated power shall not be lower than the requirements of grade 3 in Table 1; b) When the voltage level is 3 kV (3.3k V), 6 kV, or 10 kV. 1) The measured efficiency of asynchronous-start three-phase permanent- magnet synchronous motors of cooling method IC81W, IC86W, IC71W (IC3W7) at rated power shall not be lower than the requirements of grade 3 in Table 2 and Table 5; 3 in Table 4 and Table 7; c) The measured efficiency of permanent-magnet synchronous motors driven by variable frequency equipment of voltage level 1 140 V and below at rated torque and 90% rated speed shall not be lower than the requirements in Table 10; d) When the voltage level is 3 kV (3.3 kV), 6 kV, or 10 kV. 1) The measured efficiency of permanent-magnet synchronous motors driven by variable frequency equipment of cooling method IC81W, IC86W, IC71W (IC3W7) at rated torque and 90% rated speed shall not be lower than the requirements in Table 13 and Table 22; 2) The measured efficiency of permanent-magnet synchronous motors driven by variable frequency equipment of cooling method IC411, IC416 at rated torque and 90% rated speed shall not be lower than the requirements in Table 16 and Table 25;6 Test methodsThe test methods for permanent magnet synchronous motors are as follows. a) For asynchronous-start three-phase permanent-magnet synchronous motors of various voltage levels, the efficiency shall be measured at rated power in accordance with Method A (input-output method) in 10.2.1 of GB/T 22669-2008; b) For permanent-magnet synchronous motors driven by variable frequency equipment of various voltage levels, the efficiency shall be measured at rated torque and 90% of rated speed in accordance with Method A (direct input-output measurement method) in 6.2 of GB/T 32877-2022; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 30253-2024 be delivered?Answer: The full copy PDF of English version of GB 30253-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 30253-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB 30253-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 30253-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 30253-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 30253-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 30253-2024?A step-by-step guide to download PDF of GB 30253-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 30253-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
