GB 2894-2025: Safety colours and safety signs Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 2894: Historical versions

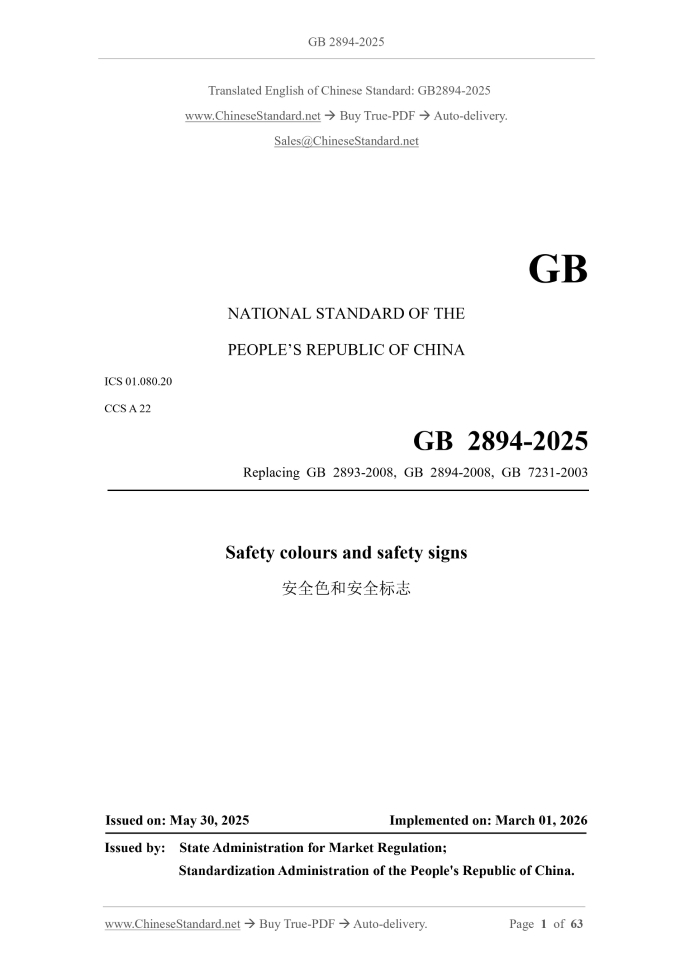

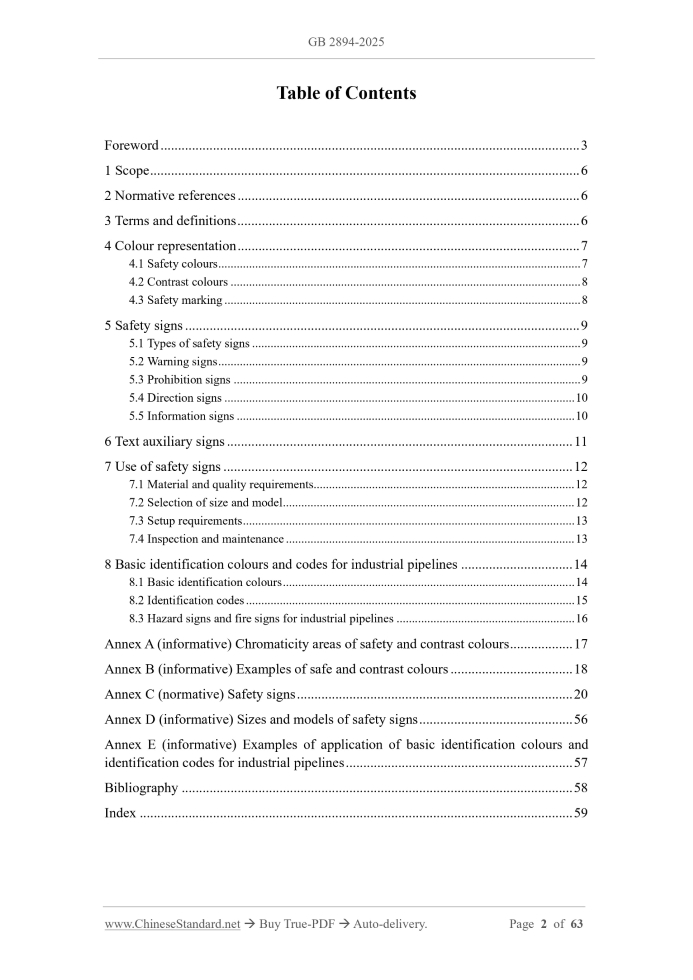

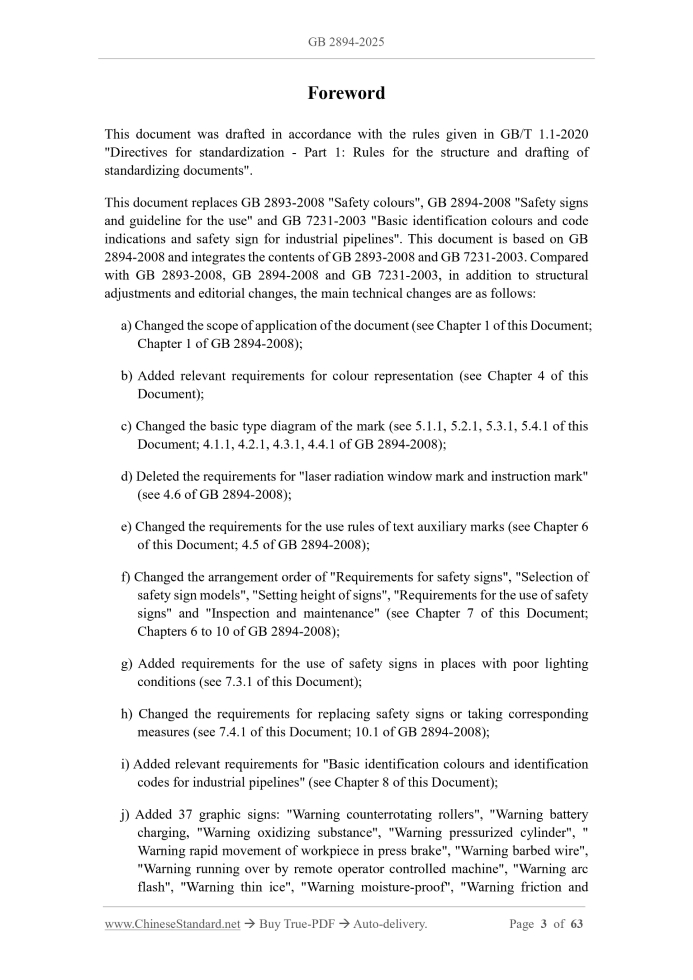

Similar standardsGB 2894-2025: Safety colours and safety signs---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB2894-2025GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 01.080.20 CCS A 22 Replacing GB 2893-2008, GB 2894-2008, GB 7231-2003 Safety colours and safety signs Issued on: MAY 30, 2025 Implemented on: MARCH 01, 2026 Issued by. State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 3 1 Scope... 6 2 Normative references... 6 3 Terms and definitions... 6 4 Colour representation... 7 4.1 Safety colours... 7 4.2 Contrast colours... 8 4.3 Safety marking... 8 5 Safety signs... 9 5.1 Types of safety signs... 9 5.2 Warning signs... 9 5.3 Prohibition signs... 9 5.4 Direction signs... 10 5.5 Information signs... 10 6 Text auxiliary signs... 11 7 Use of safety signs... 12 7.1 Material and quality requirements... 12 7.2 Selection of size and model... 12 7.3 Setup requirements... 13 7.4 Inspection and maintenance... 13 8 Basic identification colours and codes for industrial pipelines... 14 8.1 Basic identification colours... 14 8.2 Identification codes... 15 8.3 Hazard signs and fire signs for industrial pipelines... 16 Annex A (informative) Chromaticity areas of safety and contrast colours... 17 Annex B (informative) Examples of safe and contrast colours... 18 Annex C (normative) Safety signs... 20 Annex D (informative) Sizes and models of safety signs... 56 Annex E (informative) Examples of application of basic identification colours and identification codes for industrial pipelines... 57 Bibliography... 58 Index... 59ForewordThis document was drafted in accordance with the rules given in GB/T 1.1-2020 "Directives for standardization - Part 1.Rules for the structure and drafting of standardizing documents". This document replaces GB 2893-2008 "Safety colours", GB 2894-2008 "Safety signs and guideline for the use" and GB 7231-2003 "Basic identification colours and code indications and safety sign for industrial pipelines". This document is based on GB 2894-2008 and integrates the contents of GB 2893-2008 and GB 7231-2003.Compared with GB 2893-2008, GB 2894-2008 and GB 7231-2003, in addition to structural adjustments and editorial changes, the main technical changes are as follows. a) Changed the scope of application of the document (see Chapter 1 of this Document; Chapter 1 of GB 2894-2008); b) Added relevant requirements for colour representation (see Chapter 4 of this Document); c) Changed the basic type diagram of the mark (see 5.1.1, 5.2.1, 5.3.1, 5.4.1 of this Document; 4.1.1, 4.2.1, 4.3.1, 4.4.1 of GB 2894-2008); d) Deleted the requirements for "laser radiation window mark and instruction mark" (see 4.6 of GB 2894-2008); e) Changed the requirements for the use rules of text auxiliary marks (see Chapter 6 of this Document; 4.5 of GB 2894-2008); f) Changed the arrangement order of "Requirements for safety signs", "Selection of safety sign models", "Setting height of signs", "Requirements for the use of safety signs" and "Inspection and maintenance" (see Chapter 7 of this Document; Chapters 6 to 10 of GB 2894-2008); g) Added requirements for the use of safety signs in places with poor lighting conditions (see 7.3.1 of this Document); h) Changed the requirements for replacing safety signs or taking corresponding measures (see 7.4.1 of this Document; 10.1 of GB 2894-2008); i) Added relevant requirements for "Basic identification colours and identification codes for industrial pipelines" (see Chapter 8 of this Document); j) Added 37 graphic signs. "Warning counterrotating rollers", "Warning battery charging, "Warning oxidizing substance", "Warning pressurized cylinder", " Warning rapid movement of workpiece in press brake", "Warning barbed wire", "Warning running over by remote operator controlled machine", "Warning arc flash", "Warning thin ice", "Warning moisture-proof", "Warning friction and Safety colours and safety signs1 ScopeThis document specifies the colour representation for conveying safety information, the types of safety signs and their settings, usage requirements, and the basic identification colours and identification codes for industrial pipelines. This document is applicable to the design, production and installation of safety signs in production and operation units and public places where there are safety risks or where it is necessary to remind people to pay attention to safety. This document does not apply to traffic signs used in railways, highways, inland waterways, sea and air transport.2 Normative referencesThis document has no normative references.3 Terms and definitionsFor the purposes of this document, the following terms and definitions apply. 3.1 safety colour Colours that convey safety information. NOTE. Include four colours. yellow, red, blue, and green. 3.2 contrast colour Contrast colours that contrast with safety colours to make them more eye-catching. NOTE. Include black and white. 3.3 safety sign safety warning sign A sign composed of graphic symbols, safety colours, geometric shapes (frames) or text to express specific safety information. 3.4 safety marking Signs that use safety colours and/or contrast colours to convey safety information or make an object or place stand out. 3.5 warning sign Safety signs that remind you to pay attention to the surrounding environment and things and avoid potential hazards. 3.6 prohibition sign Safety signs prohibiting certain unsafe behaviors or actions. 3.7 direction sign Safety signs that force you to take certain precautions or perform certain behaviors or actions. 3.8 information sign Safety signs that provide certain information (such as indicating safety facilities or places, etc.). 3.9 identification colour Colours that are used to identify the type of substances in industrial pipelines. 3.10 identification code A mark used to identify the name and state of substances in industrial pipelines.4 Colour representation4.1 Safety colours 4.1.1 Yellow Transmit attention and warning information. 4.1.2 Red Transmit information about prohibiting, stopping or reminding fire-fighting equipment and facilities. 4.1.3 Blue Deliver information about instructions that should be followed. e) Marking on the pipeline with a hanging identification colour plate. 8.1.3 When methods b), c), d) and e) in 8.1.2 are used, the distance between two adjacent marks should not be less than 10 m. 8.1.4 The minimum size of the labels in items c), d) and e) of 8.1.2 should be determined so that the identification colour can be clearly observed. 8.1.5 When the pipeline adopts the basic identification colour marking method in 8.1.2 b), c), d) and e), the marking places should include the starting point, end point, intersection and both sides of the wall hole of all pipelines and other places that need to be marked. 8.2 Identification codes 8.2.1 Basic components The basic components of the identification code should include but not be limited to the substance name and flow direction. 8.2.2 Identification of substance names The identification of substance names should be done in one of the following ways. a) Full name of the substance, for example. hydrogen chloride, sulfuric acid, methanol; b) Chemical molecular formula, for example. HCl, H2SO4, CH3OH. 8.2.3 Identification of material flow The material flow direction should be marked in the following two ways. a) The flow direction of substances in industrial pipelines is indicated by arrows [see Figure E.1 a) for relevant examples]. When the flow direction of substances in the pipeline is bidirectional, it should be indicated by bidirectional arrows [see Figure E.1 b) for relevant examples]; b) When the identification method of the basic identification colour adopts the method d) and e) in 8.1.2, the direction of the sign indicates the flow direction of substances in the pipeline [see Figure E.1 c) and d) for relevant examples]. When the flow direction of substances in the pipeline is bidirectional, the direction of the sign should be bidirectional [see Figure E.1 e) for relevant examples]. 8.2.4 Requirements for font and dimensions of identification codes The minimum font size of letters and numbers in substance name identification and process parameter identification, as well as the minimum size of arrows in 8.2.3, should be determined so that the identification codes can be clearly observed. 8.3 Hazard signs and fire signs for industrial pipelines 8.3.1 If the substances in the industrial pipeline are hazardous chemicals, industrial pipeline hazard signs should be set up. 8.3.2 The marking method of industrial pipeline hazard marking shall meet the following requirements. a) The pipe should be painted yellow with a width of 150 mm. A 25 mm wide black ring or strip should be painted on both sides of the yellow (see Figure E.2 for relevant examples); b) Hazard signs should be placed on or near the basic identification colour signs. 8.3.3 If the materials in industrial pipelines are specifically used for fire extinguishing, industrial pipeline fire protection signs should be set up. 8.3.4 Fire-fighting-only pipes installed in industrial production should be marked with the identification code "fire-fighting-only". The marking position and minimum font size should comply with the requirements of 8.1.5 and 8.2.4 respectively. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 2894-2025 be delivered?Answer: The full copy PDF of English version of GB 2894-2025 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 2894-2025_English with my colleagues?Answer: Yes. The purchased PDF of GB 2894-2025_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 2894-2025 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 2894-2025?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 2894-2025 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 2894-2025?A step-by-step guide to download PDF of GB 2894-2025_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 2894-2025". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
