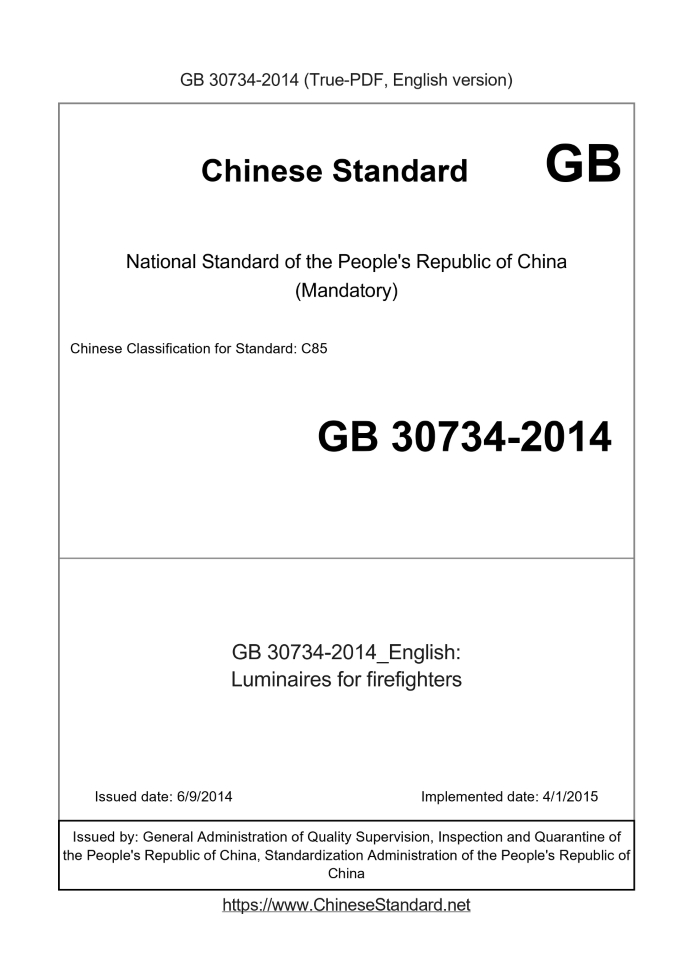

GB 30734-2014_English: PDF (GB30734-2014)
| Standard ID | USD | BUY PDF | Lead-Days | Standard Title (Description) | Status |
| GB 30734-2014 | 279 |
Add to Cart
|
3 days
|
Luminaires for firefighters
| Valid |
| Standard ID | GB 30734-2014 (GB30734-2014) | | Description (Translated English) | Luminaires for firefighters | | Sector / Industry | National Standard | | Classification of Chinese Standard | C85 | | Classification of International Standard | 13.220.10 | | Word Count Estimation | 12,132 | | Date of Issue | 6/9/2014 | | Date of Implementation | 4/1/2015 | | Quoted Standard | GB/T 191-2008; GB/T 2423.1-2008; GB/T 2423.2-2008; GB/T 2423.4-2008; GB/T 2423.10-2008; GB/T 3836.1-2010; GB 4208-2008; GB 7000.1-2007 | | Issuing agency(ies) | General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China | | Summary | This Standard specifies the definition of firefighters lighting, classification and models, technical requirements, test methods, inspection rules, marking, packaging, transport and storage. |
GB 30734-2014
Luminaires for firefighters
ICS 13.220.10
C85
National Standards of People's Republic of China
Firemen Lighting
Issued on. 2014-06-09
2015-04-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released
Foreword
The first chapter of this standard 8.1 5,7 mandatory, the rest are recommended.
This standard is prepared in accordance with GB/T 1.1-2009 given rules.
The standard proposed by the People's Republic of China Ministry of Public Security.
This standard by the National Standardization Technical Committee firefighters Fire Protection Equipment Technical Committee (SAC/TC113/SC12) centralized.
This standard was drafted. Shanghai Fire Research Institute of Ministry of Public Security.
The main drafters of this standard. Ma Weiguang, Zhou Kai, Li Rui Kun, Yan Haibo, Wu Yun, Cao Yongqiang, Zhang Yan, Chang Song, Liu Yongmei, Liusu Yan, Xie Chunlong,
Xu Jian, Li Miaohua.
Firemen Lighting
1 Scope
This standard specifies the definition of firefighters lighting, classification and models, technical requirements, test methods, inspection rules, marking, packaging, transport
Transport and storage.
This standard applies when firefighters were fighting and rescue operations for single use lighting in a variety of low-light settings.
2 Normative references
The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein
Member. For undated references, the latest edition (including any amendments) applies to this document.
GB/T 191-2008 Packaging - Pictorial signs
GB/T 2423.1-2008 Environmental testing for electric and electronic products Part 2. Test methods Test A. Cold
GB/T 2423.2-2008 Environmental testing for electric and electronic products Part 2. Test methods Test B. Dry heat
GB/T 2423.4-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Db. Damp heat (12h
12h cycle)
GB/T 2423.10-2008 Environmental testing for electric and electronic products Part 2. Test methods Test Fc. Vibration (sinusoidal)
GB 3836.1-2010 explosive atmospheres - Part 1. General requirements for equipment
GB 4208-2008 shell protection (IP code)
GB 7000.1-2007 Luminaires - Part 1. General requirements and tests
3 Terms and Definitions
The following terms and definitions apply to this document.
3.1
Firefighters lighting luminaireforfirefighter
Lighting firefighters single use.
3.2
Wearable firefighters lighting wearableluminaireforfirefighter
Fixed firefighters wear when used in a certain part of the body of firemen lighting.
3.3
Portable type Ⅰ firefighters lighting typeⅠhandheldluminaireforfirefighter
Mass of less than or equal to 1.5kg, when using hand-held or portable lighting light firefighters.
3.4
Portable Ⅱ-based firefighters and lighting typeⅡhandheldluminaireforfirefighter
Mass greater than 1.5kg but less than or equal to 25kg, when using a portable or drag heavy firefighters lighting.
3.5
Lamp lightingassembly
Lighting fixture part, by the light emitting devices, reflectors, consisting of transparent components.
4 Classification and models
4.1 Classification
Fireman lighting (hereinafter referred to as lamp) in accordance with the use classification, category and code are shown in Table 1.
Table 1
Category Code Category Name
Wearable P
Portable
Ⅰ type SⅠ
Type Ⅱ SⅡ
4.2 Model
Preparation of models of lighting products should meet the following requirements.
Fireman protective equipment
D-
Lighting
FB
Explosion code
Category Code
Continuous light stability time in minutes (min)
/ □
Enterprise custom code (consisting of the letters or Arabic numerals)
Example. FD-FBSⅠ240/A represents light continuous working time 240min stable Ⅰ portable explosion-proof lighting class firefighters, business custom
Codenamed A.
5 Technical requirements
5.1 General Requirements
5.1.1 lighting power supply should be used rechargeable batteries, battery replaceable lamps should be equipped with an independent battery charging cradle.
5.1.2 Lamps charger plug should be used with AC-DC converter separate structure, fixture or charger should be set to charge and discharge protection circuit.
5.1.3 explosion-proof lamps shall comply with the requirements of GB 3836.1-2010.
5.1.4 wearable lamps should have a fire helmet match fixing fittings.
5.2 Functional requirements
5.2.1 The lamps should have a strong, low-light switching function.
5.2.2 The lamps should have flashes of low-voltage alarm function.
5.3 Performance Requirements
5.3.1 Appearance and assembly
5.3.1.1 Exterior lighting should be clean, smooth, clean, non-fouling, corrosion, scratches, burrs, cracks, deformation phenomena.
5.3.1.2 Each component mounting fixtures should be complete, accurate, reliable, no defects, dislocation, loosening, switching operation should be convenient, flexible and reliable.
5.3.2 Quality
Quality lamps (including battery and accessories) shall comply with the provisions of Table 2.
Table 2 units of kilograms
Quality category
Wearable ≤0.15
Portable
Ⅰ type ≤1.5
Ⅱ type> 1.5 and ≤25.0
5.3.3 Illumination
When you press the test method specified in 6.5, lighting illuminance values under steady state should be in accordance with Table 3.
table 3
category
Measuring distance
Test beam diameter
mm
Illuminance
lx
Light low light
Average Minimum Average Minimum
Wearable 2 150 ≥450 ≥300 ≥200 ≥150
Portable
Ⅰ type 5 300 ≥250 ≥150 ≥150 ≥100
Ⅱ type 10 800 ≥500 ≥300 ≥200 ≥100
5.3.4 continuous and stable working time
Lamps continuous and stable working hours shall comply with the requirements of Table 4.
Table 4 in min.
category
Continuous and stable continuous working time working time under low voltage state
Low light bright light low light
Wearable ≥240 ≥480
Portable
Ⅰ type ≥300 ≥600
Type Ⅱ ≥560 ≥840
≥15 ≥30
5.3.5 low voltage alarm time
Lamps low voltage alarm time should be 10s ~ 20s.
5.3.6 continuous working time at a low voltage condition
Lamps at a low voltage state of continuous working hours shall comply with the requirements of Table 4.
5.3.7 insulation
At room temperature environment, the insulation resistance between the shell and the lighting live terminal shall not be less than 20MΩ, after alternating hot and humid test shall not be less than
5MΩ.
5.3.8 withstand voltage performance
Lamps should be able to withstand a frequency of 50Hz ± 0.5Hz, AC voltage 500V ± 50V, which lasted withstand voltage test of the 60s ± 5s. test
Inspection procedure, the lamp should surface arcing and breakdown phenomenon. After the test, the lamp shall be able to be opened and closed strong, low light switch.
5.3.9 weatherability environmental performance
Lamps should be able to withstand the test specified in Table 5 climate conditions. After each test, the lamp shall be able to be on, off and
Strong, low-light switch.
table 5
Test Project Name Test Parameters Test Conditions Sample status
Low temperature performance
High temperature performance
temperature
-25 ± 2
duration
temperature
55 ± 2
duration
Light work status
Alternating hot and humid performance
Cold storage
High-temperature storage
temperature
25 ± 3
Rose
40 ± 2
40 ± 2
40 ± 2
Drops
25 ± 3
25 ± 3
Relative humidity
95 ~ 10 090 ~ 10 095 ~ 9680 100 ~
duration
temperature
-40 ± 2
duration
Recovery time at room temperature
temperature
70 ± 2
duration
Recovery time at room temperature
Nonoperating
5.3.10 Resistance to mechanical environmental performance
Live table lamps should be able to withstand the tests specified under 6 Mechanical ambient conditions. After each test, the lamp should be no mechanical damage and fastening
Piece loose and can normally open, close and strong, low light switch.
Table 6
Test Project Name Test Parameters Test Conditions Sample status
Anti-vibration (sinusoidal)
performance
Anti-drop performance
Loop frequency range
Hz
10 to 150
Acceleration amplitude
Sweep rate
oct/min
The vibration direction X, Y, Z
Each axis scanning cycles 10
Drop height
Wearable 1.5
Portable type Ⅰ 1.0
Portable Ⅱ Type 0.5
Drop directions X, Y, Z
Number of drops 1 per axis
Nonoperating
5.3.11 Switch reliability
Lamps after 50,000 switching reliability test should be kept intact, and the lamps shall be able to light up and to achieve strong, low-light switch.
5.3.12 enclosure class
Luminaire enclosure rating requirements should be GB/T 4208-2008 the provisions of IP66/IP67 or IP66/IP68 of. When protection
Class IP66/IP68, the manufacturer shall identify the diving depth and duration of the lamp.
6 Test methods
6.1 Test Environment
If no special instructions related provisions, the test should be carried out under the following atmospheric conditions.
a) Temperature. 15 ℃ ~ 35 ℃;
b) Relative humidity. 45% ~ 75%;
c) Atmospheric pressure. 86kPa ~ 106kPa.
6.2 Function Test
6.2.1 Operation lamp switch, check the strong lamps, low-light switching function.
6.2.2 The lighting at a low voltage state, flashes through sensory inspection lamps and low voltage alarm form.
6.3 Appearance and assembly inspection
Observation through the senses, touch, appearance and assembly inspection operation.
6.4 Quality Measurement
With an accuracy of not less than 1g of electronic scales measuring quality lamps.
6.5 illuminance measurement
After the lamp is fully charged, in the dark (no light is completely sealed space) in the open light switch, after sustained 10min, respectively, in the lamp intensity
Light, low light condition, as shown in Figure 1, in front of the press table lamp test specified distance of 3, along the direction of the beam diameter, with a distributed light meter
The average illuminance distribution point on the measured value of 5 predetermined beam diameter. The......
|
