GB/T 90.1-2023: Fasteners - Acceptance inspection Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 90.1: Historical versions

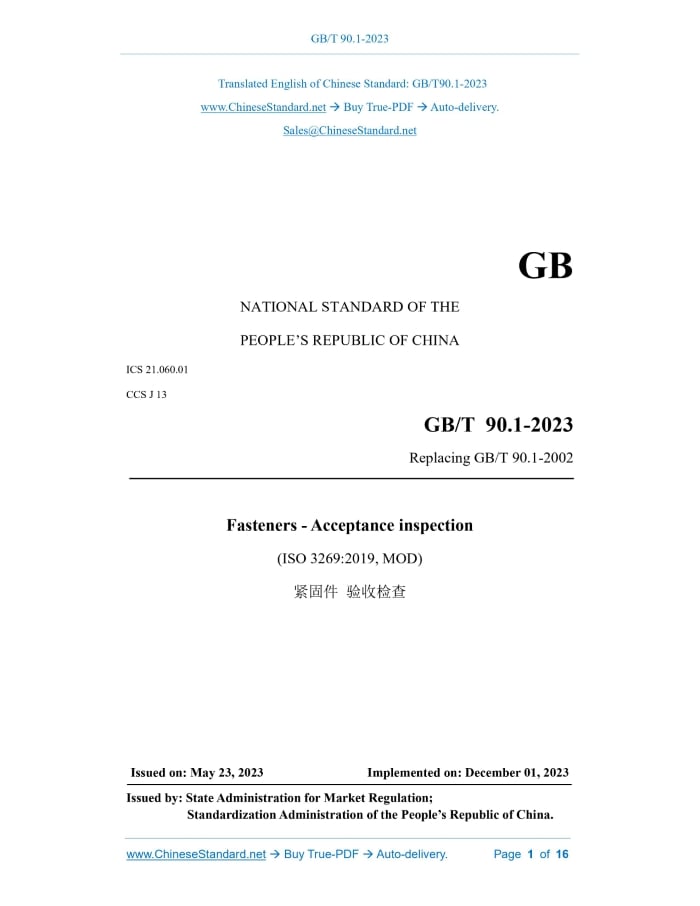

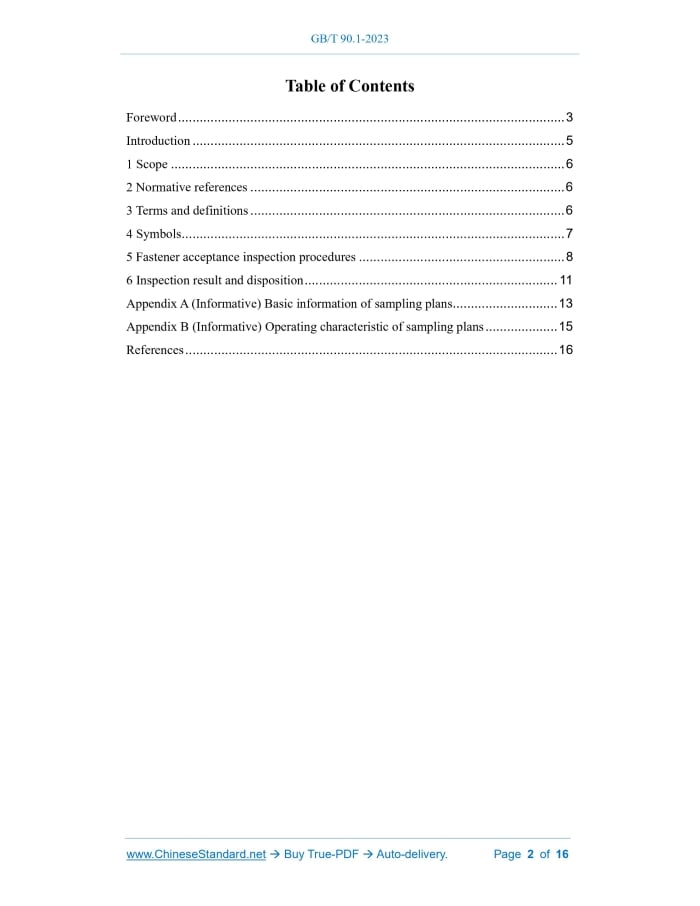

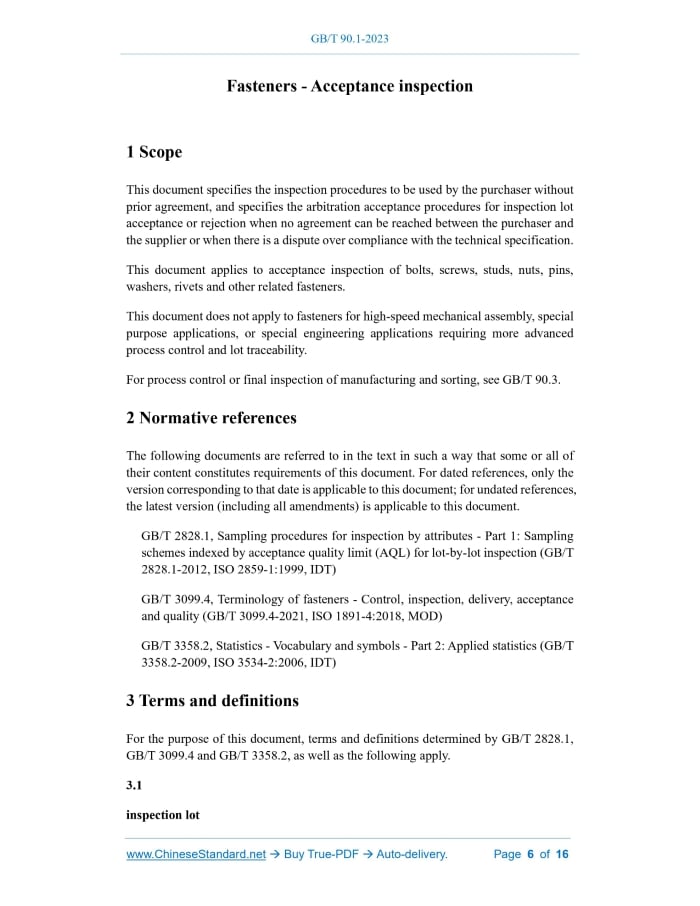

GB/T 90.1-2023: Fasteners - Acceptance inspection---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT90.1-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 21.060.01 CCS J 13 Replacing GB/T 90.1-2002 Fasteners - Acceptance inspection (ISO 3269:2019, MOD) ISSUED ON: MAY 23, 2023 IMPLEMENTED ON: DECEMBER 01, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 5 1 Scope ... 6 2 Normative references ... 6 3 Terms and definitions ... 6 4 Symbols ... 7 5 Fastener acceptance inspection procedures ... 8 6 Inspection result and disposition ... 11 Appendix A (Informative) Basic information of sampling plans ... 13 Appendix B (Informative) Operating characteristic of sampling plans ... 15 References ... 16 Fasteners - Acceptance inspection1 ScopeThis document specifies the inspection procedures to be used by the purchaser without prior agreement, and specifies the arbitration acceptance procedures for inspection lot acceptance or rejection when no agreement can be reached between the purchaser and the supplier or when there is a dispute over compliance with the technical specification. This document applies to acceptance inspection of bolts, screws, studs, nuts, pins, washers, rivets and other related fasteners. This document does not apply to fasteners for high-speed mechanical assembly, special purpose applications, or special engineering applications requiring more advanced process control and lot traceability. For process control or final inspection of manufacturing and sorting, see GB/T 90.3.2 Normative referencesThe following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 2828.1, Sampling procedures for inspection by attributes - Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection (GB/T 2828.1-2012, ISO 2859-1:1999, IDT) GB/T 3099.4, Terminology of fasteners - Control, inspection, delivery, acceptance and quality (GB/T 3099.4-2021, ISO 1891-4:2018, MOD) GB/T 3358.2, Statistics - Vocabulary and symbols - Part 2: Applied statistics (GB/T 3358.2-2009, ISO 3534-2:2006, IDT)3 Terms and definitionsFor the purpose of this document, terms and definitions determined by GB/T 2828.1, GB/T 3099.4 and GB/T 3358.2, as well as the following apply. 3.1 inspection lot Re Rejection number LQ10 Limiting quality at 10% probability of acceptance, % AQL95 Acceptance quality limit at 95% probability of acceptance, % N Lot size Pa Probability of acceptance, %5 Fastener acceptance inspection procedures5.1 General requirements The requirements of this document apply to the fasteners in the delivery state of the supplier, that is, the delivery state of the fasteners has not been changed. If the purchaser changes the delivery state of the fastener or reprocesses it, the purchaser shall bear the responsibility for changes in the consistency of characteristics caused by such processing. The acceptance inspections specified in this document apply after receiving the fasteners and before releasing the lot to any subsequent processing. Inspections carried out in accordance with this document shall be as specified in Tables 1 and 2. Any non-conforming, once found during the inspection, shall be dealt with according to the requirements of 6.2 and/or 6.3. Before any disposition, the purchaser shall give the supplier the opportunity to verify any unverified nonconformity. 5.2 Inspection procedures 5.2.1 General The purchaser may choose this document to verify whether the fastener meets the technical requirements of the product standard or other specified requirements. 5.2.2 Sample size The sample size shall be based on the number of inspection lots specified in Table 1. If the sample size is larger than the number of inspection lots, non-destructive testing requires 100% inspection. The sample size n, the acceptance number Ac and the rejection number Re shall be determined separately for each selected characteristic.Appendix A(Informative) Basic information of sampling plans Acceptance inspection is generally carried out by the purchaser to confirm whether the production of the delivered fasteners meets the technical specifications. Table 1 provides the acceptance inspection sampling plans for the three categories of characteristics based on different statistical methods. Different statistical methods have different risk results for the purchaser and the supplier. The party conducting the acceptance inspection is responsible for selecting the sampling plan and appropriate tests. Category 1 characteristics are mechanical properties that are critical to the function of the fastener. It is assumed that a deviation in process parameters during lot production will result in a substantial proportion of non-conformity of the lot and is expected to be detected in a small sample. Based on the above assumptions, the acceptance inspection sampling plans for Category 1 characteristics require acceptance number Ac=0, and do not provide statistical information. When non-conformity is found, verification is required to reach agreement on the disposition of the lot (see Chapter 6). Category 2 characteristics are dimensional characteristics that affect the usability of the fastener. It is assumed that the properties due to normal variation of the production process satisfy a statistical distribution. The sampling plans for Category 2 characteristics are based on the acceptance number Ac=0; however, a single non- conformity does not automatically require rejection of the lot. An additional sampling with the same acceptance number Ac=0 increases the confidence in lot consistency while avoiding rejection based on the detection of a single non-conformity. The sample size selected for Category 2 characteristics must meet the “consumer risk” similar to the AQL=6.5 plan, and is selected from the OC curve of a single sampling plan shown in the Zero Acceptance Number Sampling Plan [9]. “Consumer risk” refers to the value of the quality level, expressed in percentage of non-conforming parts, with a 10% probability of being accepted. See Table A.1 (LQ10). “Supplier risk” refers to the value of the quality level, expressed in percentage of non-conforming parts, with a 95% probability of being accepted. See Table A.1 (AQL95). These values apply only to a single inspection and do not take into account additional sampling after finding a non- conforming part in the first sampling. Category 3 characteristics refer to dimensional characteristics and certain functional properties, which allow a certain degree of non-conformity. It is assumed that the properties due to normal variation of the production process satisfy a statistical distribution. The sampling plans for Category 3 characteristics is based on the ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 90.1-2023 be delivered?Answer: The full copy PDF of English version of GB/T 90.1-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 90.1-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 90.1-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 90.1-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 90.1-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 90.1-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 90.1-2023?A step-by-step guide to download PDF of GB/T 90.1-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 90.1-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
