GB/T 706-2016 PDF EnglishUS$125.00 · In stock · Download in 9 seconds
GB/T 706-2016: Hot rolled section steel Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 706: Historical versions

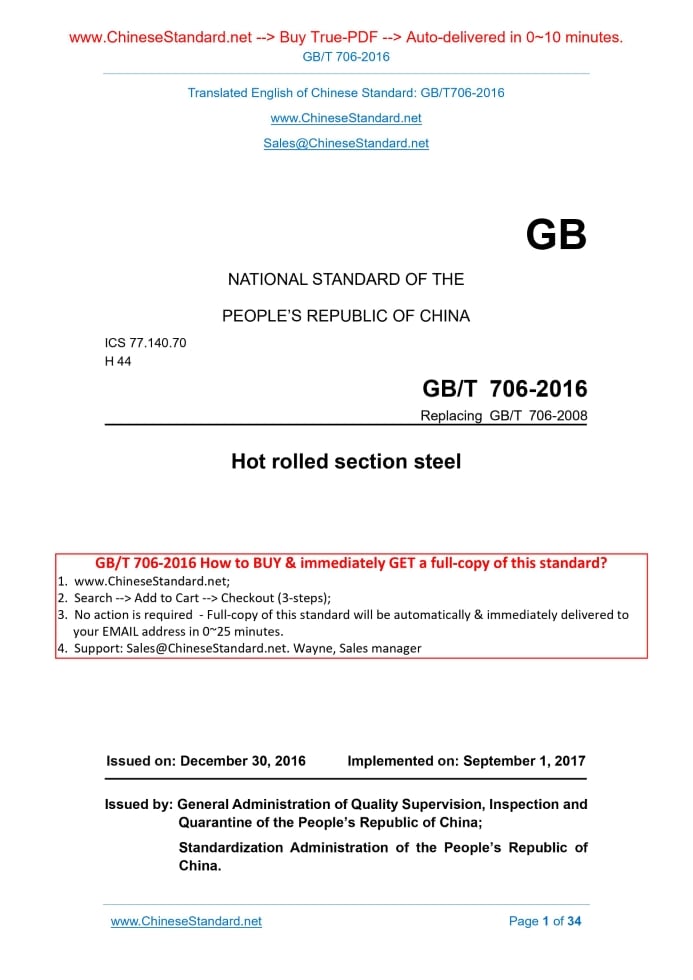

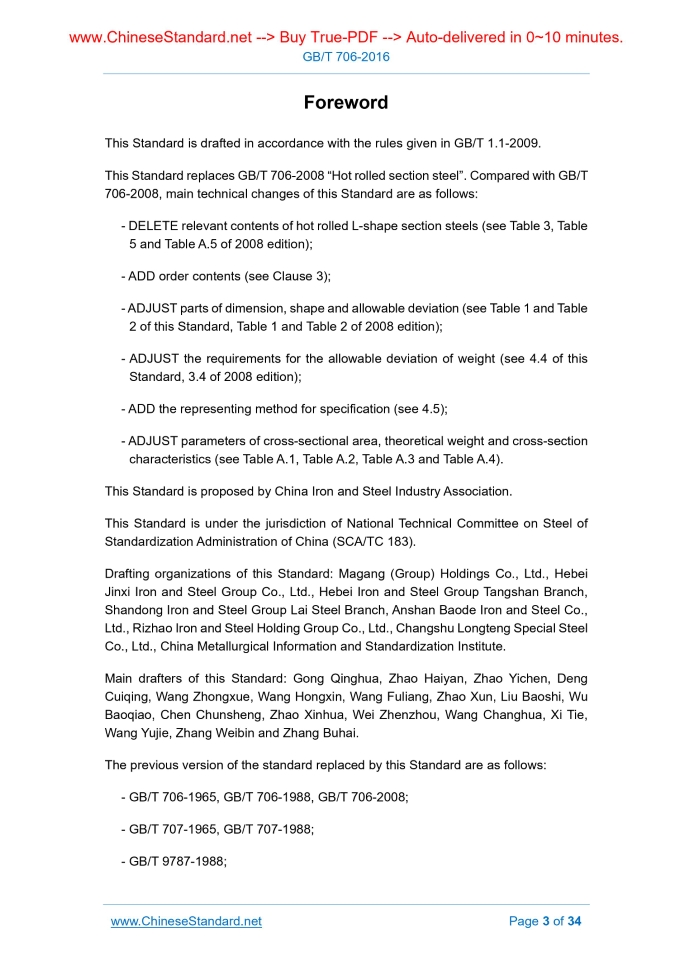

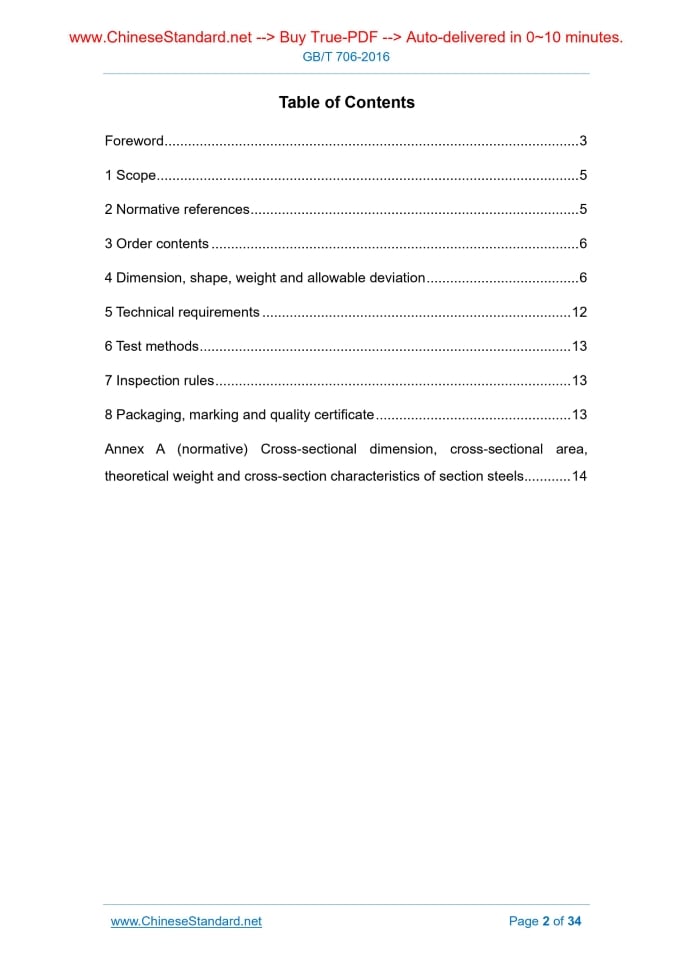

GB/T 706-2016: Hot rolled section steel---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT706-2016GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.70 H 44 Replacing GB/T 706-2008 Hot rolled section steel Issued on. DECEMBER 30, 2016 Implemented on. SEPTEMBER 1, 2017 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Order contents... 6 4 Dimension, shape, weight and allowable deviation... 6 5 Technical requirements... 12 6 Test methods... 13 7 Inspection rules... 13 8 Packaging, marking and quality certificate... 13 Annex A (normative) Cross-sectional dimension, cross-sectional area, theoretical weight and cross-section characteristics of section steels... 14ForewordThis Standard is drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 706-2008 “Hot rolled section steel”. Compared with GB/T 706-2008, main technical changes of this Standard are as follows. - DELETE relevant contents of hot rolled L-shape section steels (see Table 3, Table 5 and Table A.5 of 2008 edition); - ADD order contents (see Clause 3); - ADJUST parts of dimension, shape and allowable deviation (see Table 1 and Table 2 of this Standard, Table 1 and Table 2 of 2008 edition); - ADJUST the requirements for the allowable deviation of weight (see 4.4 of this Standard, 3.4 of 2008 edition); - ADD the representing method for specification (see 4.5); - ADJUST parameters of cross-sectional area, theoretical weight and cross-section characteristics (see Table A.1, Table A.2, Table A.3 and Table A.4). This Standard is proposed by China Iron and Steel Industry Association. This Standard is under the jurisdiction of National Technical Committee on Steel of Standardization Administration of China (SCA/TC 183). Drafting organizations of this Standard. Magang (Group) Holdings Co., Ltd., Hebei Jinxi Iron and Steel Group Co., Ltd., Hebei Iron and Steel Group Tangshan Branch, Shandong Iron and Steel Group Lai Steel Branch, Anshan Baode Iron and Steel Co., Ltd., Rizhao Iron and Steel Holding Group Co., Ltd., Changshu Longteng Special Steel Co., Ltd., China Metallurgical Information and Standardization Institute. Main drafters of this Standard. Gong Qinghua, Zhao Haiyan, Zhao Yichen, Deng Cuiqing, Wang Zhongxue, Wang Hongxin, Wang Fuliang, Zhao Xun, Liu Baoshi, Wu Baoqiao, Chen Chunsheng, Zhao Xinhua, Wei Zhenzhou, Wang Changhua, Xi Tie, Wang Yujie, Zhang Weibin and Zhang Buhai. The previous version of the standard replaced by this Standard are as follows. - GB/T 706-1965, GB/T 706-1988, GB/T 706-2008; - GB/T 707-1965, GB/T 707-1988; - GB/T 9787-1988; - GB/T 9788-1988; - GB/T 9946-1988. Hot rolled section steel1 ScopeThis Standard specifies the order contents, dimension, shape, weight and allowable deviation, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of hot rolled I-beam steels, hot rolled channel steels, hot rolled equal angle steels and hot rolled unequal angle steels. This Standard applies to hot rolled equal angle steels, hot rolled unequal angle steels and hot rolled I-beam steels and hot rolled channel steels with a slope on the inside of the leg (hereinafter referred to as section steels).2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the dated edition cited applies. For undated references, the latest edition of the referenced document (including all amendments) applies. GB/T 228.1 Metallic materials - Tensile testing - Part 1.Method of test at room temperature GB/T 229 Metallic materials - Charpy pendulum impact test method GB/T 232 Metallic materials - Bend test GB/T 700 Carbon structural steels GB/T 1591 High strength low alloy structural steels GB/T 2101 General requirement of acceptance, packaging, marking, and certification for section steel GB/T 2975 Steel and steel products - Location and preparation of test pieces for mechanical testing YB/T 4427 General requirements for surface condition of hot-rolled sections3 Order contentsThe contract ordered in accordance with this Standard shall contain the following technical contents. a) product name; b) standard number; c) grade; d) model, specification; e) delivery length;4 Dimension, shape, weight and allowable deviation4.1 Dimension and representing method 4.1.1 Schematic diagrams and marked symbols of cross-section of section steels are as shown in Figure 1 to Figure 4. 4.2 Dimension, shape and allowable deviation 4.2.1 Dimension, shape and allowable deviation of section steels shall comply with the specifications of Table 1 to Table 2.According to the requirements of the demand party, dimension, shape and allowable deviation of section steels can also be specified in accordance with the agreement between supply and demand parties. 4.2.2 Passivation of leg end edge of I-beam steels and passivation of leg end edge and shoulder of channel steels shall be such that a round bar with a diameter of 0.18t can not pass through; passivation of corner angle and vertex angle of angle steels shall be such that a round bar with a diameter of 0.18d can not pass through. 4.2.4 Allowable deviation of leg thickness (t) of I-beam steels and channel steels is ± 0.06t. 4.2.5 Section steels shall not be significantly reversed. 4.3 Length and allowable deviation The delivery length of section steels shall be indicated in the contract and the allowable deviation of length shall comply with the specifications of Table 3. 4.4 Weight and allowable deviation 4.4.1 Section steels shall be delivered in theoretical weight and the theoretical weight shall be calculated at a density of 7.85 g/cm3. 4.4.3 Calculation equations of cross-sectional area of section steels are as shown in Table 4.5 Technical requirements5.1 Grades and chemical composition Steel grades and chemical composition (smelting analysis) shall comply with the relevant specifications of GB/T 700 or GB/T 1591.According to the requirements of the demand party, through the agreement between the supply and demand parties, steels of other grades and chemical composition can also be supplied. 5.2 Mechanical properties Mechanical properties of section steels shall comply with the relevant specifications of GB/T 700 or GB/T 1591.According to the requirements of the demand party, through the agreement between the supply and demand parties, steels of other mechanical property indicators can also be supplied. 5.3 Delivery status The steel is delivered in hot rolled state. 5.4 Surface quality 5.4.1 Surface of section steels shall not have cracks, folding, scarring, stratification and inclusions. 5.4.2 Surface of section steels allows existence of defects such as local hairlines, pits, dots, scratches and iron oxide presses, but these defects shall not exceed the allowable deviation of dimension of section steels. 5.4.5 According to the agreement between supply and demand parties, the surface quality can also be implemented in accordance with the specifications of YB/T 4427.6 Test methodsInspection items, sampling quantity, sampling methods and test methods of each batch of steel shall comply with the specifications of Table 5.7 Inspection rules7.1 Inspection and acceptance of section steels is carried out by technical quality supervision departments of the supply party. The demand party shall have the right to inspect and accept any of the inspection items specified in this Standard or the contract. 7.2 Batching of section steels is in accordance with the specifications of GB/T 700, GB/T 1591 and the corresponding standards. 7.3 Re-inspection and acceptance rules of section steels shall comply with the specifications of GB/T 2101.8 Packaging, marking and quality certificatePacking, marking and quality certificate of section steels shall comply with the specifications of GB/T2101.Annex A(normative) Cross-sectional dimension, cross-sectional area, theoretical weight and cross- section characteristics of section steels ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 706-2016 be delivered?Answer: The full copy PDF of English version of GB/T 706-2016 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 706-2016_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 706-2016_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 706-2016 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 706-2016?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 706-2016 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 706-2016?A step-by-step guide to download PDF of GB/T 706-2016_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 706-2016". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
