GB/T 22639-2022: Test method of exfoliation corrosion for aluminium alloy products Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 22639: Historical versions

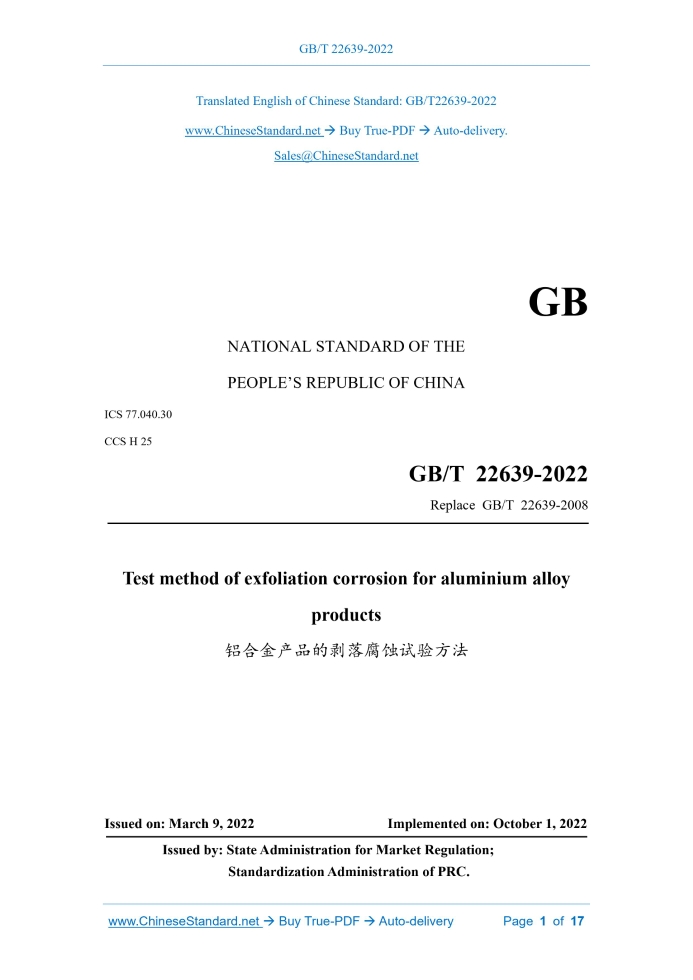

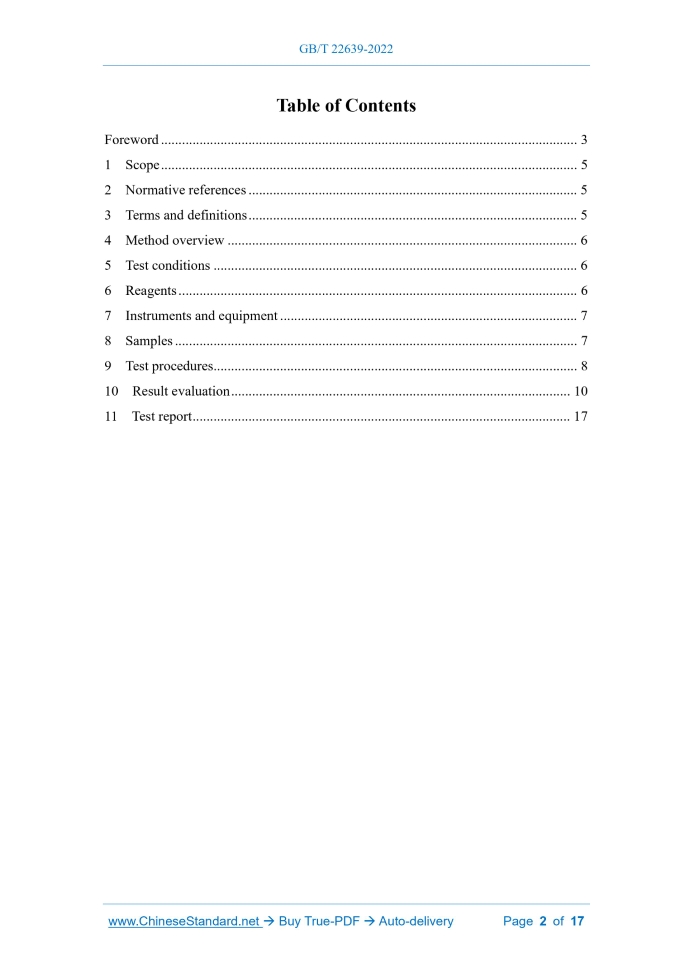

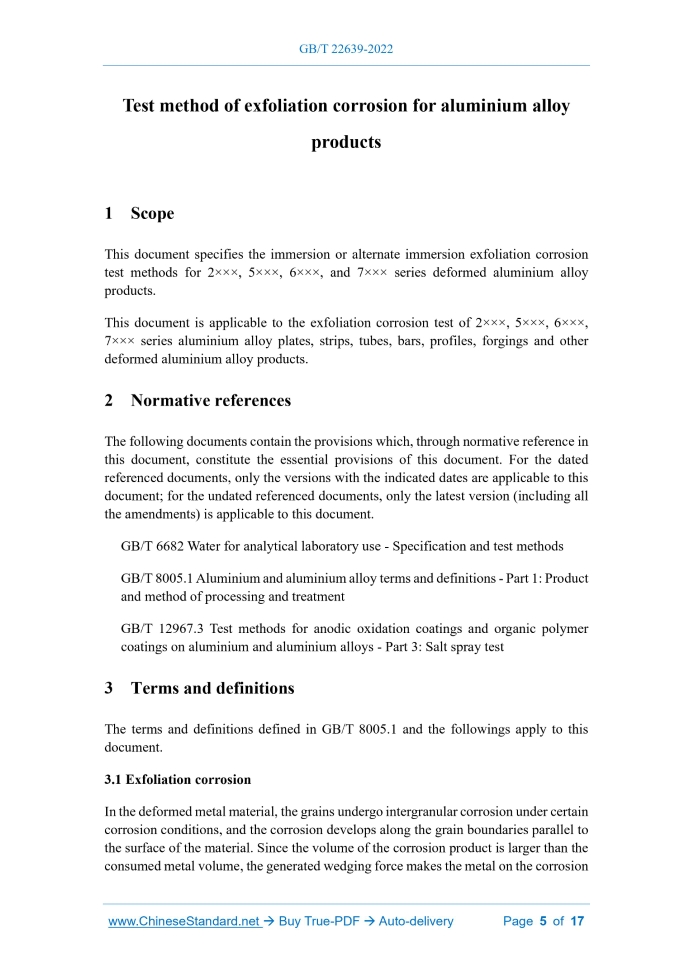

Similar standardsGB/T 22639-2022: Test method of exfoliation corrosion for aluminium alloy products---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT22639-2022NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.30 CCS H 25 Replace GB/T 22639-2008 Test method of exfoliation corrosion for aluminium alloy products ISSUED ON: MARCH 9, 2022 IMPLEMENTED ON: OCTOBER 1, 2022 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Method overview ... 6 5 Test conditions ... 6 6 Reagents ... 6 7 Instruments and equipment ... 7 8 Samples ... 7 9 Test procedures ... 8 10 Result evaluation ... 10 11 Test report ... 17 Test method of exfoliation corrosion for aluminium alloy products1 ScopeThis document specifies the immersion or alternate immersion exfoliation corrosion test methods for 2×××, 5×××, 6×××, and 7××× series deformed aluminium alloy products. This document is applicable to the exfoliation corrosion test of 2×××, 5×××, 6×××, 7××× series aluminium alloy plates, strips, tubes, bars, profiles, forgings and other deformed aluminium alloy products.2 Normative referencesThe following documents contain the provisions which, through normative reference in this document, constitute the essential provisions of this document. For the dated referenced documents, only the versions with the indicated dates are applicable to this document; for the undated referenced documents, only the latest version (including all the amendments) is applicable to this document. GB/T 6682 Water for analytical laboratory use - Specification and test methods GB/T 8005.1 Aluminium and aluminium alloy terms and definitions - Part 1: Product and method of processing and treatment GB/T 12967.3 Test methods for anodic oxidation coatings and organic polymer coatings on aluminium and aluminium alloys - Part 3: Salt spray test3 Terms and definitionsThe terms and definitions defined in GB/T 8005.1 and the followings apply to this document. 3.1 Exfoliation corrosion In the deformed metal material, the grains undergo intergranular corrosion under certain corrosion conditions, and the corrosion develops along the grain boundaries parallel to the surface of the material. Since the volume of the corrosion product is larger than the consumed metal volume, the generated wedging force makes the metal on the corrosion product lift up or peel off layer by layer and then form a type of laminar corrosion.4 Method overviewBy visual inspection (or an inspection under a microscope), the corrosion of the samples after the following test shall be rated according to the degree of corrosion: - Immersion test: Fully immerse the sample in the test solution at the set temperature for the specified test time, observe the corrosion degree of the sample and rate it. This method is suitable for the evaluation of exfoliation corrosion susceptibility of lithium-free aluminium alloys (lithium is an impurity element); - Alternate immersion test: Place the sample in a corrosion environment with the set spray, drying and humid heat cycle for the specified test time, observe the corrosion degree of the sample and rate it. This method is suitable for the evaluation of exfoliation corrosion susceptibility of lithium-containing aluminium alloys (lithium is an alloying element).5 Test conditionsThe ambient temperature of the immersion test shall not be higher than the test temperature. The ambient temperature of the alternate immersion test shall be 23 ℃±5 ℃, and the relative humidity shall be less than 75%.6 ReagentsWarning - The personnel using this document shall have practical experience in formal laboratory work. This document does not indicate all possible safety issues. The user is responsible for taking appropriate safety and health measures and ensuring compliance with the conditions stipulated by relevant national laws and regulations. Unless otherwise specified, only use reagents confirmed to be analytical reagents and the water that can meet the requirements of Grade III water specified in GB/T 6682. 6.1 Nitric acid solution (8+2). 6.2 Test solution for 2××× series (lithium-free), 6××× series and 7××× series aluminium alloys: Dissolve 234 g of sodium chloride and 50 g of potassium nitrate in water, add 6.7 mL of nitric acid, stir evenly, and dilute with water to 1000 mL. This solution contains 4.0 mol of sodium chloride, 0.5 mol of potassium nitrate and 0.1 mol of nitric acid, and the pH value of this solution is about 0.4. Note: The test solution without added nitric acid can be stored for a short time. 6.3 Test solution for 5××× series (lithium-free) aluminium alloy: Dissolve 53.5 g of ammonium chloride, 20.0 g of ammonium nitrate and 1.8 g of ammonium tartrate in a small amount of water, stir evenly, and dilute with water to 990 mL (or use a commercially available special reagent that does not contain a hydrogen peroxide reagent); heat the test solution to the test temperature, add 10 mL of hydrogen peroxide (30%; if the concentration cannot be determined, it shall be verified before use), and then stir evenly. This solution contains 1.0 mol of ammonium chloride, 0.25 mol of ammonium nitrate, 0.01 mol of ammonium tartrate and 0.09 mol of hydrogen peroxide, and the pH value of this solution is 5.2~5.4. 6.4 Test solution for lithium-containing aluminium alloy: Dissolve 50 g of sodium chloride in 950 mL of water, and adjust the pH of this solution to 2.8~3.0 with a glacial acetic acid solution (1+1).7 Instruments and equipment7.1 Conduction thermostat device: The temperature control accuracy shall be ±1 ℃. The test solution container (with a lid) and the sample holder shall be made of glass, plastic or other inert materials. 7.2 Salt spray test chamber: It shall comply with the provisions of GB/T 12967.3 and be equipped with a damp heat device and a drying device.8 Samples8.1 The size of the sample sampled by punching or shearing shall be (100+2T) mm×(50+2T) mm (length × width), and T is the original thickness of the product. The size of other samples shall not be less than 100 mm×50 mm (length × width). The length direction of the sample of 5××× series (lithium-free) aluminium alloy shall be perpendicular to the final rolling direction (or extrusion direction and metal streamline direction). For the sample containing welds, the welds shall be located in the center of the sample. 8.2 The original machined surface of the product is used as the test surface (except for those with special requirements in the product standard), and the specific requirements are as follows: - The test surfaces of rolled plates and strips shall be the upper and lower original machined surfaces; - The test surface of extruded products and forgings shall be the outer surface, which shall be taken at positions avoiding flanges and ribs; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 22639-2022 be delivered?Answer: The full copy PDF of English version of GB/T 22639-2022 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 22639-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 22639-2022_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 22639-2022 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 22639-2022?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 22639-2022 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 22639-2022?A step-by-step guide to download PDF of GB/T 22639-2022_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 22639-2022". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
