GB/T 12221-2005 PDF English

US$85.00 · In stock · Download in 9 seconds
GB/T 12221-2005: Metal valves -- Face to face, end to end, center to face and center to end dimensions
Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure
Status: Valid

GB/T 12221: Historical versions

Standard IDUSDBUY PDFDeliveryStandard Title (Description)Status
GB/T 12221-200585 Add to Cart Auto, 9 seconds. Metal valves -- Face to face, end to end, center to face and center to end dimensions Valid
GB/T 12221-1989639 Add to Cart 5 days Metal valves for use in flanged pipe systems--Face-to-face and centre-to-face dimensions Obsolete

Similar standards

GB/T 12225   GB/T 12224   GB/T 12220   GB/T 12223

GB/T 12221-2005: Metal valves -- Face to face, end to end, center to face and center to end dimensions


---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT12221-2005

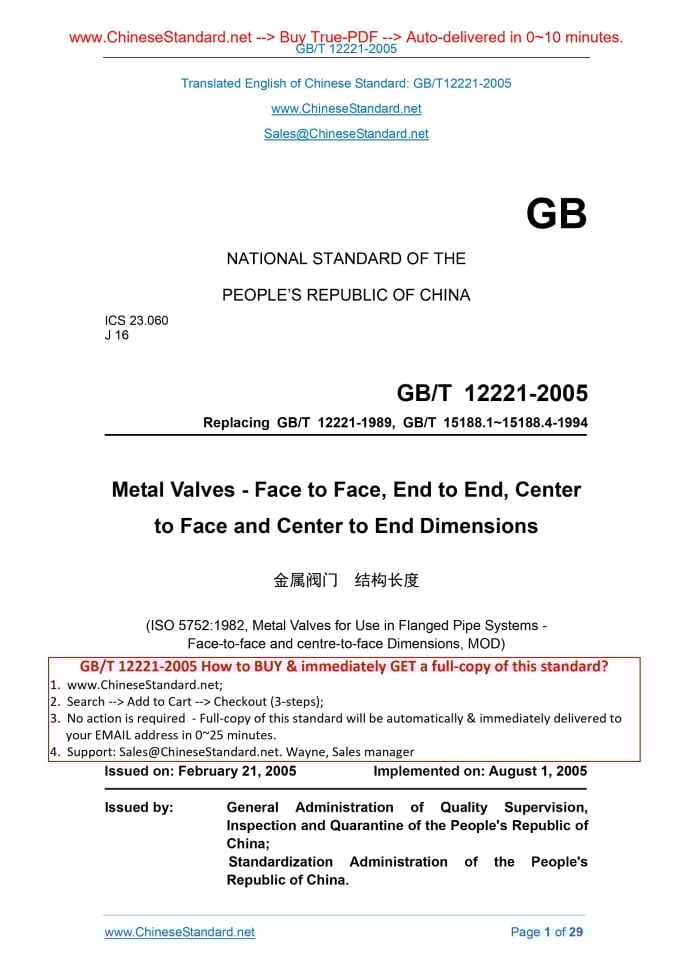

GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 23.060 J 16 Replacing GB/T 12221-1989, GB/T 15188.1~15188.4-1994 Metal Valves - Face to Face, End to End, Center to Face and Center to End Dimensions (ISO 5752.1982, Metal Valves for Use in Flanged Pipe Systems - Face-to-face and centre-to-face Dimensions, MOD) Issued on: FEBRUARY 21, 2005 Implemented on: AUGUST 1, 2005 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China.

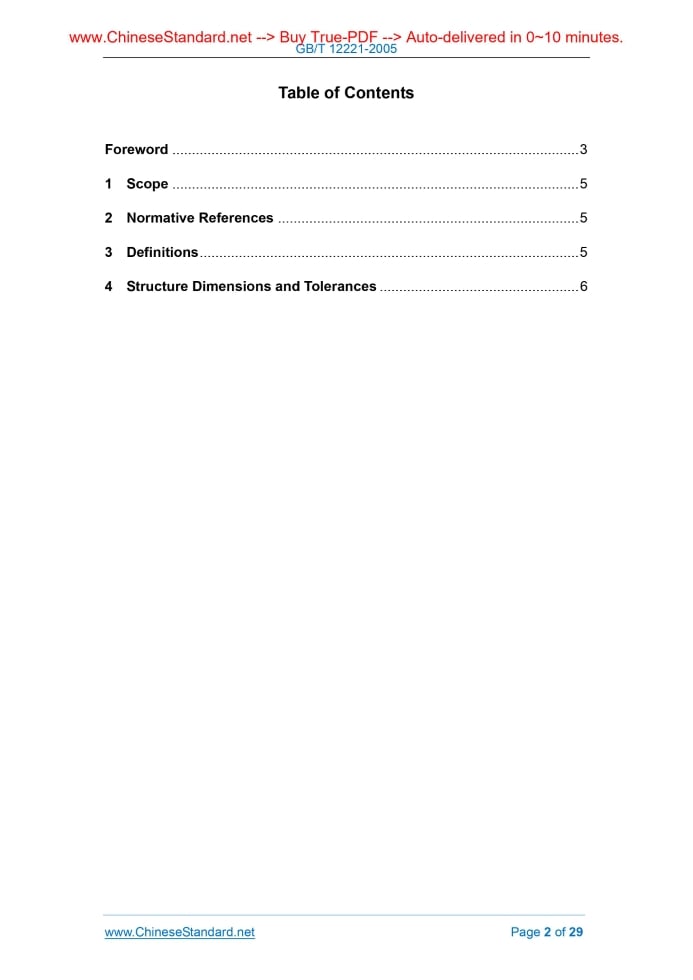

Table of Contents

Foreword ... 3 1 Scope ... 5 2 Normative References ... 5 3 Definitions ... 5 4 Structure Dimensions and Tolerances ... 6

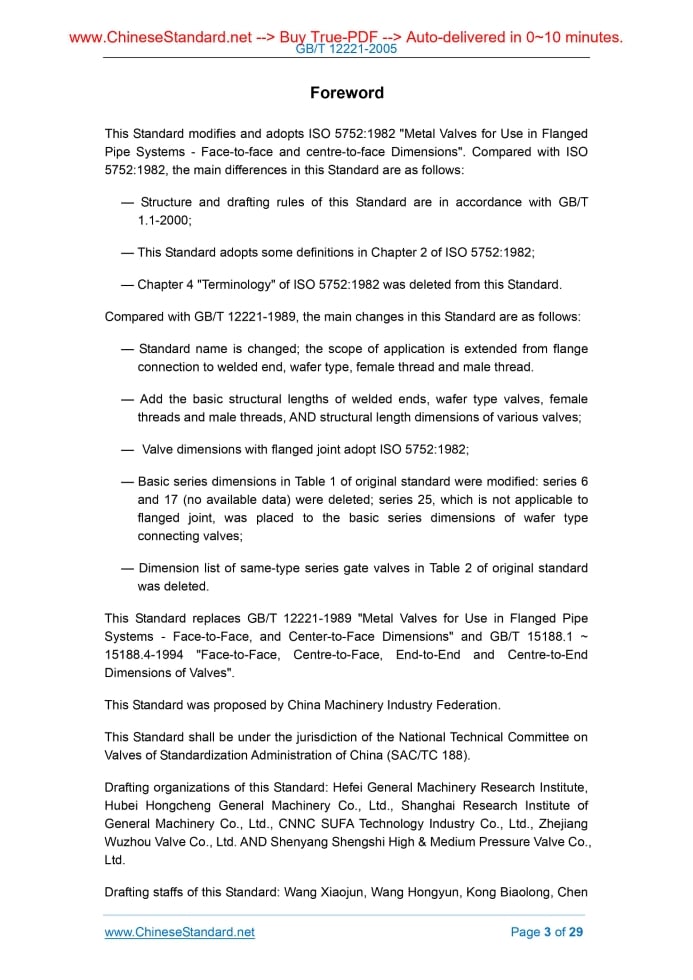

Foreword

This Standard modifies and adopts ISO 5752.1982 "Metal Valves for Use in Flanged Pipe Systems - Face-to-face and centre-to-face Dimensions". Compared with ISO 5752.1982, the main differences in this Standard are as follows. — Structure and drafting rules of this Standard are in accordance with GB/T 1.1-2000; — This Standard adopts some definitions in Chapter 2 of ISO 5752.1982; — Chapter 4 "Terminology" of ISO 5752.1982 was deleted from this Standard. Compared with GB/T 12221-1989, the main changes in this Standard are as follows. — Standard name is changed; the scope of application is extended from flange connection to welded end, wafer type, female thread and male thread. — Add the basic structural lengths of welded ends, wafer type valves, female threads and male threads, AND structural length dimensions of various valves; — Valve dimensions with flanged joint adopt ISO 5752.1982; — Basic series dimensions in Table 1 of original standard were modified. series 6 and 17 (no available data) were deleted; series 25, which is not applicable to flanged joint, was placed to the basic series dimensions of wafer type connecting valves; — Dimension list of same-type series gate valves in Table 2 of original standard was deleted. This Standard replaces GB/T 12221-1989 "Metal Valves for Use in Flanged Pipe Systems - Face-to-Face, and Center-to-Face Dimensions" and GB/T 15188.1 ~ 15188.4-1994 "Face-to-Face, Centre-to-Face, End-to-End and Centre-to-End Dimensions of Valves". This Standard was proposed by China Machinery Industry Federation. This Standard shall be under the jurisdiction of the National Technical Committee on Valves of Standardization Administration of China (SAC/TC 188). Drafting organizations of this Standard. Hefei General Machinery Research Institute, Hubei Hongcheng General Machinery Co., Ltd., Shanghai Research Institute of General Machinery Co., Ltd., CNNC SUFA Technology Industry Co., Ltd., Zhejiang Wuzhou Valve Co., Ltd. AND Shenyang Shengshi High & Medium Pressure Valve Co., Ltd. Drafting staffs of this Standard. Wang Xiaojun, Wang Hongyun, Kong Biaolong, Chen Jianping, Zheng Zuhui, Zheng Yunhai, Liu Xiaochun and Ye Qin. The previous editions replaced by this Standard are as follows. — GB/T 12221-1989, GB/T 15188.1 ~ 15188.4-1994. Metal Valves - Face to Face, End to End, Center to Face and Center to End Dimensions

1 Scope

This Standard specifies the basic series of face-to-face, centre-to-face, end-to-end and centre-to-end dimensions of flanged joint valves, welded end valves, wafer type connection valves, female thread connection valves, male thread connection valves, and the permissible variations of structural dimensions. This Standard is applicable to the face-to-face, centre-to-face, end-to-end and centre-to-end dimensions of gate valves, stop valves, ball valves, butterfly valves, plug valves, diaphragm valves and check valves with nominal pressure (PN) ≤ 42.0 MPa and nominal diameter of DN 3 mm ~ DN 4 000 mm.

2 Normative References

The following normative documents contain provisions which, through reference in this text, constitute provisions of this Standard. For dated references, the subsequent amendments or revisions of these publications do not apply. However, parties who enter into agreements based on this Standard are encouraged to investigate the possibility of applying the most recent editions of the normative documents indicated below. GB/T 1047 Pipework Components - Definition and Selection of DN (Nominal Size) (GB/T 1047-2005, ISO 6708.1995, MOD) GB/T 1048 Pipework Components - Definition and Selection of PN (GB/T 1048-2005, ISO 7268.1996, MOD)

3 Definitions

3.1 Through way type of valves face to face, end to end, center to face and center to end dimensions The distance between the two planes perpendicular to the valve axis, located at the extremities of the valve-body end ports. 3.2 Angle type of valves face to face, end to end, center to face and center to end dimensions [Translator. for ease of reading, hereafter “face to face, end to end, center to face and center to end dimensions” is abbreviated as structure dimensions] 4.3.5 The basic series of female thread valves’ structure dimensions are given in Table 5. Table 5 Female Thread Valves’ Structure Dimensions — Basic Series Dimensions in millimetres Nominal size DN Basic series N1 N2 N3 N4 N5 N6 N7 N8 N9 N10 N11 N12 N13 N14 N15 N16 N17 N18 Structure dimensions — — — — — — — — — — — — — — — 10 48 56 80 80 80 80 80 80 15 42 50 52 56 60 65 65 65 68 80 90 90 90 90 90 90 90 90 20 45 60 60 67 65 70 75 85 78 90 100 100 100 100 100 100 100 100 25 52 65 70 78 75 80 90 110 86 110 115 120 110 120 120 110 120 120 32 55 75 80 88 85 90 105 120 100 130 130 140 120 130 140 120 140 130 40 60 85 86 104 95 100 120 140 106 150 150 170 135 140 170 135 170 150 50 70 95 104 120 110 110 140 165 130 170 180 200 170 170 200 155 180 170 — — 120 130 165 203 — — — — — — 80 90 130 — — — 100 110 145 — 300 — Note 1. It is applicable to through way type and angle type valves. Note 2. Tolerances of structure dimensions is ±1.6 mm. 4.3.8 Wafer knife gate valves’ structure dimensions are given in Table 8. Table 8 Wafer Knife Gate Valves’ Structure Dimensions Dimensions in millimetres Nominal size DN Nominal pressure PN ≤ 2.0 MPa Structure dimensions 65 — Basic series J16 J17 J18 Note. Tolerances of structure dimensions is ±1.6 mm. 4.3.9 Welded end gate valves’ structure dimensions are given in Table 9. Table 9 Welded End Gate Valves’ Structure Dimensions Dimensions in millimetres Nominal size DN Nominal pressure PN (MPa) 1.0 ~ 2.0 2.5 ~ 5.0 6.3 10.0 15.0, 16.0 25.0 32.0, 42.0 Structure dimensions Short Long Short Long Short Long Short Long 102 — — — — — — — 15 108 140 165 165 264 20 117 152 190 190 273 25 127 165 216 133 216 140 254 140 254 186 308 32 140 178 229 146 229 165 279 165 279 40 165 190 241 152 241 178 305 178 305 384 50 216 216 292 178 292 216 368 216 368 279 451 65 241 241 330 216 330 254 419 254 419 330 508 80 283 283 356 254 356 305 381 305 470 368 578 100 305 305 406 305 432 356 457 406 546 457 673 125 381 381 457 381 508 432 559 483 673 533 794 300 502 635 850 502 635 850 502 850 762 838 965 1130 1422 350 572 762 980 572 762 980 762 980 826 889 1029 1257 400 610 838 1100 610 838 1100 838 1100 902 991 1130 1384 — — — 978 1092 1219 500 711 991 711 991 1054 1194 1321 550 — 1092 — 1092 1143 1295 — 600 813 1143 813 1143 1232 1397 1549 1245 1308 1448 700 1346 1346 1397 1549 750 1397 1397 1524 1651 800 1524 1524 1651 1778 850 1626 1626 1778 1930 900 2083 2083 1880 2083 Basic series H16 H17 H18 H16 H17 H18 H2 H18 H3 H5 H7 H9 H11 4.3.13 Welded end plug valves’ structure dimensions are given in Table 13. Table 13 Welded End Plug Valves’ Structure Dimensions Dimensions in millimetres Nominal size DN Nominal pressure PN (MPa) 1.0 ~ 2.0 2.5, 4.0, 5.0 6.3 10.0 15.0 25.0 32.0, 42.0 Structure dimensions Short Long Short Long — — — — — — — 25 190 216 216 254 254 308 32 — 229 229 279 279 349 40 241 241 241 305 305 384 50 267 267 283 292 292 368 368 451 65 305 305 330 330 330 419 419 508 80 330 330 387 356 356 381 470 578 100 356 356 457 406 559 432 457 546 673 125 381 381 — 457 — 508 559 673 794 150 457 457 559 495 711 559 610 705 914 200 521 521 686 597 845 660 737 832 1022 250 559 559 826 673 889 787 838 991 1270 300 635 635 965 762 1016 838 965 1130 1422 889 — 1257 400 838 902 991 1130 1384 450 914 978 1092 — 1537 500 991 1054 1194 1321 1664 Table 17 Wafer Type Swing Check Valves’ Structure Dimensions Dimensions in millimetres Nominal size DN Nominal pressure PN (MPa) 1.0 ~ 2.0 2.5 ~ 5.0 6.3 10.0 15.0, 16.0 25.0 32.0, 42.0 Structure dimensions 50 60 60 60 60 70 70 70 65 66 66 66 66 100 79 79 102 102 105 150 98 98 137 137 159 159 159 200 127 127 161 161 206 206 206 250 146 146 213 213 241 248 254 300 181 181 229 229 292 305 305 350 184 222 273 273 356 356 400 190 232 305 305 384 384 450 203 264 362 362 500 219 292 368 368 533 600 222 317 394 438 495 559 750 305 368 460 505 — — 900 368 483 635 635 1200 524 629 — — Basic ser... ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
Image 1     Image 2     Image 3
