JY/T 0053-2019 English PDFUS$179.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. JY/T 0053-2019: Transparent plastic water tank Status: Valid

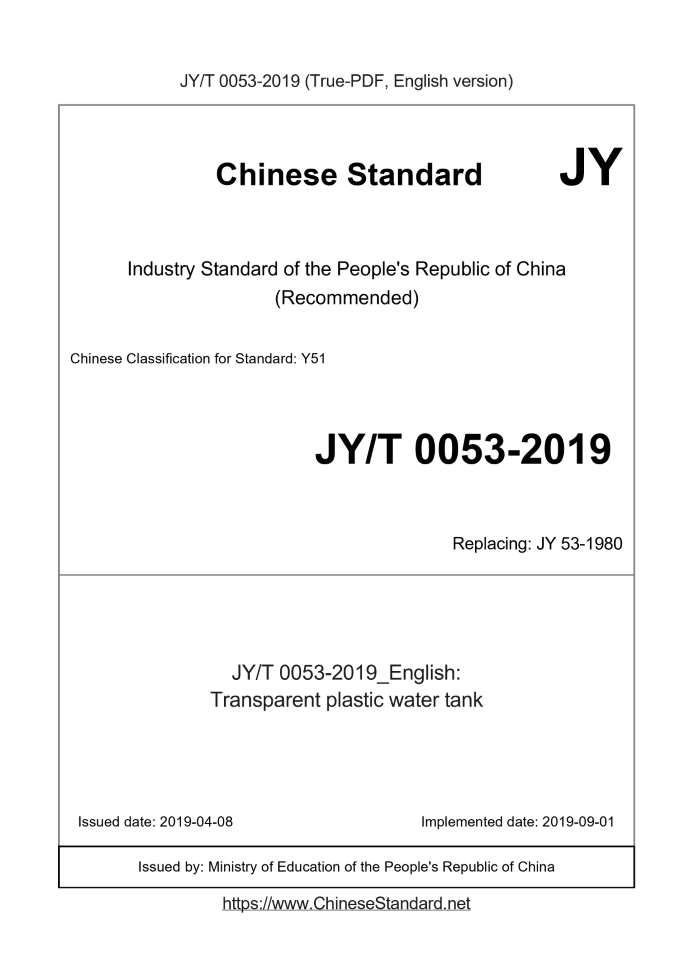

Basic dataStandard ID: JY/T 0053-2019 (JY/T0053-2019)Description (Translated English): Transparent plastic water tank Sector / Industry: Education Industry Standard (Recommended) Classification of Chinese Standard: Y51 Word Count Estimation: 7,719 Date of Issue: 2019-04-08 Date of Implementation: 2019-09-01 Older Standard (superseded by this standard): JY 53-1980 Regulation (derived from): Natural Resources Department Announcement No. 7 of 2019 Issuing agency(ies): Ministry of Education of the People's Republic of China JY/T 0053-2019: Transparent plastic water tank---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.(Transparent plastic sink) ICS 03.180 Y 51 Education Industry Standard of the People's Republic of China Replacing JY/T 53-1980 Transparent plastic sink Transparent plastic water tank Published.2019-04-04 2019--09--01 implementation Published by the Ministry of Education of the People's Republic of China JY ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces JY/T 53-1980 "Technical Conditions for Plastic Sinks". Compared with JY/T 53-1980, except for editorial changes The technical changes are as follows. -Modified the standard name; --- Added new specifications and round sinks (see 3.1); -Added specification tolerance and bottom flatness requirements (see 4.2, 4.3.5); -Revised the requirements for gas gathering racks (see 4.4, 1980, 1.2, 2.3); -The fillet radius has been modified (see 4.3.3, 1.2 of the 1980 version); -The upper mouth of the plastic water tank or the edge of the water tank should be increased (see 4.3.4); -Increased the amount of deformation required (see 4.3.4); -Increased material transparency requirements (see 4.3.6); -Added drop test in unpacked state (see 4.6.2); -Added corresponding test methods (see Chapter 5). Please note that some elements of this standard may involve patents. The issuer of this standard is not responsible for identifying these patents. This standard is proposed by the Basic Education Department of the Ministry of Education of the People's Republic of China. This standard is under the jurisdiction of the National Technical Committee for Educational Equipment Standardization (SAC/TC 125). This standard was drafted. Technical Equipment Department of Sichuan Provincial Education Department, Sichuan Tianping Instrument Co., Ltd. The main drafters of this standard. Tong Renlun and Chen Min. This standard replaces JY/T 53-1980. The release of previous versions of this standard instead of the standard is as follows. --JY/T 53-1980. Transparent plastic sink1 ScopeThis standard specifies the classification and nomenclature, requirements, test methods, inspection rules and signs, packaging, transportation and storage of transparent plastic sinks. This standard applies to transparent plastic sinks for teaching experiments.2 Normative referencesThe following documents are essential for the application of this document. For dated references, only the dated version applies to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. GB/T 2828.1-2012 Counting sampling inspection procedures. Part 1. Sampling plan for batch inspection inspection according to acceptance quality limit (AQL) JY/T 0001-2003 General quality requirements for teaching instruments and equipment products JY/T 0002-2003 Inspection rules for teaching instruments and equipment products JY/T 0026-1991 teaching instrument and teaching equipment product model naming method JY/T 0213-1994 Environmental conditions and test methods for transportation and storage of teaching mechanics and thermal instruments3 Classification and naming3.1 Classification Transparent plastic sinks are classified into rectangular sinks and round sinks according to their shapes, and are divided into different models and specifications. See Table 1 for classification of transparent plastic sinks. Table 1 Classification of plastic sinks in millimeters Classification Model Specifications Dimensions rectangle BT-SC-SJ/250 250 × 180 × 100 Yes BT-SC-SJ/300 300 × 300 × 150 None BT-SC-SJ/400 400 × 80 × 100 None Round BT-SC-SY/270 Φ 270 × 140 yes BT-SC-SY /.200 Φ.200 × 100 None 3.2 Naming rules Product model naming is implemented according to JY/T 0026-1991. 3.3 Model representation The model of transparent plastic sink is named. BT-SC-S-J/Y/300 Product specifications, rectangle/round/maximum side length or diameter, unit is millimeter (mm) Product feature code, plastic Product name Pinyin prefix, sink Product model classification code, basic universal instrument Model example 1. BT-SC-SJ/300 means. basic universal instrument, transparent plastic sink, rectangular shape, maximum side length 300 mm. Model example 2. BT-SC-SY/270 means. basic universal instrument, transparent plastic sink, round shape, maximum diameter 270 mm.4 Requirements4.1 Use environmental conditions Temperature. 1 ℃ ~ 60 ℃. 4.2 Specifications 4.2.1 The specifications of plastic water tanks shall conform to Tables 2 and 3. Table 2 Dimensions in rectangular transparent plastic sinks are in millimeters Sink model, specifications length, width, height and wall thickness BT-SC-SJ/250 250 ± 2 180 ± 2 100 ± 2 ≥2 BT-SC-SJ/300 300 ± 3 300 ± 3 150 ± 2 ≥2 BT-SC-SJ/400 400 ± 4 80 ± 2 100 ± 2 ≥2 Table 3 Dimensions in round transparent plastic sinks are in millimeters Sink model, specifications Upper mouth size Lower bottom size High wall thickness BT-SC-SY /.200 Φ.200 ± 2 195 ± 2 100 ± 2 ≥2 BT-SC-SY/270 Φ 270 ± 2 265 ± 2 140 ± 2 ≥2 4.2.2 See Table 4 for the specifications of the gas collector. Table 4 Dimensions of gas collecting racks are in millimeters Slot model and specifications BT-SC-SJ/250 180 ± 2 40 ± 2 70 ± 2 ≥2 φ 25 ± 1 120 ± 3 BT-SC-SY/270 270 ± 2 40 ± 2 100 ± 2 ≥2 φ 25 ± 1 190 ± 3 4.3 sink 4.3.1 The internal dimensions of rectangular transparent plastic sinks shall conform to Table 2. The upper and lower gradients should be no more than 3 mm, and the flatness of the upper edge mouth should be no more than 2 mm. 4.3.2 The internal dimensions of the round transparent plastic water tank shall conform to Table 3. The flatness of the upper edge mouth should not be greater than 2 mm. 4.3.3 All internal and external corners of rectangular and circular transparent sinks shall be rounded with a radius of 5mm to 8mm. 4.3.4 The upper mouth of the transparent plastic water tank or the edge of the water tank shall have reinforcing ribs. The rectangular water tank is filled with water at room temperature and 50% depth. The horizontal deformation of the upper mouth should be ≤ 3% of the long side, and the radial variation of the upper mouth of the circular sink should be ≤ 2% of the diameter. Note. Room temperature is the indoor temperature under the reference working conditions. 4.3.5 Under the conditions of 5.3.2, the transparent plastic water tank shall be placed smoothly, and the flatness of the bottom shall not be greater than 1.0 mm. 4.3.6 The transparency of the wall of the transparent plastic sink shall be equivalent to colorless and transparent organic glass, ordinary silicate glass, and polycarbonate sheet. 4.4 Gas Collector The size of the gas collecting rack shall comply with Table 4. The bottom of the gas collecting rack should be flat, the flatness should not be greater than 2 mm, and the shape of the ends should be equal to the edge of the sink. Shape fit, should be able to hang on the edge of the sink stably. The gas collecting rack should be made of the same material as the water tank or other plastics not inferior to this material material. 4.5 Appearance The surface of the product should be smooth, clean and free of air bubbles; there should be no burrs or flashes on the edges, no dissolution, shrinkage, impurities, deformation, unevenness. 4.6 Environmental test 4.6.1 The plastic water tank shall be able to withstand the upper temperature of 60 ℃ ± 2 ℃, the lower limit temperature of -40 ℃ ± 2 ℃, and the storage temperature test shall last for 4 hours. (The water tank is not filled with water.) After the test, there is no crack or damage. 4.6.2 The product shall be able to withstand a drop test of 800 mm without cracks or breakage in the unpacked state.5 Test method5.1 Specifications Measured with vernier calipers with a division value of 0.02 mm, a steel ruler with a division value of 1 mm, a square ruler, and internal and external calipers. Requirements. 5.2 Flatness Use a feeler and vernier caliper to inspect the flatness of the upper edge of the plastic sink and the bottom of the gas collecting rack on a level 3 platform, which should meet 4.3.1, 4.3.2 And 4.4. 5.3 Performance 5.3.1 Deformation Place the plastic water tank on the platform, and use a vernier caliper to measure the maximum deformation of the water tank before and after it is filled with water at room temperature and 50% of the water tank depth. Should comply with the provisions of 4.3.4. 5.3.2 Stationarity Place a transparent plastic water tank on the platform, and fill the water tank with water at a temperature of 60 ℃ and a depth of 50%. Use a feeler gauge to measure the bottom of the plastic water tank. The distance between the part and the platform surface shall meet the requirements of 4.3.5. 5.3.3 Transparency Using sensory test, the transparency should be equivalent to that of colorless and transparent plexiglass, ordinary silicate glass, and polycarbonate sheet. 5.4 Appearance The sensory test shall meet the requirements of 4.3.4 ribs and 4.5. 5.5 Environmental test 5.5.1 Storage temperature test. Put the product in its natural state in a high-temperature test box. The water tank is not filled with water. According to JY/T 0213-1994 Testing is required; inspection after testing shall comply with the provisions of 4.6.1. In the storage temperature test, the total volume of the test sample should not be larger than the test volume. Two-thirds of the inspection volume. 5.5.2 Free fall test. In a non-packaged state with an ambient temperature of 20 ℃ ± 5 ℃, place the transparent water tank and the gas collecting rack separately from the water. At a height of 800 mm on the mud ground, with the bottom facing downwards, it will fall freely once, and shall meet the requirements of 4.6.2.6 Inspection rules6.1 Inspection classification The inspection of this product is divided into factory inspection, type inspection and quality supervision inspection. 6.2 Inspection items The inspection items and methods of factory inspection and type inspection shall comply with Table 5. Table 5 Inspection items and inspection methods for factory inspection and type inspection Serial number inspection item standard article number factory inspection type inspection 1 Sink size 4.2 ● ● 2 Sink shape error 4.3.1, 4.3.2, 4.3.3 ● ● 3 Sink reinforcement and deformation 4.3.4 ● ● 4 Water tank stability 4.3.5 ○ ● 5 Sink transparency 4.3.6 ● ● 6 Gas Collector 4.4 ○ ● 7 Appearance 4.5 ● ●8 Temperature environment test4.6.1-●9 Drop environment test4.6.2-● Note. “●” in the table means all inspection items, “○” means sampling inspection items, and “-” means no inspection items. a It should be done when setting and changing materials. 6.3 Lot rules and sampling methods 6.3.1 The factory inspection shall be batched according to the natural batch of delivery, and the type inspection shall be batched according to the stock array. 6.3.2 During the factory inspection, first inspect all the inspection items, take samples from the qualified products of all inspection items, and inspect the items for sampling inspection. Check. 6.3.3 The sampling methods for factory inspection and type inspection shall be implemented in accordance with the provisions of 3.2.2, 3.3.2, 3.4.3 in JY/T 0002-2003. 6.4 Non-conformance determination 6.4.1 The failure criterion of a single sample shall be implemented in accordance with 4.3 in JY/T 0002-2003. 6.4.2 All inspection items shall be judged according to the unqualified criterion of a single sample. 6.4.3 The following contents of this standard are the main performance indicators. 4.2 wall thickness, 4.2 and 4.3 flatness, 4.3 deformation variables, 4.2 circular sink circle Degree, 4.3 transmittance. 6.5 Review rules The re-inspection of the sampling inspection items shall be carried out in accordance with the transfer rules of 9.3 in GB/T 2828.1-2012, and the inspection shall be carried out one time at a time. Case, general inspection level III, AQL value is 2.5. 6.6 Quality supervision inspection Refer to type inspection. 7 Signs, instruction manuals, packaging, transportation and storage 7.1 The mark, certificate, and instruction manual shall comply with the relevant provisions of 11.1, 11.2, and 11.3 in JY/T 0001-2003. 7.2 Packaging, transportation and storage shall comply with the relevant provisions of 12.1 and 12.2 of JY/T 0001-2003. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of JY/T 0053-2019_English be delivered?Answer: Upon your order, we will start to translate JY/T 0053-2019_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of JY/T 0053-2019_English with my colleagues?Answer: Yes. The purchased PDF of JY/T 0053-2019_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
