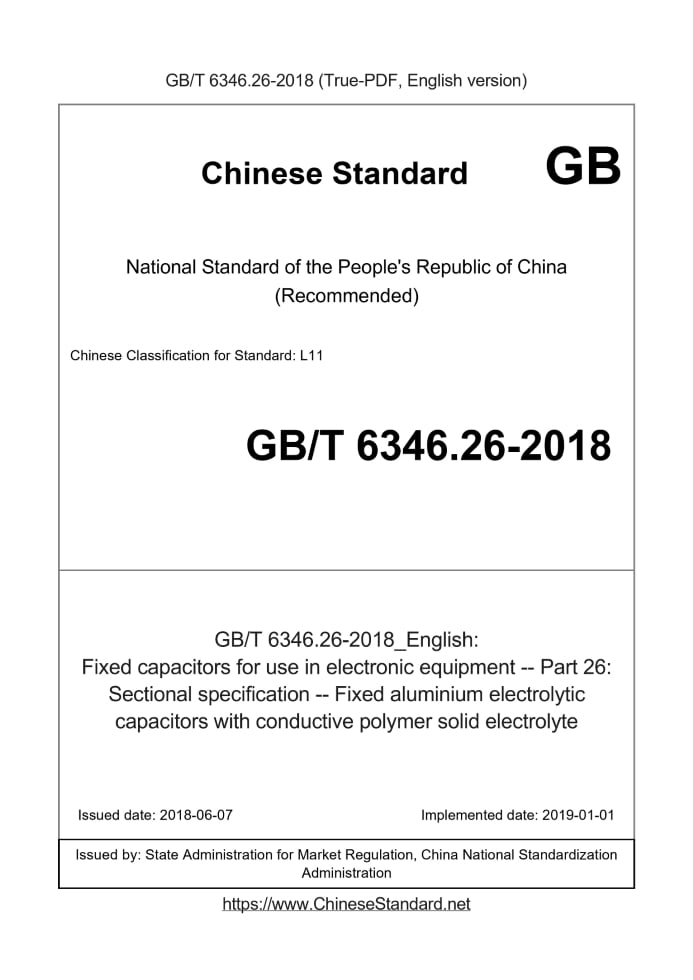

GB/T 6346.26-2018: Fixed capacitors for use in electronic equipment -- Part 26: Sectional specification -- Fixed aluminium electrolytic capacitors with conductive polymer solid electrolyte
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 6346.26-2018	494	Add to Cart	3 days	Fixed capacitors for use in electronic equipment -- Part 26: Sectional specification -- Fixed aluminium electrolytic capacitors with conductive polymer solid electrolyte	Valid

Similar standards

GB/T 6346.14 SJ/T 11633 GB/T 26572 GB/T 6346.1 GB/T 6346.24 GB/T 6346.25

Basic data

Standard ID: GB/T 6346.26-2018 (GB/T6346.26-2018)
Description (Translated English): Fixed capacitors for use in electronic equipment -- Part 26: Sectional specification -- Fixed aluminium electrolytic capacitors with conductive polymer solid electrolyte
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L11
Classification of International Standard: 31.060.50
Word Count Estimation: 26,222
Date of Issue: 2018-06-07
Date of Implementation: 2019-01-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 6346.26-2018: Fixed capacitors for use in electronic equipment -- Part 26: Sectional specification -- Fixed aluminium electrolytic capacitors with conductive polymer solid electrolyte

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Fixed capacitors for use in electronic equipment--Part 26. Sectional specification--Fixing aluminium electrolytic capacitors with conductive polymer solid electrolyte ICS 31.060.50 L11 National Standards of People's Republic of China (IEC 60384-26.2010, IDT) Published on.2018-06-07 2019-01-01 Implementation National Market Supervision Administration China National Standardization Administration released Directory Preface III 1 General 1 1.1 Scope 1 1.2 Purpose 1 1.3 Normative references 1 1.4 Contents to be given in the detailed specification 1 1.5 Terms and Definitions 2 1.6 Sign 2 2 Priority Ratings and Characteristics 3 2.1 Priority Characteristics 3 2.2 Preferred rating 3 3 Quality Assessment Procedure 4 3.1 Initial Manufacturing Stage 4 3.2 Structure Similar Components 4 3.3 Declaration of Conformity (Basic Requirements) 4 3.4 List of initial assessment tests and requirements (mandatory and selective tests) 4 3.5 Quality Consistency Inspection 10 4 Test and Measurement Procedures 12 4.1 Pretreatment (if required) 12 4.2 Measurement Conditions 12 4.3 Appearance and Dimensions Check 13 4.4 Electrical Test 13 4.5 Terminal Strength 14 4.6 Welding Heat 14 4.7 Solderability 14 4.8 Rapid temperature changes 15 4.9 Vibration 15 4.10 Impact 15 4.11 Collision 16 4.12 Climate Sequence 16 4.13 Steady heat 17 4.14 Durability 17 4.15 Surge 17 4.16 Reverse voltage (if required by the detail specification) 18 4.17 Element Solvent Resistance (if required by detailed specifications) 18 4.18 Marking solvent resistance (if required by detailed specifications) 18 4.19 High Temperature Storage 18 4.20 High and Low Temperature Characteristics 19 4.21 Charging and Discharging (if required by the detail specification) 19 4.22 High inrush current (if required by detailed specifications) 19 Reference 20

Foreword

The National Standard for Fixed Capacitors for Electronic Equipment is divided into the following sections. --- Part 1. General specification (IEC 60384-1.2008); --- Part 2. Sectional specification metallized polyethylene terephthalate film dielectric DC fixed capacitors (GB/T 7332-2011/ IEC 60384-2.2005); --- Part 2-1. Blank detail specification Metallized polyethylene terephthalate film dielectric dc fixed capacitors Assessment level E and EZ (GB/T 7333-2012/IEC 60384-2-1.2005); --- Part 3. Sectional specification Surface Mount (MnO2) Solid Electrolyte Tantalum Fixed Capacitors (GB/T 6346.3-2015/IEC ) 60384-3.2006); ---Part 3-1. Blank Detail Specification Surface Mount (MnO2) Solid Electrolyte/Fixed Capacitors Assessment Level EZ (GB/T 6346.301-2015/IEC 60384-3-1.2006); --- Part 4. Sectional specification for aluminium capacitors with solid and non-solid electrolyte (GB/T 5993-2003/IEC 60384-4.1998, number one Revision No. 1..2000); ---Part 4-1. Blank detail specification Non-solid electrolyte aluminum capacitors Assessment level E (GB/T 5994-2003/IEC 60384-4-1.2000); --- Part 4-2. Blank detail specification for solid electrolyte (MnO2) aluminium capacitors Assessment level EZ (IEC 60384-4-2. 2007); --- Part 5. Selection of test methods for fixed mica dielectric capacitors with rated voltage not exceeding 3,000 V General requirements (GB/T 6261-1998/IEC 60384-5.1993); --- Part 5-1. Blank detail specification - Fixed mica dielectric dielectric capacitors with a rated voltage not exceeding 3000 V Selection and general requirements assessment level E (GB/T 6262-1998/IEC 60384-5-1.1993); --- Part 6. Sectional specification metallized polycarbonate film dielectric DC fixed capacitors (available for certification) (GB/T 14004- 1992/IEC 60384-6.1987); --- Part 6-1. Blank detail specification Metallized polycarbonate film dielectric dc fixed capacitors Assessment level E (available for certification Used) (GB/T 14005-1992/IEC 60384-6-1.1987); --- Part 7. Sectional specification of metal foil type polystyrene film dielectric DC fixed capacitors (GB/T 10185-2012); --- Part 7-1. Blank detail specification Fixed metal foil type polystyrene film dielectric DC capacitors Assessment level E (GB/T 10186-2012); --- Part 8. Subdivision 1 fixed ceramic capacitors (GB/T 5966-2011/IEC 60384-8.2005); --- Part 8-1. Blank detail specification Fixed capacitors of ceramic dielectric class 1 Assessment level EZ (GB/T 5967-2011/IEC ) 60384-8-1.2005); --- Part 9. Section 2 fixed capacitors of ceramic dielectrics (GB/T 5968-2011/IEC 60384-9.2005); --- Part 9-1. Blank detail specification Fixed ceramic capacitors of Class 2 Assessment level EZ (GB/T 5969-2011/IEC ) 60384-9-1.2005); --- Part 11. Sectional specification for metal foil type polyethylene terephthalate film dielectric DC fixed capacitors (GB/T 6346.11-2015/IEC 60384-11.2008); --- Part 11-1. Blank detail specification for foil-type polyethylene terephthalate film dielectric DC fixed capacitors Evaluation level EZ (GB/T 6346.1101-2015/IEC 60384-11-1.2008); --- Part 12. Sectional specification for metal foil type polycarbonate dielectric DC capacitors (IEC 60384-12.1988); --- Part 12-1. Blank detail specification. Fixed metal foil type polycarbonate film dielectric DC capacitors Assessment level EZ (IEC 60384-12-1.1988); --- Part 13. Sectional specification of foil-type polypropylene film dielectric DC fixed capacitors (GB/T 10188-2013/IEC 60384-13.2006); --- Part 13-1. Blank detail specification Fixed metal foil type polypropylene film dielectric DC capacitors Assessment levels E and EZ (GB/T 10189-2013/IEC 60384-13-1.2006); --- Part 14. Sectional specification Fixed capacitors for electromagnetic interference suppression in power supply (GB/T 6346.14-2015/IEC 60384-14. 2005); --- Part 14-1. Blank detail specification for the suppression of power supply Electromagnetic interference Fixed capacitors for the assessment level D (GB/T 6346. 1401-2015/IEC 60384-14-1.2005); --- Part 15. Sectional specification for non-solid or solid electrolyte tantalum capacitors (GB/T 7213-2003/IEC 60384-15.1982, Revision No. 1. 1987, Revision No. 2..1992); --- Part 15-1. Blank detail specification Non-solid electrolyte foil electrode tantalum capacitors Assessment level E (available for certification) (GB/T 12794-1991/IEC 60384-15-1.1984); --- Part 15-2. Blank detail specification Non-solid electrolyte porous anode tantalum capacitors Assessment level E (available for certification) (GB/T 12795-1991/IEC 60384-15-2.1984); --- Part 15-3. Blank detail specification for solid electrolyte porous anode tantalum capacitors Assessment level E (available for certification) (GB/T 7214-2003/IEC 60384-15-3.1992); --- Part 16. Sectional specification metallized polypropylene film dielectric DC fixed capacitors (GB/T 10190-2012/IEC 60384- 16.2005); --- Part 16-1. Blank detail specification Fixed metallized polypropylene film dielectric DC capacitors Assessment levels E and EZ (GB/T 10191-2011/IEC 60384-16-1.2005); --- Part 17. Sectional specification for metallized polypropylene film dielectric ac and pulse capacitors (GB/T 14579-2013/IEC 60384-17.2005); --- Part 17-1. Blank detail specification for metallized polypropylene film dielectric ac and pulse-hold capacitors Assessment levels E and EZ (GB/T 14580-2013/IEC 60384-17-1.2005); --- Part 18. Sectional specification solid (MnO2) and non-solid electrolyte chip type aluminum fixed capacitors (GB/T 17206-1998/ IEC 60384-18.1993, Revision No. 1..1998); --- Part 18-1. Blank detail specification Surface Mount Solid (MnO2) Electrolyte Aluminum Fixed Capacitors Assessment Level EZ (GB/T 17207-2012/IEC 60384-18-1.2007); --- Part 18-2. Blank detail specification Non-solid electrolyte chip type aluminium electrolytic fixed capacitors Assessment level E (GB/T 17208-1998/IEC 60384-18-2.1993); --- Part 19. Sectional specification for surface mount metallized polyethylene terephthalate film dielectric DC fixed capacitors (GB/T 15448-2013/IEC 60384-19.2005); --- Part 19-1. Blank Detail Specification Surface Mount Metallized Polyethylene Terephthalate Film Dielectric DC Fixed Capacitors Assessment level EZ (GB/T 16467-2013/IEC 60384-19-1.2006); --- Part 21. Sectional specification. Surface mount type 1 multilayer ceramic dielectric capacitors (GB/T 21041-2007/IEC 60384- 21.2004); ---Part 21-1. Blank detail specification Class 1 multilayer ceramic dielectric capacitors for surface mounting Assessment level EZ (GB/T 21038-2007/IEC 60384-21-1.2004); --- Part 22. Sectional specification for surface mounting of type 2 multilayer ceramic dielectric capacitors (GB/T 21042-2007/IEC 60384- 22.2004); --- Part 22-1. Blank detail specification Surface mount multilayer ceramic fixed capacitors of class 2 Assessment level EZ (GB/T 21040-2007/IEC 60384-22-1.2004); --- Part 23. Sectional specification for surface mount metallized polyethylene naphthalate film dielectric DC fixed capacitors (IEC 60384-23.2015); --- Part 23-1. Blank detail specification Surface mounted metallized polyethylene naphthalate film dielectric DC fixed capacitors Appraisal level EZ (IEC 60384-23-1.2015); --- Part 24. Sectional specification for surface mount conductive polymer solid electrolyte tantalum capacitors (IEC 60384-24.2015); --- Part 24-1. Blank detail specification for surface mount conductive polymer solid electrolyte helium fixed capacitors Assessment level EZ (IEC 60384-24-1.2006); --- Part 25. Sectional specification for surface mounting of conductive polymer solid electrolytic aluminum fixed capacitors (GB/T 6346.25-2018/ IEC 60384-25.2015); --- Part 25-1. Blank detail specification Surface mount conductive polymer solid electrolytic aluminum fixed capacitors Assessment level EZ (GB/T 6346.2501-2018/IEC 60384-25-1.2006); 26.2010); ---Part 26-1. Blank detail specification for conductive polymer solid electrolytic aluminum fixed capacitors Assessment level EZ (GB/T 6346.2601-2018/IEC 60384-26-1.2010). This section is Part 26 of "Fixed Capacitors for Electronic Equipment." This section was drafted in accordance with the rules given in GB/T 1.1-2009. This section uses the translation method identical to the use of IEC 60384-26.2010 “Fixed Capacitors for Electronic Equipment Part 26. Sectional Guides Electropolymer solid electrolyte aluminum fixed capacitor". The Chinese documents that are consistent with the normatively quoted international documents in this section are as follows. ---GB/T 2423.28-2005 Environmental testing for electric and electronic products Part 2. Test methods Test T. Soldering (IEC 60068-2-20.1979, IDT) ---GB/T 2693-2001 Fixed capacitors for use in electronic equipment Part 1. Generic specification (IEC 60384-1.1999, IDT) Please note that some of the contents of this document may involve patents. The issuing agency of this document does not assume responsibility for identifying these patents. This section was proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This part is under the jurisdiction of the National Standardization Technical Committee for Resistors and Devices for Electronic Equipment (SAC/TC165). This section was drafted by. Nantong Jianghai Capacitor Co., Ltd. The main drafters of this section. Huang Yuming, Yao Jianjun, Han Hongjun. Fixed capacitors for electronic equipment Part 26. Sectional specification Conductive polymer solid electrolyte aluminum fixed capacitor

1 General

1.1 Scope This part of "Fixed Capacitors for Electronic Equipment" is applicable to conductive polymer solid electrolyte aluminum fixed capacitors. The capacitor is mainly used DC circuits in electronic devices. Note. Solid electrolyte (MnO2) aluminum capacitors use IEC 60384-4 and IEC 60384-4-2. Surface mount conductive polymer solid electrolyte aluminum fixed electric The container adopts GB/T 6346.25-2018 and GB/T 6346.2501-2018. 1.2 Purpose The purpose of this section is to specify the preferred ratings and characteristics for this type of capacitor and to select the appropriate quality from IEC 60384-1 Assess procedure, test and measurement methods, and give general characteristic requirements. The detailed specifications quoted in this section stipulate the severity of the test and When required, it should have the same or higher performance level than this section, and does not allow to reduce the performance level. 1.3 Normative references The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. GB/T 2421.1-2008 Environmental testing for electrical and electronic products. an overview and guidelines (IEC 60068-1.1988, IDT) GB/T 2423.22-2012 Environmental testing Part 2. Test methods Test N. Temperature change (IEC 60068-2-14. 2009, IDT) GB/T 2471-1995 Priority numbers for resistors and capacitors [idtIEC 60063. 1963, Revision No. 1 (1967), No. 2 Revision List (1977)] 1.4 What should be given in the detailed specification The detailed specifications should be formulated according to the relevant blank detailed specifications. Detailed specifications should not specify requirements that fall below the general specifications, sub-specifications, or blank detailed specifications. When more stringent requirements are included, Listed in 1.9 of the detailed specification, and should be noted in the test schedule, for example. with an asterisk. Note. For the sake of convenience, the contents of 1.4.1 can be expressed in the form of a table. The following content should be specified in each detailed specification, and the cited values should be selected preferentially from the values given in the corresponding clauses of this section. ......
