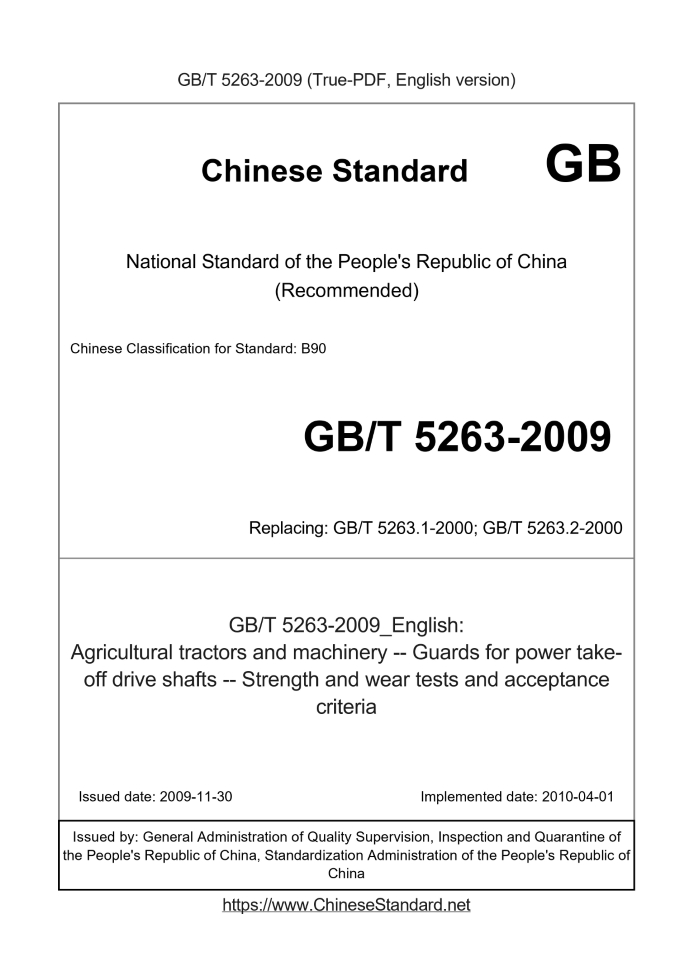

GB/T 5263-2009 English PDF

US$434.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 5263-2009: Agricultural tractors and machinery -- Guards for power take-off drive shafts -- Strength and wear tests and acceptance criteria
Status: Valid

GB/T 5263: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 5263-2009	434	Add to Cart	4 days	Agricultural tractors and machinery -- Guards for power take-off drive shafts -- Strength and wear tests and acceptance criteria	Valid
GB/T 5263.1-2000	319	Add to Cart	3 days	Tractors and machinery for agriculture and forestry. Guards for power take-off (PTO) drive-shafts. Part 1: Strengh test	Obsolete
GB/T 5263-1985	199	Add to Cart	2 days	Test methods for guards of power take-off drive shafts for agriculture machinery	Obsolete

Similar standards

GB 10395.1   GB 16151.1   GB 10395.8   GB/T 4269.2   GB/T 4269.4   GB/T 5262

Basic data

Standard ID: GB/T 5263-2009 (GB/T5263-2009)
Description (Translated English): Agricultural tractors and machinery -- Guards for power take-off drive shafts -- Strength and wear tests and acceptance criteria
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: B90
Classification of International Standard: 65.060.01
Word Count Estimation: 22,217
Date of Issue: 2009-11-30
Date of Implementation: 2010-04-01
Older Standard (superseded by this standard): GB/T 5263.1-2000; GB/T 5263.2-2000
Quoted Standard: GB/T 250; GB/T 1592; GB/T 16422.1; GB/T 16422.2; GB/T 17126.1; GB/T 17126.2
Adopted Standard: ISO 5674-2004, IDT
Regulation (derived from): National Standard Approval Announcement 2009 No.14 (Total No.154)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the determination of agricultural and forestry tractors and mechanical power output shafts shield strength and abrasion resistance of laboratory test methods and acceptance. This standard should be GB/T 17126 for use. This standard applies to PTO shaft guard and stop the test device. This standard does not apply to use the ladder as a power output shafts shield tests.

GB/T 5263-2009: Agricultural tractors and machinery -- Guards for power take-off drive shafts -- Strength and wear tests and acceptance criteria

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Agricultural tractors and machinery. Guards for power take-off drive shafts. Strength and wear tests and acceptance criteria ICS 65.060.01 B90 National Standards of People's Republic of China GB/T 5263-2009/ISO 5674.2004 Replacing GB/T 5263.1-2000, GB/T 5263.2-2000 Tractors and machinery for agriculture and forestry output power Shafts and shield strength Wear tests and acceptance (ISO 5674.2004, IDT) Posted 2009-11-30 2010-04-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is equivalent to using ISO 5674.2004 "Tractors and machinery for agriculture and forestry PTO shaft guard strength and wear Lose Test and acceptance "(in English). This standard is equivalent translation ISO 5674.2004. For ease of use, this standard made the following editorial changes. --- "This International Standard" be replaced by "this standard"; --- Remove ISO 5674.2004 Foreword; "." --- With a decimal point instead of a comma as the decimal point, ""; --- To ISO 5674.2004 and other international standards referenced with equivalent has been adopted as our standard instead. This standard is GB/T 5263.1-2000 and GB/T 5263.2-2000 revision, except in accordance with the new international standards will be in two parts Merger, the main technical content has not changed. This standard Annex A, Annex B is normative, Annex C, Annex D is informative appendix. Since the implementation of this standard replaces GB/T 5263.1-2000 and GB/T 5263.2-2000. The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee of agricultural machinery. This standard was drafted. Chinese Academy of Agricultural Mechanization Sciences, Luoyang Tractor Research Institute, the National Quality Supervision and Inspection Center of farm machinery. The main drafters. Zhang Xian wins, Lv Shusheng, still Rope, Chen Ge, Zhao Liwei. This standard replaces the standards previously issued as follows. --- GB 5263-1985; --- GB/T 5263.1-2000; --- GB/T 5263.2-2000. GB/T 5263-2009/ISO 5674.2004

Introduction

This standard is a Class C standard GB/T 15706.1-2007 provisions. Range GB/T 15706.1-2007 given the danger involved, hazardous situations and hazardous events associated with the severity and machinery. If the provisions of the Class A or Class B standards the provisions of this type C standard is not the same, for the design and manufacture in accordance with the provisions of this type C standard Machines, priority should be the implementation of the C class standards. GB/T 5263-2009/ISO 5674.2004 Tractors and machinery for agriculture and forestry output power Shafts and shield strength Wear tests and acceptance

1 Scope

This standard specifies the strength determining agricultural and forestry tractors and mechanical PTO shaft shield and wear resistance of laboratory tests Methods and acceptance specifications. This standard should be GB/T 17126 used in conjunction. This standard applies to the PTO shaft guard and stop the test apparatus. This standard does not apply to the use of the ladder The PTO shaft guard tests.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 250 textile color fastness test assessing change in color like the gray card (GB/T 250-2008, ISO 105-A02.1993, IDT) GB/T 1592 (all parts) Agricultural tractors - Rear PTO 1, 2 and 3 (GB/T 1592-2008, ISO 500. 2004, IDT) GB/T 16422.1 Plastics - Methods of exposure to laboratory light sources - Part 1. General (GB/T 16422.1-2006, ISO 4892-1.1999, IDT) GB/T 16422.2 Plastics - Methods of exposure to laboratory light sources - Part 2. Xenon arc lamp (GB/T 16422.2-1999, idtISO 4892-2.1994) GB/T 17126.1 tractors and agricultural machinery PTO shafts and power - input connection - Part 1. System Building and safety requirements (GB/T 17126.1-2009, ISO 5673-1.2005, IDT) GB/T 17126.2 tractors and agricultural machinery PTO shafts and power - input connection - Part 2. Fixed Force output shafts of Use and different attachments with PTO driveline and PIC position and clearance specifications (GB/T 17126.2-2009, ISO 5673-2.2005, IDT)

3 Terms and Definitions

And the following terms and definitions GB/T 17126.1 established apply to this standard. 3.1 Any temperature 5 ℃ ~ 35 ℃ between.

4 General test conditions

4.1 shield 4.1.1 shield samples should be representative, and within the tolerance range of its provisions. As long as the same basic structure, obtained by the test specimen The results can be used for longer or shorter guard certification. When designing a shield for several types of shafts, should choose a Shafts and shield combination of representative test. GB/T 5263-2009/ISO 5674.2004 ......
