GB/T 41858-2022 English PDFUS$314.00 ยท In stock

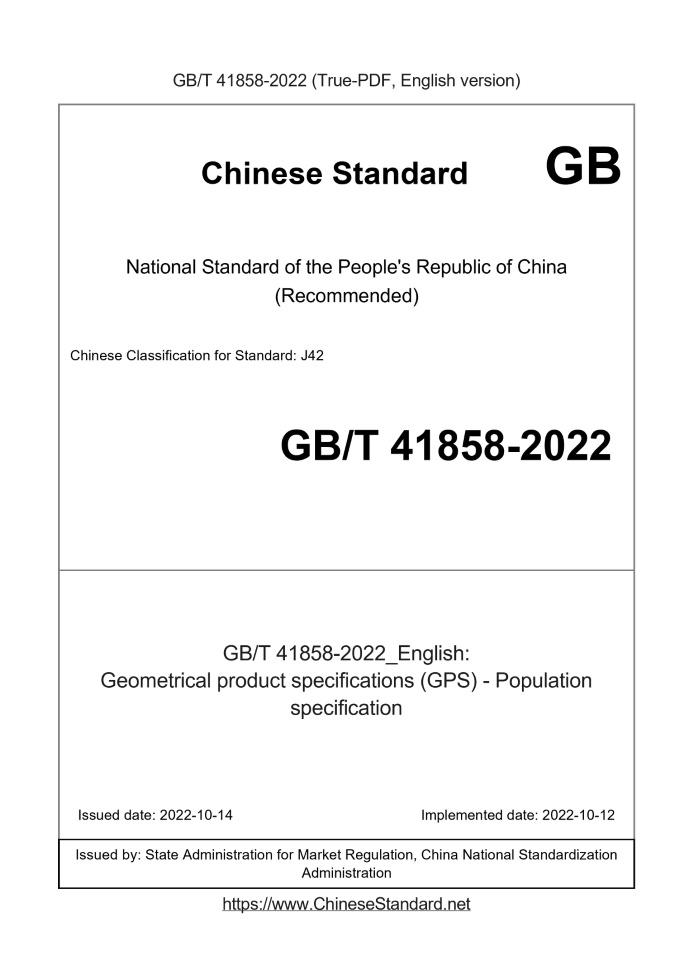

Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 41858-2022: Geometrical product specifications (GPS) - Population specification Status: Valid
Basic dataStandard ID: GB/T 41858-2022 (GB/T41858-2022)Description (Translated English): Geometrical product specifications (GPS) - Population specification Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: J42 Classification of International Standard: 17.040.40 Word Count Estimation: 18,178 Date of Issue: 2022-10-14 Date of Implementation: 2022-10-12 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 41858-2022: Geometrical product specifications (GPS) - Population specification---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Geometrical product specifications (GPS) -- Population specification ICS 17.040.40 CCSJ42 National Standards of People's Republic of China Product Geometry Specification (GPS) Lot Specification (ISO 18391.2016, IDT) Published on 2022-10-12 2022-10-12 Implementation State Administration for Market Regulation Released by the National Standardization Administration directory Preface I 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Rules for establishing batch specifications 2 5 Symbol for batch specification 6 6 Labeling rules for batch specification 10 Appendix A (Informative) Relationship to GPS Matrix Model 13 Reference 14 forewordThis document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for Standardization Work Part 1.Structure and Drafting Rules of Standardization Documents" drafted. This document is equivalent to ISO 18391.2016 "Product Geometric Specification (GPS) Lot Specification". The following minimal editorial changes have been made to this document. --- Modified the formula of inertia parameters in Table 3, the international standard formula was wrongly expressed; --- Added note in A.1 and A.3. Please note that some content of this document may be patented. The issuing agency of this document assumes no responsibility for identifying patents. This document is proposed and managed by the National Standardization Technical Committee of Product Geometry Specifications (SAC/TC240). This document is drafted by. Anji Asia-Pacific Braking System Co., Ltd., Qoros Automobile Co., Ltd., Jiangsu Institute of Technology, Zhongyuan Institute of Technology, Xiamen Men Yin Chao Technology Co., Ltd., China Machinery Productivity Promotion Center Co., Ltd., China Machinery Research Institute Standard Technology Research Institute (Beijing) Co., Ltd., Guangdong Jin Asia Technology Co., Ltd., Yiwu Guojun Mould Co., Ltd., Guangdong Haochenwang Technology Co., Ltd., Shaanxi Runzheng Testing Technology Co., Ltd., Zhejiang Jiang Ang Hua New Materials Co., Ltd., Ningbo Water Auto Parts Co., Ltd. The main drafters of this document. Qiu Chenxi, Shi Ruikang, Han Simeng, Xu Xusong, Zhao Zexiang, Zhu Yue, Lin Pengxiang, Zhang Dejun, Fu Xiaoqin, Zheng Decan, Xiang Weiming, Wang Guangjian, Zhang Zheyuan. Product Geometry Specification (GPS) Lot Specification1 ScopeThis document specifies the rules for establishing and labeling batch specifications. Batch specifications are used to specify conditions for batch characteristics. from a set of batch artifacts The value of a certain feature can be obtained in each workpiece of, and the batch feature is established by the obtained feature values. Batch specifications (applied to the set of batch artifacts as a whole rather than their individual individuals) can be viewed as a single specification (applied to individual individuals) A supplementary requirement for each artifact in. Batch specifications express statistical assumptions about batch artifacts. Note 1.The batch specification is in addition to the single GPS specification. Note 2.The purpose of this document is to give a method of expressing batch specifications, not a method of designing their tolerances.2 Normative referencesThe contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, dated citations documents, only the version corresponding to that date applies to this document; for undated references, the latest edition (including all amendments) applies to this document. ISO 14405-1 Product Geometric Specifications (GPS) Dimensional Tolerances Part 1.Linear Dimensions [Geometricalproduct Note. GB/T 38762.1-2020 Product Geometric Specifications (GPS) Dimensional Tolerances Part 1.Linear Dimensions (ISO 14405-1.2016, MOD) ISO 17450-1 Product Geometric Specifications (GPS) General Concepts Part 1.Models for Geometric Specification and Inspection [Geomet- verification] Note. GB/T 24637.1-2020 Product Geometric Specifications (GPS) General Concepts Part 1.Models for Geometric Specification and Inspection (ISO 17450-1. 2011, MOD)3 Terms and DefinitionsTerms and definitions defined in ISO 17450-1 and the following apply to this document. 3.1 Statistics defined by characteristic values obtained from batch workpieces or batch assemblies. Note 1.The batch feature applies to batches of workpieces. Note 2.Batch features are statistically significant only if the feature values are based on a global single feature, see Example 2. Example 1.The arithmetic mean and standard deviation of the global individual features of a batch artifact are batch features. Example 2.For a given cylindrical feature, its minimum circumscribed cylindrical diameter value is unique. A batch of features based on this global single feature value in the system meaningful. For a given cylindrical feature, the two-point diameter will fluctuate within a certain range due to the shape deviation of the feature. At this point, the cylindrical element's Batch features cannot be defined by batch values of two point diameters. However, a batch feature can be created from the diameter of the largest two points of the cylindrical feature. The feature is a global single feature; at the same time, a batch feature can be established by the diameter of the smallest two points of this cylindrical element, and this batch feature is another global single feature. feature. 3.2 batch condition populationcondition Limits applied to batch eigenvalues. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 41858-2022_English be delivered?Answer: Upon your order, we will start to translate GB/T 41858-2022_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 41858-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 41858-2022_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
