GB/T 38983.1-2020 English PDF

Q: How long will the true-PDF of English version of GB/T 38983.1-2020 be delivered?

Upon your order, we will start to translate GB/T 38983.1-2020_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of GB/T 38983.1-2020_English with my colleagues?

Yes. The purchased PDF of GB/T 38983.1-2020_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

US$189.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

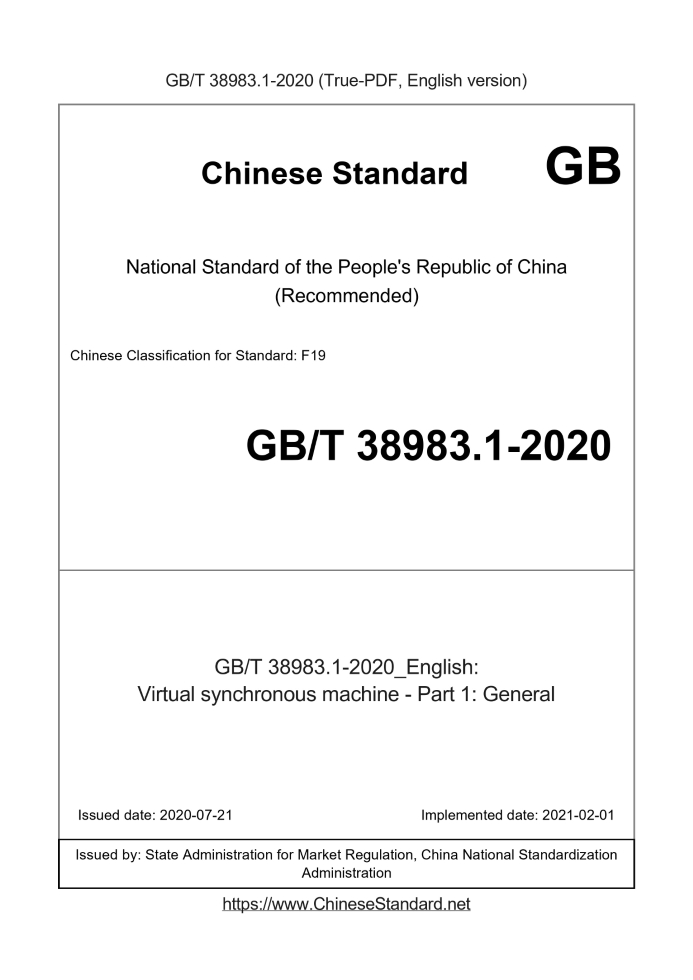

GB/T 38983.1-2020: Virtual synchronous machine - Part 1: General
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 38983.1-2020	189	Add to Cart	3 days	Virtual synchronous machine - Part 1: General	Valid

Similar standards

GB/T 40060 GB/T 40061 GB/T 40045 GB/T 45541 GB/T 45539

Basic data

Standard ID: GB/T 38983.1-2020 (GB/T38983.1-2020)
Description (Translated English): Virtual synchronous machine - Part 1: General
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: F19
Classification of International Standard: 27.010
Word Count Estimation: 10,147
Date of Issue: 2020-07-21
Date of Implementation: 2021-02-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 38983.1-2020: Virtual synchronous machine - Part 1: General

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Virtual synchronous machine--Part 1.General ICS 27.010 F19 National Standards of People's Republic of China Virtual Synchronous Machine Part 1.General Rules 2020-07-21 released 2021-02-01 implementation State Administration for Market Regulation Issued by the National Standardization Management Committee

Foreword

GB/T 38983 "Virtual Synchronization Machine" is divided into 5 parts. ---Part 1.General Provisions; ---Part 2.Wind power virtual synchronous generator; ---Part 3.Virtual synchronous generator for photovoltaic power generation; ---Part 4.Power Energy Storage Virtual Synchronous Machine; ---Part 5.Virtual synchronous machine on the load side. This part is Part 1 of GB/T 38983. This section was drafted in accordance with the rules given in GB/T 1.1-2009. This part was proposed by the China Electricity Council. This part is under the jurisdiction of the National Standardization Technical Committee for Microgrid and Distributed Power Grid Connection (SAC/TC564). Drafting organizations of this section. China Electric Power Research Institute Co., Ltd., State Grid Jiangsu Electric Power Co., Ltd., State Grid Jibei Electric Power Co., Ltd. Company Electric Power Research Institute, State Grid Tianjin Electric Power Company, State Grid Chongqing Electric Power Company Electric Power Research Institute, Guodian NARI Technology Co., Ltd. Co., Ltd., Xu Ji Group Co., Ltd., State Grid Jiangxi Electric Power Co., Ltd., Guangxi Power Grid Co., Ltd. Electric Power Research Institute, State Grid New Source Zhangjiakou Wind and Solar Demonstration Power Station Co., Ltd., Southeast University, North China Electric Power University, Chongqing University, Hunan University, Jiangsu Goodway Power Supply Division Technology Co., Ltd. The main drafters of this section. Sheng Wanxing, Lu Zhipeng, Liu Haitao, Wu Ming, Su Jian, Sun Lijing, Song Zhenhao, Yu Hui, Liu Hui, Wang Xudong, Li Junjie, Zhang Wei, Wei Zheng, Qin Xiaohui, Liu Hanmin, Zhou Ke, Cao Jianbo, Su Lining, Yan Xiangwu, Tu Chunming, Fan Ruixiang, Zeng Zheng, Wang Jianhua, Weng Beibei. Virtual Synchronous Machine Part 1.General Rules

1 Scope

This part of GB/T 38983 specifies the basic regulations, functional requirements and performance requirements of virtual synchronous machines. This section applies to the design and application of virtual synchronous machines.

2 Normative references

The following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. GB/T 18451.2 Wind Turbine Generator Power Characteristic Test GB/T 18487 (all parts) Conductive charging system for electric vehicles GB/T 19963 Technical Regulations for Connecting Wind Farms to Power Systems GB/T 19964 Technical Regulations for Connecting Photovoltaic Power Stations to Power Systems GB/T 20234 (all parts) Connecting devices for conductive charging of electric vehicles GB/T 29319 Technical Regulations for Connecting Photovoltaic Power Generation System to Distribution Network GB/T 34120 Technical specification for energy storage converter of electrochemical energy storage system GB/T 36548 Test Specification for Connecting Electrochemical Energy Storage System to Grid GB/T 37408 Technical requirements for grid-connected inverters for photovoltaic power generation GB/T 37409 Technical Specification for Testing of Grid-connected Inverters for Photovoltaic Power Generation

3 Terms and definitions

The following terms and definitions apply to this document. 3.1 Virtual synchronous machine virtual synchronous machine; VSM By simulating the electromechanical transient characteristics such as the inertia and internal potential of the synchronous machine, the power and voltage operating external characteristics of the port are similar to the synchronous machine Power electronic converter system or equipment. 3.2 Virtualsynchronousgenerator The port characteristics appear as a virtual synchronous machine for generators to generate electricity. 3.3 Virtual synchronous motor The port characteristics appear as a virtual synchronous machine for load power consumption. 3.4 Activepower-frequencyregulationcoefficientofVSM The rate of change of the active power of the virtual synchronous machine with frequency. Note. The active frequency modulation coefficient of the virtual synchronous machine is usually expressed by Kf, and the calculation method is shown in formula (1). Use the virtual synchronous machine's active power change to mark the unit value (in the virtual The ratio of the rated active power of the pseudo-synchronous machine as the reference value) and the per-unit value of the system frequency change (take the system rated frequency as the reference value) is expressed. ......
