GB/T 36103.14-2018 English PDF

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 36103.14-2018	184	Add to Cart	3 days	Ferrite cores -- Dimensions -- Part 14: EFD-cores for use in power supply applications	Valid

Similar standards

GB/T 36103.1   SJ/T 10412   SJ/T 10410   GB/T 36103.7   GB/T 36103.1   GB/T 43795

Basic data

Standard ID: GB/T 36103.14-2018 (GB/T36103.14-2018)
Description (Translated English): Ferrite cores -- Dimensions -- Part 14: EFD-cores for use in power supply applications
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L19
Classification of International Standard: 29.100.10
Word Count Estimation: 10,124
Date of Issue: 2018-03-15
Date of Implementation: 2018-10-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

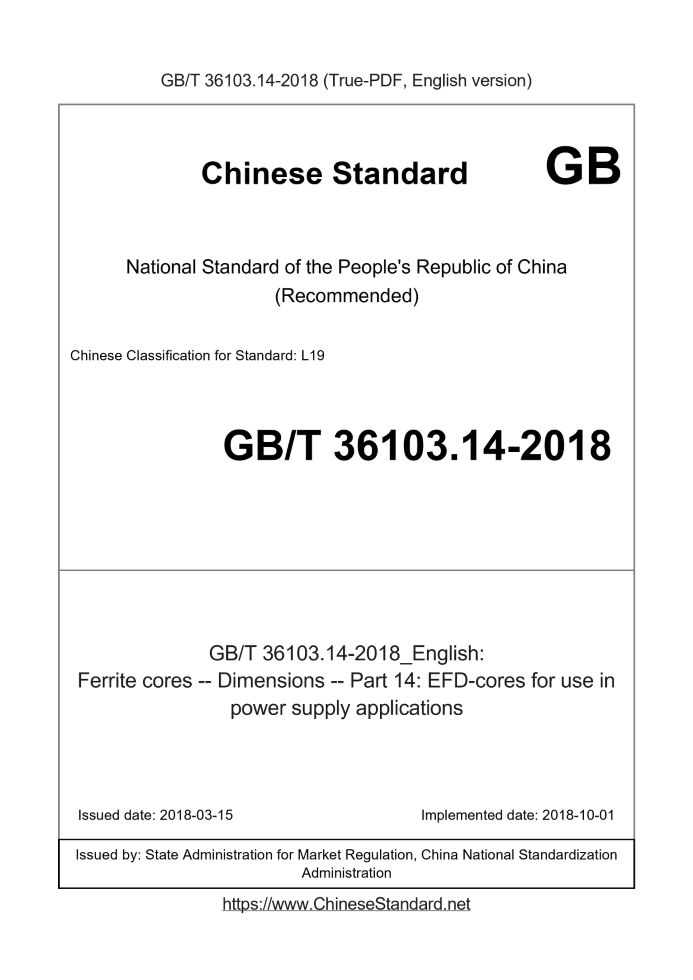

GB/T 36103.14-2018: Ferrite cores -- Dimensions -- Part 14: EFD-cores for use in power supply applications

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Ferrite cores--Dimensions--Part 14. EFD-cores for use in power supply applications ICS 29.100.10 L19 National Standards of People's Republic of China Ferrite core size Part 14. EFD Magnetic Cores for Power Supplies Part 14.EFD-coresforuseinpowersupplyapplications (IEC 62317-14.2008, IDT) Published by.2018-03-15 2018-10-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration released Directory Preface I 1 Scope 1 2 Normative references 1 3 Basic requirements 1 3.1 EFD core size 1 3.2 Main dimensions of the coil bobbin 2 3.3 Pin position and bottom profile 3 3.4 Pin diameter 6 4 Installation 6 Appendix A (Normative) Design of EFD Cores 7 Figure 1 Size 1 of EFD Core Figure 2 The main dimensions of the EFD core coil bobbin 3 Figure 3 Position of the pin seen on the printed circuit board side (SMD type) 3 Figure 4 Position of the pin seen on the printed circuit board side (PTH type) 5 Table 1 Size 2 of EFD Core Table 2 Effective Parameter Values and Amin Values for EFD Cores 2 Table 3 The main dimensions of the EFD core coil bobbin 3

Foreword

GB/T 36103 "Ferrite Core Size" is intended to be divided into the following parts. --- Part 1. General specifications; --- Part 2. Pot cores; --- Part 3. Unmatched pot cores; --- Part 4. RM Cores and Accessories; --- Part 5. EP core and its accessories; --- Part 6. ETD magnetic cores; --- Part 7. EER cores; --- Part 8. E-type core; --- Part 9. Plate cores; --- Part 10. PM core and its accessories; --- Part 11. EC cores; --- Part 12. Uncoated annular magnetic core; --- Part 13. PQ cores for power supply; --- Part 14. EFD type cores for power supply; ---. This part is part 14 of GB/T 36103. This section was drafted in accordance with the rules given in GB/T 1.1-2009. This section uses the translation method identical to the use of IEC 62317-14.2008 "Ferrite Core Size Part 14. Power Supply EFD Type core". The Chinese documents that have a consistent correspondence with the normatively quoted international documents in this section are as follows. ---GB/T 20874-2007 Calculation of Effective Parameters of Magnetic Parts (IEC 60205.2001, IDT) ---GB/T 36103.1-2018 Ferrite Core Size Part 1. Generic Specification (IEC 62317-1.2007, IDT) This section made the following editorial changes. --- Modify the editorial error of the original standard, that is, delete the footnotes of Table 1 and Figure 1 that actually contradict the values in column K (see Figure 1). And Table 1). Please note that some of the contents of this document may involve patents. The issuing agency of this document does not assume responsibility for identifying these patents. This section was proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This part is under the jurisdiction of the National Standardization Technical Committee for Magnetic Components and Ferrite Materials (SAC/TC89). This section was drafted by. Tiantong Holdings Co., Ltd. The main drafters of this section. Shao Feng, Song Yanyan, Tang Jie, Tan Weizhong. Ferrite core size Part 14. EFD Magnetic Cores for Power Supplies

1 Scope

This part of GB/T 36103 specifies the important dimensions related to the mechanical interchangeability of the preferred series of EFD magnetic cores and the magnetic core. The basic dimensions of the coil bobbin used and the values of the effective parameters used for calculating such cores. This section is based on the principle of selecting the core size. national standards and core sizes widely used and shaped in the industry. Relevant election See IEC 62317-1 for more details on core selection. Appendix A gives the general principles for designing such cores.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. Calculation of the effective parameters of magneticpiece IEC 60205 Parts) IEC 62317-1 Ferrite Core Size Part 1. Generic Specification (Ferritecores-Dimensions-Part 1. Gen- Eralspecification)

3 basic requirements

3.1 EFD core size 3.1.1 Main dimensions The main dimensions of the EFD core should meet the requirements of Table 1 and Figure 1. a) EFD10/5/3, EFD12/6/3.5 and EFD15/8/5 b) EFD20/10/7, EFD25/13/9 and EFD30/15/9 Figure 1 Size of EFD Core ......
