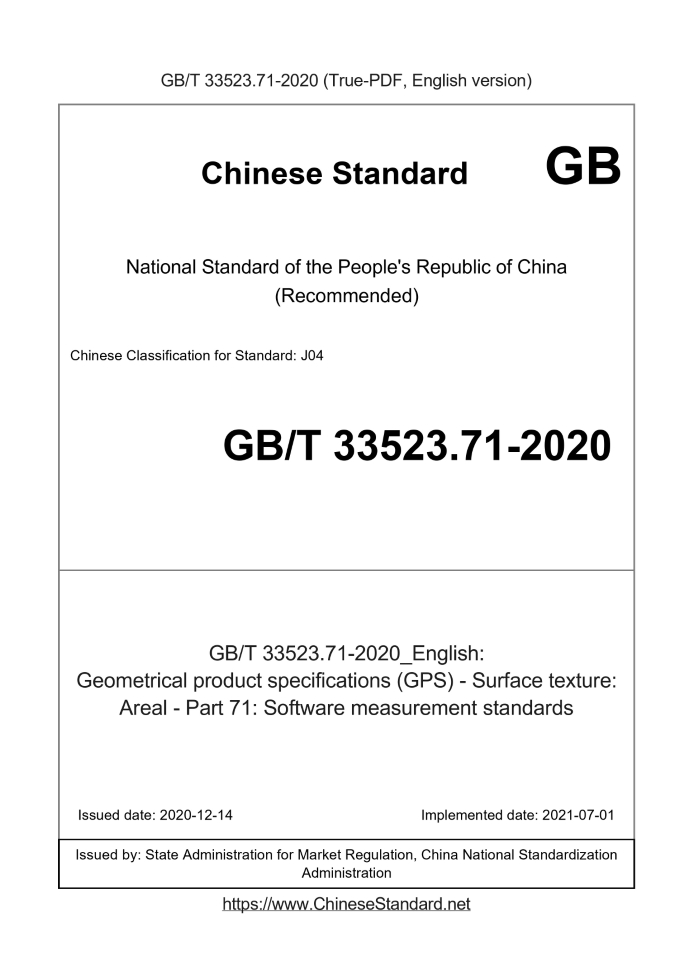

GB/T 33523.71-2020: Geometrical product specifications (GPS) - Surface texture: Areal - Part 71: Software measurement standards
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 33523.71-2020	259	Add to Cart	3 days	Geometrical product specifications (GPS) - Surface texture: Areal - Part 71: Software measurement standards	Valid

Similar standards

GB/T 34018 GB/T 33877 GB/T 32073 GB/T 33523.600 GB/T 33523.73 GB/T 33523.72

Basic data

Standard ID: GB/T 33523.71-2020 (GB/T33523.71-2020)
Description (Translated English): Geometrical product specifications (GPS) - Surface texture: Areal - Part 71: Software measurement standards
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J04
Classification of International Standard: 17.040.20
Word Count Estimation: 14,185
Date of Issue: 2020-12-14
Date of Implementation: 2021-07-01
Regulation (derived from): National Standard Announcement No. 28 of 2020
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 33523.71-2020: Geometrical product specifications (GPS) - Surface texture: Areal - Part 71: Software measurement standards

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
(Product Geometric Technical Specification (GPS) Surface Structure Area Method Part 71: Software Measurement Standard) ICS 17:040:20 J04 National Standards of People's Republic of China Product Geometric Specification (GPS) Surface Structure Regional Law Part 71: Software Measurement Standards (ISO 25178-71:2017, MOD) 2020-12-14 release 2021-07-01 implementation State Administration for Market Regulation Issued by the National Standardization Management Committee

Preface Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 S-type software measurement standard 2 5 File format of S1 reference data 3 6 Software measurement standard certificate 5 Appendix A (informative appendix) File format example 6 Appendix B (informative appendix) Relationship with GPS matrix model 8 Reference 9

Foreword

GB/T 33523 "Geometric Technical Specifications for Products (GPS) Surface Structure Area Law" is divided into the following parts: ---Part 1: Representation of surface structure; ---Part 2: Terms, definitions and surface structure parameters; ---Part 3: Standardized Operation Set; ---Part 6: Classification of surface structure measurement methods; ---Part 70: Physical measurement standards; ---Part 71: Software measurement standards; ---Part 72: XML file format x3p; ---Part 73: Terms and definitions for measuring surface defects of materials; --- Part 600: Metrological characteristics of the area topography measurement method; --- Part 601: Nominal characteristics of contact (stylus) instruments; ---Part 602: Nominal characteristics of non-contact (confocal chromatic aberration probe) instruments; ---Part 603: Nominal characteristics of non-contact (phase-shifting interference microscope) instruments; --- Part 604: Nominal characteristics of non-contact (coherent scanning interference) instruments; ---Part 605: Nominal characteristics of non-contact (spot autofocus) instruments; ---Part 606: Nominal characteristics of non-contact (zoom) instruments; --- Part 607: Nominal characteristics of non-contact (confocal microscope) instruments; ---Part 701: Calibration and measurement standards for contact (stylus) instruments: This part is part 71 of GB/T 33523: This section was drafted in accordance with the rules given in GB/T 1:1-2009: This part uses the redrafting method to amend and adopt ISO 25178-71:2017 ``Geometrical Technical Specifications for Products (GPS) Surface Structure: Regional Method Part 71: Software Measurement Standards: Compared with ISO 25178-71:2017, this part has technical differences: The corresponding technical differences and their reasons are as follows: ---Regarding normative reference documents, this section has made adjustments with technical differences to adapt to my country's technical conditions and adjustments: The situation is collectively reflected in Chapter 2 "Normative Reference Documents", and the specific adjustments are as follows: ● Replace ISO 5436-2 with GB/T 19067:2, which is equivalent to the international standard (see Chapter 3); ● Replace ISO 17450-2 with GB/T 24637:2 modified to adopt international standards (see Chapter 3 and Chapter 6); ● Replace ISO 16610 (all parts) with GB /Z 26958 (all parts) equivalent to the international standard (see Chapter 3); ● Replace ISO 25178-2 with GB/T 33523:2 which is equivalent to the international standard (see Chapter 3, 5:1); ● Use JJF1001 instead of ISO /IEC Guide 99 (see Chapter 3): This part is proposed and managed by the National Standardization Technical Committee for Product Geometric Technical Specifications (SAC/TC240): Drafting organizations of this section: Shandong University, Tsinghua University, China Machinery Productivity Promotion Center, Tianjin University, China Institute of Metrology, China Jiliang University, Guangdong Institute of Metrology, Ningbo Institute of Technology, Zhejiang University: The main drafters of this section: Yan Peng, Zhang Zhen, Ming Cuixin, Guo Tong, Shi Yushu, Zhao Jun, Zhu Yue, Zhang Xinyu, Ma Xiushui: Product Geometric Specification (GPS) Surface Structure Regional Law Part 71: Software Measurement Standards

1 Scope

This part of GB/T 33523 specifies the technique of S1 and S2 software measurement standards (etalon) used for software calibration of measuring instruments: Language definition: This part also specifies the file format of S1 software measurement standards: This section applies to the surface structure standard chain based on the area method, the contour surface structure defined by the link G and the area surface structure measuring instrument The measurement standard for calibration of metrological characteristics: Note: In this section, the term "software gauge" is the abbreviation for software measurement standard S1:

2 Normative references

The following documents are indispensable for the application of this document: For dated reference documents, only the dated version applies to this article Pieces: For undated references, the latest version (including all amendments) applies to this document: GB/T 19067:2 Product Geometrical Quantity Technical Specification (GPS) Surface Structure Profile Method Measurement Standard Part 2: Software Measurement Quantity standard (GB/T 19067:2-2004, ISO 5436-2:2001, IDT) GB/T 24637:2 Product Geometric Technical Specification (GPS) General Concepts Part 2: Basic Principles, Specifications, Operational Sets and Uncertainties Fixed degree (GB/T 24637:2-2020, ISO 17450-2:2012, MOD) GB /Z 26958 (all parts) Product geometric technical specification (GPS) filtering [ISO 16610 (all parts)] GB/T 33523:2 Product Geometric Technical Specification (GPS) Surface Structure Area Method Part 2: Terms, Definitions and Surface Structure Parameters (GB/T 33523:2-2017, ISO 25178-2:2012, IDT) JJF1001 General measurement terms and definitions ISO 25178-3 Product Geometric Technical Specification (GPS) Surface Structure Area Law Part 3: Specification Operation Set (Geometricalproductspecifications(GPS)-Surfacetexture:Areal-Part 3:Specificationoperators) ISO /IEC Guide 98-1 Uncertainty of Measurement Part 1: Expression of Uncertainty of Measurement (Uncertainty of measure- ment-Part 1:Introductiontotheexpressionofuncertaintyinmeasurement)

3 Terms and definitions

By GB/T 19067:2, GB/T 33523:2, GB /Z 26958 (all parts), GB/T 24637:2, JJF1001, ISO 25178-3, The terms and definitions defined in ISO /IEC Guide 98-1 and the following apply to this document: 3:1 Software measurement standard In order to verify the software used to calculate the measured parameter on the measuring instrument, it can reproduce the parameter value of the measured parameter with known specification uncertainty: Test data or reference software: 3:2 Character [n] CHAR[n] An array of n ASCII characters: ......
