GB/T 26660-2011: Large SWC universal coupling with whole fork
Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure
Status: Valid
Std IDVersionUSDBuyDeliver [PDF] inTitle (Description)
GB/T 26660-2011English489 Add to Cart 4 days [Need to translate] Large SWC universal coupling with whole fork

Click to Preview a similar PDF

Basic data

Standard ID GB/T 26660-2011 (GB/T26660-2011)
Description (Translated English) Large SWC universal coupling with whole fork
Sector / Industry National Standard (Recommended)
Classification of Chinese Standard J19
Classification of International Standard 21.120.01
Word Count Estimation 21,228
Date of Issue 2011-06-16
Date of Implementation 2012-03-01
Quoted Standard GB/T 191; GB/T 1184; GB/T 1800.2; GB/T 3098.1; GB/T 3098.2; GB/T 4879; GB/T 6388; GB/T 11345; GB/T 13384; GB/T 19418; JB/T 5000.14
Regulation (derived from) Announcement of Newly Approved National Standards No. 9 of 2011
Issuing agency(ies) General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary This standard specifies the SWC large overall fork cross shaft universal coupling (hereinafter referred to as large universal coupling) of the type, the basic parameters and dimensions, technical requirements, inspection rules and signs, packaging, storage and so on. This standard applies to join two different axes large universal joint drive shafts, and its turning diameter of 620mm ~ 1320mm, transmission nominal torque 1220kN �� m ~ 16000kN �� m, axis angle of 5 �� ~ 15 ��.

GB/T 26660-2011: Large SWC universal coupling with whole fork


---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

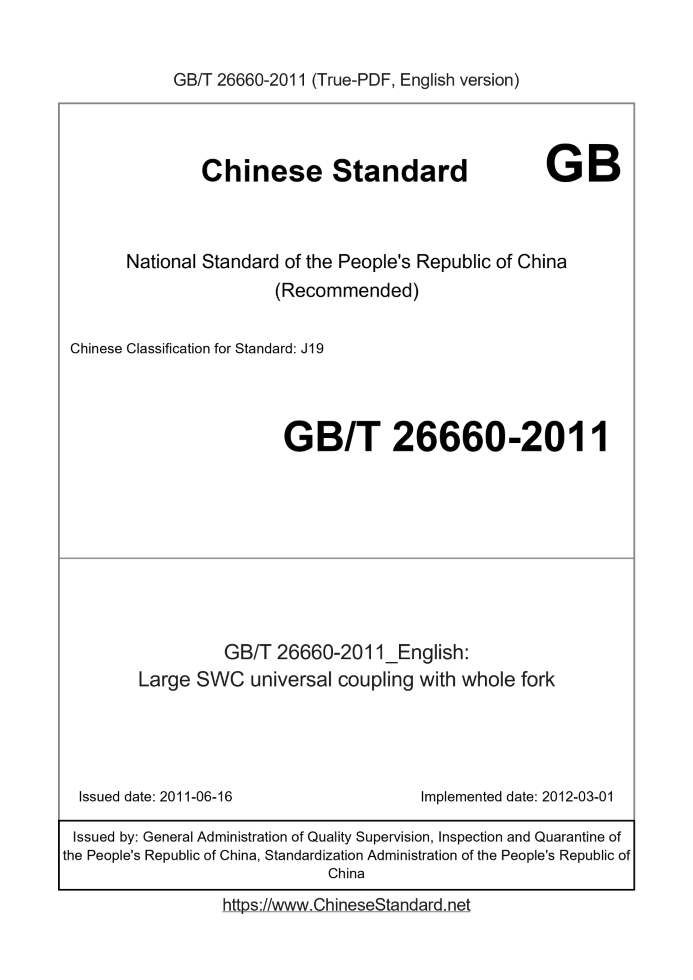

Large SWC universal coupling with whole fork ICS 21.120.01 J19 National Standards of People's Republic of China SWC large whole fork cross shaft Universal coupling Issued on. 2011-06-16 2012-03-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ 1 Scope 1 2 Normative references 1 3 Types, basic parameters and dimensions 1 4. Technical Requirements 13 14 5 Inspection Rules 6 logo, packaging, storage 14 Appendix A (informative) universal coupling selection Description 15

Foreword

This standard is in accordance with GB/T 1.1-2009 given rule drafting. This standard by the National Standardization Technical Committee of the machine shaft and accessories (SAC/TC109) and focal points. This standard was drafted. China's second Heavy Machinery Group, Anhui Theil Heavy Industries Co., Ltd., Jiangsu setter Transmission Technology Co., Secretary, Shanxi Hui Rong shaft limited liability company, Wuhan is through Transmission Technology Co., Ltd., machine Productivity Promotion Center. The main drafters of this standard. Guang hair, bright green new Zhangde Zhi, Ren Qiaogui, Li Jintao, Yu Xiao lock, Deng Takami. SWC large whole fork cross shaft Universal coupling

1 Scope

This standard specifies the SWC large whole fork cross shaft universal coupling (hereinafter referred to as a large universal coupling) the type, basic Parameters and dimensions, technical requirements, inspection rules and signs, packaging, storage and so on. This standard applies to large-scale universal joint shaft coupling two different axes system, the turning diameter of 620mm ~ 1320mm; Nominal torque is transmitted 1220kN · m ~ 16000kN · m; axis angle of 5 ° ~ 15 °.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 191 Packaging - Pictorial signs GB/T 1184 shape and position tolerances without individual tolerance value GB/T 1800.2 Geometrical product specifications (GPS) limits and fits - Part 2. Standard tolerance grades and holes and shafts limit bias Difference list GB/T 3098.1 Mechanical properties of fasteners Bolts, screws and studs GB/T 3098.2 Mechanical properties of fasteners coarse thread GB/T 4879 rust-proof packaging GB/T 6388 transport package shipping mark GB/T 11345 steel welds manual ultrasonic testing and classification of testing results GB/T 13384 mechanical and electrical products packaging General technical conditions GB/T 19418 steel welding joint quality levels for imperfections JB/T 5000.14 Heavy Machinery General technical requirements - Part 14. Non-destructive testing of steel castings 3 Types, basic parameters and dimensions Type 3.1 Large universal coupling types are divided into the following three (Table 1). 3.2 Model Large universal coupling models meet the following requirements. SWC Overall fork cross shaft universal coupling Turning diameter, mm Type code (see Table 1) ...
