GB/T 22137.2-2018 English PDF

US$839.00 · In stock
Delivery: <= 7 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 22137.2-2018: Valve positioners for industrial process control systems -- Part 2: Methods of evaluating the performance of intelligent valve positioners
Status: Valid

GB/T 22137.2: Historical versions

Standard IDUSDBUY PDFLead-DaysStandard Title (Description)Status
GB/T 22137.2-2018839 Add to Cart 7 days Valve positioners for industrial process control systems -- Part 2: Methods of evaluating the performance of intelligent valve positioners Valid
GB/T 22137.2-2008RFQ ASK 3 days Valve positioners for use in industrial-process control system -- Part 2: Methods of evaluating the performance of intelligent value positioners with pneumatic outputs Obsolete

Similar standards

GB/T 17213.18   GB/T 17213.16   GB/T 17213.4   GB/T 17213.9   GB/T 17213.14   GB/T 22137.1

Basic data

Standard ID: GB/T 22137.2-2018 (GB/T22137.2-2018)
Description (Translated English): Valve positioners for industrial process control systems -- Part 2: Methods of evaluating the performance of intelligent valve positioners
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: N16
Classification of International Standard: 23.060; 25.040.40
Word Count Estimation: 42,458
Date of Issue: 2018-06-07
Date of Implementation: 2019-01-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 22137.2-2018: Valve positioners for industrial process control systems -- Part 2: Methods of evaluating the performance of intelligent valve positioners


---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

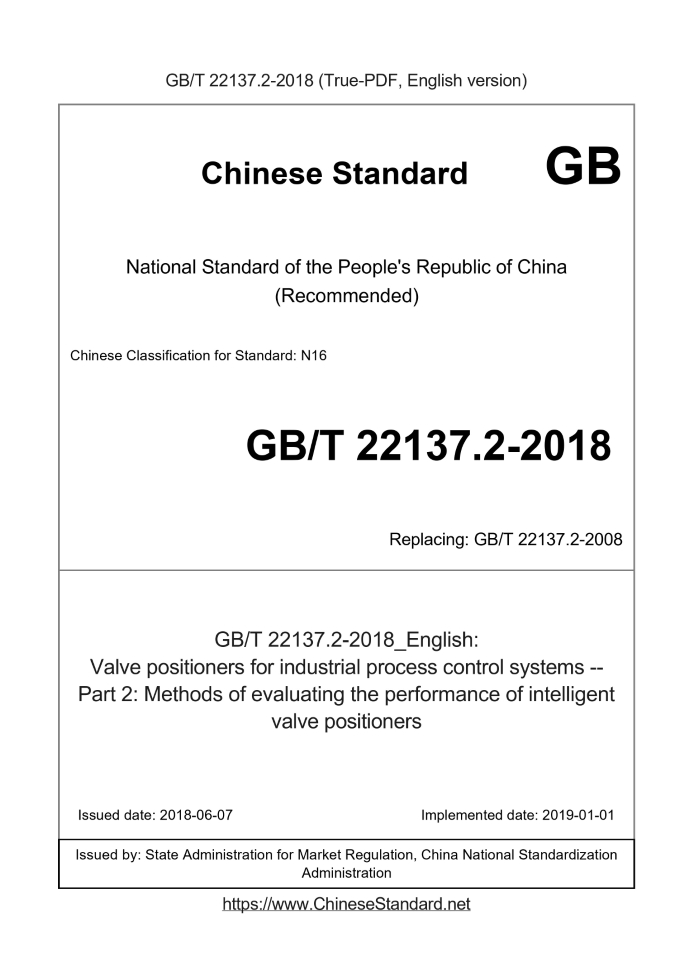

Valve positioners for industrial process control systems--Part 2. Methods of evaluating the performance of intelligent valve positioners ICS 23.060; 25.040.40 N16 National Standards of People's Republic of China Replace GB/T 22137.2-2008 Valve positioner for industrial process control systems Part 2. Smart Valve Positioner Performance evaluation method Part 2. Methodsofevaluatingtheperformanceofinteligentvalvepositioners (IEC 61514-2.2013, Industrialprocesscontrolsystems-Part 2. Methods Pneumaticoutputsmountedonanactuatorvalveassembly, MOD) 2018-06-07 released.2019-01-01 implementation State market supervision and administration China National Standardization Administration issued

Content

Foreword III Introduction V 1 Scope 1 2 Normative references 1 3 Terms and Definitions 2 4 Design Review 4 4.1 General 4 4.2 Locator Identification 4 4.2.1 General 4 4.2.2 Power Supply Unit 4 4.2.3 Main Sensor/Input Component 5 4.2.4 auxiliary sensor assembly 5 4.2.5 Human Machine Interface 5 4.2.6 Communication Interface 5 4.2.7 Data Processing Unit 5 4.2.8 Output Subsystem 5 4.2.9 External Functions 6 4.3 Functions and performance to be reviewed 7 4.3.1 Checklist 7 4.3.2 Report 12 4.4 Text information 12 5 performance test 14 5.1 General 14 5.2 Reference conditions for performance tests 14 5.2.1 Overview 14 5.2.2 Valve characteristics 14 5.3 General test procedures 15 5.3.1 Test configuration 15 5.3.2 Test Notes 16 5.4 Preliminary observation and measurement 17 5.4.1 General 17 5.4.2 Installer 17 5.4.3 Configuration procedure 17 5.4.4 Stem Position Calibration Procedure 17 5.4.5 Stem position setting procedure 17 5.5 Performance Test Procedures 18 5.5.1 General 18 5.5.2 Impact of impact quantity 21 6 Other matters 27 6.1 Security 27 6.2 Shell protection class 27 6.3 Electromagnetic emission 27 6.4 Modification 27 7 Assessment Report 27 Appendix A (Normative Appendix) Vibration Test Configuration 29 Appendix B (informative appendix) China's document 30 with consistent correspondence with the normatively cited international documents in this section Reference 33

Foreword

GB/T 22137 "Valve Positioner for Industrial Process Control System" is divided into the following two parts. --- Part 1. Performance evaluation method for pneumatic output valve positioner; --- Part 2. Intelligent valve positioner performance evaluation method. This part is the second part of GB/T 22137. This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part replaces GB/T 22137.2-2008 "Valve positioner for industrial process control systems - Part 2. Pneumatic output intelligent valves Door Locator Performance Evaluation Method. Compared with GB/T 22137.2-2008, the main changes are as follows. ---Modified standard name; --- Revised the normative reference document (see Chapter 2, Chapter 2 of the.2008 edition); --- Modified the term "configuration" to "configuration" (see 3.2,.2008 version 3.2); --- Modified the term "configurability" to "configuration capability" (see 3.3,.2008 version 3.3); --- Modified the term "form" to "set" (see 3.6, 3.6 of the.2008 edition); --- Modified the term "stroke truncation" to "stroke cut-off point" (see 3.7, 3.6 of the.2008 edition); --- Increased the consideration of "two-way action type" in the review function checklist (see Table 1); --- Adjust the "valve diagnosis" "check valve diagnostic range and tools" from the reliability operation part to the functional part (see Table 1,.2008) Version 4.2.1.4); --- Removed "Incorrect Use of Detection" in the Reliability Review Form "Environmental Stress Screening for Reducing Early Failures" (see.2008) Version 4.2.1.5); --- Added a table of failure protection characteristics (see Table 6); --- Deleted the "Manufacturer Support" form (see 4.2.1.6 of the.2008 edition); --- Revised the variation of the air source pressure in the dynamic test and airflow test in the performance test reference conditions (see 5.2.1, 5.1 of the.2008 edition); --- Removed the specific size of the actuator (see Table 1, Table 2 of the.2008 edition); --- Removed the recommended value of the actuator stroke (see 5.1.1.2 of the.2008 version); --- Revised the size of the dead zone in the friction clause (see 5.2.2.7, 5.1.1.6 of the.2008 edition). This part uses the redrafting method to modify the use of IEC 61514-2.2013 "Industrial Process Control System Part 2. Installation on the Execution Machine Performance Evaluation Method for Intelligent Valve Positioners with Pneumatic Output on a Structure/Valve Combination. The technical differences and their reasons for this part compared with IEC 61514-2.2013 are as follows. ---About the normative reference documents, this part has made technical adjustments to adapt to China's technical conditions, adjustments The situation is reflected in Chapter 2, “Regulatory References”, and the specific adjustments are as follows. ● Replace IEC 60068-2-1..1990 with GB/T 2423.1-2008 equivalent to IEC 60068-2-1.2007; ● Replace IEC 60068-2-2. 1974 with GB/T 2423.2-2008 equivalent to IEC 60068-2-2.2007; ● Replace IEC 60068-2-78.2001 with GB/T 2423.3-2016 equivalent to IEC 60068-2-78.2012; ● Replace IEC 60068-2-31.1969 with GB/T 2423.7-1995 equivalent to IEC 60068-2-31.1982; ● Replace IEC 60050 (all parts) with GB/T 2900.56-2008 equivalent to IEC 60050-351.2006; ● Replace IEC 60529.1989 with GB/T 4208-2017 equivalent to IEC 60529.2013; ● IEC 61069, IEC 62098 and IEC 61158 with unregulated references have been deleted; ● Added IEC 61508 (all parts) and IEC 61511 (all parts) for normative references. This section has made the following editorial changes. ---Modified standard name; --- Added informative Appendix B to list the Chinese documents that have a consistent correspondence with the international documents referenced in this standard. This part was proposed by the China Machinery Industry Federation. This part is under the jurisdiction of the National Industrial Process Measurement Control and Automation Standardization Technical Committee (SAC/TC124). This section drafted by. Shanghai Industrial Automation Instrumentation Research Institute Co., Ltd., Changshu Wei Telong Automation Instrument Co., Ltd., Changshu Huier Petrochemical Instrument Co., Ltd., Zhejiang Paiwo Automatic Control Instrument Co., Ltd., Yueqing People's Instrument Co., Ltd., Wuzhong Instrument Co., Ltd. Company, Siemens (China) Co., Ltd., Zhejiang Bell Control Valve Co., Ltd., Shanghai Automation Instrument Co., Ltd. Hangzhou Lansheng Valve Co., Ltd., Zhongtian Tianyi Co., Ltd., Shenzhen Wanxun Automation Co., Ltd., Hangzhou Lianggong Valve Co., Ltd. Zhejiang Ruigong Electric Technology Co., Ltd., Chongqing Sichuan Instrument Control Valve Co., Ltd. The main drafters of this section. Li Minghua, Zhang Jianwei, Wu Weijun, Xu Zhilong, Wang Hanke, Wang Jian, Yang Fujiang, Feng Xiaoping, Lin Xiaoke, Ye Linsong, Lin Quanwu, Li Qiang, Xie Xiaohui, Li Zhanqi, Shao Wanyue, Wang Wei, Wang Jianing, Zhong Shenghui. The previous versions of the standards replaced by this section are. ---GB/T 22137.2-2008.

Introduction

New process measurement and control instruments, including valve positioners, most with microprocessors for digital data processing and communication Letter methods and/or artificial intelligence make these instruments more complex and add significant value. Today's smart valve positioners are no longer just controlling the position of the valve, in many cases with self-tests, actuators/valves Various functions such as door status monitoring and alarm. There are a wide variety of new features, far from being comparable to a single-function "cam-type" positioner. Therefore, with Accuracy-related performance tests, while still very important, are not sufficient to demonstrate the flexibility, capability, and design of smart valve positioners. Features such as work, installation, maintainability, reliability and operability. The assessments described in this section take into account both hardware and software performance testing and design reviews. The structure of this section is arranged to a certain extent The framework of IEC /T S62098 "Methods for the evaluation of microprocessor-based instruments" is followed. Some performance tests described in GB/T 22137.1 Still suitable for smart valve positioners. It is recommended to further read the IEC 61069 "Systematic Measurement of Industrial Process Measurement and Control Systems" Sexual assessment. Valve positioner for industrial process control systems Part 2. Smart Valve Positioner Performance evaluation method

1 Scope

This part of GB/T 22137 specifies the performance evaluation method for single-acting or double-acting intelligent valve positioners (hereinafter referred to as positioners). Method to test and determine the static and dynamic performance, intelligence and communication of intelligent valve positioners through design reviews and tests ability. This section applies to receiving standard analog input signals (see IEC 60381) and/or digital signals transmitted via data communication links. Intelligent valve positioner with pneumatic output. As defined in Chapter 3, the intelligent valve positioner is a data processing, decision generation A meter that implements its functions with digital technologies such as two-way communication. It can be equipped with additional sensors and additional features to support its main features. The performance test of the intelligent valve positioner requires the positioner to be installed and connected to the associated actuator/valve assembly. Due to The performance of the positioner is highly dependent on the actuator used, so some characteristic parameters of the assembly, such as size, stroke, friction The source pressure (return), stuffing box type, spring assembly and pneumatic part should be carefully selected and reported. The assessment methods specified in this section are intended to be used by test laboratories to verify the performance of the positioner. Recommended locator manufacturers in the early days This standard is used during the development phase. This section is intended to provide guidance for the design assessment of the positioner by providing. --- Review the checklist of intelligent valve positioner hardware and software design according to the structural method; --- Test methods for measuring and determining the performance of intelligent valve positioners under different environmental conditions and working conditions; --- Reporting method of test data. When it is not required or impossible to conduct a comprehensive assessment in accordance with this section, the necessary tests may be carried out and reported in accordance with the relevant provisions of this section. Test results. In this case, the test report should indicate that it does not include all the test items specified in this section. In addition, it is also suitable Mentioning omitted items gives the reader of the report a clear idea. This section also applies to non-intelligent valve positioners with microprocessors but without two-way communication. In this case, performance evaluation It should be simplified to a defined performance test plan and a brief structural review.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 2423.1-2008 Environmental testing of electrical and electronic products - Part 2. Test methods Test A. Low temperature (IEC 60068-2- 1.2007, IDT) GB/T 2423.2-2008 Environmental testing of electrical and electronic products - Part 2. Test methods Test B. High temperature (IEC 60068-2- 2.2007, IDT) GB/T 2423.3-2016 Environmental testing - Part 2. Test method test Cab. constant damp heat test (IEC 60068-2- 78.2012, IDT) GB/T 2423.7-1995 Environmental testing for electric and electronic products - Part 2. Test methods Test Ec and guide. Pour (mainly for equipment type samples) (IEC 60068-2-31. 1982, IDT) GB/T 2423.10-2008 Environmental testing for electric and electronic products - Part 2. Test method test Fc. Vibration (sinusoidal) (IEC 60068-2-6.1995, IDT) GB/T 2900.56-2008 Electrotechnical terminology control technology (IEC 60050-351.2006) GB/T 4208-2017 enclosure protection class (IP code) (IEC 60529.2001, IDT) GB 4793.1-2007 Safety requirements for electrical equipment for measurement, control and laboratory - Part 1 . General requirements (IEC 61010- 1.2001, IDT) GB/T 16842-2016 Protective test specimens for enclosures for people and equipment (IEC 61032.1997, IDT) GB/T 18268.1-2010 Electromagnetic compatibility requirements for electrical equipment - Part 1 . General requirements (IEC 61326-1.2005, IDT) GB/T 18271.1-2017 Methods and procedures for the evaluation of general performance - Part 1 . General (IEC 61298-1.2008, IDT) GB/T 18271.2-2017 Methods and procedures for the evaluation of general performance - Part 2. Part 2 Test (IEC 61298-2.2008, IDT) GB/T 18271.3-2017 Methods and procedures for the evaluation of general performance - Part 3 Test (IEC 61298-3.2008, IDT) GB/T 18271.4-2017 Methods and procedures for the evaluation of general performance - Part 4. Assessment report Content (IEC 61298-4.2008, IDT) GB/T 22137.1-2008 Valve positioners for industrial process control systems - Part 1 Method (IEC 61514.2000, IDT) IEC 60079 (all parts) Explosive environment (Electricalapparatusforexplosivegasatmospheres) Industrial process control valves - Part 1. Control valve terms and general principles (Industrial-processcontrol valves-Part 1. Controlvalveterminologyandgeneralconsiderations) IEC 60654 (all parts) Working conditions for industrial process measuring and control devices (Operatingconditionsfor Ndustrial-processmeasurementandcontrolequipment) IEC 60721-3 Classification of environmental conditions - Part 3. Classification of environmental parameters and their severity (Classification of environ- mentalconditions-Part 3.Classificationofgroupsofenvironmentalparametersandtheirseverities) Electromagnetic compatibility - Part 4-11. Test and measurement techniques - Resistance to voltage dips, short interruptions and voltage changes Disturbance test (Electromagneticcompatibility(EMC)-Part 4-11. Testingandmeasurementtechniques- Voltagedips, shortinterruptionsandvoltagevariationsimmunitytests) IEC 61499 (all parts) Function Blocks (Functionblocks) IEC 61508 (all parts) Functional safety of electrical/electronic/programmable electronic safety related systems (Functional safety of Electrical/electronic/programmableelectronicsafety-relatedsystems) IEC 61511 (all parts) Functional safety. Safety instrumentation for process industry (Functionalsafety. Safetyinstru- Mentedsystemsfortheprocessindustrysector) CISPR11 Industrial, Scientific and Medical (ISM) Radio Frequency Equipment Disturbance Characteristics Limits and Measurement Methods (Information tecnologyequipment-Radiodisturbancecharacteristics-Limitsandmethodsofmeasurement)

3 Terms and definitions

The following terms and definitions as defined in GB/T 22137.1-2008 and GB/T 2900.56-2008 apply to this document. 3.1 Intelligent valve positioner Inteligentvalvepositioner A position controller based on microprocessor technology that uses digital technology for data processing, decision generation, and two-way communication. Note 1. The intelligent valve positioner can be equipped with additional sensors and additional features to support its main functions. Note 2. This standard only considers the positioner with pneumatic output signal defined in 3.1 of GB/T 22137.1-2008. The input signal can be current, voltage, Or digital signals transmitted over the fieldbus. Note 3. For non-intelligent valve positioners with microprocessors but without two-way communication, the evaluation is simplified to a limited range of performance tests and abbreviated knots. Structure review. 3.2 Configuration configuration The process of implementing the functionality required for a particular application. 3.3 Configuration capability configurability The locator can be equipped with a variety of functions to achieve a variety of applications. 3.4 Calibration calibration The process of adjusting the stroke range to the required value in order to obtain the specified input/stroke characteristics. Note 1. The adjusted travel can be from one terminal to another, or from one terminal to the value between the two, as specified by the valve manufacturer. Note 2. Some positioners have a program to automatically adjust the stroke range, which can be called “automatic calibration”. 3.5 Tuning tuning The process of adjusting various control parameters for a particular application. Note. The valve stem setting procedure can be a “repeated test” method, or a dedicated automatic program can be provided by the manufacturer, which is often referred to as auto-tuning. 3.6 Set up-up The process of configuring, calibrating, and setting the valve positioner to optimize control of a particular actuator/valve assembly. 3.7 Travel cutoff point travelcut-off Near the end of the characteristic curve (highest or lowest), at which point the positioner forces the valve to the corresponding mechanical stop (full open or Full clearance). 3.8 Travel time stroketime The time required to make a stroke motion between two different positions under a defined set of conditions. 3.9 Dead zone deadband The change in the input variable does not cause a finite range of values for the output variable to have any appreciable change. 3.10 Working mode operatingmode The selected way of working with the locator. 3.11 Setpoint setpoint Set the input variable for the expected value of the controlled variable (stroke). Note. Input variables can come from an analog source (mA or V), a digital source (fieldbus), or a local keyboard input. 3.12 Balance pressure Under steady-state conditions, the average pressure of the double-acting actuator symmetric chamber. Note. The equilibrium pressure is expressed as a percentage of the positioner source pressure to estimate the stability of the double acting system.

4 Design review

4.1 General The observation data in this chapter should be based on the locator random file and the literature (manuals, manuals, etc.) voluntarily published by the manufacturer. Confidential information should be included. The design review aims to identify and clarify the functionality and capabilities of the locator by structure. Since the positioner has a variety of different designs, the review The positioner should be described in detail as per the structure. ---Physical structure; ---Functional structure. 4.2 Guide the evaluator to describe the physics of the locator by identifying the hardware module and the input/output modules of the operating domain and the environment domain. structure. After that, the functional structure is described using a checklist of 4.3. The checklist gives the structural framework for the questions that should be evaluated Personnel are addressed through appropriate quantitative and quantitative tests. 4.2 Locator identification 4.2.1 General Based......
