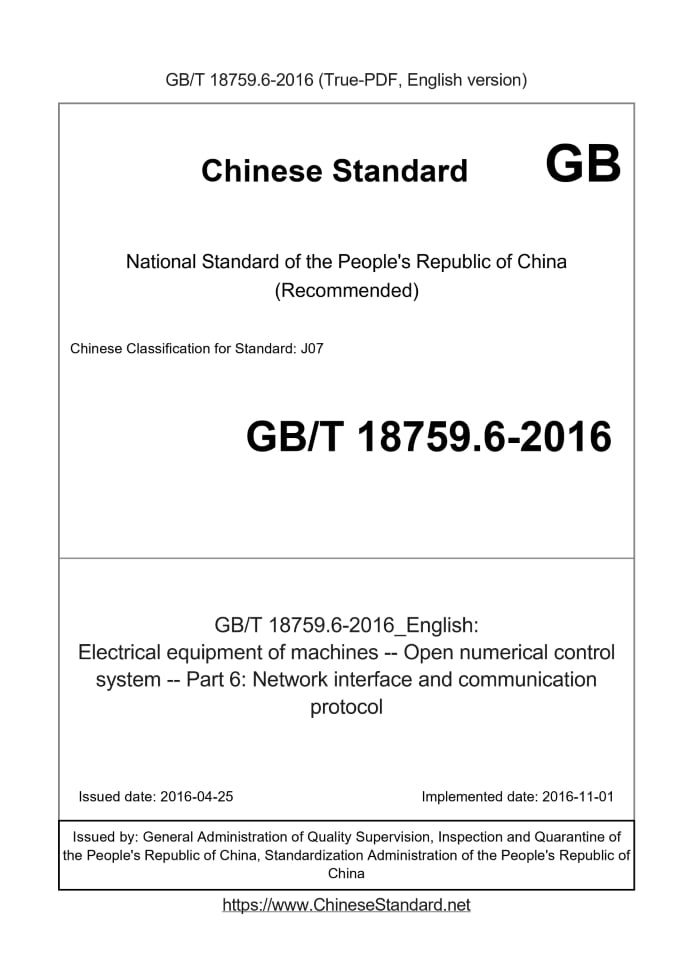

GB/T 18759.6-2016 English PDFUS$579.00 ยท In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 18759.6-2016: Electrical equipment of machines -- Open numerical control system -- Part 6: Network interface and communication protocol Status: Valid
Basic dataStandard ID: GB/T 18759.6-2016 (GB/T18759.6-2016)Description (Translated English): Electrical equipment of machines -- Open numerical control system -- Part 6: Network interface and communication protocol Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: J07 Classification of International Standard: 29.020 Word Count Estimation: 29,257 Date of Issue: 2016-04-25 Date of Implementation: 2016-11-01 Quoted Standard: GB/T 18759.1-2002; GB/T 18759.2-2006 Regulation (derived from): National Standard Announcement No Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China GB/T 18759.6-2016: Electrical equipment of machines -- Open numerical control system -- Part 6: Network interface and communication protocol---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Electrical equipment of machines - Open numerical control system - Part 6. Network interface and communication protocol ICS 29.020 J07 National Standards of People's Republic of China Mechanical and Electrical Equipment Open CNC System Part 6. Network interface and communication protocol Part 6. Networkinterfaceandcommunicationprotocol 2016-04-25 released 2016-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China China National Standardization Management Committee released Directory Preface III 1 Scope 1 2 normative reference document 1 3 terms, definitions, symbols and abbreviations 1 4 basic requirements 2 4.1 Overview 2 4.2 network structure 3 4.3 Network requirements 3 4.4 Network Interface Level 3 5 Information Model 4 5.1 Overview 4 5.2 Data item 5 5.3 Equipment 5 5.4 Component 5 6 communication protocol6.1 Overview 9 6.2 Request 9 6.3 Answer 12 Appendix A (informative) Network Interface Data Item 15 Appendix B (informative) Device description and data flow files 17 Appendix C (informative) Network Interface Security Specification Reference 24 Figure 1 ONC network structure (numerical control machine example) 3 Figure 2 Network Interface Level 4 Figure 3 Information-oriented mechanical and electrical equipment structure model 4 Figure 4 Data item model 5 Figure 5 Device model 5 Figure 6 Component model 6 Figure 7 Controller model 6 Figure 8 Communication protocol 10 Figure 9 data write request message structure 11 Figure 10 Remote operation function 11 Figure 11 Device description Message structure 12 Figure 12 data flow message structure 13 Figure 13 Error message structure Figure B.1 CNC machine tool structure 17 Figure C.1 Network interface information security 22 Figure C.2 Examples of information security applications (RSA encryption technology) 23 Table 1 Device elements 6 Table 2 Data items contained in the controller 7 Table 3 contains the data item 8 Table 4 Machine Tool Main Data Item 8 Table 5 Sensor main data item 9 Table 6 Security gate Main data item 9 Table 7 Information Snapshot Request Parameter Description 10 Table 8 Information query request parameter description 11 Table 9 Device description file header information description 12 Table 10 Data Stream Header Description 13 Table 11 Error File Header Description 14 Table A.1 Reference data items in the machine tool numerical control system information model 15ForewordGB/T 18759 "mechanical and electrical equipment open CNC system" is divided into the following parts. - Part 1. General; Part 2. Architecture; Part 3. Bus interface and communication protocol; - Part 4. Hardware platform; - Part 5. Software platform; - Part 6. Network interface and communication protocol; - Part 7. General technical conditions; Part 8. Test and Acceptance. This part is Part 6 of GB/T 18759. This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part is made by the China Machinery Industry Federation. This part of the National Industrial Machinery Electrical System Standardization Technical Committee (SAC/TC231) centralized. This part is responsible for the drafting unit. Shenyang high precision CNC Technology Co., Ltd., the State Machine Tool Quality Supervision and Inspection Center. This part participates in the drafting unit. Shenyang Institute of Computing Technology, Chinese Academy of Sciences, Guangzhou CNC Equipment Co., Ltd., Beijing Kay En Di CNC technology limited liability company, Beijing Aerospace CNC System Co., Ltd., Dalian Guangyang Technology Engineering Co., Ltd., Wuhan Huazhong NC Co., Ltd., Shanghai Jiaotong University, Beijing University of Aeronautics and Astronautics, Shandong University, Zhejiang University, Shenyang Machine Tool (Group) Co., Ltd., Zhejiang Kaida Machine Tool Co., Ltd., Beijing easy to cubic Technology Co., Ltd. This part of the main drafters. Yu Dong, Huang Zuguang, Hu Yi, Yin Zhenyu, Hu Tianliang, Yang Hongli, Wang Jian, Du Ruifang, Chen Hu, Xue Ruijuan, Wang Meng, Wang Yuhan. Mechanical and Electrical Equipment Open CNC System Part 6. Network interface and communication protocol1 ScopeGB/T 18759 this part of the provisions of the mechanical and electrical equipment open CNC system in the network interface and communication protocol specification, for the open Digital control system network interface and communication protocol analysis, design and implementation of the reference frame to meet the mechanical and electrical equipment, CNC system open and Interoperability requirements. This part applies to the metal cutting machine tools, forging machine tools, special processing machine tools and other industrial machinery and equipment with the open CNC system.2 normative reference documentsThe following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article Pieces. For undated references, the latest edition (including all modifications) applies to this document. Mechanical electrical equipment - Open numerical control systems - Part 1. General principles GB/T 18759.1-2002 Mechanical and electrical equipment - Open numerical control systems - Part 2. Architecture - GB/T 18759.2-2006 3 terms, definitions, symbols and abbreviations 3.1 Terms and definitions The following terms and definitions apply to this document. 3.1.1 Open CNC system opennumericalcontrol (ONC) system Application software is built on the system, which follows the system platform of openness, expansibility and compatibility, so that the application software has Portability, operability and man-machine interface consistency. [GB/T 18759.1-2002, Definitions 3.1] 3.1.2 Information model informationmodel The representation of data information in the network interface, including the information type and organization. 3.1.3 Data item dataitem The basic unit of the information model that describes the information of the device, component, or subcomponent in the information model. 3.1.4 Component component An abstract type in the information model that describes the physical and logical relationships of the device. 3.1.5 Structure query probe The application is used to obtain the device description file. ...... |
