GB/T 17473.3-2008 English PDF

Q: How long will the true-PDF of English version of GB/T 17473.3-2008 be delivered?

Upon your order, we will start to translate GB/T 17473.3-2008_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of GB/T 17473.3-2008_English with my colleagues?

Yes. The purchased PDF of GB/T 17473.3-2008_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

Q: Should I purchase the latest version GB/T 17473.3-2008?

Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 17473.3-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.

US$169.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

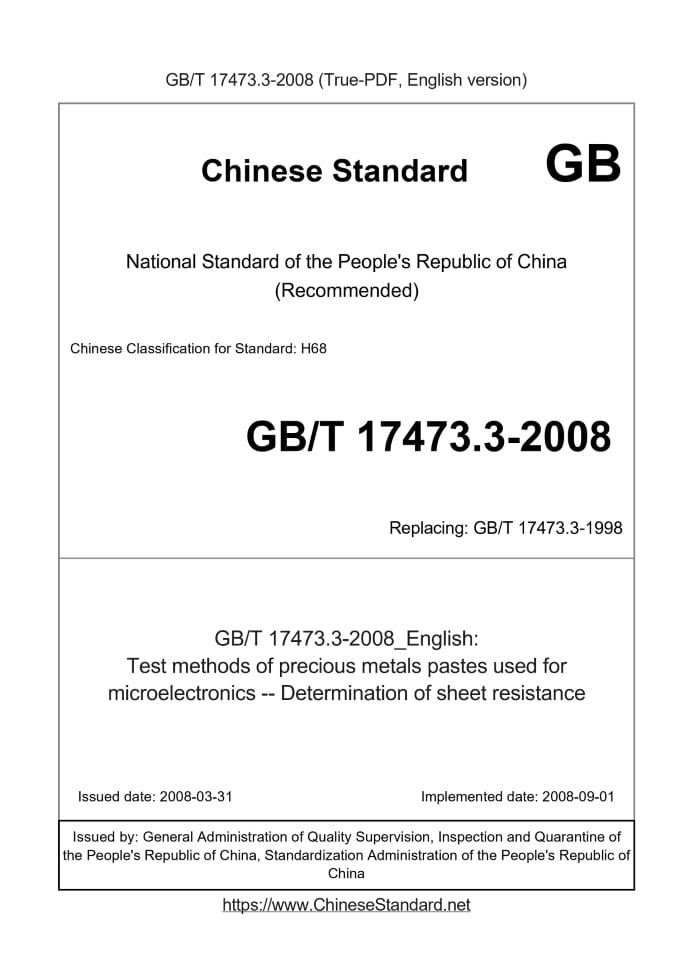

GB/T 17473.3-2008: Test methods of precious metals pastes used for microelectronics -- Determination of sheet resistance
Status: Valid

GB/T 17473.3: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 17473.3-2008	169	Add to Cart	3 days	Test methods of precious metals pastes used for microelectronics -- Determination of sheet resistance	Valid
GB/T 17473.3-1998	279	Add to Cart	3 days	Test methods of precious metal pastes used for thick film microelectronics--Determination of sheet resistance	Obsolete

Similar standards

GB/T 17473.5 GB/T 17473.1 GB/T 17473.2 GB/T 17472 GB/T 17473.7 GB/T 17473.6

Basic data

Standard ID: GB/T 17473.3-2008 (GB/T17473.3-2008)
Description (Translated English): Test methods of precious metals pastes used for microelectronics -- Determination of sheet resistance
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: H68
Classification of International Standard: 77.120.99
Word Count Estimation: 7,788
Date of Issue: 2008-03-31
Date of Implementation: 2008-09-01
Older Standard (superseded by this standard): GB/T 17473.3-1998
Quoted Standard: GB/T 8170
Regulation (derived from): National Standard Approval Announcement 2008 No.5 (Total No.118)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the determination of microelectronics precious metal pastes Chinese resistance. This section applies to microelectronics precious metal slurry sheet resistance measurement.

GB/T 17473.3-2008: Test methods of precious metals pastes used for microelectronics -- Determination of sheet resistance

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Test methods of precious metals pastes used for microelectronics. Determination of sheet resistance ICS 77.120.99 H68 National Standards of People's Republic of China Replacing GB/T 17473.3-1998 Microelectronics precious metal pastes used test method Square resistance measurement Posted 2008-03-31 2008-09-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is GB/T 17473-1998 "precious metal pastes used for thick film microelectronics test methods" (all parts) Integration repair Book is divided into seven sections. --- GB/T 17473.1-2008 microelectronics test method for measuring precious metal slurry solids content; --- GB/T 17473.2-2008 microelectronics test method for measuring the fineness of precious metal pastes; --- GB/T 17473.3-2008 microelectronics precious metal pastes used test method for measuring the resistance parties; --- GB/T 17473.4-2008 microelectronics adhesion testing precious metal pastes used test methods; --- GB/T 17473.5-2008 microelectronics precious metal slurry viscosity measurement test methods; --- GB/T 17473.6-2008 microelectronics resolution measurement test methods of precious metal pastes; --- GB/T 17473.7-2008 microelectronics precious metal pastes used test methods weldability, resistance to soldering determination. This section GB/T 17473-2008 Part 3. This Part replaces GB/T 17473.3-1998 "precious metal pastes used for thick film microelectronics test method for measuring the resistance side." This portion of the GB/T 17473.3-1998 compared to the main changes are as follows. --- Modify the original standard name for the microelectronics precious metal pastes used test method for measuring the resistance parties; --- Increase the determination of low temperature curing type paste square resistance; --- The original principle of the standard, "the paste by screen printing on the ceramic substrate after sintering at a certain temperature and film thickness, width Degree under the same circumstances "was changed to." The slurry was screen-printed on a ceramic substrate or an organic resin substrate, or sintered After curing, the thickness of the film at a certain temperature and, in the case of constant width "; --- Thickness amended as follows. light microscopic thickness for cutting sintered paste. range 0mm ~ 5mm, accuracy of 0.001mm. Micrometer for curing paste. range 0mm ~ 5mm, accuracy of 0.001mm. This section of Appendix A normative appendix. This part is proposed by the China Nonferrous Metals Industry Association. The non-ferrous metal part by the National Standardization Technical Committee. This section is your research Platinum Ltd. is responsible for drafting. The main drafters of this section. Do not destroy gold, Liu Jisong, Li Wenlin, Chen Fusheng, Zhuwu Xun, Li Jin. This part of the standard replaces the previous editions are. --- GB/T 17473.3-1998. Microelectronics precious metal pastes used test method Square resistance measurement

1 Scope

This section provides test methods microelectronics precious metal pastes square resistance. This section applies to microelectronics precious metal pastes square resistance measurement.

2 Normative references

The following documents contain provisions which, through reference in this text, constitute provisions of this part. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this section, however, encourage the parties to this part of the research agreement Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 8170 numerical rounding rules

3 PRINCIPLE OF THE METHOD

Paste by screen printing on a ceramic substrate or an organic resin substrate, sintered or cured, and the film thickness at a certain temperature, a width Under the same circumstances, the resistance is proportional to the length of the film and the film strip. By measuring the resistance of a predetermined length of the film is calculated sheet resistance.

4 Materials

Substrate. not less than 95% purity alumina substrate or an organic resin, a surface roughness of 0.5μm ~ 1.5μm (measured at a distance of Measured under conditions of 10mm).

5 instruments and equipment

5.1 Digital resistance \\ Voltage Meter Range 100μΩ ~ 100MΩ, with a resolution of six significant figures, the four-wire measurements. 5.2 ultra-high-resistance insulation resistance meter In the range of 1 × 105Ω ~ 1 × 1017Ω, an accuracy of ± 2%. 5.3 Thickness 5.3.1 light microscopy thickness cut Range 0mm ~ 5mm, accuracy of 0.001mm. 5.3.2 micrometer Range 0mm ~ 5mm, accuracy of 0.001mm. 5.4 Screen Printing Machine 5.5 infrared oven Maximum use temperature of 300 ℃, temperature control accuracy of ± 5 ℃. 5.6 tunnel sintering furnace Maximum use temperature of 1000 ℃, temperature control accuracy of ± 10 ℃.

6 Test Procedure

Experimental Environmental requirements. Ambient temperature of 15 ℃ ~ 35 ℃, relative humidity of 45% to 75%, atmospheric pressure is 86kPa ~ 106kPa. ......
