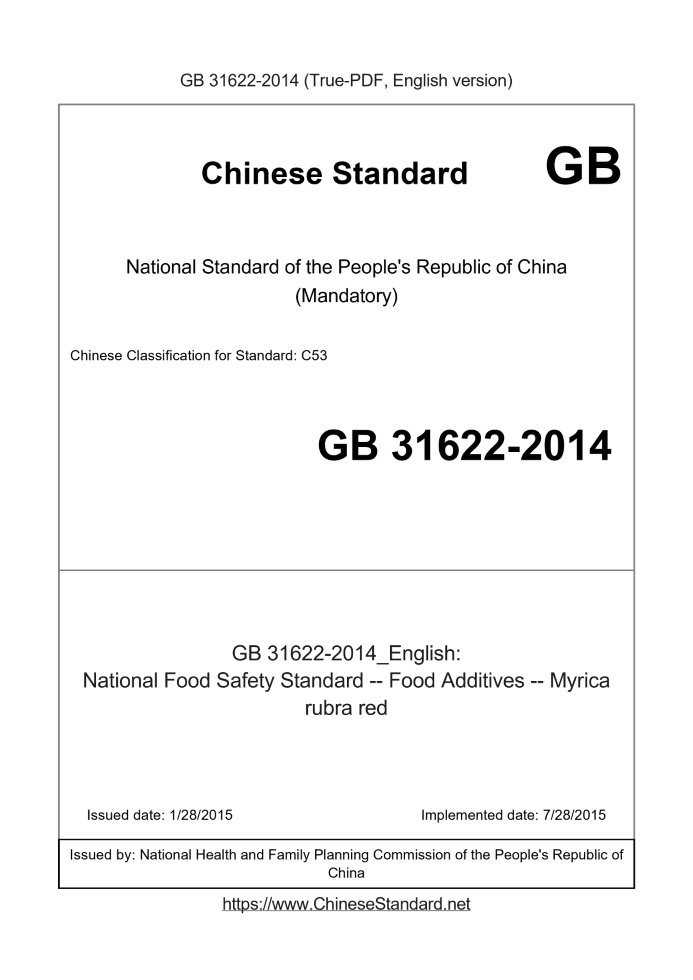

GB 31622-2014 English PDF

US$169.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB 31622-2014: National Food Safety Standard -- Food Additives -- Myrica rubra red
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB 31622-2014	169	Add to Cart	3 days	National Food Safety Standard -- Food Additives -- Myrica rubra red	Valid

Similar standards

GB 31604.53   GB 31604.52   GB 31605   GB 31613.5   GB 31613.6   GB 31613.4

Basic data

Standard ID: GB 31622-2014 (GB31622-2014)
Description (Translated English): National Food Safety Standard -- Food Additives -- Myrica rubra red
Sector / Industry: National Standard
Classification of Chinese Standard: C53
Classification of International Standard: 67.020
Word Count Estimation: 7,773
Date of Issue: 1/28/2015
Date of Implementation: 7/28/2015
Regulation (derived from): National Health and Family Planning Committee Announcement 2015 No. 2
Issuing agency(ies): National Health and Family Planning Commission of the People's Republic of China
Summary: This Standard applies to Yangmei (Mynica rubra Sied.et Zucc) of mature fruit as raw material, through ethanol extraction, food industry adsorption resin purification, and then concentrated and dried to obtain a food additive Yangmei Hong.

GB 31622-2014: National Food Safety Standard -- Food Additives -- Myrica rubra red

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
(National food safety standards for food additives Yangmei Hong) National Standards of People's Republic of China National Food Safety Standard Yangmei Hong food additives Published 2015-01-28 2015-07-28 implementation People's Republic of China National Health and Family Planning Commission issued National Food Safety Standard Yangmei Hong food additives

1 Scope

This standard applies to Yang Mei (MynicarubraSied.etZucc) ripe fruit as a raw material, an ethanol solution by extraction, food industry The resin adsorption purification, and then concentrated, dried to obtain a food additive Yangmei Hong. Formula 2, Structure and molecular weight Formula 2.1 Cyanidin -3-O- glucoside. C21H21O11 2.2 Structure 2.3 Molecular Weight Cyanidin-3-glucoside. 449.38 (2007 international relative atomic mass press)

3 Technical requirements

3.1 Sensory requirements Shall comply with the requirements in Table 1. Table 1 Sensory requirements Project requires test methods Color purple to red and black Status powder Proper amount of sample is placed in a clean, dry porcelain dish, from the Under natural light, the color observed and the state 3.2 Physical and Chemical Indicators Shall be in accordance with Table 2. Table 2. Physical and chemical indicators Item Index Test Method Color value E1 m (525 ± 5) nm ≥ 40 Appendix A A.4 pH (10g/L solution) 3.0 ~ 4.5 GB/T 9724 Cyanidin -3-O- glucoside (w) /% ≥ 5 A.4 Loss on drying (w) /% ≤ 18 GB 5009.3 a direct drying method Residue on ignition (w) /% ≤ 6 GB 5009.4 Total arsenic (As)/(mg/kg) ≤ 2 GB 5009.11 Lead (Pb)/(mg/kg) ≤ 3 GB 5009.12 a drying temperature and time were 105 ℃ ± 2 ℃ and 4h.

Appendix A

Testing method A.1 General Provisions Unless otherwise specified in this standard, the reagents were of analytical grade, standard titration solution used, the impurity determined by standard solution, and made preparations Product, should GB/T 601, GB/T 602, GB/T 603 provisions prepared test water shall comply with GB/T 6682's. The test When the solution does not indicate what formulated with a solvent, refer to the aqueous solution. A.2 Identification Test A.2.1 maximum absorption peak Sample taken 0.1g, with ethanol - hydrochloric acid solution is dissolved (A.3.1.2) and diluted to 100mL, 525nm ± 5nm in the scope of the sample liquid Within a maximum absorption peak. A.2.2 color reaction Sample taken 0.1g, was dissolved in 50mL of water, the solution was purple red ~, the solution was added sodium hydroxide solution (4.3g sodium hydroxide It was dissolved in 100mL of water), or blue color of the solution turned dark green. A.3 Color Value Determination A.3.1 Reagents and materials A.3.1.1 ethanol. A.3.1.2 ethanol - hydrochloric acid solution. Take 4mL hydrochloric acid solution (14), placed in 1000mL volumetric flask with 40% ethanol solution was diluted To volume, shake. A.3.2 Instruments and Equipment Spectrophotometer. A.3.3 Analysis step Sample weighed 0.1g, accurate to 0.0001g, with ethanol - hydrochloric acid to dissolve and dilute to 100mL, shake, and then draw 10mL, Transferred to a 100mL volumetric flask, add ethanol - hydrochloric acid solution to volume, shake. This sample was placed taken 1cm cuvette, to B Alcohol - hydrochloric acid solution as a blank, the absorbance was measured with a spectrophotometer at the wavelength of maximum absorption of 525nm ± 5nm (control absorbance should Made between 0.2 and 0.8, the sample concentration should be adjusted or re-measuring the absorbance). A.3.4 calculation results Color value at the concentration of 1% test sample, a 1cm cuvette, the absorbance measured at the maximum absorption wavelength at 525nm ± 5nm of E1 m (525 ± 5) nm meter, according to formula (A.1) is calculated. E1 m (525 ± 5) nm = c × (A.1) Where. A --- absorbance of the sample solution measured; --- C concentration in the sample solution to be tested, expressed in grams per milliliter (g/mL); 100 --- concentration conversion coefficient. The test result to the arithmetic mean of replicates results. Obtained in two independent determination results under repeatability conditions of absolute difference Value is not more than 10% of the arithmetic mean. Determination -3-O- glucoside prime A.4 cornflower A.4.1 Reagents and materials A.4.1.1 Acetonitrile. chromatographically pure. A.4.1.2 hydrochloric acid. A.4.1.3 formic acid. A.4.1.4 cyanidin -3-O- glucoside reference substance. purity ≥98%. A.4.1.5 methanol. 50%. HPLC grade methanol and an equal volume of water were mixed to homogeneity. Hydrochloric acid solution A.4.1.6. 1499. A.4.2 Instruments and Equipment HPLC with UV detector. A.4.3 Reference chromatographic conditions A.4.3.1 Column. acid type C18 column, 4.6 mm (inner diameter) × 250mm (length), particle size 5μm. Or other equivalent column. A.4.3.2 mobile phase. acetonitrile = water-carboxylic acid (151100). A.4.3.3 Column temperature. 25 ℃. A.4.3.4 flow rate. 1.0mL/min. A.4.3.5 injection volume. 20μL. A.4.3.6 Detection wavelength. 515nm. A.4.4 Analysis step Preparation of the control solution A.4.4.1 Weighed amount cyanidin -3-O- glucoside reference substance, the nearest 0.0001g, was dissolved with methanol formulated in a concentration of about 0.06mg/mL of cyanidin -3-O- glucoside control solution stored frozen. Prior to assay, this solution was diluted 3-fold with a control solution of hydrochloric acid After backup. Preparation of sample solution A.4.4.2 Sample weighed 0.1g, accurate to 0.0001g, placed in stoppered Erlenmeyer flask, methanol was added 100mL, sonicated for 10min, with Microporous membrane (0.45μm) filtration, frozen. Before and after the measurement, the sample solution was diluted 3-fold with a solution of hydrochloric acid, the standby. A.4.4.3 system suitability test In reference A.4.3 chromatographic conditions, multiple injections of a control solution was chromatographed separation R should be greater than 1.5, the number of theoretical plates -3-O- cyanidin glucoside calculated to be not less than 2000. A.4.4.4 Determination In reference A.4.3 chromatographic conditions, respectively, sample solution and control solution for chromatography. Record the chromatogram and a sample solution of According solution chromatogram cyanidin -3-O- glucoside peak area value. A.4.5 calculation results Cyanidin -3-O- glucoside mass fraction w according to equation (A.2) is calculated. w = A1 × c × 3 × 100 A2 × m × 100% (A.2) Where. Peak area A1 --- cyanidin -3-O- glucoside chromatogram of the sample solution; C --- Control solution concentration, in milligrams per milliliter (mg/mL); 3 --- dilution; 100 --- solution volume in milliliters (mL); Peak area A2 --- control cyanidin -3-O- glucoside solution chromatogram; --- m sample mass, in milligrams (mg). The test result to the arithmetic mean of replicates results. Obtained in two independent determination results under repeatability conditions of absolute difference Value is not more than 5% of the arithmetic mean. ......
