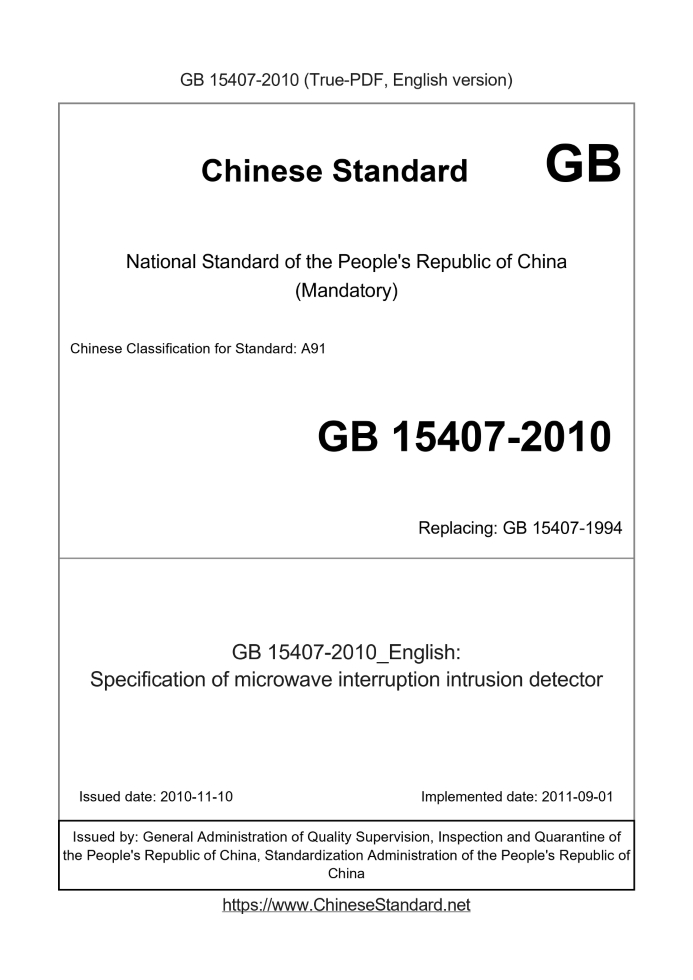

GB 15407-2010: Specification of microwave interruption intrusion detector
Status: Valid

GB 15407: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB 15407-2010	279	Add to Cart	3 days	Specification of microwave interruption intrusion detector	Valid
GB 15407-1994	399	Add to Cart	3 days	Performance criteria and test methods for microwave interruption intrusion detector	Obsolete

Similar standards

GB 16796 GB 15210 GB 10409 GB/T 45524 GB 10408 GB/T 15408

Basic data

Standard ID: GB 15407-2010 (GB15407-2010)
Description (Translated English): Specification of microwave interruption intrusion detector
Sector / Industry: National Standard
Classification of Chinese Standard: A91
Classification of International Standard: 13.310
Word Count Estimation: 12,180
Date of Issue: 2010-11-10
Date of Implementation: 2011-09-01
Older Standard (superseded by this standard): GB 15407-1994
Quoted Standard: GB 4208-2008; GB 10408.1-2000; GB/T 17626.2-2006; GB/T 17626.3-2006; GB/T 17626.4-2008; GB/T 17626.5-2008
Regulation (derived from): Announcement of Newly Approved National Standards 2010 No. 8 (No. 163 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Chinese standard specifies the blocking microwave intrusion detector (hereinafter referred to as the detector) the technical requirements, test methods, test items, and inspection rules. This standard applies to indoor and outdoor shelter microwave intrusion detector.

GB 15407-2010: Specification of microwave interruption intrusion detector

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Specification of microwave interruption intrusion detector ICS 13.310 A91 National Standards of People's Republic of China Replacing GB 15407-1994 Microwave interruption intrusion detectors Technical requirements Issued on. 2010-11-10 2011-09-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

4.1.2,4.1.3,4.1.4,4.3,4.5,4.7 and 4.9 of this standard are mandatory, the rest are recommended. This standard is GB 15407-1994 "microwave interruption intrusion detector technical requirements and test methods" in the amended content include. --- Modify the environmental suitability requirements (1994 version 4.3, this version 4.5); --- Revised test methods (Chapter 5, 1994 edition and this edition); --- Deleted the original reference GB/T 6587.7 "electronic measuring instruments basic safety test" and GB/T 6833 "electronic measuring instruments Electromagnetic compatibility test specification "; --- Delete the original standard in Chapter 4, "technical requirements" and Chapter 5, "test" regarding AC power supply, and Chapter 6 "Table 1 pilot projects and order" in the relevant content; --- Original standard reliability modifications, direct reference to GB 10408.1-2000 "intrusion detectors Part 1. General requirements" 6.4 requirements. From the date of implementation of this standard, instead of GB 15407-1994. The standard proposed by the People's Republic of China Ministry of Public Security. This standard by the National Security Alarm System Standardization Technical Committee (SAC/TC100) centralized. This standard was drafted. Chengdu OPTO Electronics Co., Ltd., Shenzhen City, the United States and Technology Co., Ltd., Guangzhou Net Security Technology Co., The company, the Ministry of Public Security Alarm System Quality Supervision and Testing Center, the Ministry of Public Security and Police Electronic Products Quality Inspection Center, all National Security Alarm System Standardization Technical Committee. The main drafters of this standard. Ni Jianzhong, HE Ming, with Jing Ke, Wu Yu Rui, Chen Yan, Han Feng, Huang Shijie, skin young forest. This standard replaces the standards previously issued as follows. --- GB 15407-1994. Microwave interruption intrusion detectors Technical requirements

1 Scope

This standard specifies the microwave interruption intrusion detectors (hereinafter referred to as detectors) technical requirements, test methods, test items and test regulations The like. This standard applies to indoor and outdoor microwave interruption intrusion detectors.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB 4208-2008 housing protection (IP Code) (IEC 60529.2001, IDT) GB 10408.1-2000 intrusion detectors - Part 1. General requirements (idtIEC 60839-2-2. 1987) GB/T 17626.2-2006 Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity test (IEC 61000-4-2.2001, IDT) GB/T 17626.3-2006 Electromagnetic compatibility - Testing and measurement techniques RFEMS test (IEC 61000-4-3. 2002, IDT) GB/T 17626.4-2008 Electromagnetic compatibility - Testing and measurement techniques - Electrical fast transient burst immunity test (IEC 61000-4-4. 2004, IDT) GB/T 17626.5-2008 Electromagnetic compatibility - Testing and measurement techniques - Surge (impact) immunity test (IEC 61000-4-5. 2005, IDT)

3 Terms and Definitions

The following terms and definitions apply to this standard. 3.1 Microwave interruption intrusion detectors microwaveinterruptionintrusiondetector The use of shielding the microwave beam to generate an alarm signal intrusion detectors. It consists of transmitting and receiving device component. 3.2 Reference target referencetarget Reference target height (160cm ~ 180cm) ± 10cm between weighing between (60kg ~ 70kg) ± or between normal 10kg Analog objects. 3.3 Detection range boundaries boundaryofdetectioncoverage When the axis perpendicular to the reference target at different locations between the transmitter and the receiver, the transmitter and the receiver toward the antenna of the detector is formed Set straight movement caused alarm status farthest point. 3.4 Detection range detectiondistance Can effectively detect the maximum distance reference target transmitter and receiver. 3.5 Detection width detectionwidth A vertical plane with the axis of the detection range on the border mutually aligned transmitter and receiver antenna formed by intersecting horizontal and vertical cross-section width. 3.6 Detection area detectionrange Detection range of regional borders. 4. Technical Requirements 4.1 appearance and mechanical structural requirements 4.1.1 Appearance Intrusion detectors match the dimensions should be marked with the product specification size. Non-metallic surface of the shell should be no cracks, discoloration and permanent Long stains, no obvious deformation and scratches. Metal shell surface coating can not reveal the underlying metal, no blistering, corrosion, nicks, burrs, pitting Points, scratches, coating off and sand holes and the like. Control mechanism flexible, reliable and durable, signs should be clear. 4.1.2 The enclosure class Enclosure protection rating shall comply with the relevant requirements of GB 4208-2008, in which the indoor detectors should reach IP41 level requirements, chamber Overall detector should meet IP55 rating. 4.1.3 shell strength and pressure Housing and the frame should have sufficient mechanical strength and rigidity. After the pressure test and its impact should not produce permanent deformation and the upper surface of the housing damage. 4.1.4 terminal and lead fastness 4.1.4.1 terminals should prevent rotation and loosening measures. After tensile testing, lead and terminal should not fall off. 4.1.4.2 Lead should be able to withstand 20 times right angle bend without breaking, but also lead the DC power supply can withstand the pull of 14.7N 60s action without injury. 4.2 Performance Requirements 4.2.1 alignment indicator To facilitate alignment of the axis of the transmitting antenna and receiving the axis, the detector should be aligned with adjustment means. The receiver should be the appropriate instructions. 4.2.2 Operating Frequency Detector selected band is 9GHz ~ 25GHz. 4.2.3 Frequency Modulation Microwave signal emitted by the transmitter detector should be modulated. Modulation frequency is not lower than 400Hz. 4.2.4 Operating Voltage Rated working voltage detector preferred DC 12V. 4.2.5 Power Scope DC power supply, the detector varied within the range of 85% to 125% of the rated working voltage, no need to adjust the detector should be able to work properly Make, and performance indicators should be consistent with the provisions of the product specification. 4.2.6 Overvoltage run DC power supply, the detector when the supply voltage is 130% of the rated value, not more than 15 times per minute rate of 50 cycles alarm, In each case complete alarm. 4.2.7 Power Consumption Detectors and alarms alert state power should be expressed in the product specification. 4.3 Functional requirements 4.3.1 Alarm function When the detection area through detectors should alarm signal at the reference target under specified conditions. 4.3.2 alarm time and recovery time 4.3.2.1 Alarm Time After leaving the reference detector target detection area, the alarm signal duration less than 1s. 4.3.2.2 Recovery Time After leaving the reference target detection area, the detector should be restored in the state of alert 7s. 4.3.3 Tamper protection Intrusion detectors shall be tamper protection, intrusion detectors should alarm signal is output when opening the housing. 4.4 Detection range boundaries 4.4.1 Detection range Detection range of the detector should be expressed in the product specification. 4.4.2 Detection width Detector probe width should be expressed in the product specification. 4.4.3 detectable speed range Indoor. 0.1m/s ~ 3m/s; Outdoor. 0.1m/s ~ 10m/s. 4.5 Environmental suitability requirements 4.5.1 Environmental Adaptability detector grade requirements Probe into grade Ⅰ, Ⅱ grade, Ⅲ grade according to the severity of their environment, in Table 1. Table 1 detector temperature and humidity test level Grade environment description Grade Ⅰ Suitable for indoor temperature changes little, can withstand the occasional lighter vibration environment, the ambient temperature range should be -10 ℃ ~ Between 40 ℃, the average relative humidity of about 75% Ⅱ grade Incomplete suitable detector is exposed to outdoor (open air or simple covered) or poor indoor environmental conditions occasions, can withstand sudden However, fall or move frequently subjected to greater vibration and shock, the ambient temperature should range between -25 ℃ ~ 70 ℃, the average Relative humidity of about 85% to 95% Grade Ⅲ Suitable detector completely exposed to the outdoors, the ambient temperature should range between -40 ℃ ~ 85 ℃, the average relative humidity About 90% to 95% 4.5.2 Temperature and humidity detector suitability test requirements Detector according to the corresponding level of environmental tests should be able to work in a specific environment of each test is complete, or after the test sensitivity Detecting the amount of change in the distance, its value should not exceed ± 10%, and the case should not be deformed or damaged. 4.6 stability requirements Intrusion detectors under normal climatic conditions, continuous 7d false alarms and leak alarm should not occur, or change the sensitivity of the detection range Of no more than ± 10%. 4.7 Electromagnetic Compatibility 4.7.1 Electrical fast transient burst immunity test The detector should be in accordance with GB/T 17626.4-2008 in Chapter 5, Table 1 Test Level 3, during the test should not produce false alarms And leak alarm, flashing indicating device during the test is acceptable. After the test, according to the product standard test its functionality, it should be able to work properly. 4.7.2 Electrostatic discharge immunity test The detector should be in accordance with GB/T 17626.2-2006 in Chapter 5, Table 1 Test Level 3, during the test should not produce false alarms And leak alarm, flashing indicating device during the test is acceptable. After the test, according to the product standard test its functionality, it should be able to work properly. 4.7.3 RFEMS test The detector should be in accordance with GB/T 17626.3-2006 in Chapter 5, Table 1 Test Level 3, during the test should not produce false alarms And leak alarm, flashing indicating device during the test is acceptable, but there should not be any change in the output. After the test, according to the product standards inspection Test its functionality, should be able to work properly. 4.7.4 Surge (impact) immunity test The detector should be in accordance with GB/T 17626.5-2008 in Chapter 5, Table 1 Test Level 3, during the test should not produce false alarms And leak alarm, flashing indicating device during the test is acceptable, but there should not be any change in the output. After the test, according to the product standards inspection Test its functionality, should be able to work properly. 4.8 durability requirements Intrusion detectors rated voltage and rated load currents were alert, alarm and reset cycle 6000, there should be no electrical or mechanical Fault, nor should damage to the device or contact adhesion. 4.9 Security Requirements 4.9.1 Microwave safe dose Transmitting antenna at the front of 5cm detectors, microwave radiation power density should be less than 5mW/cm2. 4.9.2 Abnormal operation protection Detectors in the following non-normal operations, shall not be damaged, does not cause a fire or electric shock. a) the power supply polarity is reversed; b) output short circuit; c) hand touch input; d) between each wire connected wrong. 4.9.3 retardant Intrusion detector housing a flame burning five times, each time burning 5s, then stop 5s, plastic shell continues to burn no more than 1min, and You can not have a pillow melting plastic residue dripping. 4.10 reliability requirements Intrusion detectors under normal operating conditions mean time between failures (MTBF) Under normal operating conditions at least 60000h.

5 Test methods

5.1 Appearance and structure of the performance test 5.1.1 Performance Test appearance With a caliper measuring tool drawing control verify dimensions, appearance visual inspection, inspection and control mechanism by hand, shall meet the requirements of 4.1.1. 5.1.2 The enclosure class Test method according to GB 4208-2008 test should meet the requirements of 4.1.2. 5.1.3 shell mechanical strength test 5.1.3.1 casing pressure test For the low-pressure circuit of the test sample, the sample flat, horizontal surface in the center of the housing a discharge diameter of steel φ137mm Hemisphere, spherical downward pressure of 49N, the role of (60 ± 2) s. Visual inspection after the test, the test results should meet the requirements of 4.1.3. 5.1.3.2 shell impact strength test The test samples were flat, with a diameter of φ50.8mm, quality 540g steel ball from a height of 0.5m vertical free fall rush Click on the shell surface. Test results shall meet the requirements of 4.1.3. 5.1.4 Terminal and lead fastness test 5.1.4.1 Tensile test After the test sample should be fixed in the normal position of the connection terminals 20 times and 20 times off test in the most easy to pull off in the direction Shi Plus 24.5N tension, hold time of (60 ± 2) s, visual inspection after the test shall meet the requirements of 4.1.4.1. 5.1.4.2 Lead bending test After sample appearance and electrical performance check at the end of the sprung mass of lead weights 1.5kg, and then pour the sample in the vertical plane Oblique about 90 °, for about 2s ~ 3s, then return to the original position, it constitutes a bend. According to this method again bent in the opposite direction Qu, a total of 20 tests, after completion of the test shall comply with the requirements of 4.1.4.2. 5.2 Performance Test 5.2.1 alignment indicator test Detector transmitter and a receiver placed on the detection distance required targets by product base, turn the transmitter or receiver and check point Check it at the indicator should meet the requirements of 4.2.1. 5.2.2 Operating Frequency Test Wavelength meter or spectrum analyzer to the transmit frequency test shall meet the requirements of 4.2.2. 5.2.3 Test Frequency Modulation When the transmitter working at the transmitter point modulation, frequency modulation scope measurements should meet the requirements of 4.2.3. 5.2.4 working voltage test With an accuracy of 0.5 voltmeter to monitor the voltage should meet the requirements of 4.2.4. 5.2.5 Power range test DC power supply, with a 0.5 grade accuracy, range 1.5 times the supply voltage of the DC voltage meter to monitor power supply voltages. Adjustable DC Power supply voltage value, at 85% of rated, 100% and 125%, respectively, were tested to detect the distance. Each test period of not less than 15min, detection range detection should meet the requirements of 4.2.5. 5.2.6 Overvoltage test run DC power supply, according to the requirements of 4.2.6, 5.2.5 through the sample tested at 130% of rated power supply voltage when the sample is tested Alert, moving the reference target, so that the test sample into the alarm state, then released, then enter the state of alert, to complete a cycle. Per minute Alarm clock rate of not more than 15 times, a total of 50 cycles, each should be able to complete the alarm. 5.2.7 check power consumption With an accuracy of 0.5, range 1.5 times the rated current value of the monitor current consumption shall comply with the requirements of 4.2.7. 5.3 Function test 5.3.1 Test alarm function Under normal ambient conditions, test site to install the detector, indoor reference target to 0.1m/s ~ 3m/s, outdoor to 0.1m/s ~ Speed of 10m/s through the detection area shall conform to the requirements of 4.3.1. 5.3.2 alarm time and recovery time 5.3.2.1 Alarm Time Detector transmitter installation distance between the receiver and by product specifications prescribed detection range, mounting height according to product say SHEET highly recommended, reference target at a speed of 0.75m/s from detection width, the close proximity vertical axis antenna hair formation. When the detector generates an alarm signal, the reference target detection area to exit immediately, generating a timer measuring the time between the alarm signal disappears Interval, the interval shall meet the requirements of 4.3.2.1. Figure 1 shows, in a uniform distribution of A, C, E three locations tested separately.

1 a schematic diagram of the test position

5.3.2.2 Recovery Time After the alarm signal disappears, the reference target and through the detection region, the detector generates an alarm signal is again measured by a timer alarm elimination Alarm signal is generated again lost to the minimum time interval, this interval should meet the requirements of 4.3.2.2. Figure 1 shows, in a uniform distribution The A, C, E were tested three positions. 5.3.3 Tamper protection Intrusion detectors shall be tamper protection, intrusion detectors should alarm signal is output when opening the housing. 5.4 detection range boundary test 5.4.1 test site Detector test site requirements open flat, the length should be greater than 1.5 times the base index of products specified detection range of a width greater than most Large probe 4 times the width. Detection area should not have metal objects, such as trees blocking 0.1m above the ground or into a piece of grass. 5.4.2 Detection distance test Installation distance between the transmitter and the receiver. indoor detection range defined by product specification; outdoor product specification should be regulated 1.3 times the fixed detection distance. Installation height according to product instructions recommended height. Reference targets to 0.75m/s speed, vertical through Too close, the axis formed by the antenna hair, the detector should generate an alarm signal. 5.4.3 Detection width test Detection range Installation distance detector transmitter, a receiver between the technical specifications defined by product, installation height according to product The recommended height of the specification, the reference target from the probe 2 times the width of the outside, at a speed of 0.75m/s, the vertical approaching closing, the axis of the antenna is formed of fat, Detect the location of the alarm, and then in the same way measure the position of the axis on the other side of the alarm, the distance between the two positions should be less than the alarm point 1.5 Technical indicators specified detection width. Figure 1 shows a uniform distribution of A, B, C and s......
