FZ/T 97010-2016 English PDF

Q: How long will the true-PDF of English version of FZ/T 97010-2016 be delivered?

Upon your order, we will start to translate FZ/T 97010-2016_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of FZ/T 97010-2016_English with my colleagues?

Yes. The purchased PDF of FZ/T 97010-2016_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

Q: Should I purchase the latest version FZ/T 97010-2016?

Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version FZ/T 97010-2016 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.

US$169.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
FZ/T 97010-2016: General technical requirements of cams on circular weft knitting machine
Status: Valid

FZ/T 97010: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 97010-2016	169	Add to Cart	3 days	General technical requirements of cams on circular weft knitting machine	Valid
FZ/T 97010-1993	279	Add to Cart	3 days	General technical requirements for cams of knitting machines	Obsolete

Similar standards

FZ/T 93048.1 FZ/T 93019 FZ/T 97020 FZ/T 97008 FZ/T 97009

Basic data

Standard ID: FZ/T 97010-2016 (FZ/T97010-2016)
Description (Translated English): General technical requirements of cams on circular weft knitting machine
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W96
Word Count Estimation: 7,729
Date of Issue: 2016-10-22
Date of Implementation: 2017-04-01
Older Standard (superseded by this standard): FZ/T 97010-1993
Quoted Standard: GB/T 191; GB/T 1184; FZ/T 90001
Regulation (derived from): Ministry of Industry and Information Technology Announcement No.56 of 2016
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China
Summary: This standard specifies the requirements, test methods and inspection rules and marking, packaging, transportation and storage of circular lathe. This standard applies to circular weft knitting machine control knitting needle, sinker and its associated auxiliary equipment to do the knitting movement of the triangle.

FZ/T 97010-2016: General technical requirements of cams on circular weft knitting machine

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

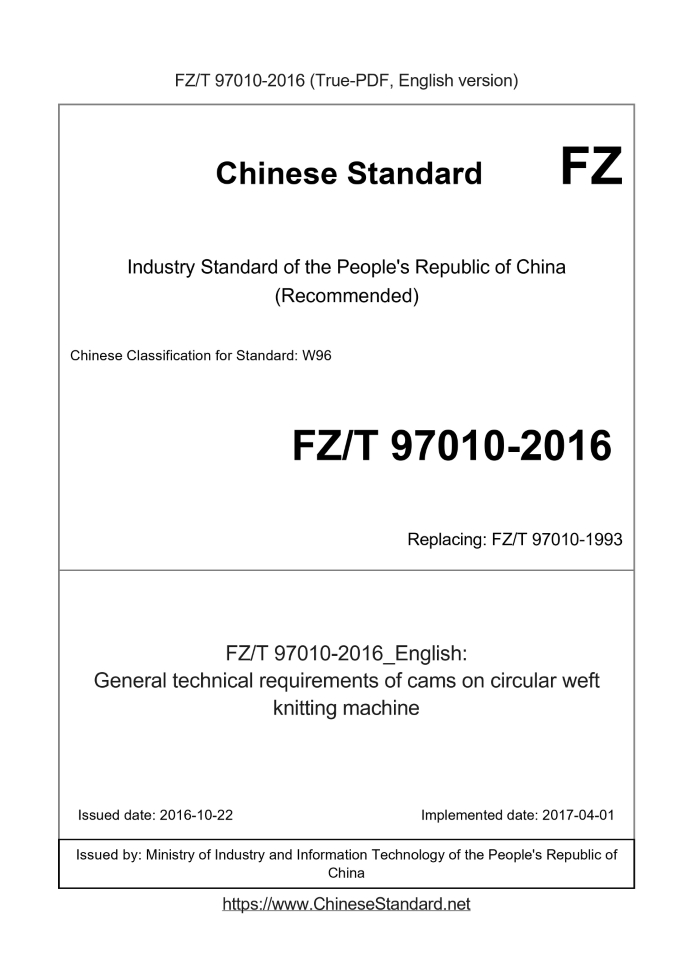

General technical requirements of cams on circular weft knitting machine ICS 59.120.40 W96 People 's Republic of China textile industry standards Replacing FZ/T 97010-1993 General technical conditions for circular lathe 2016-10-22 released 2017-04-01 implementation Issued by the Ministry of Industry and Information Technology of the People 's Republic of China

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces FZ/T 97010-1993 General technical conditions for knitting machinery triangular. Compared with FZ/T 97010-1993, the main differences are as follows. - modified the scope of application of the standard (see Chapter 1, Chapter 1 of the previous edition); --- Added normative reference documents (see Chapter 2); - increased design content (see Chapter 3); --- modified the requirements of the material (see 4.1, the previous version of 2.2); --- modified the "hardness range" (see 4.2.1, the previous version of 2.3); - improved "surface roughness requirements" (see 4.3, pre-version 2.4); - improved "dimensional accuracy requirements" (see 4.5, previous version of 2.6); - modified the "test method" (see Chapter 5, Chapter 3 of the previous edition); - Added "inspection rules" (see Chapter 6); Other editorial changes. This standard is proposed by China Textile Industry Federation. This standard by the National Textile Machinery and Accessories Standardization Technical Committee (SAC/TC215) centralized. The drafting unit. Quanzhou Bosuo Machinery Co., Ltd., Fujian Taifan Industrial Co., Ltd., Quanzhou fine magnesium Machinery Co., Ltd., Quanzhou Bai source Machinery Co., Ltd., St. Tony (Shanghai) Knitting Machinery Co., Ltd., Hui'an Golden Tissot Precision Machinery Co., Ltd., Zhejiang Hengqiang Technology Co., Ltd., Cixi Taiyang Chau Textile Technology Co., Ltd., Quanzhou Huahao Machinery Co., Ltd., Zhejiang Province Quality Inspection Science Research Institute, China Textile Machinery Association. The main drafters of this standard. Xu Jiexing, Shi Haibin, Li Dai, Tang Yu, Li Dawei, Huang Lishen, Zhao Jicun, Qian Kaixin, Shen Wenjun, Liao Zheng, Chen Yong, Chen Shaoxiong, Lingyun Hui. This standard replaced the previous version of the standard release. --- FZ/T 97010-1993. General technical conditions for circular lathe

1 Scope

This standard specifies the requirements, test methods and inspection rules and marking, packaging, transportation and storage of circular weft knitting machines. This standard applies to circular weft knitting machine control knitting needle, sinker and its associated auxiliary equipment to do the knitting movement of the triangle.

2 normative reference documents

The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article Pieces. For undated references, the latest edition (including all modifications) applies to this document. GB/T 191 packaging and storage icon GB/T 1184 Shapes and position tolerances Not specified Tolerance values FZ/T 90001 textile machinery product packaging

3 design to be

The design of the round weft machine is shown in Appendix A.

4 requirements

4.1 Materials 4.1.1 Triangular material is Cr12MoV, Cr12Mo1V1. 4.1.2 Auxiliary triangular material is 45. 4.1.3 Triangular materials and auxiliary triangular materials can also be used with mechanical properties of not less than the above materials of other materials. 4.2 Hardness 4.2.1 Triangular hardness of 60HRC ~ 63HRC. 4.2.2 Where there is a special hardness requirement, the product drawings or technical documents should be specified accordingly. 4.3 Surface roughness 4.3.1 The surface roughness Ra of the contact surface of the needle should not be greater than 0.8μm; the direction of the texture should be consistent with the direction of the needle, and should not be clear Significant ripples and dents. 4.3.2 non-needle contact surface roughness Ra value should not be greater than 0.8μm. 4.3.3 The surface roughness Ra of the plane of the triangle and the knitting needle (or sinker) shall not be greater than 0.8 μm. 4.3.4 Triangular installation plane, with the adjacent triangle at the junction of the plane and the side of the surface roughness Ra value should not be large At 1.6 μm. 4.3.5 The surface roughness Ra of the mounting holes on the triangle shall not be greater than 3.2 μm. 4.3.6 The surface roughness Ra of the chamfer or arc connection at each triangle shall be as specified in 4.3.1 to 4.3.5 according to its location. 4.3.7 forging into the blank of the triangle, the non-processing surface roughness Ra value should not be greater than 25μm; the remaining machine surface roughness Ra ......
