FZ/T 95013-2021 English PDF

US$169.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

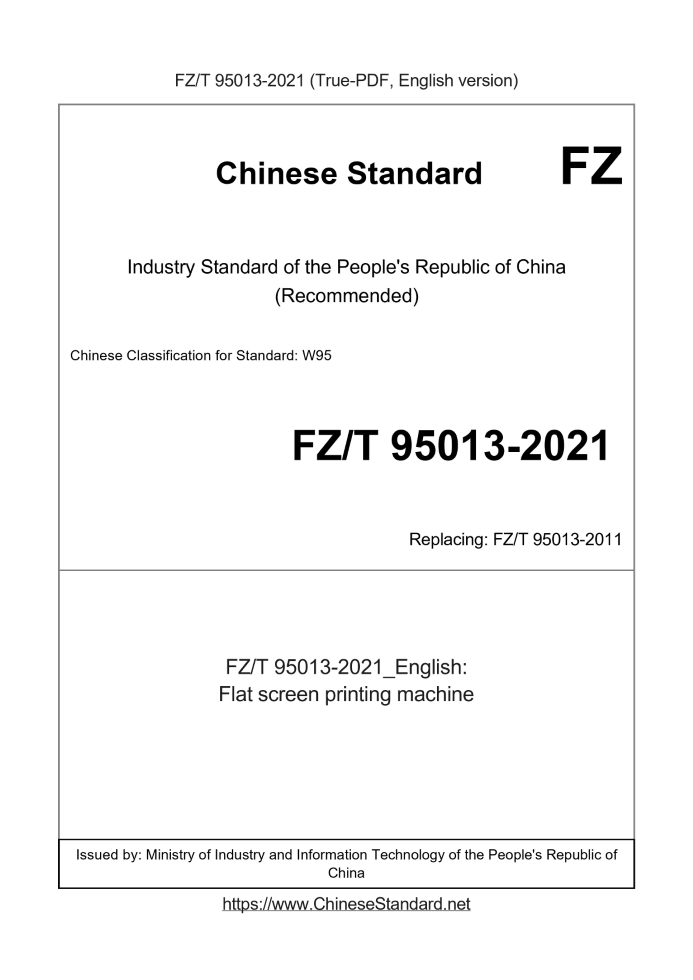

FZ/T 95013-2021: Flat screen printing machine
Status: Valid

FZ/T 95013: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
FZ/T 95013-2021	169	Add to Cart	3 days	Flat screen printing machine	Valid
FZ/T 95013-2011	399	Add to Cart	3 days	Flat screen printing machine	Obsolete
FZ/T 95013-1999	319	Add to Cart	3 days	Flat screen printing range	Obsolete

Similar standards

FZ/T 93048.1   FZ/T 93019   FZ/T 95012   FZ/T 95005   FZ/T 95003

Basic data

Standard ID: FZ/T 95013-2021 (FZ/T95013-2021)
Description (Translated English): Flat screen printing machine
Sector / Industry: Spinning & Textile Industry Standard (Recommended)
Classification of Chinese Standard: W95
Word Count Estimation: 7,717
Issuing agency(ies): Ministry of Industry and Information Technology of the People's Republic of China

FZ/T 95013-2021: Flat screen printing machine

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Flat screen printing machine ICS 59.120.50 W95 People's Republic of China Textile Industry Standard Replace FZ/T 95013-2011 Flat screen printing machine Released on 2021-04-19 2021-07-01 implementation Issued by the Ministry of Industry and Information Technology of the People's Republic of China

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces FZ/T 95013-2011 "Flat Screen Printing Machine". Compared with FZ/T 95013-2011, the main technical changes are as follows. ---Modified the parameters (see Table 1, Table 1 of the.2011 edition); ---Modified the accuracy of the alignment (see 4.2.1, 4.2.1 of the.2011 edition); ---Modified the constant load elongation rate of the servo motor drive belt (see 4.2.4.2, 4.2.4.2 of the.2011 edition); ---Modified the thickness and thickness tolerance of the printing belt (see 4.2.4.3.1, 4.2.4.3.1 of the.2011 edition); ---Increase the perimeter difference between the two sides of the width direction of the printing belt (see 4.2.4.3.3); ---Added the requirements for the washing of the printing belt (see 4.2.4.7); ---Modified the temperature difference between the left, center and right in the drying room (see 4.3.3, 4.3.3 of the.2011 edition); --- Deleted the hydraulic and propulsion systems (see 4.6 in the.2011 edition); --- Deleted the electrostatic discharge immunity test of electrical equipment and the immunity test of voltage sag, short-term interruption and voltage change (see 2011 version 4.7.2, 4.7.3); ---Modified the sampling method of the elongation change rate of the guide belt at a constant load (see 5.1.4, 5.1.4 of the.2011 edition); --- Modified the factory inspection (see 6.2, 6.2 of the.2011 edition). This standard was proposed by the China National Textile and Apparel Council. This standard is organized by the National Textile Machinery and Accessories Standardization Technical Committee Spinning, Dyeing and Finishing Machinery Sub-Technical Committee (SAC/TC215/ SC1) Centralized. Drafting organizations of this standard. Huzhou Huisheng Machinery Co., Ltd., Wuxi Textile Machinery Quality Supervision and Inspection Center, Fujian Jilong Machinery Technology Co., Ltd. Co., Ltd., Xi'an Degao Printing and Dyeing Automation Engineering Co., Ltd., National Textile Machinery Quality Supervision and Inspection Center, Lianyungang Yingyou Textile Machinery Machinery Co., Ltd., Jiangsu Little Sun Technology Development Co., Ltd. The main drafters of this standard. Li Ziming, Li Liping, Li Wei, Ma Gongshu, Zhang Siwei, Zhang Cainan, Gu Bomin. The previous versions of the standard replaced by this standard are as follows. ---FJ/JQ225-1989; ---FZ/T 95013-1999, FZ/T 95013-2011. Flat screen printing machine

1 Scope

This standard specifies the parameters, requirements, test methods, inspection rules, marking and packaging, transportation and storage of flat screen printing machines. This standard applies to flat screen printing machines for printing woven, knitted and non-woven cotton, wool, linen, silk, chemical fiber and their blended fabrics.

2 Normative references

The following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this article Pieces. For undated reference documents, the latest version (including all amendments) is applicable to this document. GB/T 191 Packaging, storage and transportation pictorial signs GB/T 250-2008 Textile color fastness test evaluation gray sample card for discoloration GB 2894 Safety signs and guidelines for their use GB/T 5226.1-2019 Electrical safety of machinery Electrical equipment of machinery Part 1.General technical conditions GB/T 7111.7 Textile Machinery Noise Test Specification Part 7.Dyeing and Finishing Machinery GB/T 17626.4-2018 Electromagnetic compatibility test and measurement technology Electrical fast transient pulse group immunity test GB/T 17780.7 Textile Machinery Safety Requirements Part 7.Dyeing and Finishing Machinery FZ/T 90001 Textile machinery product packaging FZ/T 90074 Coating of textile machinery products FZ/T 90089.1 Textile machinery nameplate type, size and technical requirements FZ/T 90089.2 Textile machinery nameplate content

3 parameters

Parameters are shown in Table 1. Table 1 Project parameters Nominal width W/mm 1800,.2000, 2200, 2400, 2600, 2800, 3000, 3200, 3400, 3600 Maximum printing width/mm W-200 Effective length of table/m 14~60 Flower back range/mm 400~3000 Nominal speed/(m/min) 8~25 Printing color number 1~24 Guide belt drive mode Servo motor drive Scraper, magnetic bar Drying method. hot air drying, heat radiation ......
