TB/T 3396.2-2015: Test methods for fastening systems of high-speed railway - Part 2: Determination for clamping force Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

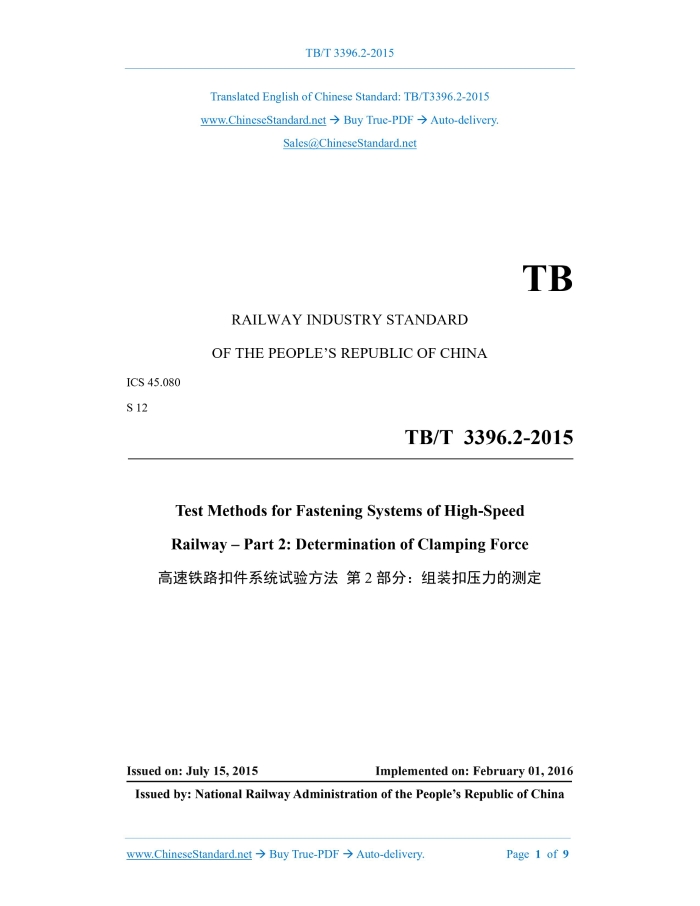

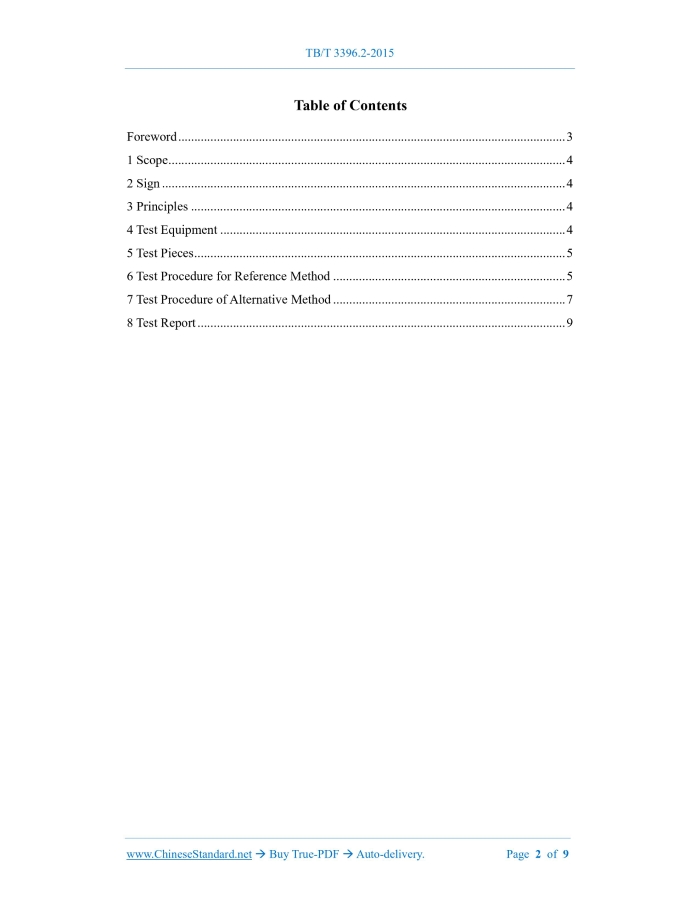

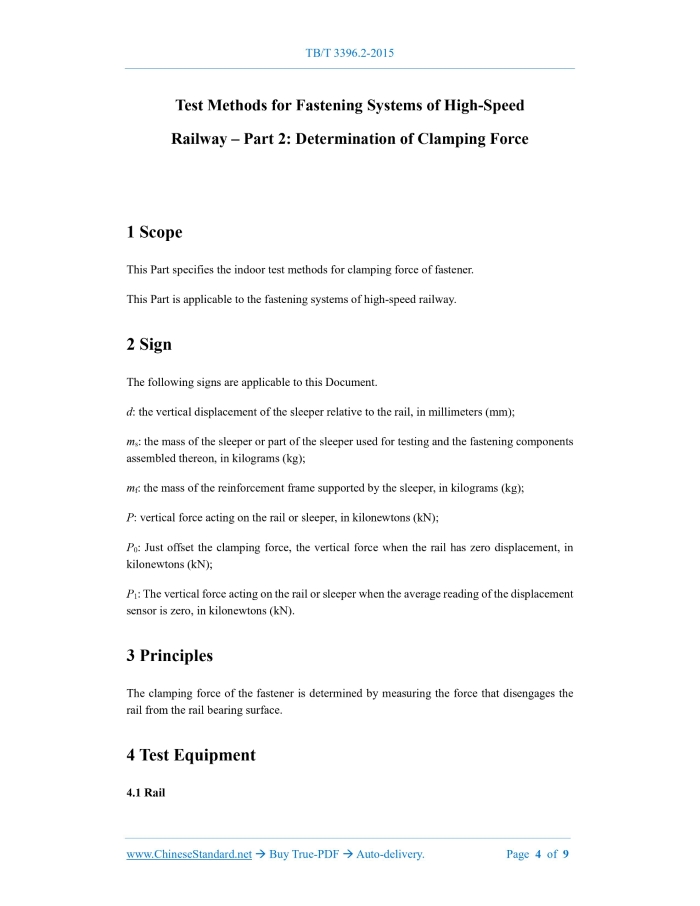

Similar standardsTB/T 3396.2-2015: Test methods for fastening systems of high-speed railway - Part 2: Determination for clamping force---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/TBT3396.2-2015 TB RAILWAY INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 45.080 S 12 Test Methods for Fastening Systems of High-Speed Railway – Part 2: Determination of Clamping Force ISSUED ON: JULY 15, 2015 IMPLEMENTED ON: FEBRUARY 01, 2016 Issued by: National Railway Administration of the People’s Republic of China Table of ContentsForeword ... 3 1 Scope ... 4 2 Sign ... 4 3 Principles ... 4 4 Test Equipment ... 4 5 Test Pieces ... 5 6 Test Procedure for Reference Method ... 5 7 Test Procedure of Alternative Method ... 7 8 Test Report ... 9 Test Methods for Fastening Systems of High-Speed Railway – Part 2: Determination of Clamping Force1 ScopeThis Part specifies the indoor test methods for clamping force of fastener. This Part is applicable to the fastening systems of high-speed railway.2 SignThe following signs are applicable to this Document. d: the vertical displacement of the sleeper relative to the rail, in millimeters (mm); ms: the mass of the sleeper or part of the sleeper used for testing and the fastening components assembled thereon, in kilograms (kg); mf: the mass of the reinforcement frame supported by the sleeper, in kilograms (kg); P: vertical force acting on the rail or sleeper, in kilonewtons (kN); P0: Just offset the clamping force, the vertical force when the rail has zero displacement, in kilonewtons (kN); P1: The vertical force acting on the rail or sleeper when the average reading of the displacement sensor is zero, in kilonewtons (kN).3 PrinciplesThe clamping force of the fastener is determined by measuring the force that disengages the rail from the rail bearing surface.4 Test Equipment4.1 Rail A section of short rail with a length of about 0.5m, whose cross-section is the same as that used for the assembly of the fastener to be tested or for the fatigue performance test of the assembly. There shall be no peeling off the rails, and no floating rust on the surface. 4.2 Loading device The device with loading rate of 9kN/min ~ 11kN/min, static loading up to 50kN for applying vertical loads. For the reference test method, the load is applied to the rail; for the alternative test method, the load is applied to the reinforcement frame supported on the sleeper on the shelf. 4.3 Displacement sensor An instrument for measuring the vertical displacement of the rail relative to the sleeper, with an indication error of 0.01 mm. 4.4 Load cells An instrument for measuring the load applied to the rail or to the reinforcement frame supporting the sleeper, with an accuracy class of 0.5. 4.5 Recording device The device that is capable of digitally recording and drawing load-displacement curves during the test, the sampling frequency shall be no lower than 50 Hz. 4.6 Steel gasket The size of the steel spacer is 25 mm × 25 mm, and the thickness is 0.25 mm ± 0.05 mm.5 Test Pieces5.1 Sleeper The sleepers with fastener embedded parts or reserved bolt holes, 1/2 sleepers or slab rail unit (all described as sleepers in this test method). The bearing surfaces of sleepers shall not be reconditioned for testing. 5.2 Fastener Complete set of fasteners including all components.6 Test Procedure for Reference Method6.1 Test preparation ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of TB/T 3396.2-2015 be delivered?Answer: The full copy PDF of English version of TB/T 3396.2-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of TB/T 3396.2-2015_English with my colleagues?Answer: Yes. The purchased PDF of TB/T 3396.2-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- TB/T 3396.2-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of TB/T 3396.2-2015?A step-by-step guide to download PDF of TB/T 3396.2-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "TB/T 3396.2-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
