QC/T 746-2006: High pressure pipelines for compressed natural vehicles

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/QCT746-2006

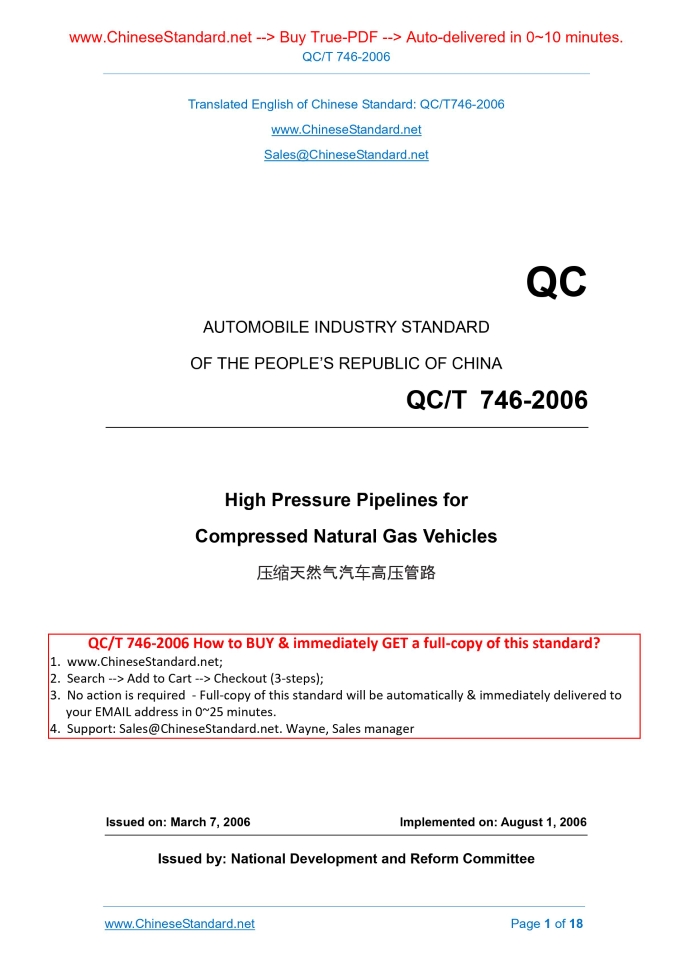

QC AUTOMOBILE INDUSTRY STANDARD High Pressure Pipelines for Compressed Natural Gas Vehicles Issued on: MARCH 7, 2006 Implemented on: AUGUST 1, 2006 Issued by. National Development and Reform Committee

Table of Contents

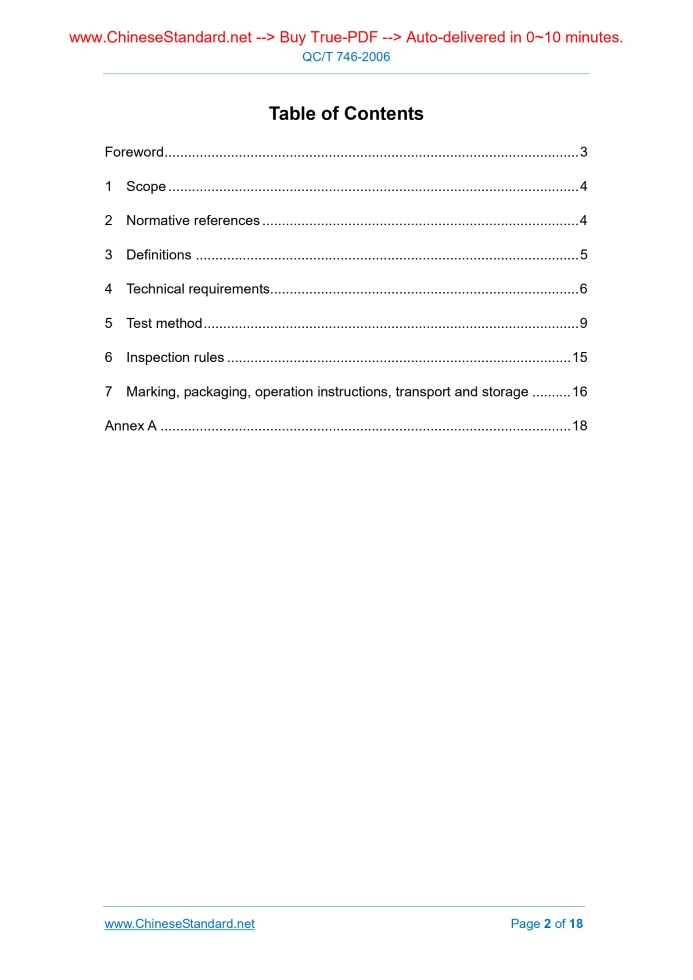

Foreword... 3 1 Scope... 4 2 Normative references... 4 3 Definitions... 5 4 Technical requirements... 6 5 Test method... 9 6 Inspection rules... 15 7 Marking, packaging, operation instructions, transport and storage... 16 Annex A... 18

Foreword

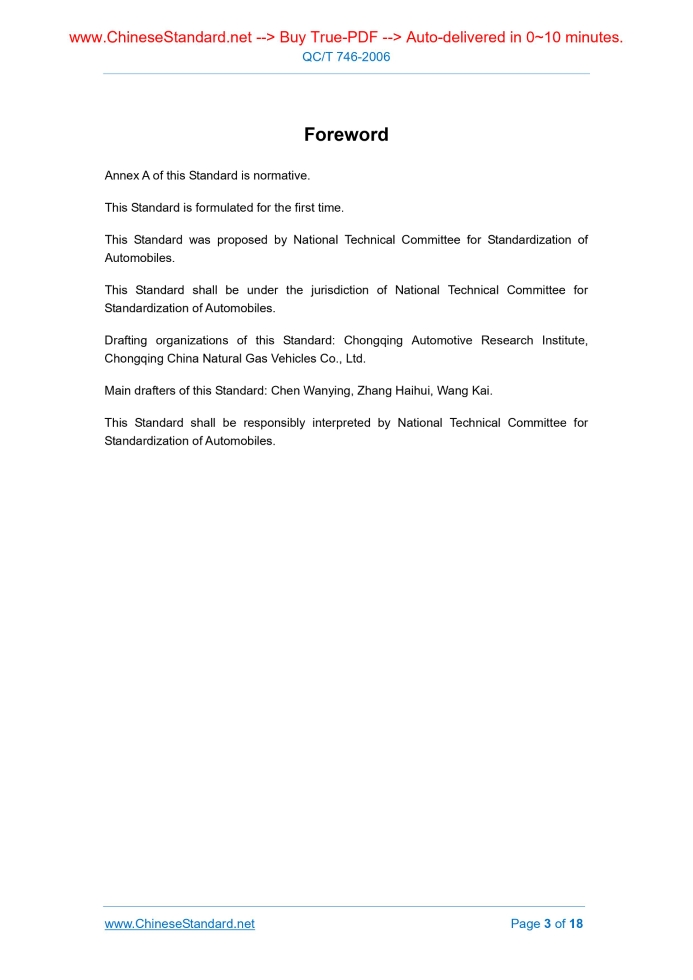

Annex A of this Standard is normative. This Standard is formulated for the first time. This Standard was proposed by National Technical Committee for Standardization of Automobiles. This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Automobiles. Drafting organizations of this Standard. Chongqing Automotive Research Institute, Chongqing China Natural Gas Vehicles Co., Ltd. Main drafters of this Standard. Chen Wanying, Zhang Haihui, Wang Kai. This Standard shall be responsibly interpreted by National Technical Committee for Standardization of Automobiles. High Pressure Pipelines for Compressed Natural Gas Vehicles

1 Scope

This Standard specifies the definitions, technical requirements, test methods, inspection rules, marking, packaging, transport, and storage of high pressure pipelines for compressed natural gas vehicles (hereinafter referred to as high pressure pipelines). This Standard applies to high-pressure pipelines that use compressed natural gas as vehicle fuel, of which the rated working pressure is 20MPa (all pressure values stated in this Standard refer to gauge pressure), and the operating environmental temperature is -40°C ~ 120°C.

2 Normative references

The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 528 Rubber, Vulcanized or Thermoplastic - Determination of Tensile Stress - Strain Properties GB/T3765 Cone Connectors - Specification GB/T5563 Rubber and Plastics Hoses and Hose Assemblies - Hydrostatic Testing GB/T 5564 Rubber and Plastics Hoses - Subambient Temperature Flexibility Tests GB/T9571 Ozone Resistance Test Method of Rubber and Plastic Hoses under Static Conditions GB/T9576 Rubber and Plastics Hoses and Hose Assemblies - Guidelines for Selection, Storage, Use and Maintenance GB/T 9577 Rubber and Plastics Hoses and Hose Assemblies - Rules for Marking, Package and Transportation GB 9969.1 General Principles for Preparation of Instructions for Use of Industrial Products GB 18017 Compressed Natural Gas as Vehicle Fuel GB/T 14976 Seamless Stainless Steel Pipes for Fluid Transport GB/T 17895 Natural Gas Vehicle and Liquefied Petroleum Gas Vehicle - Vocabulary QC/T 245 Technical Conditions of Compressed Natural Gas Vehicles - Specific Devices

3 Definitions

The terms and definitions established in GB/T 17895 and following terms and definitions apply to this Standard. 3.1 High-pressure pipelines A generic term of all pipe fittings and joints that are installed to natural gas vehicles and connect air cylinder with decompression regulator. 3.2 Connectors Parts in natural gas fuel system that connect devices or pipelines. 3.3 Rigid high-pressure fuel pipes High-pressure steel pipes that connect parts of natural gas fuel system for circulation of natural gas. 3.4 High-pressure flexible fuel pipes Flexible pipes that connect parts of natural gas fuel system for circulation of high-pressure natural gas. 4.2.1.3 Ultra-torque characteristics High-pressure pipeline shall be subjected to ultra-torque characteristics test according to the test prescribed in 5.5; test piece shall be free of thread damage, deformation and break; air tightness test shall conform to the provisions of 4.2.1.2. 4.2.1.4 Durability High-pressure pipeline shall be subjected to durability test according to the test method prescribed in 5.6; air tightness test shall conform to the provisions of 4.2.1.2. 4.2.1.5 Corrosion resistance After high-pressure pipeline receives salt spray corrosion test according to the method prescribed in 5.7, air tight test shall conform to the provisions of 4.2.1.2. 4.2.1.6 Compatibility After high-pressure pipeline receives compatibility test according to the test method prescribed in 5.8.1, test piece is inspected by 25-times magnifying glass, and shall be free of conspicuous fracture traces. 4.2.1.7 Bending resistance After high-pressure pipeline receives bending test according to the test method prescribed in 5.9; test piece shall be free of cracks or fracture. 4.2.1.8 Pull strength High-pressure pipe shall be subjected to pull strength test according to the test method prescribed in 5.10; if F≥f, then test piece passes the test,. 4.2.1.9 Vibration resistance After high-pressure pipeline receives vibration test according to the method prescribed in 5.11; air tight test shall conform to the provisions of 4.2.1.2. 4.2.2 High-pressure flexible fuel pipe 4.2.2.1 Hydrostatic pressure strength a) High-pressure strength shall be subjected to pressure test according to the test method prescribed in 5.3.2.1; pressure-containing parts of high-pressure pipeline shall be free of leakage. b) High-pressure pipeline shall be subjected to bursting pressure test according to the test method prescribed in 5.3.2.2; pressure-containing parts of high-pressure pipeline shall be free of fracture. High-pressure flexible fuel pipe and joint shall be able to pass the test prescribed in 4.2.2.1 a) after receiving impact test for 15, 000 times according to the method prescribed in 5.17. 5 Test methods 5.1 Test conditions 5.1.1 General provisions Unless otherwise specified, tests prescribed in this Standard shall be carried out under following conditions. a) Test environment temperature is 20°C±5°C; b) Test medium shall be clean dry air or nitrogen. 5.1.2 Requirements for precision of test instruments a) Pressure instrument. Accuracy is not lower than grade 2.5; measurement error is less than ±10% of reading. b) Flow instrument. Accuracy is not lower than grade 2.5; measurement error is less than ±10% of reading. c) Temperature instrument. Accuracy is ±0.5°C; the minimum resolution is not greater than 2 times the accuracy. 5.2 Visual inspection Inspect high-pressure pipeline assembly visually; the results shall conform to relevant provisions in chapter 4. 5.3 Hydrostatic pressure strength test 5.3.1 High-pressure rigid fuel pipe Securely install test piece to an enclosed special test bench; block off the outlet of test piece; test hydraulic pressure is slowly added to test piece; pressurizing duration shall not be less than 3min; make it reach 45Mpa; stabilize the pressure for 3min and release the pressure. Samples that have received this test must not be used for other tests. 5.3.2 High-pressure flexible fuel pipe is necessary to pick out four most severe resonance frequencies from them. During test period, if resonant frequency changes, change occurring time shall be recorded and vibration frequency shall be immediately adjusted in order to maintain resonance state of peak value. Record the final resonance frequency. Test piece shall be subjected to air tight test after it is completed. 5.12 Tensile strength test of high-pressure flexible fuel pipe follows the provisions GB/T 528. 5.13 Ozone resistance test Ozone resistance test of high-pressure pipe follows the provisions of GB/T 9571. 5.14 Low-temperature bending test High-pressure flexible fuel pipe follows the provisions on method B in GB/T 5564; place at a temperature of -40°C±2°C for 24h; check the surface of test piece with 2-times magnifying glass. 5.15 Oxygen aging resistance test Hang the samples vertically in oxygen pressure vessel, in a free state. Samples shall not be crowded, or contact each other, or touch container wall. Samples with different formulas may not be tested in the same container. Heat the constant temperature control system; after the medium is preheated to working temperature, place container with samples into heading medium; pressurize with pressurized oxygen when test temperature is constant; calculate aging time when the pressure reaches the predetermined value. It is required to drop container pressure to normal pressure slowly and evenly, in at least 5min, after reaching predetermined time and before taking samples out of the container. 5.16 Leakage test Leakage test of high-pressure flexible fuel pipe follows the provisions in annex A. 5.17 Impact test of high-pressure flexible fuel pipe This test... ......
