QC/T 5-2017: Standardization examination of automotive product drawing and design document

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/QCT5-2017

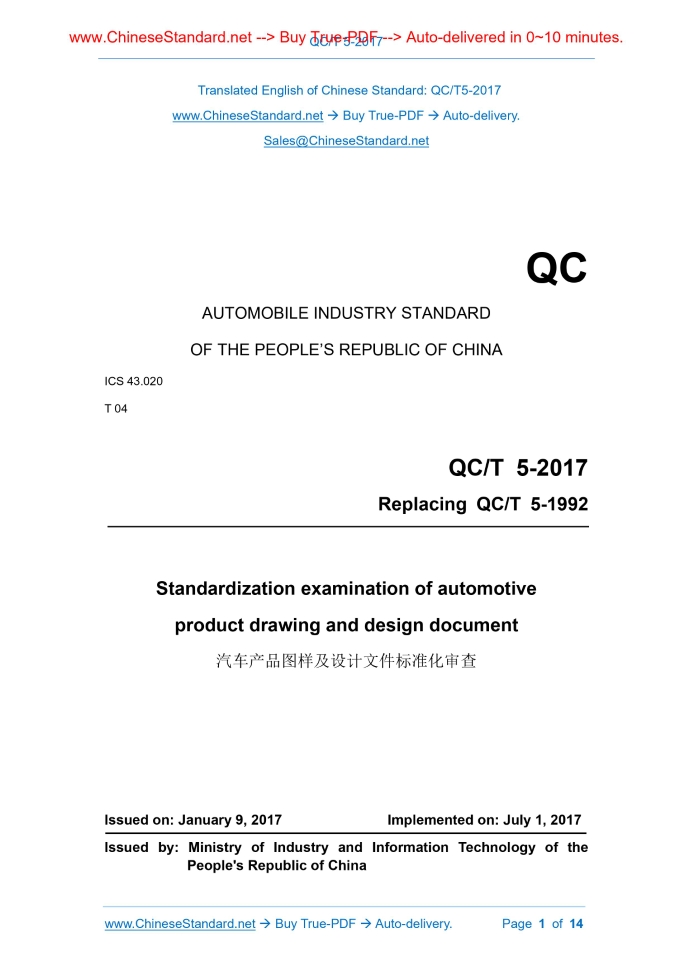

QC AUTOMOBILE INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 T 04 Replacing QC/T 5-1992 Standardization examination of automotive product drawing and design document Issued on: JANUARY 9, 2017 Implemented on: JULY 1, 2017 Issued by. Ministry of Industry and Information Technology of the People's Republic of China

Table of Contents

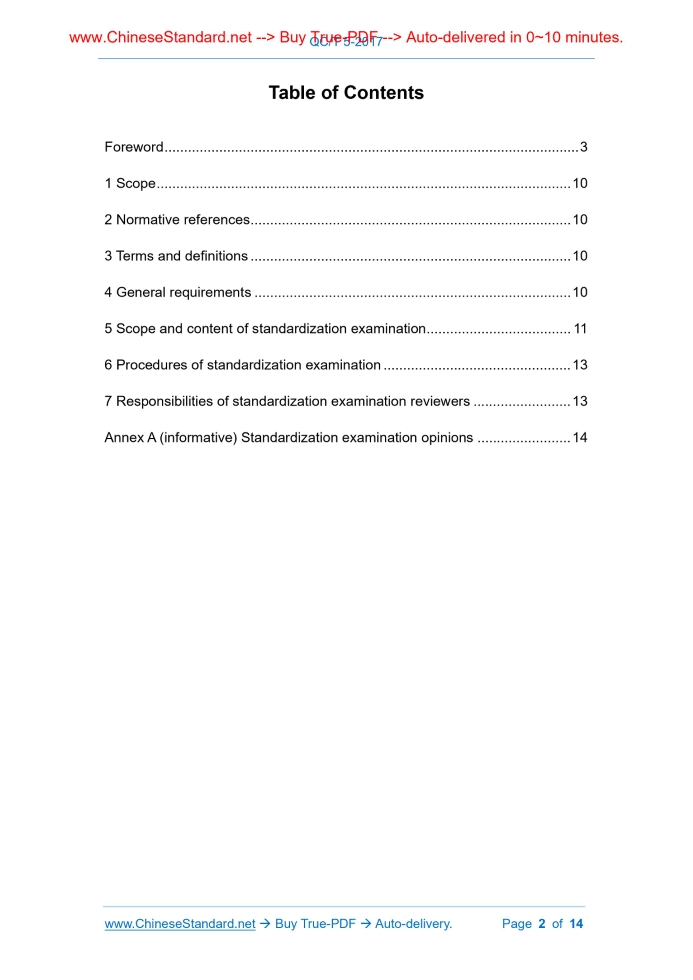

Foreword ... 3 1 Scope ... 10 2 Normative references ... 10 3 Terms and definitions ... 10 4 General requirements ... 10 5 Scope and content of standardization examination ... 11 6 Procedures of standardization examination ... 13 7 Responsibilities of standardization examination reviewers ... 13 Annex A (informative) Standardization examination opinions ... 14 Annex. References, names and dates of implementation of 42 automotive industry standards No. Standard reference Standard name Standard reference being substituted Date of implementation 250 QC/T 776-2017 Motor caravan QC/T 776-2007 2017-07-01 251 QC/T 1051-2017 Coach car 2017-07-01 252 QC/T 1052-2017 Communication vehicle 2017-07-01 253 QC/T 1053-2017 Concrete spraying vehicle 2017-07-01 254 QC/T 1054-2017 Tunnel cleaning vehicle 2017-07-01 255 QC/T 1055-2017 Drainage and rescue vehicle 2017-07-01 256 QC/T 218-2017 Technical specifications for steering column upper combined switch of automobile QC/T 218-1996 2017-07-01 257 QC/T 1056-2017 Technical requirements and test methods for automotive dual clutch automatic transmission assembly 2017-07-01 258 QC/T 245-2017 Technical specifications for isolated plant of compressed-natural- gas (CNG) automobile QC/T 245-2002 2017-07-01 259 QC/T 247-2017 Technical specifications for isolated plant of liquefied petroleum gas QC/T 247-2002 2017-07-01 260 QC/T 1057-2017 Car snow chains 2017-07-01 261 QC/T 1058-2017 Car fingerprint identification device 2017-07-01 273 QC/T 1060-2017 Automotive hexagonal flower flange bolts 2017-07-01 274 QC/T 1061-2017 Road transport lightweight fuel tank vehicle anti-overflow system 2017-07-01 275 QC/T 1062-2017 Road transport lightweight fuel tank vehicle unloading valve 2017-07-01 276 QC/T 1063-2017 Road transport lightweight fuel tank vehicle oil and gas recovery components 2017-07-01 277 QC/T 1064-2017 Road transport flammable liquid dangerous goods tank vehicle - breathing valve 2017-07-01 278 QC/T 1065-2017 Road transport flammable liquid dangerous goods tank vehicle - manhole cover 2017-07-01 279 QC/T 789-2017 Performance requirements and bench test methods of automobile electric vortex retarder assembly QC/T 789-2007 2017-07-01 280 QC/T 316-2017 Bench test methods of fatigue strength for automobile service brake QC/T 316-1999 2017-07-01 281 QC/T 201-2017 Nylon pipe joint size for automobile air brake QC/T 201-1995 2017-07-01 282 QC/T 1066-2017 Performance requirements of cable assembly for vehicle parking brakes and bench test method 2017-07-01 Standardization examination of automotive product drawing and design document

1 Scope

This Standard specifies general requirements, content, scope, procedures for standardization examination of automotive product drawing and design document, responsibilities of standardization examination reviewers. This Standard is applicable to the standardization examination of automotive product drawing and design document.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 20001.10, Rules for drafting standards - Part 10. Product standards QC/T 3, Integrity of automotive product drawing and design document QC/T 4, Adoption and change method of automotive product drawing and design document QC/T 18, Automobile products drawing and design documents - Terms

3 Terms and definitions

For the purposes of this document, the terms and definitions defined in QC/T 18 apply.

4 General requirements

4.1 The standardization examination of corresponding product drawing and design document shall be carried out at each stage of preliminary design, technical design and work drawing design of the product. 4.2 Standardization examination is one of the important means to check b) Product standardization and the possibility of increasing the degree of standardization. Product standards a) Whether the designed product specifications, basic parameters and performance indicators meet the relevant standards; b) Product standardization and the possibility of increasing the degree of standardization; c) Whether technical requirements, test methods, inspection rules and related standards are consistent; d) Whether meet the requirements of GB/T 20001. 10. Details list Whether the details list is filled in the specified order and format. Pro du ct dra win General a) Whether the width, format, name and code of the drawing comply with the relevant standards; b) Whether the content of the title bar and the filling method meet the relevant standards; c) Whether the drawing of the drawings meets the national standards for mechanical drawings and relevant standards; d) Whether the terms, symbols, codes, units of measurement, etc. in the drawings comply with the relevant standards; e) Whether the technical requirements and necessary textual descriptions are concise, concise, fluent, understandable, in compliance with relevant standards, and whether the standards cited are correct and effective; f) Whether the key features and important features in the drawings meet the relevant standards; g) Whether the adoption and modification of the drawings meet the requirements of QC/T 4. General layout drawing, outline drawing, assembly drawing and device drawing a) Whether the tolerances of dimensional tolerances, fits, geometric tolerances, etc. meet the relevant standards; b) Whether it indicates the necessary dimensions, connection dimensions, installation dimensions; c) Whether maximize the use of standard parts, general parts, etc.; d) Whether the contents of the parts list and the method of filling in comply with the relevant standards; e) Whether the serial number is in accordance with the relevant standards. Parts drawing a) Whether the marks of the dimensions, surface structure, heat treatment and surface treatment in the drawings comply with the relevant standards; ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
