QC/T 1127-2019 PDF EnglishUS$220.00 · In stock · Download in 9 seconds
QC/T 1127-2019: Technical conditions and test methods of aluminum alloy control arm assembly for passenger car McPherson suspension Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

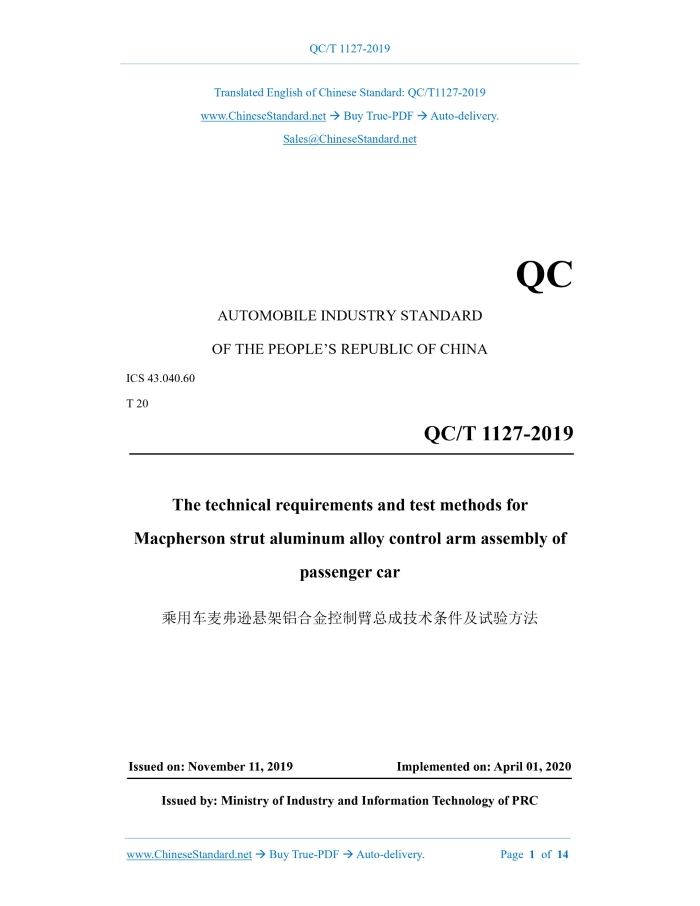

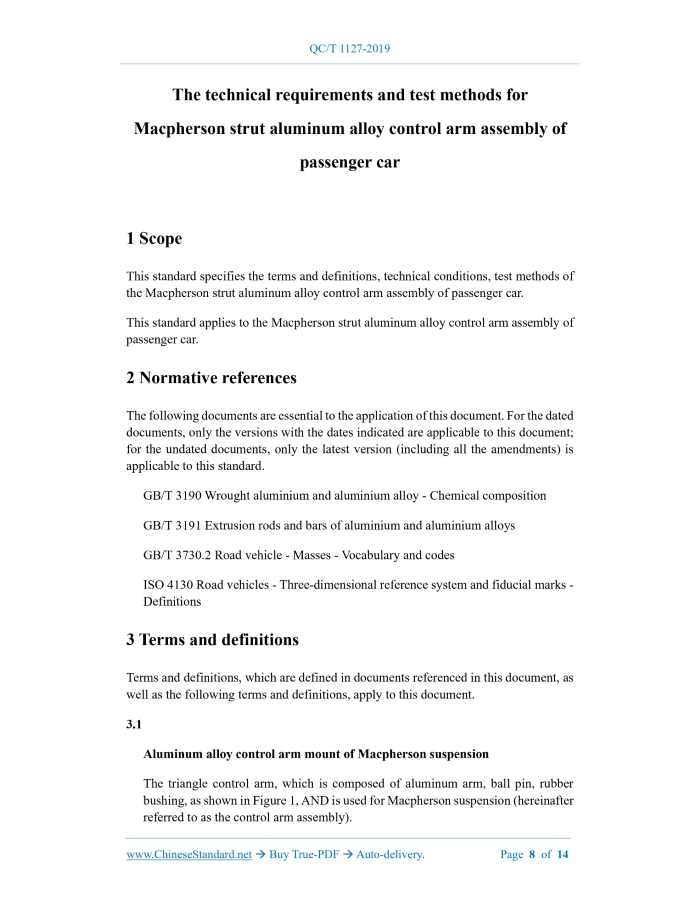

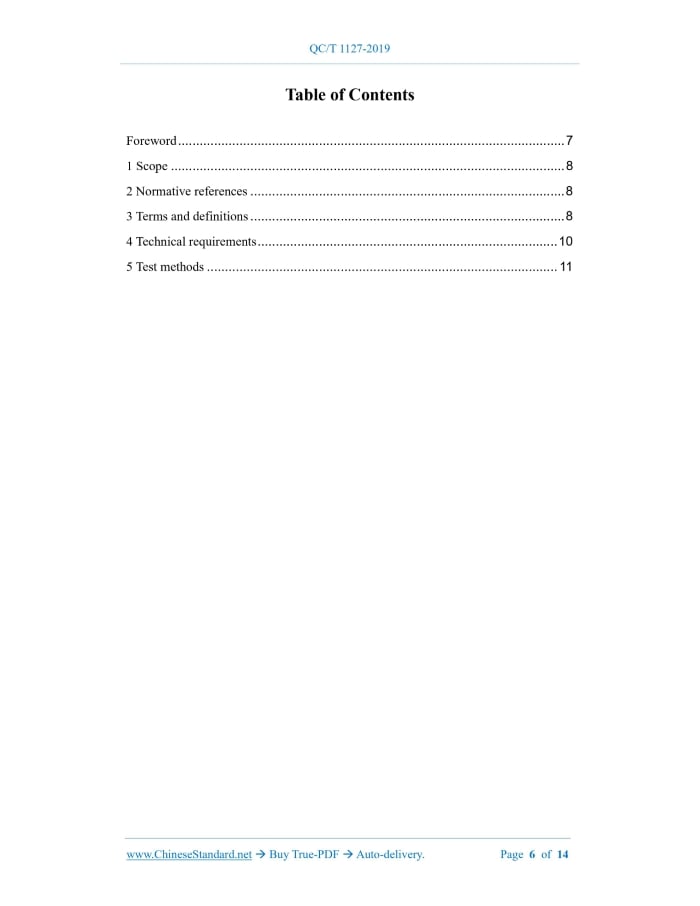

QC/T 1127-2019: Technical conditions and test methods of aluminum alloy control arm assembly for passenger car McPherson suspension---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/QCT1127-2019 QC AUTOMOBILE INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.60 T 20 The technical requirements and test methods for Macpherson strut aluminum alloy control arm assembly of passenger car ISSUED ON: NOVEMBER 11, 2019 IMPLEMENTED ON: APRIL 01, 2020 Issued by: Ministry of Industry and Information Technology of PRC Table of ContentsForeword ... 7 1 Scope ... 8 2 Normative references ... 8 3 Terms and definitions ... 8 4 Technical requirements ... 10 5 Test methods ... 11 The technical requirements and test methods for Macpherson strut aluminum alloy control arm assembly of passenger car1 ScopeThis standard specifies the terms and definitions, technical conditions, test methods of the Macpherson strut aluminum alloy control arm assembly of passenger car. This standard applies to the Macpherson strut aluminum alloy control arm assembly of passenger car.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 3190 Wrought aluminium and aluminium alloy - Chemical composition GB/T 3191 Extrusion rods and bars of aluminium and aluminium alloys GB/T 3730.2 Road vehicle - Masses - Vocabulary and codes ISO 4130 Road vehicles - Three-dimensional reference system and fiducial marks - Definitions3 Terms and definitionsTerms and definitions, which are defined in documents referenced in this document, as well as the following terms and definitions, apply to this document. 3.1 Aluminum alloy control arm mount of Macpherson suspension The triangle control arm, which is composed of aluminum arm, ball pin, rubber bushing, as shown in Figure 1, AND is used for Macpherson suspension (hereinafter referred to as the control arm assembly). specified direction and loading speed. 3.7 Maximum design axle load (FA) The maximum axle load, which is specified by the vehicle manufacturer.4 Technical requirements4.1 General requirements 4.1.1 The control arm assembly shall be free from defects, such as white spots, rust, scratches, bumps, folds, cracks, burrs, looseness. 4.1.2 The ball pin and the ball seat shall be cleaned before assembly. It shall be flexibly rotated after assembly, without loosening or jamming. 4.2 Material properties Aluminum alloy materials shall comply with the provisions of GB/T 3190 and GB/T 3191, OR meet the requirements of the drawings. 4.3 Performance requirements 4.3.1 Aluminum body compressive strength limitation When carrying out the test specified in 5.1, FC shall be within the range of [3FA, 4FA], OR meet the requirements of the drawing. 4.3.2 Aluminum body tensile strength limitation When carrying out the test specified in 5.2, FP shall be within the range of [3FA, 4F], OR meet the requirements of the drawing. 4.3.3 Bushing press-off force When carrying out the tests specified in 5.3, Fk shall meet the requirements of the drawings. 4.3.4 Longitudinal fatigue test During the tests specified in 5.4, none of the following phenomena shall occur: a) The aluminum alloy arm body has cracks, which have a length of more than 10 mm OR does not meet the requirements of the drawing; b) The ball pin is cracked, broken, or slipped from the arm body; Connect it to the test fixture, according to the actual vehicle installation method OR install it according to the manufacturer's requirements. Apply a longitudinal load Fx to the control arm assembly, through the center of the ball pin, as shown in Figure 5. Figure 5 -- Schematic diagram of installation for test of longitudinal fatigue 5.4.2 The loading direction conforms to the provisions of 3.2. The loading load is positive, in the positive direction of the X-axis of the vehicle's coordinate system, negative otherwise. 5.4.3 Load size: -0.3FA to +0.7FA OR according to the requirements of the drawings. Loading waveform: Sine wave; loading frequency: 1 Hz ~ 3 Hz; number of loadings: 150000 times or according to the requirements of the drawings. 5.4.4 The installation torque of fasteners shall meet the requirements of the drawing. 5.4.5 During the test, the non-metallic parts shall be cooled by blowing air, so that the surface temperature does not exceed 70 °C. 5.5 Lateral fatigue test 5.5.1 Place the control arm assembly and the accompanying test piece horizontally. Connect it to the test fixture, according to the actual vehicle installation method OR install it according to the manufacturer's requirements. Apply a lateral load Fy, to the control arm assembly, through the center of the ball pin, as shown in the Figure 6. Figure 6 -- Installation diagram for test of lateral fatigue test 5.5.2 The loading direction is in accordance with the provisions of 3.3. The loading load is based on the positive direction of the Y-axis of the vehicle's coordinate system as positive, otherwise it is negative. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of QC/T 1127-2019 be delivered?Answer: The full copy PDF of English version of QC/T 1127-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of QC/T 1127-2019_English with my colleagues?Answer: Yes. The purchased PDF of QC/T 1127-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- QC/T 1127-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of QC/T 1127-2019?A step-by-step guide to download PDF of QC/T 1127-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "QC/T 1127-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
