QC/T 1101-2019 PDF EnglishUS$175.00 · In stock · Download in 9 seconds
QC/T 1101-2019: Electric Heater for Electric Vehicle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

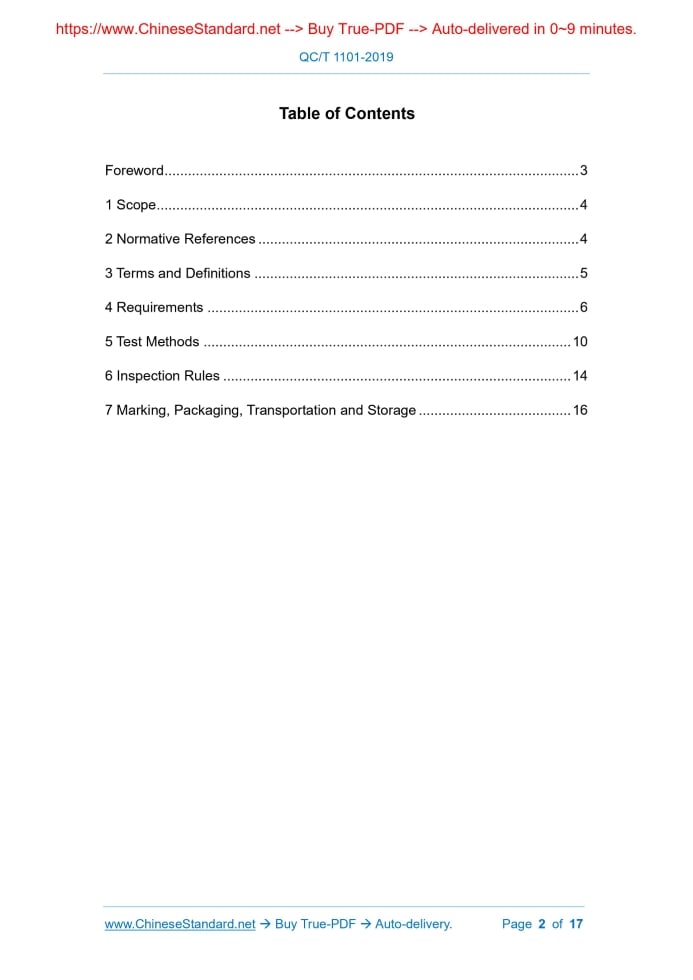

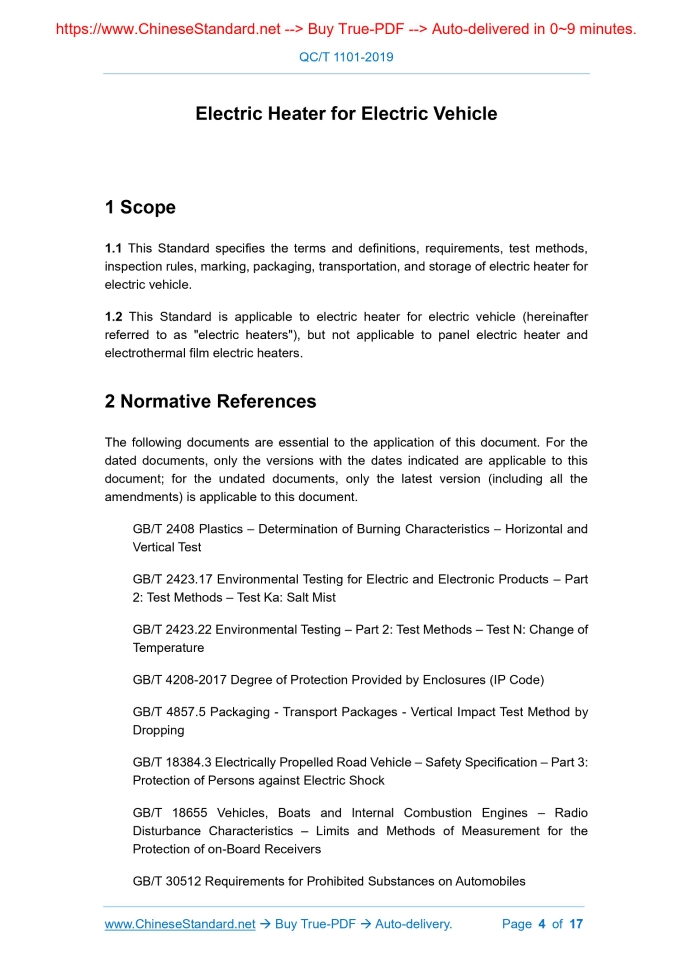

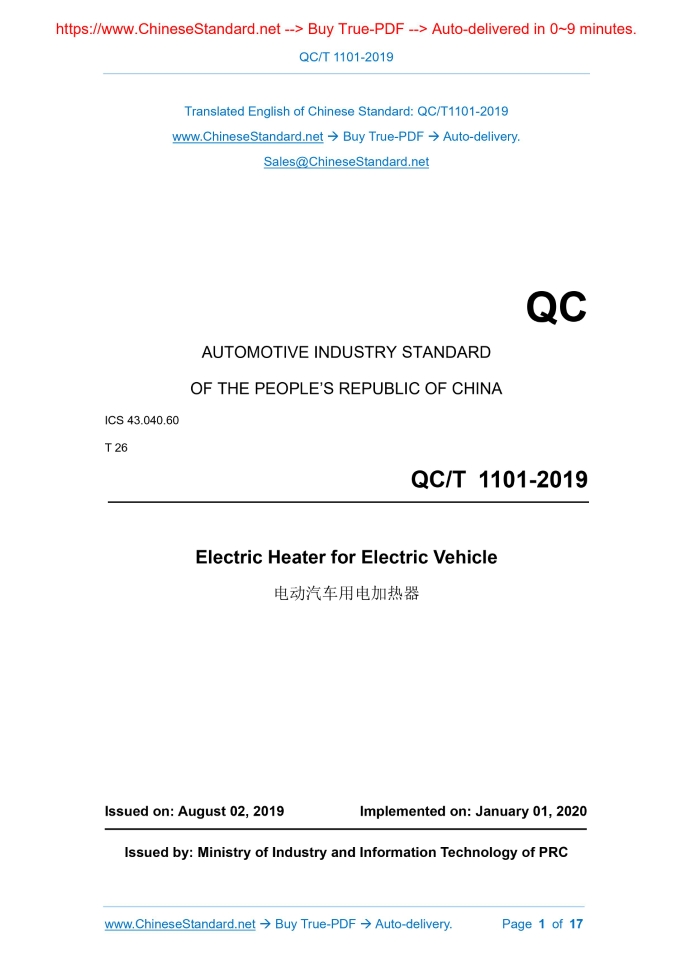

QC/T 1101-2019: Electric Heater for Electric Vehicle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/QCT1101-2019QC AUTOMOTIVE INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.60 T 26 Electric Heater for Electric Vehicle ISSUED ON: AUGUST 02, 2019 IMPLEMENTED ON: JANUARY 01, 2020 Issued by: Ministry of Industry and Information Technology of PRC Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Requirements ... 6 5 Test Methods ... 10 6 Inspection Rules ... 14 7 Marking, Packaging, Transportation and Storage ... 16 Electric Heater for Electric Vehicle1 Scope1.1 This Standard specifies the terms and definitions, requirements, test methods, inspection rules, marking, packaging, transportation, and storage of electric heater for electric vehicle. 1.2 This Standard is applicable to electric heater for electric vehicle (hereinafter referred to as "electric heaters"), but not applicable to panel electric heater and electrothermal film electric heaters.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this document. GB/T 2408 Plastics – Determination of Burning Characteristics – Horizontal and Vertical Test GB/T 2423.17 Environmental Testing for Electric and Electronic Products – Part 2: Test Methods – Test Ka: Salt Mist GB/T 2423.22 Environmental Testing – Part 2: Test Methods – Test N: Change of Temperature GB/T 4208-2017 Degree of Protection Provided by Enclosures (IP Code) GB/T 4857.5 Packaging - Transport Packages - Vertical Impact Test Method by Dropping GB/T 18384.3 Electrically Propelled Road Vehicle – Safety Specification – Part 3: Protection of Persons against Electric Shock GB/T 18655 Vehicles, Boats and Internal Combustion Engines – Radio Disturbance Characteristics – Limits and Methods of Measurement for the Protection of on-Board Receivers GB/T 30512 Requirements for Prohibited Substances on Automobiles the input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.5.3 Vibration After the electric heater is tested according to 5.10, there shall be no structural damage, the input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.5.4 Drop performance After the electric heater in the factory-packed state drops from a height of 1000mm according to the test method in 5.11, there shall be no obviously damage; its input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.6 Weather resistance 4.6.1 Temperature Alternation After the electric heater is tested according to 5.12, there shall be no structural damage, the input power change shall not exceed ±10%, and the electrical safety performance should meet the requirements of 4.4. 4.6.2 Humidity resistance After the electric heater is tested in accordance with 5.13, the input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.6.3 High temperature storage After the electric heater is tested in accordance with 5.14, the input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.6.4 Low temperature storage After the electric heater is tested in accordance with 5.15, the input power change shall not exceed ±10%, and the electrical safety performance shall meet the requirements of 4.4. 4.7 Salt spray resistance The electric heater shall meet the requirements that the neutral salt spray test lasts for no less than 96h. After the test according to 5.16, there shall be no corrosion and leakage, and its electrical performance shall meet the requirements of 4.4. The liquid electric heater is filled with 0.2MPa air pressure and pressure is maintained for 120s. 5.19 Burst pressure test The liquid electric heater is filled with 0.5MPa air pressure and pressure is maintained for 30s. 5.20 Durability test Load voltage of electric heater: (1.15±2%) U (U is the rated voltage). 5.20.1 Under normal working conditions, place the electric heater on the test device and work continuously for 1000h. 5.20.2 Under normal working conditions, place the electric heater on the test device. After the electric heater is energized for the 1min, then switched off for 1 min; and it shall be switched on and off for 10 000 times. 5.21 Protection level test The protection test of Level-B voltage components of electric heaters shall be carried out in accordance with the provisions of GB/T 4208. 5.22 Flame-retardant test The flame-retardant test of non-metallic parts of electric heaters shall be carried out in accordance with the provisions of GB/T 2408. 5.23 Pressure impulse resistance test When the liquid electric heater is at a liquid temperature of 100°C ± 5°C, the number of pressure alternations shall be 20 000 times, the alternating pressure is 0.02MPa ~0.25MPa, and the alternating frequency is 1Hz. 5.24 Vacuum resistance test Apply a pressure of -90kPa inside the liquid electric heater, release the vacuum after maintaining the pressure for 60s, and repeat for 5 times. 5.25 Prohibited substance test The detection of prohibited substances shall be carried out in accordance with the provisions of GB/T 30512. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of QC/T 1101-2019 be delivered?Answer: The full copy PDF of English version of QC/T 1101-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of QC/T 1101-2019_English with my colleagues?Answer: Yes. The purchased PDF of QC/T 1101-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- QC/T 1101-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of QC/T 1101-2019?A step-by-step guide to download PDF of QC/T 1101-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "QC/T 1101-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
