JG/T 3030-1995 PDF EnglishUS$135.00 · In stock · Download in 9 seconds
JG/T 3030-1995: Welded stainless steel tubes for architectural decoration Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Obsolete

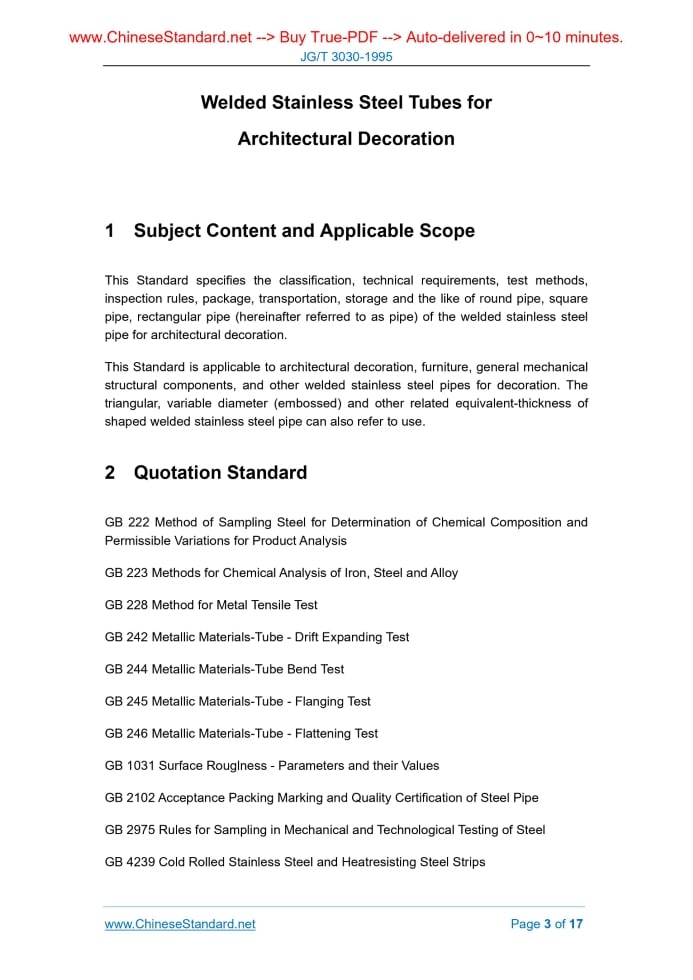

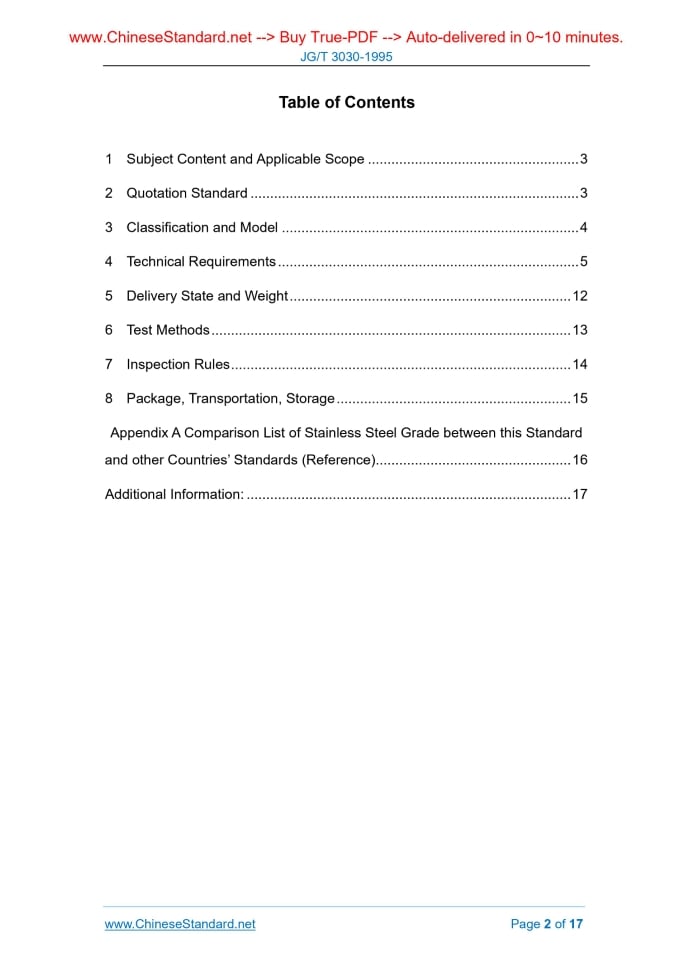

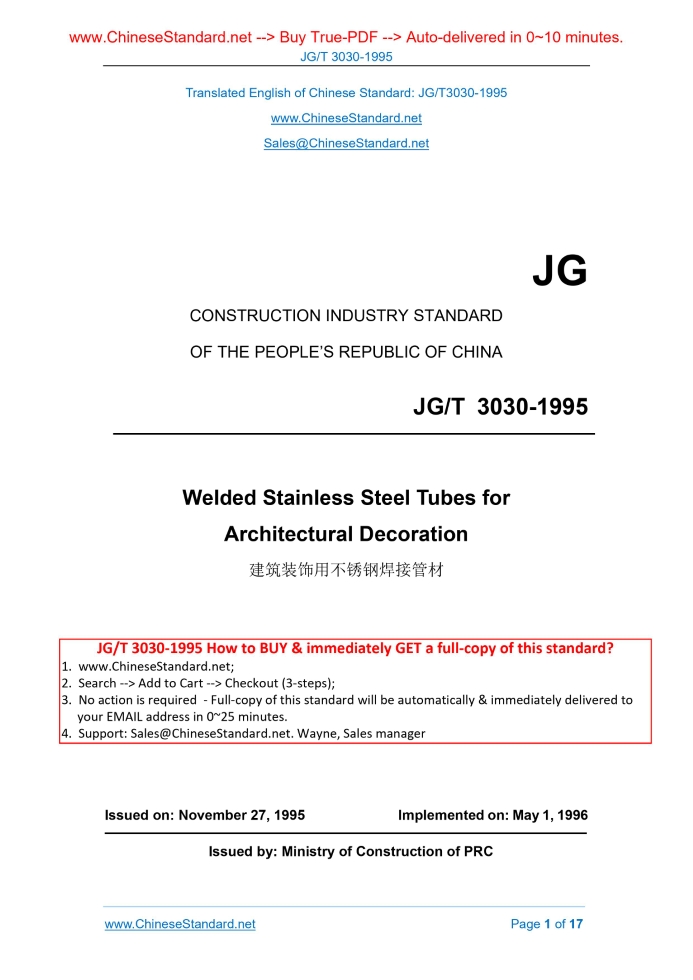

JG/T 3030-1995: Welded stainless steel tubes for architectural decoration---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/JGT3030-1995JG CONSTRUCTION INDUSTRY STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Welded Stainless Steel Tubes for Architectural Decoration Issued on: NOVEMBER 27, 1995 Implemented on: MAY 1, 1996 Issued by. Ministry of Construction of PRC Table of Contents1 Subject Content and Applicable Scope ... 3 2 Quotation Standard ... 3 3 Classification and Model ... 4 4 Technical Requirements ... 5 5 Delivery State and Weight ... 12 6 Test Methods ... 13 7 Inspection Rules ... 14 8 Package, Transportation, Storage ... 15 Appendix A Comparison List of Stainless Steel Grade between this Standard and other Countries’ Standards (Reference)... 16 Additional Information... 17 Welded Stainless Steel Tubes for Architectural Decoration1 Subject Content and Applicable ScopeThis Standard specifies the classification, technical requirements, test methods, inspection rules, package, transportation, storage and the like of round pipe, square pipe, rectangular pipe (hereinafter referred to as pipe) of the welded stainless steel pipe for architectural decoration. This Standard is applicable to architectural decoration, furniture, general mechanical structural components, and other welded stainless steel pipes for decoration. The triangular, variable diameter (embossed) and other related equivalent-thickness of shaped welded stainless steel pipe can also refer to use.2 Quotation StandardGB 222 Method of Sampling Steel for Determination of Chemical Composition and Permissible Variations for Product Analysis GB 223 Methods for Chemical Analysis of Iron, Steel and Alloy GB 228 Method for Metal Tensile Test GB 242 Metallic Materials-Tube - Drift Expanding Test GB 244 Metallic Materials-Tube Bend Test GB 245 Metallic Materials-Tube - Flanging Test GB 246 Metallic Materials-Tube - Flattening Test GB 1031 Surface Rouglness - Parameters and their Values GB 2102 Acceptance Packing Marking and Quality Certification of Steel Pipe GB 2975 Rules for Sampling in Mechanical and Technological Testing of Steel GB 4239 Cold Rolled Stainless Steel and Heatresisting Steel Strips Table 8 Allowable Deviation of Angle of Pipe Grade Allowable Deviation, (°) Normal grade ±2 Higher grade ±1 NOTE. when the allowable deviation is only + or -, then the value shall be two times of that listed in the above table. 4.3.5 Degree of curvature The degree of curvature of pipe shall conform to the provision of Table 9. Table 9 Allowable Deviation of Angle of Pipe Outer Diameter or Side Length, mm Degree of Curvature, mm/m ≤17 --- >17 and ≤140 < 2.0 >140 < 2.5 4.3.6 Length 4.3.6.1 The general length of pipe shall be 1~8m. 4.3.6.2 The sizing length of pipe shall be 6m; the pipe with length 1~6m agreed by the purchaser and supplier is allowed to deliver; however, the weight shall be no greater than 5% of total weight of each batch. 4.3.6.3 The sizing length and multiple length of pipe shall be within the general length; the allowable deviation of sizing length shall be +20mm; each multiple length shall remain notch allowance of 5~10mm; the allowable deviation of the whole length shall add 10mm. 4.3.7 Pipe shall have no obvious torsion. 4.3.8 End appearance Both ends of the pipe shall be perpendicular to the axis of the pipe; and shall be flat; the minor deformation and slight defect caused by the cutting method are allowed to exist. 4.4 Surface quality 4.4.1 The outer surface of the pipe shall be clean, free from cracks, folds, delamination, over-pickling traces and iron scale. 4.4.2 Weld defects are allowed to repair; the pipe delivered in heat-treatment state shall repeat the heat-treatment after repairing. 4.4.3 The pipe delivered by the normal roughness of the outer surface shall have 7.4 Batching rules The pipes shall be performed exit-factory inspection and acceptance as per the batch; each batch consists of the pipes with the same grade, the same size and the same delivery state. a. When the outer diameter or side length is less than or equals to 30mm, the number of each batch of pipes shall not exceed 500 pieces; b. When the outer diameter or side length is greater than or equals to 30~160mm, the number of each batch of pipes shall not exceed 300 pieces. 7.5 Sampling quantity The sampling quantity of each inspection of the pipe shall conform to the provision of Table 14. 7.6 Re-inspection and judgement rules The re-inspection and judgement rules of the pipe shall conform to the provision of GB 2102.8 Package, Transportation, Storage8.1 Package The pipes shall have the internal package, which shall be clean and dry; paste the certificate on one end of the pipe; the certificate shall include the following contents like manufacturer name, trademark, label and inspector code. The pipe external package mode and materials shall be agreed by both parties, the external package shall be firm; the weight and reinforcement form shall conform to the provision of transportation department. 8.2 Transportation During the transporting period, the pipes shall be avoided collision, and not be pressed by hard and sharp objects to prevent the damage of the pipes. When transporting by open vehicle, take the rainproof and waterproof measures. 8.3 Storage The storage warehouse of the pipes shall be clean, dry, not in contact with the corrosive medium, not in direct contact with earth surface or cement surface; the cushion required shall be no less than 100mm. Additional Information. This Standard was proposed by the Research Institute of Standards and Norms in the Ministry of Construction of PRC. This Standard shall be under the jurisdiction of Technical Committee of Construction Engineering Standard of the Ministry of Construction of PRC. Drafting organizations of this Standard. China National Construction Machinery Corp., Guangdong Nanhai Hualian Stainless Steel Profile Factory, Guangdong Shunde New Times Metal Decorative Materials Factory. Chief drafting staffs of this Standard. Jin Shunxing, Zhang Xinming, Kang Jinhau, Wang Ruigao, Pan Shijing, and Yu Yongxiang. This Standard entrusted China National Construction Machinery Corp. to interpret. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of JG/T 3030-1995 be delivered?Answer: The full copy PDF of English version of JG/T 3030-1995 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of JG/T 3030-1995_English with my colleagues?Answer: Yes. The purchased PDF of JG/T 3030-1995_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- JG/T 3030-1995 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of JG/T 3030-1995?A step-by-step guide to download PDF of JG/T 3030-1995_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "JG/T 3030-1995". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
