GB/T 9251-2022 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB/T 9251-2022: Methods for hydrostatic test of gas cylinders Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 9251: Historical versions

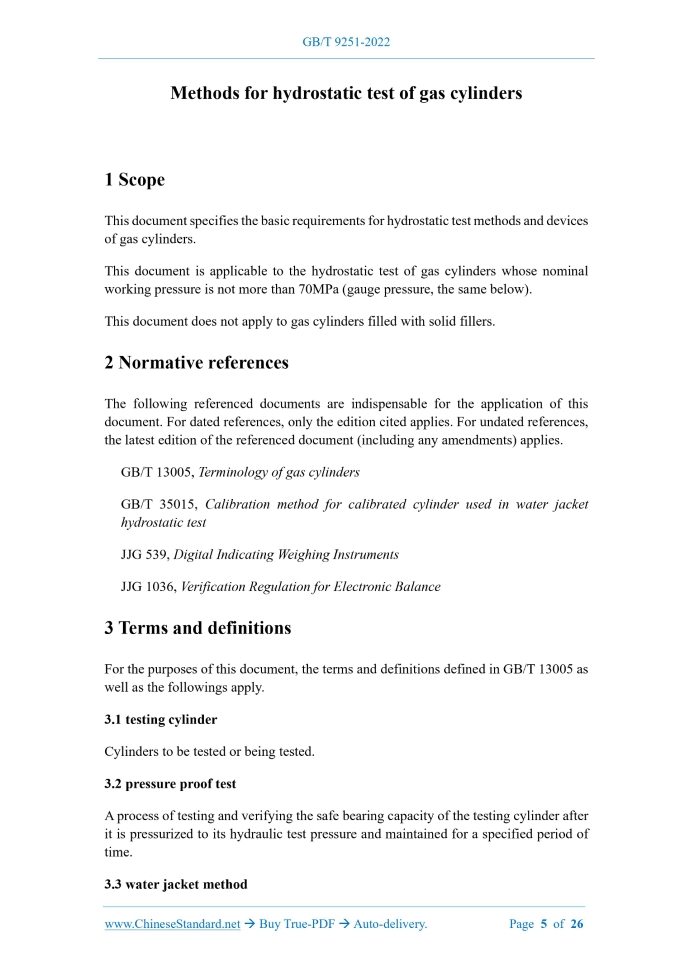

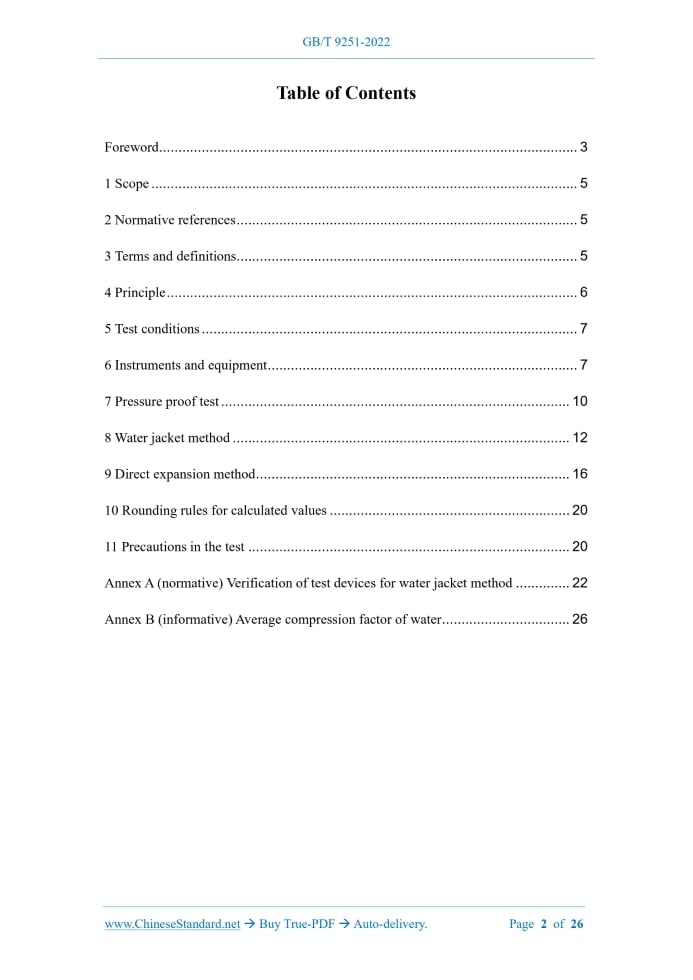

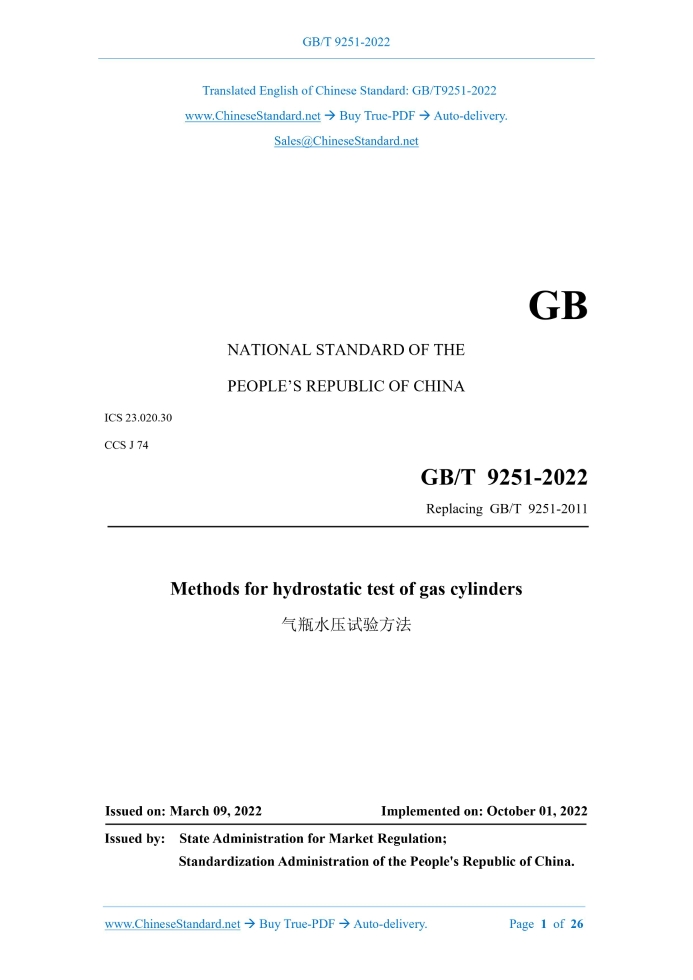

Similar standardsGB/T 9251-2022: Methods for hydrostatic test of gas cylinders---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT9251-2022NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 23.020.30 CCS J 74 Replacing GB/T 9251-2011 Methods for hydrostatic test of gas cylinders Issued on. MARCH 09, 2022 Implemented on. OCTOBER 01, 2022 Issued by. State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 5 4 Principle... 6 5 Test conditions... 7 6 Instruments and equipment... 7 7 Pressure proof test... 10 8 Water jacket method... 12 9 Direct expansion method... 16 10 Rounding rules for calculated values... 20 11 Precautions in the test... 20 Annex A (normative) Verification of test devices for water jacket method... 22 Annex B (informative) Average compression factor of water... 261 ScopeThis document specifies the basic requirements for hydrostatic test methods and devices of gas cylinders. This document is applicable to the hydrostatic test of gas cylinders whose nominal working pressure is not more than 70MPa (gauge pressure, the same below). This document does not apply to gas cylinders filled with solid fillers.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 13005, Terminology of gas cylinders GB/T 35015, Calibration method for calibrated cylinder used in water jacket hydrostatic test JJG 539, Digital Indicating Weighing Instruments JJG 1036, Verification Regulation for Electronic Balance3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 13005 as well as the followings apply. 3.1 testing cylinder Cylinders to be tested or being tested. 3.2 pressure proof test A process of testing and verifying the safe bearing capacity of the testing cylinder after it is pressurized to its hydraulic test pressure and maintained for a specified period of time. 3.5 special water jacket A special equipment for measuring the volumetric deformation of the testing cylinder during the hydrostatic test by water jacket method. 3.6 calibrated cylinder A bottle equipment that if the corresponding relationship between the calibration pressure and the expansion value has been determined, the expansion value shall have the characteristics of repeatability and linearity, and there will be no permanent deformation under the calibration pressure. It is used to verify the accuracy of the hydrostatic test device of gas cylinders. 3.7 calibrated gauge A pressure measuring instrument for verifying the pressure value of the test system. Its accuracy level shall not be less than that of other pressure measuring instruments. 3.8 reference zero point Zero reading on water volume measuring instrument. The error shall be the larger value of ±0.1% of the total volumetric deformation value and ±0.1mL.4 PrincipleThe hydrostatic test of gas cylinders uses water as the pressurized medium. Gradually increase the pressure in the testing cylinder to its hydrostatic test pressure according to the specified pressurization rate.5 Test conditions5.1 The test water shall be clean fresh water. When the testing cylinder is a chromium- containing alloy steel gas bottle, the chloride ion content in the test water shall not exceed 25mg/L. 5.2 The temperature of the test water shall not be lower than 5℃. The difference between it and the ambient temperature shall not be greater than 2℃.6 Instruments and equipment6.1 Basic requirements for test device 6.1.1 The testing cylinder shall be pressurized by a plunger pump, a pneumatic pump or other pressurizing device with stable pressure output. Use water as the pressurized medium. 6.1.3 Metal pipes shall generally be used for pressure-bearing pipeline. They shall be fixed. The connection with the test device and the measuring instrument shall have a good seal. The pressure-bearing capacity of the pressure-bearing pipeline shall meet the requirements of the hydrostatic test's pressure of the testing cylinder. 6.1.4 The special water jacket shall be made of stainless steel or other corrosion- resistant metal materials, with a certain rigidity. Make sure that it does not change in volume during the hydrostatic test. 6.1.5 The dimensions and materials of all associated piping of the hydrostatic test devices for water jacket method and direct expansion method shall be such that they do not deform under the weight of water. 6.1.6 The calibration of the calibrated cylinder shall comply with the provisions of GB/T 35015.The calibration data of the calibrated cylinder shall be able to meet the test requirements of the testing cylinder (at least three pressure levels). A clearly identifiable calibration certificate and label shall be attached. 6.2 Measuring instruments 6.2.1 Pressure measuring instrument 6.2.1.1 A pressure gauge and a calibrated gauge for calibration shall be installed on the 6.2.1.3 The range of the pressure measuring instrument shall be 1.5 times to 3 times the pressure of the hydrostatic test of the testing cylinder. The accuracy level of the pressure gauge shall not be lower than level 1.0. 6.2.2 Water volume measuring instrument 6.2.2.1 Electronic balances, measuring tubes or other suitable measuring instruments can be used as water volume measuring instruments. They are used to measure the total volumetric deformation value, volumetric residual deformation of the testing cylinder in the water jacket method and the total pressurized water volume in the direct expansion method. 6.2.3 Weighing instrument For the weighing instrument used to weigh the mass of the testing cylinder, the maximum weight shall be 1.5 times to 3 times the commonly used weighing value. The allowable error shall meet the requirements of "medium accuracy level" specified by JJG 539. 6.2.4 Temperature measuring instrument For the temperature measuring instruments used to measure the temperatures of the test water and the ambient temperature, the minimum scale value shall not be greater than 1°C.7 Pressure proof test7.1 General It does not need to measure the volumetric deformation for the pressure proof test. If the filling medium of the gas cylinder and the hydraulic test pressure are the same, the test can be carried out on multiple testing cylinders at the same time. 7.2 Test device process The typical flow of the pressure proof test device is shown in Figure 1. 7.3 Test steps 7.3.1 The test device shall be calibrated by a calibrated gauge before use. The error of the displayed value of the pressure gauge shall not exceed ±2% of the displayed value of the calibrated gauge. The error of the displayed value of the pressure transmitter shall not exceed ±1% of the displayed value of the calibrated gauge. 7.3.2 Before the testing cylinder is pressurized, all the air in the cylinder and the pressure-bearing pipeline shall be exhausted. 7.3.3 When the pressure in the testing cylinder rises to the nominal working pressure of the gas cylinder, the pressurization can be suspended. Check system connections for leaks. 7.3.6 The test pressure deviation shall not exceed +3% of the specified test pressure. Relevant standards for gas cylinders shall comply with the regulations. 7.3.7 The judgment of the test results shall be carried out in accordance with the relevant standards for gas cylinders. 7.4 Test records and reports 7.4.1 Test records The test agency shall record the relevant information and data of the test process according to the actual situation of the gas cylinder pressure proof test. The test records shall be in a file format that cannot be changed, such as pictures, PDF. Test records shall be detailed, true, accurate and traceable.8 Water jacket method8.1 Test device process Figure 2 shows the typical flow of the test device for water jacket method. 8.2 Test steps 8.2.1 Use a calibrated cylinder to calibrate the test device before use. Calibration shall be carried out in accordance with the provisions of Annex A. 8.2.5 The pressure in the testing cylinder rises to the specified test pressure. Hold the pressure for at least 30s or specified time. 8.2.6 Depressurize to zero. After the testing cylinder is completely shrunk, record the volumetric residual deformation value of the testing cylinder or the value indicated by the electronic balance. 8.2.9 Before and after the test, keep the water temperature in the system constant. 8.2.10 The judgment of the test results shall be carried out in accordance with the relevant standards for gas cylinders. 8.3 Calculation of volume elastic deformation value and volume residual deformation rate of testing cylinder The volumetric elastic deformation value of the testing cylinder is calculated according to formula (1). The volume residual deformation rate is calculated according to formula (2). 8.4 Test records and reports 8.4.1 Test records The test agency shall record the relevant information and data of the test process according to the actual situation of the hydrostatic test by the water jacket method of the gas cylinder. 8.4.2 Test reports The test agency shall issue a hydraulic test report based on the test records. In addition to recording the relevant information and main technical parameters of the testing cylinder, the test report shall at least include the following main contents.9 Direct expansion method9.1 Test device process The typical flow of test device for direct expansion method is shown in Figure 3. 9.2 Test steps 9.2.1 Use a calibrated gauge to verify the test devices before use. The displayed value of the pressure gauge shall not exceed ±1.5% of the displayed value of the calibrated gauge. The displayed value of the pressure transmitter shall not exceed ±1% of the displayed value of the calibrated gauge. 9.2.4 Before the testing cylinder is pressurized, exhaust all the air in the cylinder and the pressure-bearing pipeline. It can be pressurized and relieved repeatedly within the nominal working pressure range until no air bubbles emerge in the water measuring instrument. 9.2.5 Before starting the test, close the water filling valve and the pressure relief valve. Keep the indication value of the initial value of the water measuring instrument stable for at least 5s. 9.2.6 When the pressure in the testing cylinder rises to the nominal working pressure, suspend the pressurization and inspect it. 9.2.7 The pressure in the testing cylinder rises to the specified test pressure. Hold the pressure for at least 30s or specified time. During the pressure holding period, the actual test pressure shall not be lower than the specified test pressure. 9.2.8 Open the relief valve. Depressurize to zero. After the testing cylinder is completely shrunk, record the volumetric residual deformation value of the testing cylinder or the value indicated by the electronic balance. 9.2.11 Before and after the test, keep the water temperature in the system constant. 9.3 Calculations of total volumetric deformation value, volumetric elastic deformation value and volumetric residual deformation value of testing cylinder 9.4 Test records and reports 9.4.1 Test records The test agency shall record the relevant information and data of the test process according to the actual situation of the hydrostatic test of gas cylinders by direct expansion method. 9.4.2 Test reports The test agency shall issue a hydraulic test report based on the test records. In addition to recording the relevant information and main technical parameters of the testing cylinder, the test report shall at least include the following main contents.10 Rounding rules for calculated valuesThe calculation results of formula (1) to formula (7) in this document and formula (A.1), formula (A.2) and formula (A.3) in Annex A are rounded according to the following rules. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 9251-2022 be delivered?Answer: The full copy PDF of English version of GB/T 9251-2022 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 9251-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 9251-2022_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 9251-2022 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 9251-2022?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 9251-2022 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 9251-2022?A step-by-step guide to download PDF of GB/T 9251-2022_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 9251-2022". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
