GB/T 6995.5-2008: Markings for electric wires and cables -- Part 5: Identifications of insulated cores of power cables Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 6995.5: Historical versions

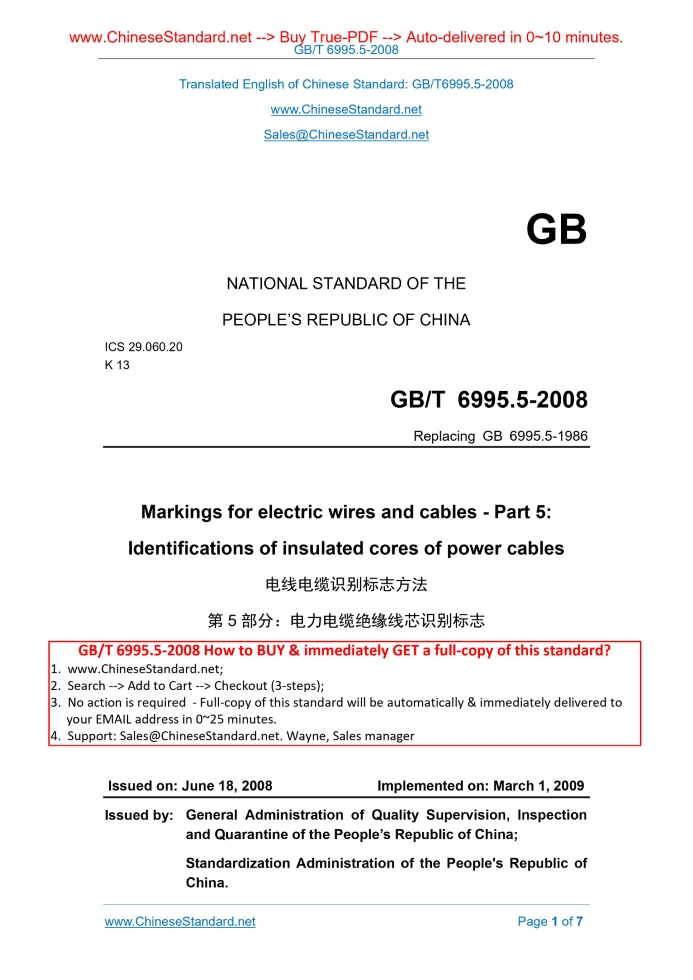

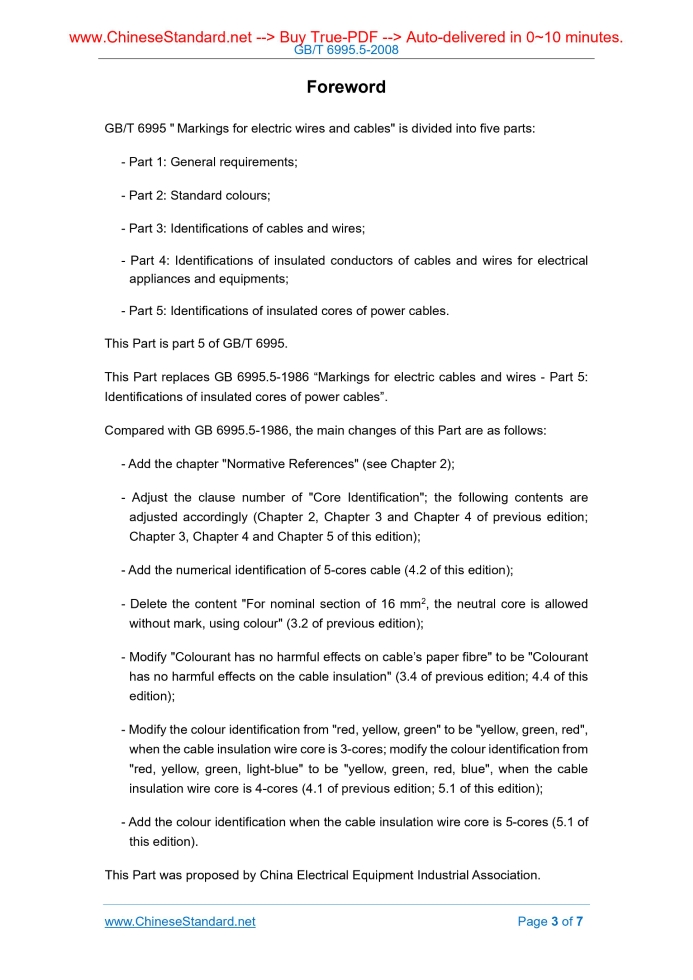

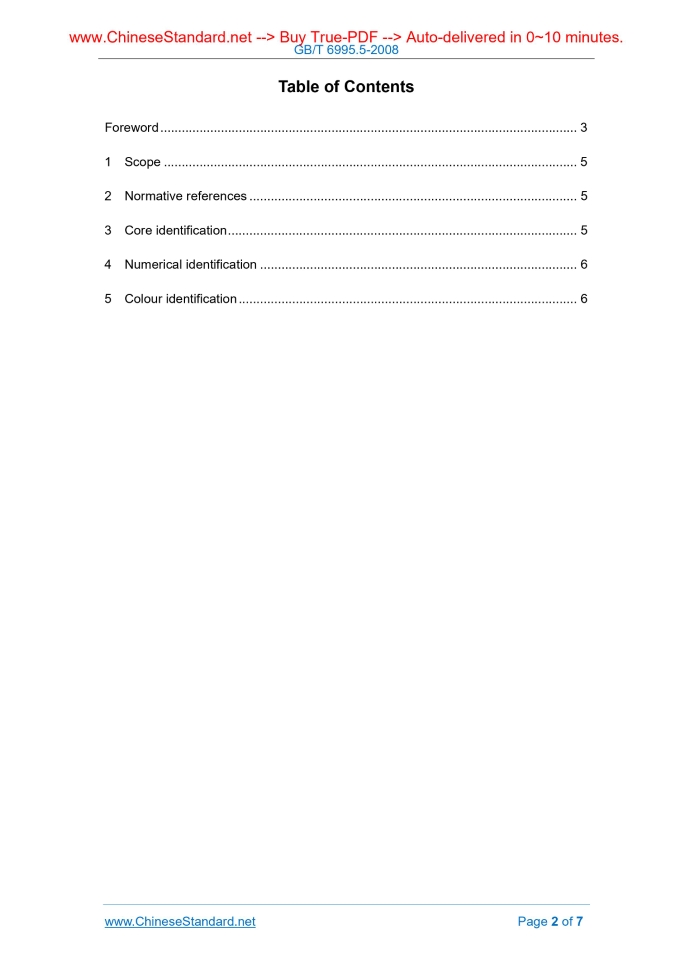

Similar standardsGB/T 6995.5-2008: Markings for electric wires and cables -- Part 5: Identifications of insulated cores of power cables---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT6995.5-2008 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.060.20 K 13 Replacing GB 6995.5-1986 Markings for electric wires and cables - Part 5. Identifications of insulated cores of power cables Issued on: JUNE 18, 2008 Implemented on: MARCH 1, 2009 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Core identification ... 5 4 Numerical identification ... 6 5 Colour identification ... 6ForewordGB/T 6995 " Markings for electric wires and cables" is divided into five parts. - Part 1. General requirements; - Part 2. Standard colours; - Part 3. Identifications of cables and wires; - Part 4. Identifications of insulated conductors of cables and wires for electrical appliances and equipments; - Part 5. Identifications of insulated cores of power cables. This Part is part 5 of GB/T 6995. This Part replaces GB 6995.5-1986 “Markings for electric cables and wires - Part 5. Identifications of insulated cores of power cables”. Compared with GB 6995.5-1986, the main changes of this Part are as follows. - Add the chapter "Normative References" (see Chapter 2); - Adjust the clause number of "Core Identification"; the following contents are adjusted accordingly (Chapter 2, Chapter 3 and Chapter 4 of previous edition; Chapter 3, Chapter 4 and Chapter 5 of this edition); - Add the numerical identification of 5-cores cable (4.2 of this edition); - Delete the content "For nominal section of 16 mm2, the neutral core is allowed without mark, using colour" (3.2 of previous edition); - Modify "Colourant has no harmful effects on cable’s paper fibre" to be "Colourant has no harmful effects on the cable insulation" (3.4 of previous edition; 4.4 of this edition); - Modify the colour identification from "red, yellow, green" to be "yellow, green, red", when the cable insulation wire core is 3-cores; modify the colour identification from "red, yellow, green, light-blue" to be "yellow, green, red, blue", when the cable insulation wire core is 4-cores (4.1 of previous edition; 5.1 of this edition); - Add the colour identification when the cable insulation wire core is 5-cores (5.1 of this edition). This Part was proposed by China Electrical Equipment Industrial Association. Markings for electric wires and cables - Part 5. Identifications of insulated cores of power cables1 ScopeThis Part of GB/T 6995 is applicable to identification of insulated cores of power cables, including the oil-filled cables, oil impregnated paper insulated cables, and extruded solid insulated cables. In addition to comply with the provisions of this Part, insulated core’s identification mark shall also comply with the relevant provisions of GB/T 6995.1-2008 and GB/T 6995.2- 2008 .2 Normative referencesThe following documents contain the provisions which, through reference in this Part of GB/T 6995, become the provisions of this Standard. For dated references, their subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest versions apply to this Standard. GB/T 6995.1-2008 Markings for electric wires and cables - Part 1. General requirements GB/T 6995.2-2008 Markings for electric wires and cables - Part 2. Standard colours3 Core identification3.1 Power cable’s insulated cores adopts 2 methods - numerical identification and colour identification. 3.2 Oil-filled cables and oil impregnated paper insulated cables shall adopt numerical identification. 3.3 Extruded solid insulated cables adopt colour identification; under special circumstances, it allows the use of numerical identification. - 3-Core cable. yellow, green, red; - 4-Core cable. yellow, green, red, blue; - 5-core cable. negotiated and determined by supplier and purchaser. NOTE. The colours red, yellow, green are used for main cores, blue for neutral core. In order to avoid confusion with other colours, it is recommended to use light-blue. 5.2 PVC insulated cable’s insulated cores generally adopt the coloured insulation material. 5.3 For insulated cores that are not easy to be coloured, it allows to adopt marking- yarn or marking colour-strip. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 6995.5-2008 be delivered?Answer: The full copy PDF of English version of GB/T 6995.5-2008 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 6995.5-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 6995.5-2008_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 6995.5-2008 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 6995.5-2008?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 6995.5-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 6995.5-2008?A step-by-step guide to download PDF of GB/T 6995.5-2008_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 6995.5-2008". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
