GB/T 44512-2024 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB/T 44512-2024: Inspection and test specifications of large-scale amusement device - Ultrasonic stress testing Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

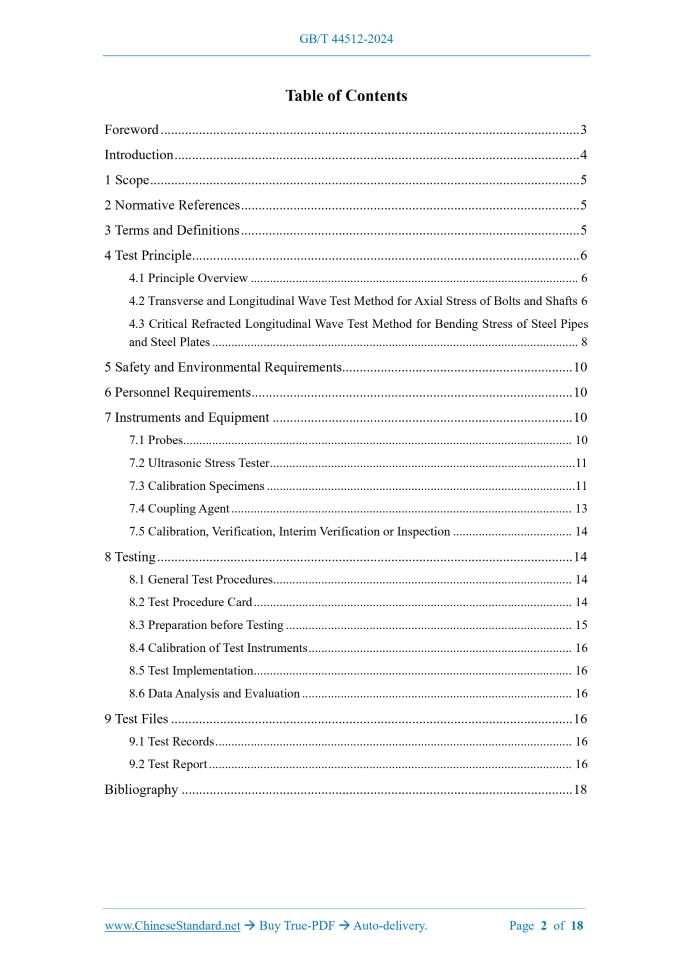

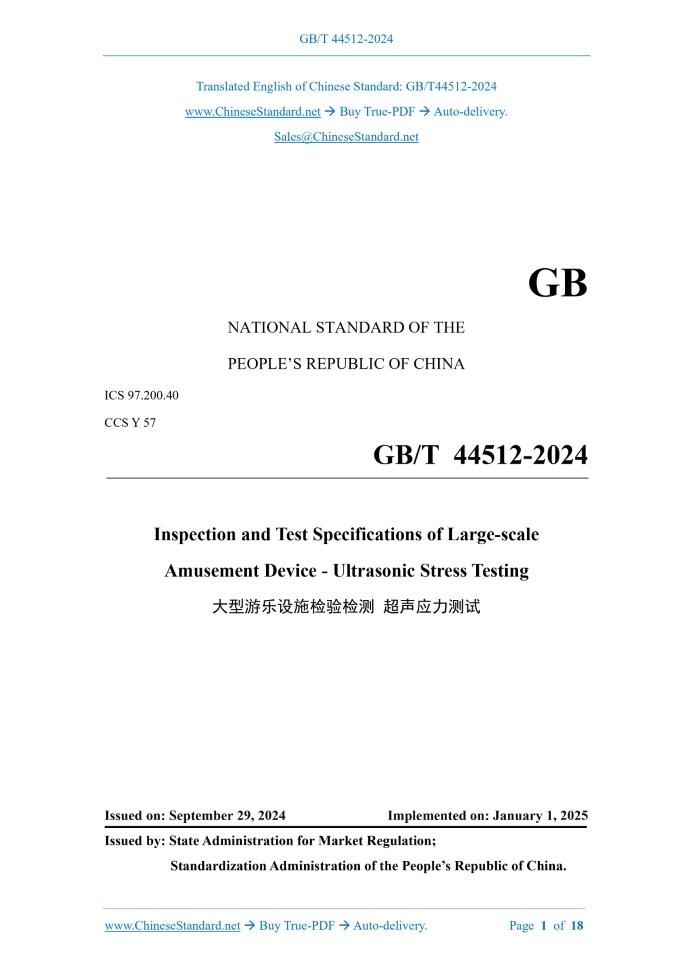

Similar standardsGB/T 44512-2024: Inspection and test specifications of large-scale amusement device - Ultrasonic stress testing---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT44512-2024 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.200.40 CCS Y 57 Inspection and Test Specifications of Large-scale Amusement Device - Ultrasonic Stress Testing ISSUED ON: SEPTEMBER 29, 2024 IMPLEMENTED ON: JANUARY 1, 2025 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 4 1 Scope ... 5 2 Normative References ... 5 3 Terms and Definitions ... 5 4 Test Principle ... 6 4.1 Principle Overview ... 6 4.2 Transverse and Longitudinal Wave Test Method for Axial Stress of Bolts and Shafts 6 4.3 Critical Refracted Longitudinal Wave Test Method for Bending Stress of Steel Pipes and Steel Plates ... 8 5 Safety and Environmental Requirements ... 10 6 Personnel Requirements ... 10 7 Instruments and Equipment ... 10 7.1 Probes... 10 7.2 Ultrasonic Stress Tester ... 11 7.3 Calibration Specimens ... 11 7.4 Coupling Agent ... 13 7.5 Calibration, Verification, Interim Verification or Inspection ... 14 8 Testing ... 14 8.1 General Test Procedures ... 14 8.2 Test Procedure Card ... 14 8.3 Preparation before Testing ... 15 8.4 Calibration of Test Instruments ... 16 8.5 Test Implementation ... 16 8.6 Data Analysis and Evaluation ... 16 9 Test Files ... 16 9.1 Test Records ... 16 9.2 Test Report ... 16 Bibliography ... 18ForewordThis document was drafted in accordance with the rules provided in GB/T 1.1-2020 Directives for Standardization - Part 1: Rules for the Structure and Drafting of Standardizing Documents. Please be noted that certain content of this document may involve patents. The institution issuing this document does not undertake the responsibility of identifying these patents. This document was proposed by and shall be under the jurisdiction of National Standardization Technology Committee on Ropeway and Amusement Device (SAC/TC 250). The drafting organizations of this document: China Special Equipment Inspection & Research Institute; Solid (Beijing) Technology Co., Ltd.; Guangxi Special Equipment Inspection and Research Institute; Henan Special Equipment Inspection Technology Research Institute; Wuhan Zhongke Innovation Technology Co., Ltd.; Guangzhou Special Equipment Inspection and Research Institute; Jiangsu Province Special Equipment Safety Supervision Inspection Institute; TsingBosch (Zhuhai) Technology Co., Ltd.; China Construction Eighth Engineering Division Testing Technology Co., Ltd. The main drafters of this document: Shen Gongtian, Xiang Yong, Ju Chengwei, Zhang Qiang, Zhou Lijun, Liu Yannan, Luo Zhen, Zhang Pengfei, Liu Ran, Hu Bin, Zhang Kun, Wang Zicheng, Zhang Junjiao, Ye Weiwen, Zhang Yang, Zhou Zhou, Chen Haiping, Ye Haibo, Wang Xiaoliang, Huang Gong, Wang Zhiyuan, Wang Yuyun, Liu Guanghua. Inspection and Test Specifications of Large-scale Amusement Device - Ultrasonic Stress Testing1 ScopeThis document specifies the ultrasonic stress testing method for load-bearing components, such as: steel structures, bolts and shafts of large-scale amusement devices. This document is applicable to the in-situ axial stress testing of load-bearing components, such as: solid shafts with an outer diameter of not less than 10 mm and hexagonal steel bolts, double- threaded bolts with an outer diameter of not less than 30 mm for the amusement devices. It also applies to the in-situ bending stress testing of load-bearing components, such as: steel pipes with an outer diameter of not less than 50 and a wall thickness of not less than 6 mm, and steel plates with a wall thickness of not less than 6 mm. Ultrasonic stress testing of load-bearing components, such as: steel structures, bolts and shafts used by cableways and other mechanical equipment shall take this as a reference.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 12604.1 Non-destructive Testing - Terminology - Ultrasonic Testing GB/T 20050 Inspection and Testing Specifications of Large-scale Amusement Device - General Principles GB/T 27664.2 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 2: Probes GB/T 34370.1 Nondestructive Testing of Amusement Equipment - Part 1: General Requirement GB/T 34370.5 Nondestructive Testing of Amusement Equipment - Part 5: Ultrasonic Testing3 Terms and DefinitionsThe terms and definitions defined in GB/T 12604.1 and GB/T 34370.1 are applicable to this document. 7.5 Calibration, Verification, Interim Verification or Inspection Implement in accordance with the requirements of GB/T 34370.1 and GB/T 34370.5.8 Testing8.1 General Test Procedures 8.1.1 The preparation of the test procedures shall be carried out in accordance with the requirements of GB/T 34370.1. 8.1.2 The content of the test procedures shall at least include: a) Document No.; b) Scope of application; c) Reference standards and regulations; d) Qualifications of testing personnel; e) Test instruments and equipment: ultrasonic stress tester, probe, calibration specimen, coupling agent; f) Information of the workpiece under test: model, texture and surface condition, etc.; g) Probe installation site; h) Timing of testing; i) Test results; j) Test records, reports and data archiving; k) Signatures and dates of the person who prepared (level), reviewed (level) and approved it. 8.2 Test Procedure Card For each workpiece under test, a dedicated test procedure card shall be prepared, and the content shall at least include: a) Test procedure card No.; b) Serial No. and title of the standard implemented by the testing; c) Information of the workpiece under test: name, serial No., texture, specifications and dimensions; d) Test equipment and instruments: name, specification, model, serial No. of test instruments, probe model and serial No., standard specimen, etc.; e) Instrument debugging and parameter setting; f) Timing of testing; g) Test location and surface requirements; h) Schematic diagram of the test site; i) Test environment requirements; j) Testing method; k) Coupling mode; l) Signatures and dates of the person who prepared (level) and reviewed (level) it. 8.3 Preparation before Testing 8.3.1 Document review Implement in accordance with the requirements of GB/T 34370.5. 8.3.2 On-site investigation Implement according to the requirements of GB/T34370.5. 8.3.3 Use of coupling agent The coupling agent used during measurement shall be the same as that used during calibration. 8.3.4 Determination of test location The test location shall be determined in accordance with the load-bearing characteristics of the component and the requirements of the user. If there are no special requirements, then, the test location shall be determined in accordance with the following requirements. a) The location of the coupling surface of the transverse and longitudinal wave test probe for the axial stress of bolts and shafts shall avoid the center hole, lettered end face and steps, etc. b) The location of the critical refracted longitudinal wave test probe for the bending stress of steel pipes and steel plates shall be at the point with the maximum tensile stress, and it shall be ensured that during the test, the ultrasonic sound beam can scan the test area of the workpiece under test. 8.3.5 Test surface treatment The test surface is treated to be free of rust and stains, etc., and the raised lettering height is polished to 0.2 mm. 8.4 Calibration of Test Instruments On the loading device, in accordance with the possible load range of the workpiece under test, load the calibration specimen, obtain the relation between stress and ultrasonic time-of-flight, and calculate the stress coefficient KLS or KCR. 8.5 Test Implementation The test shall be carried out when the equipment stops operating. The test environment temperature should be between 5 C ~ 40 C, and the temperature difference with the calibration temperature shall not exceed 5 C. In accordance with the requirements of 8.1, test the workpiece under test, and after the coupling is stable, record the test results. 8.6 Data Analysis and Evaluation 8.6.1 Record the test data, and re-test or record any abnormal sites. 8.6.2 Compare and analyze the measured values with the calculated values given in the design. Any value lower or higher than 20% is considered abnormal. Based on the application scope of the working condition design calculation, further re-inspection or maintenance shall be carried out by other methods.9 Test Files9.1 Test Records The test records shall record test data or information in accordance with the requirements of the test procedures and shall at least include the contents in 9.2. In addition, all records shall be kept in accordance with relevant laws, regulations, standards and (or) contract requirements. 9.2 Test Report The test report shall at least include the following contents: a) Commissioned organization, testing organization and report serial No.; b) Procedure version or test procedure card No.; c) The serial No. and title of the standard implemented by the testing; d) Name, type, texture and surface condition of the workpiece under test; e) Test equipment: instrument model and serial No., probe, test block, coupling agent and test environment temperature; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 44512-2024 be delivered?Answer: The full copy PDF of English version of GB/T 44512-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 44512-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 44512-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 44512-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 44512-2024?A step-by-step guide to download PDF of GB/T 44512-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 44512-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
