GB/T 43496-2023 PDF EnglishUS$275.00 · In stock · Download in 9 seconds
GB/T 43496-2023: Test method of thermal cycling and condensation resistance of curtain walls Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

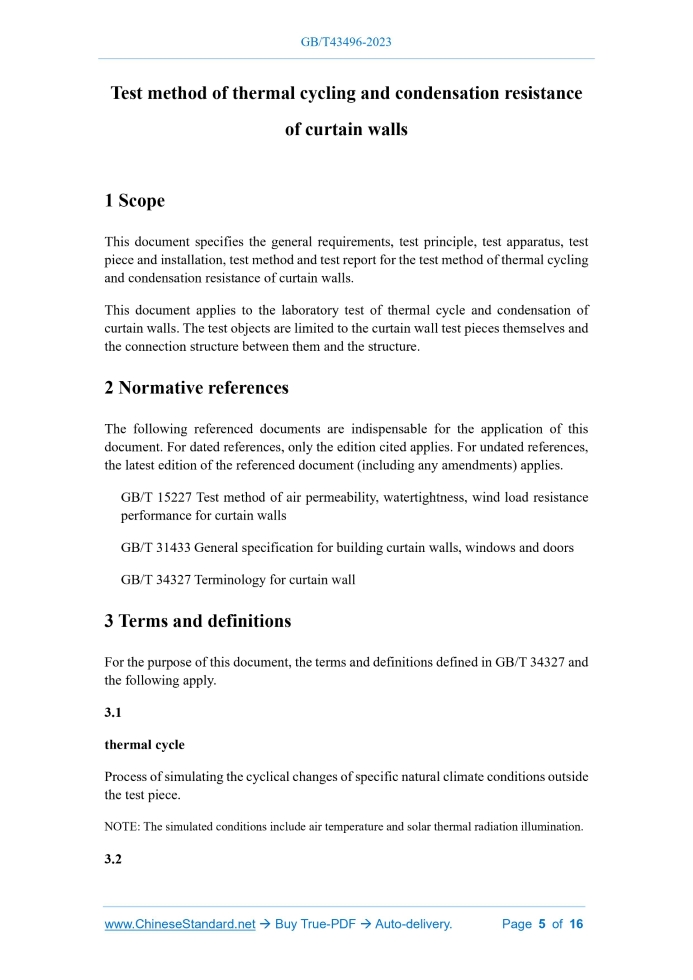

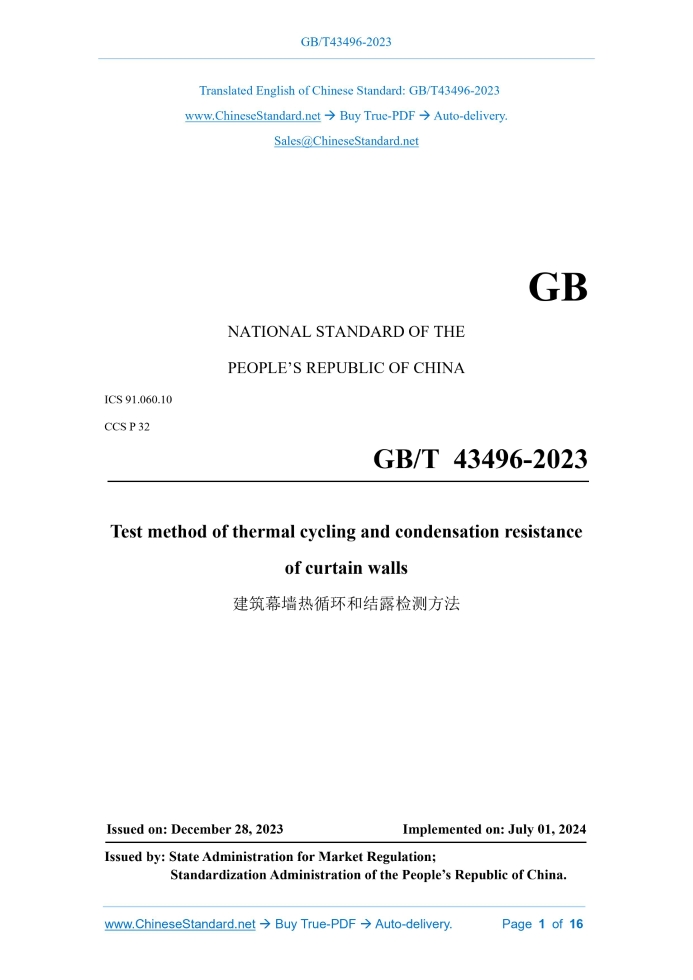

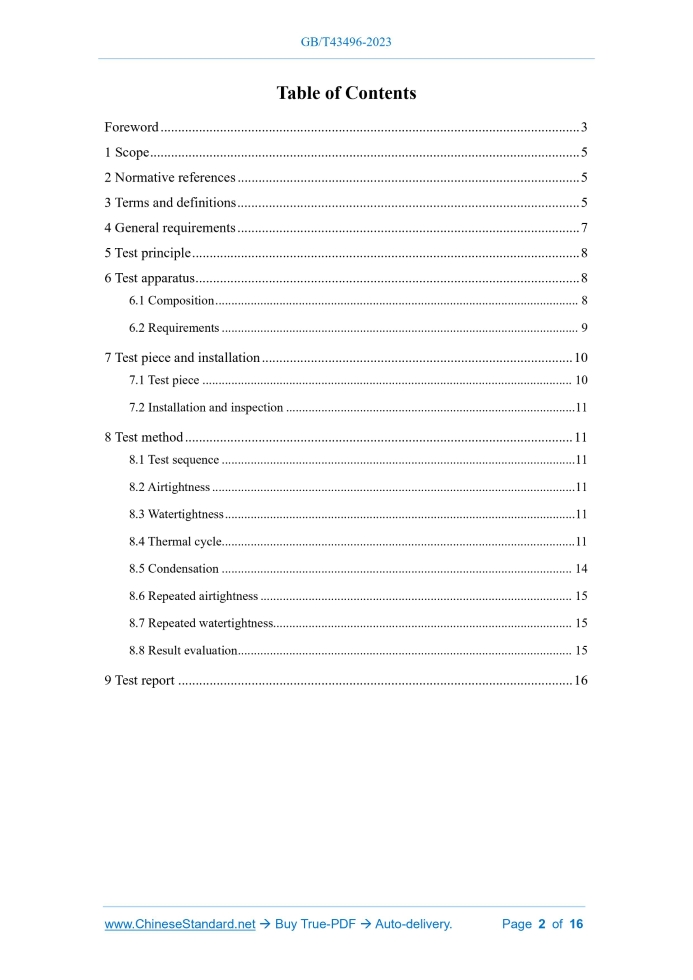

Similar standardsGB/T 43496-2023: Test method of thermal cycling and condensation resistance of curtain walls---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT43496-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.060.10 CCS P 32 GB/T 43496-2023 Test method of thermal cycling and condensation resistance of curtain walls Issued on: DECEMBER 28, 2023 Implemented on: JULY 01, 2024 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 5 4 General requirements... 7 5 Test principle... 8 6 Test apparatus... 8 6.1 Composition... 8 6.2 Requirements... 9 7 Test piece and installation... 10 7.1 Test piece... 10 7.2 Installation and inspection... 11 8 Test method... 11 8.1 Test sequence... 11 8.2 Airtightness... 11 8.3 Watertightness... 11 8.4 Thermal cycle... 11 8.5 Condensation... 14 8.6 Repeated airtightness... 15 8.7 Repeated watertightness... 15 8.8 Result evaluation... 15 9 Test report... 16 Test method of thermal cycling and condensation resistance of curtain walls1 ScopeThis document specifies the general requirements, test principle, test apparatus, test piece and installation, test method and test report for the test method of thermal cycling and condensation resistance of curtain walls. This document applies to the laboratory test of thermal cycle and condensation of curtain walls. The test objects are limited to the curtain wall test pieces themselves and the connection structure between them and the structure.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 15227 Test method of air permeability, watertightness, wind load resistance performance for curtain walls GB/T 31433 General specification for building curtain walls, windows and doors GB/T 34327 Terminology for curtain wall3 Terms and definitionsFor the purpose of this document, the terms and definitions defined in GB/T 34327 and the following apply. 3.1 thermal cycle Process of simulating the cyclical changes of specific natural climate conditions outside the test piece. NOTE. The simulated conditions include air temperature and solar thermal radiation illumination. 3.2 Key. 1 - outdoor side insulation box; 2 - guide plate; 3 - infrared radiation heating device; 4 - outdoor side air circulation system; 5 - outdoor side air temperature control device; 6 - indoor side air temperature and humidity control device; 7 - indoor side air circulation system; 8 - indoor side insulation box; 9 - test piece; 10 - test piece installation support device; 11 - connection structure. Figure 1 -- Schematic diagram of test apparatus 6.2 Requirements 6.2.1 The indoor weather simulation device and the outdoor weather simulation device can use a fixed or temporarily built box. The opening size shall cover the tested part of the test piece, and the depth size shall be able to accommodate refrigeration, heating and air circulation devices. 6.2.2 The test piece installation support device shall have the rigidity and strength that meet the test requirements, and be fixed on a support structure that has the rigidity and strength that meet the test requirements. 6.2.3 The inner surface of the indoor weather simulation device box and the outdoor weather simulation device box shall be made of airtight and non-absorbent materials. 6.2.4 The temperature and relative humidity of the air shall be controlled by the air temperature and humidity control device. The airflow organization shall be reasonable, and the airflow direction shall be parallel to the surface of the test piece to avoid direct air blowing on the surface of the test piece. The wind speed shall not be greater than 1 m/s. The uniformity of the air temperature in the box of the indoor weather simulation device and the box of the outdoor weather simulation device shall be controlled within ±3 ℃. The fluctuation range of the relative humidity in the box of the indoor weather simulation device shall be controlled within ±10 %. 6.2.5 The air temperature control device shall have the ability to adjust the test indicator requirements within the specified time. 6.2.6 The maximum intensity of the infrared radiation heating device shall not be less than 1000 W/m2 and can be evenly adjusted. The distance from the test piece should be 1000 mm. 6.2.7 The measuring device and measurement point arrangement shall meet the following requirements. a) the accuracy of the temperature sensor shall be within ±2 ℃; b) the accuracy of the humidity sensor shall be within ±5 %; c) the temperature sensors for the air temperature in the box shall be arranged in representative areas of the box, at least the four corners and the center of the box close to the test piece. The sensors shall be shielded from radiation and the distance from the test piece shall not be less than 80 mm; d) the humidity sensor for the indoor side air relative humidity shall be arranged near the return air outlet of the box; e) the temperature sensors for the internal and external surface temperatures of the test piece shall be arranged on the surface of the panel and profile, the induction head together with the lead shall be close to the measured surface, and the lead length shall not be less than 100 mm; the total hemispherical emissivity of the adhesive material shall be close to the value of the measured surface; f) the temperature measurement points on the test piece shall be arranged on the supporting members and the panel members; for bar members, they shall be arranged at the two ends and the middle, and for panels, they shall be arranged at the midpoints of the two long sides and the center of the panel.7 Test piece and installation7.1 Test piece 7.1.1 The test piece shall represent the performance of typical parts of the curtain wall, including typical vertical joints, horizontal joints and openable fields. The proportion of the openable fields to the total area of the test piece shall be close to the actual project. 7.1.2 The material, specification and model of the test piece shall be consistent with the corresponding information provided by the test client. 7.1.3 The width of the test piece shall include at least one vertical load-bearing member that bears the design load. The height of the test piece shall include at least one floor height, and there shall be two or more vertical connections with the load-bearing structure. 7.1.4 The full-glass curtain wall test piece shall have a full span height and a width of at least 3 glass horizontal divisions or 4 glass ribs. 7.1.5 The height of the unitized curtain wall test piece shall not be less than 2 floor heights, and the width shall not be less than 3 horizontal divisions. 7.1.6 The test piece of double-skin curtain walls shall meet the following requirements. Within the specified time, by simulating the annual cyclical changes of outdoor weather air temperature, solar radiation, and indoor temperature and humidity environment, observe whether there are functional disorders, component damage, and whether condensation occurs at low temperatures. 8.4.2 Test method and selection For those with only outdoor air temperature requirements, the “air temperature method” (method 1) is used; for those with test piece surface temperature requirements, the “surface temperature method” (method 2) is used. 8.4.3 Air temperature method (method 1) Before the thermal cycle test, adjust the indoor side air temperature and relative humidity to the indoor side indicator values and maintained for not less than 1 h. Then proceed as follows. a) steadily increase the outdoor side air temperature to the specified outdoor maximum air temperature Tamax in 0.5 h ~ 1 h, and the maintenance time shall not be less than 2 h. b) steadily reduce the outdoor side air temperature to the indoor air temperature Tin in 0.5 h ~ 1 h. c) steadily reduce the outdoor side air temperature to the specified outdoor minimum air temperature Tamin in 0.5 h ~ 1 h, and the maintenance time shall not be less than 2 h. d) steadily increase the outdoor side air temperature to the indoor air temperature Tin in 0.5 h ~ 1 h. e) repeat steps a) ~ d), the number of cycles shall not be less than 6 times, and the schematic diagram of thermal cycle test cycle is shown in Figure 2. f) keep the indoor side air temperature and relative humidity stable during the test. In each low-temperature and high-temperature holding stage, check whether the test piece is damaged on the indoor side; after the test is completed, check whether the test piece has damage or functional disorder. 8.4.5 Requirements for the test process The test process shall meet the following requirements. a) in each control stage of a cycle, the fluctuation range of indoor and outdoor air temperature is not more than 3 ℃, and the fluctuation range of indoor air relative humidity is not more than 10 %; b) for the indoor side, the data collection interval of air temperature and relative humidity is not more than 20 min; c) for the outdoor side, the data collection interval of air temperature or test piece surface temperature is not more than 2 min. 8.5 Condensation 8.5.1 Test content Maintain stable indoor temperature and relative humidity within the specified time, simulate the low temperature outdoor at the same time, and maintain for 12 h. After the process is completed, observe whether the test piece has functional disorders, component damage, condensation, etc. 8.5.2 Test method The test shall be carried out according to the following steps. a) adjust the indoor side air temperature and relative humidity to the indicator values and keep them stable; b) steadily reduce the outdoor side air temperature to the specified outdoor minimum air temperature Tamin within 1 h, and maintain it for 12 h; c) steadily increase the outdoor side air temperature to the indoor air temperature Tin within 1 h; see Figure 3 for the schematic diagram of condensation test; d) check whether the test piece has damage or functional disorder on the indoor side, observe and record the condensation status and location according to Table 1. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 43496-2023 be delivered?Answer: The full copy PDF of English version of GB/T 43496-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 43496-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 43496-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 43496-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 43496-2023?A step-by-step guide to download PDF of GB/T 43496-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 43496-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
