GB/T 38264-2019: Classification and test method of resistance against impact for curtain wall Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

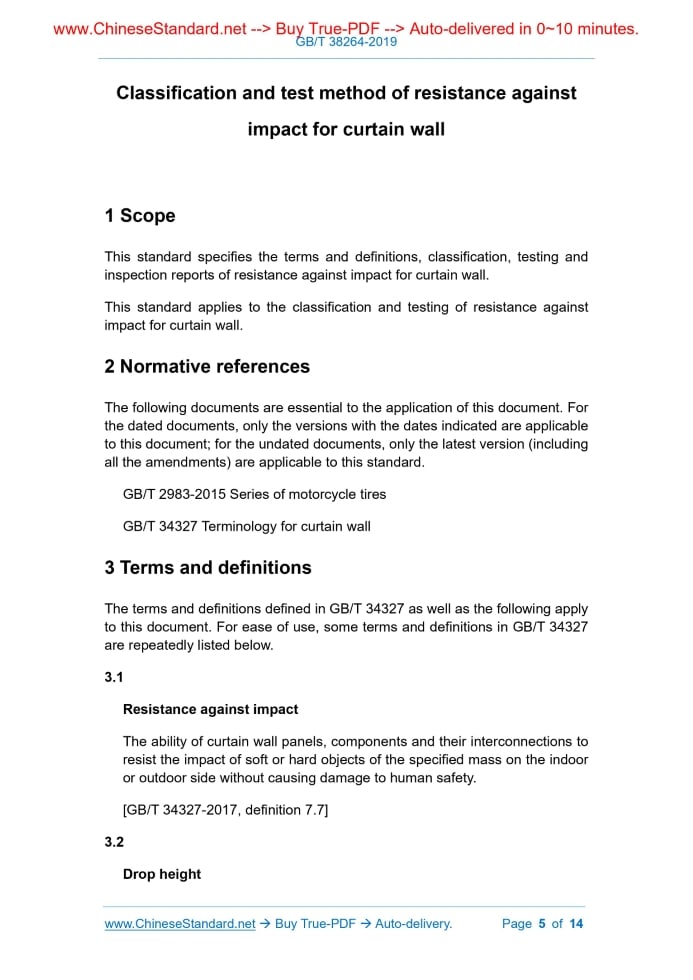

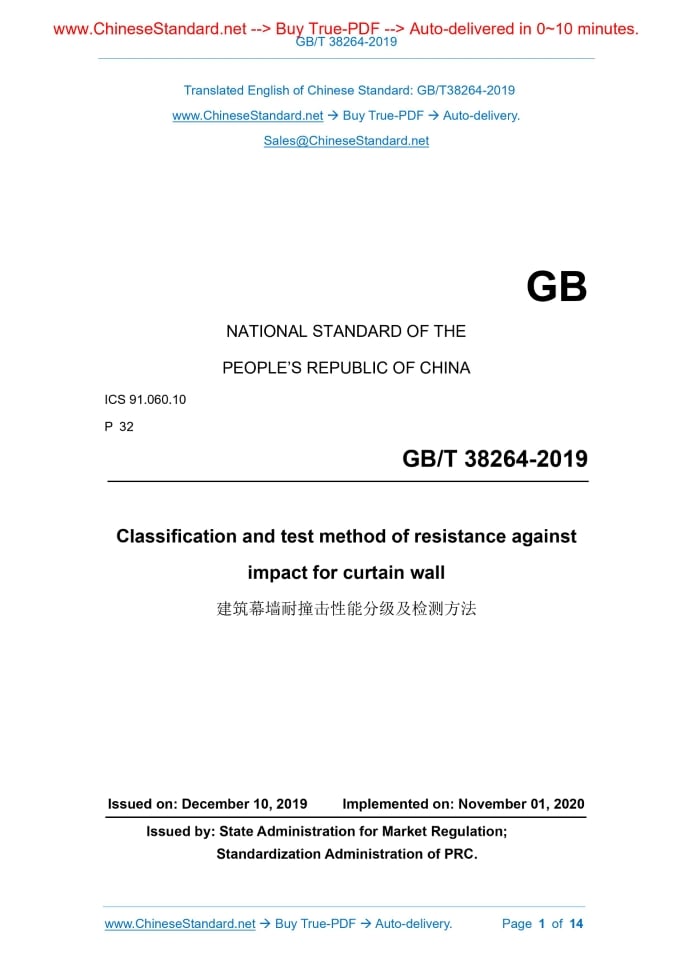

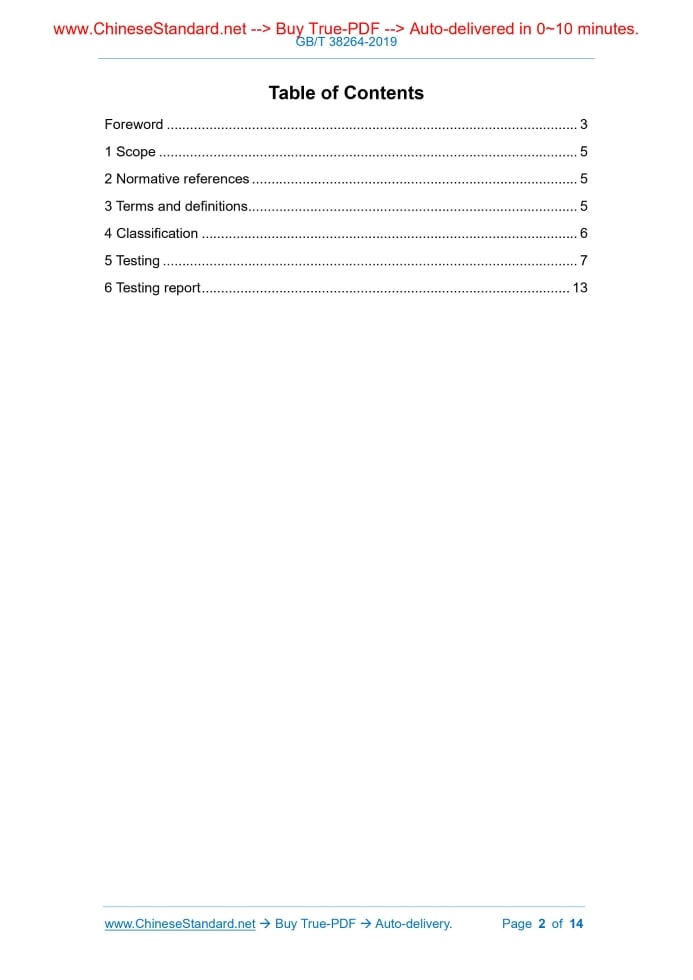

Similar standardsGB/T 38264-2019: Classification and test method of resistance against impact for curtain wall---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38264-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.060.10 P 32 Classification and test method of resistance against impact for curtain wall ISSUED ON: DECEMBER 10, 2019 IMPLEMENTED ON: NOVEMBER 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Classification ... 6 5 Testing ... 7 6 Testing report ... 13 Classification and test method of resistance against impact for curtain wall1 ScopeThis standard specifies the terms and definitions, classification, testing and inspection reports of resistance against impact for curtain wall. This standard applies to the classification and testing of resistance against impact for curtain wall.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard. GB/T 2983-2015 Series of motorcycle tires GB/T 34327 Terminology for curtain wall3 Terms and definitionsThe terms and definitions defined in GB/T 34327 as well as the following apply to this document. For ease of use, some terms and definitions in GB/T 34327 are repeatedly listed below. 3.1 Resistance against impact The ability of curtain wall panels, components and their interconnections to resist the impact of soft or hard objects of the specified mass on the indoor or outdoor side without causing damage to human safety. [GB/T 34327-2017, definition 7.7] 3.2 Drop height 5.4.2 Selection of impact points for impact resistance to soft weights 5.4.2.1 General requirements It may select the location as designated by the client for impact. When the impact resistance level needs to be assessed, the impact point shall be determined in accordance with the requirements of 5.4.2.2, 5.4.2.3, 5.4.2.4, 5.4.2.5. 5.4.2.2 Component glass curtain wall and unit glass curtain wall For the component glass curtain wall and unit glass curtain wall, it shall determine the impact point according to the following requirements. The height of the impact point on the indoor side from the indoor completed surface shall not be more than 1.1 m: a) The center of the curtain wall’s fixed panel; b) The center of the open panel; c) The midpoint of the connection point between the adjacent upper and lower supports of the column; d) The midpoint of the beam; e) The point 100 mm above the connection point between the column and the beam (beam surface); f) The point on the beam 100 mm away from the connection point. 5.4.2.3 Point-supported glass curtain wall The point of impact of the point-supported glass curtain wall shall be the center of the curtain wall panel; meanwhile the height of the impact point on the indoor side from the indoor completed surface shall not be more than 1.1 m. 5.4.2.4 All-glass curtain wall The impact point of the all-glass curtain wall shall be the center of the curtain wall panel; the height of the impact point on the indoor side from the indoor completed surface shall not be more than 1.1 m. 5.4.2.5 Stone curtain wall, metal plate curtain wall, artificial plate curtain wall The outdoor impact point of stone curtain wall, metal plate curtain wall and artificial plate curtain wall shall be the center of curtain wall panel. 5.4.3 Selection of impact points for impact resistance test of hard objects It may select the location as designated by the client to make impact, which shall include the center point of the curtain wall panel. 5.4.4 Testing steps for impact resistance of soft weights and impact resistance of hard objects The testing shall follow the steps below: a) Suspend an impact object. The geometric center of the soft weight shall be within the circular range of the curtain wall facade with the impact point as the center of the circle and a radius of 50 mm. The geometric center of the hard weight shall be within the circular range of the curtain wall facade with the impact point as the center of the circle and a radius of 25 mm. b) Lift the impact object so that its center reaches the specified drop height. The drop height’s error is ± 20 mm. The horizontal angle between the hanging wire rope and the horizontal plane of the suspension point should not be less than 14°. Keep the centerline of the impact object and the hanging wire rope centerline on the same straight line. c) Release the impact object. Let it fall freely and hit the impact point once. d) Tighten the impact object immediately after one impact, to avoid repeated impacts. e) Observe and record the condition of the test piece. 5.5 Judgment of results 5.5.1 Impact resistance to soft weights One of the following situations shall be judged as unqualified: a) The panel comes off, is broken or cracked; b) Decorative strips or other attachments have come off. 5.5.2 Impact resistance to hard object Panel’s failure, break or cracking shall be determined as unqualified.6 Testing report6.1 The testing report shall contain the following information: a) Project name, project location, client name, contractor name; b) Name and main dimensions of the test piece; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38264-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38264-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38264-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38264-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38264-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38264-2019?A step-by-step guide to download PDF of GB/T 38264-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38264-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
