GB/T 42869-2023: Requirements for three-dimensional model simplification and lightweight of mechanical products Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

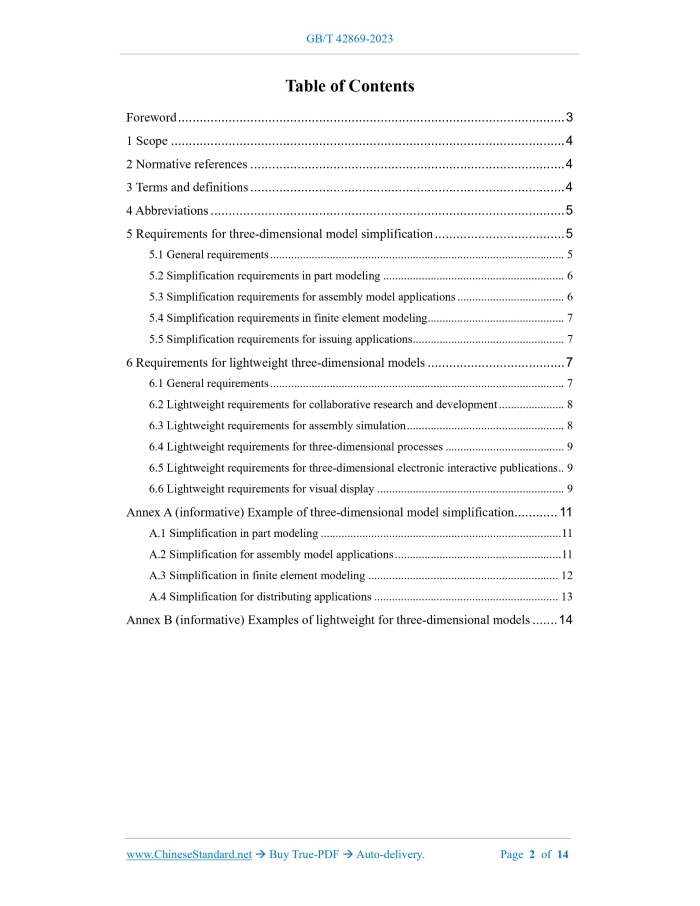

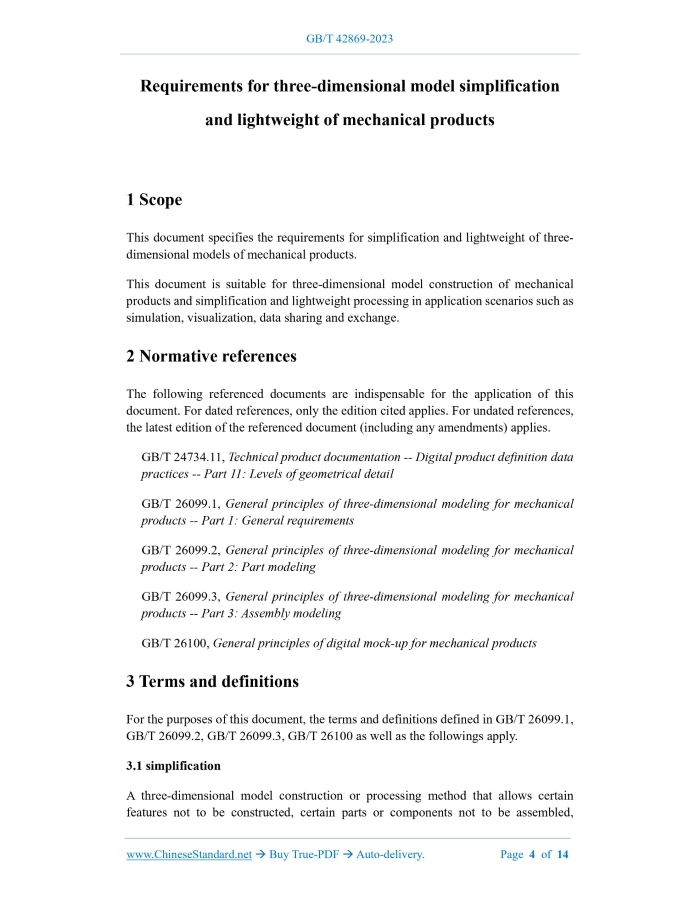

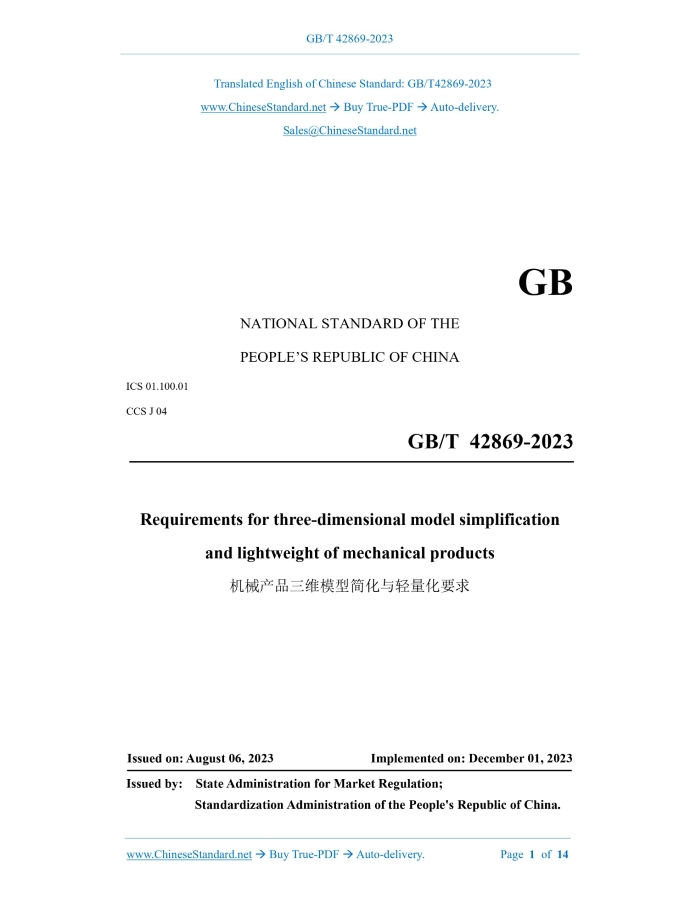

Similar standardsGB/T 42869-2023: Requirements for three-dimensional model simplification and lightweight of mechanical products---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT42869-2023 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 01.100.01 CCS J 04 Requirements for three-dimensional model simplification and lightweight of mechanical products ISSUED ON: AUGUST 06, 2023 IMPLEMENTED ON: DECEMBER 01, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Abbreviations ... 5 5 Requirements for three-dimensional model simplification ... 5 5.1 General requirements ... 5 5.2 Simplification requirements in part modeling ... 6 5.3 Simplification requirements for assembly model applications ... 6 5.4 Simplification requirements in finite element modeling ... 7 5.5 Simplification requirements for issuing applications ... 7 6 Requirements for lightweight three-dimensional models ... 7 6.1 General requirements ... 7 6.2 Lightweight requirements for collaborative research and development ... 8 6.3 Lightweight requirements for assembly simulation ... 8 6.4 Lightweight requirements for three-dimensional processes ... 9 6.5 Lightweight requirements for three-dimensional electronic interactive publications .. 9 6.6 Lightweight requirements for visual display ... 9 Annex A (informative) Example of three-dimensional model simplification ... 11 A.1 Simplification in part modeling ... 11 A.2 Simplification for assembly model applications ... 11 A.3 Simplification in finite element modeling ... 12 A.4 Simplification for distributing applications ... 13 Annex B (informative) Examples of lightweight for three-dimensional models ... 14 Requirements for three-dimensional model simplification and lightweight of mechanical products1 ScopeThis document specifies the requirements for simplification and lightweight of three- dimensional models of mechanical products. This document is suitable for three-dimensional model construction of mechanical products and simplification and lightweight processing in application scenarios such as simulation, visualization, data sharing and exchange.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 24734.11, Technical product documentation -- Digital product definition data practices -- Part 11: Levels of geometrical detail GB/T 26099.1, General principles of three-dimensional modeling for mechanical products -- Part 1: General requirements GB/T 26099.2, General principles of three-dimensional modeling for mechanical products -- Part 2: Part modeling GB/T 26099.3, General principles of three-dimensional modeling for mechanical products -- Part 3: Assembly modeling GB/T 26100, General principles of digital mock-up for mechanical products3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 26099.1, GB/T 26099.2, GB/T 26099.3, GB/T 26100 as well as the followings apply. 3.1 simplification A three-dimensional model construction or processing method that allows certain features not to be constructed, certain parts or components not to be assembled, f) Name the simplified model file in accordance with the provisions of GB/T 26099.1. Consider the inheritance with the original model name. 5.2 Simplification requirements in part modeling 5.2.1 Three-dimensional model simplification in part modeling meets the following requirements: a) The external interface of the model shall not be simplified and its assembly shall not be affected; b) Some features related to manufacturing, such as internal threads, external threads, undercuts, etc., are allowed to be omitted or simplified in expression. However, when the simplified model is used for projection to generate two-dimensional engineering drawings, it shall meet the relevant regulations of mechanical drawing; c) For several groups of holes with the same diameter and distributed in a certain regular pattern, only one feature can be constructed. Other similar features can be simplified by the center line; d) Features such as printing, engraving, and knurling allow simplified expression in the form of stickers. When necessary, it can also be accompanied by comments; e) When modeling standard parts and purchased parts, the internal structure unrelated to installation is allowed to be simplified, but basic information that affects the model assembly design such as the maximum geometric outline, installation interface, extreme position, and mass attributes shall be included; f) Under the conditions that meet the usage requirements, low-order surfaces can be used instead of high-order surfaces. 5.2.2 See Figure A.1 in Annex A for a simplification example in part modeling. 5.3 Simplification requirements for assembly model applications 5.3.1 Three-dimensional model simplification for assembly model applications meets the following requirements. a) When assembly models are used for visual display, such as in digital factories or digital production line visual display applications, for assembly models of production lines, machine tools, logistics and other equipment, if the internal details do not need to be displayed, a simplified method without assembly can be used. If some external subtle features do not affect the display effect, simple shapes (cylinder, cube, etc.) can be used instead of the simplified method of complex shapes. b) Generally, it is advisable to remove the modeling history information in the original model and base it on the business needs of different application scenarios in a). Choose to retain, partially remove or completely remove assembly structure, annotations, attributes, views, colors and other information; c) The lightweight model formed after surface processing can reduce the size of the model file through surface reduction, merging primitives, deleting invisible surfaces, patching or deleting holes, etc., so as to meet the requirements of the visualization software and hardware system; d) For point cloud models obtained by reverse engineering methods, it is advisable to convert mesh surfaces into NURBS surfaces or other parameter expressions to reduce model file size; e) For a large number of repeated parts, only the geometric data of one part can be recorded, but the position information of all parts shall be saved to reduce the amount of data. At the same time, the recorded geometric data information of the parts and all parts shall be used during the visualization process. location information to reconstruct all parts and position them correctly; f) Multiple LOD level representations shall be provided to meet visualization and accuracy requirements; g) The lightweight model file naming shall be in accordance with the provisions of GB/T 26099.1. Consider inheritance from the original model’s name. 6.2 Lightweight requirements for collaborative research and development The lightweight of three-dimensional models in collaborative R&D applications meets the following requirements: a) It shall be based on the needs of product data sharing and exchange, browsing and circle reading in collaborative R&D applications. Determine the lightweight model file format. Choose lightweight processing tools; b) The lightweight model file format, unit system and scale shall be consistent. Model accuracy shall meet the requirements of all parties involved in collaborative R&D; c) The assembly structure information in the original model shall be included; d) Annotations and marking information shall be saved in lightweight model files. 6.3 Lightweight requirements for assembly simulation The lightweight three-dimensional model for assembly simulation applications shall meet the following requirements: a) According to the assembly process simulation in assembly simulation applications, as well as the interference inspection and simulation requirements between components, between components and tooling, determine the lightweight model file format and select lightweight processing tools; b) Contain assembly structure and assembly relative position information in the original model. 6.4 Lightweight requirements for three-dimensional processes Three-dimensional model lightweight for three-dimensional processes shall meet the following requirements: a) According to the process model visual display and human-computer interaction requirements in three-dimensional process visualization publishing applications, the lightweight model file format is determined. Choose lightweight processing tools; b) Contain assembly structure, annotations, attributes, views, colors and other information in the original model. 6.5 Lightweight requirements for three-dimensional electronic interactive publications The lightweight three-dimensional model for three-dimensional electronic interactive publications shall meet the following requirements: a) The lightweight model file format is determined based on the model-based product installation, use, repair and maintenance interaction requirements and the type of interactive display platform in the three-dimensional electronic interactive publication application. Choose lightweight processing tools; b) Contain assembly structure, annotations, attributes, views, colors and other information in the original model. 6.6 Lightweight requirements for visual display The lightweight three-dimensional model for visual display shall meet the following requirements: a) According to the purpose of visual display, such as concept display before product manufacturing, publicity display after product manufacturing, and training display such as operation/maintenance, as well as the software and hardware ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 42869-2023 be delivered?Answer: The full copy PDF of English version of GB/T 42869-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 42869-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 42869-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 42869-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 42869-2023?A step-by-step guide to download PDF of GB/T 42869-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 42869-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
