GB/T 41655-2022 PDF EnglishUS$245.00 · In stock · Download in 9 seconds
GB/T 41655-2022: Non-destructive testing - Ultrasonic testing - Technique of testing claddings produced by welding, rolling and explosion Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

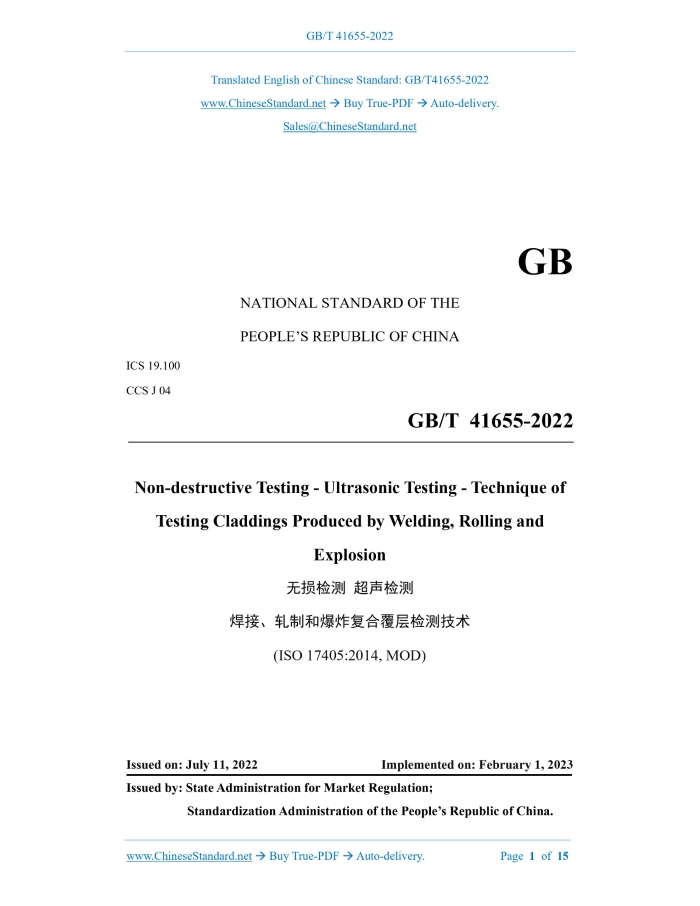

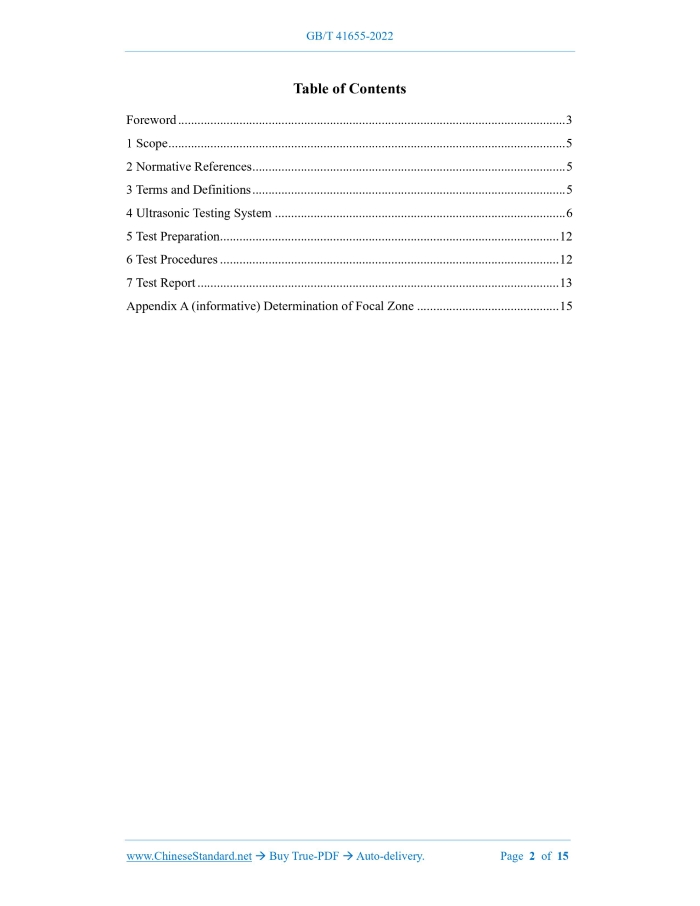

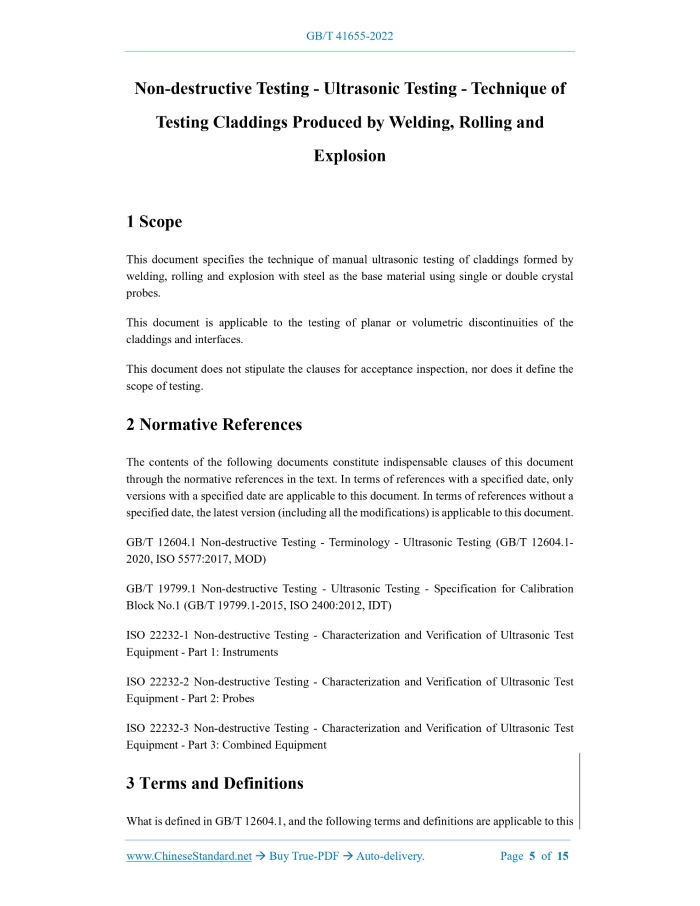

Similar standardsGB/T 41655-2022: Non-destructive testing - Ultrasonic testing - Technique of testing claddings produced by welding, rolling and explosion---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT41655-2022 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 19.100 CCS J 04 Non-destructive Testing - Ultrasonic Testing - Technique of Testing Claddings Produced by Welding, Rolling and Explosion (ISO 17405:2014, MOD) ISSUED ON: JULY 11, 2022 IMPLEMENTED ON: FEBRUARY 1, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative References ... 5 3 Terms and Definitions ... 5 4 Ultrasonic Testing System ... 6 5 Test Preparation ... 12 6 Test Procedures ... 12 7 Test Report ... 13 Appendix A (informative) Determination of Focal Zone ... 15 Non-destructive Testing - Ultrasonic Testing - Technique of Testing Claddings Produced by Welding, Rolling and Explosion1 ScopeThis document specifies the technique of manual ultrasonic testing of claddings formed by welding, rolling and explosion with steel as the base material using single or double crystal probes. This document is applicable to the testing of planar or volumetric discontinuities of the claddings and interfaces. This document does not stipulate the clauses for acceptance inspection, nor does it define the scope of testing.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 12604.1 Non-destructive Testing - Terminology - Ultrasonic Testing (GB/T 12604.1- 2020, ISO 5577:2017, MOD) GB/T 19799.1 Non-destructive Testing - Ultrasonic Testing - Specification for Calibration Block No.1 (GB/T 19799.1-2015, ISO 2400:2012, IDT) ISO 22232-1 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 1: Instruments ISO 22232-2 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 2: Probes ISO 22232-3 Non-destructive Testing - Characterization and Verification of Ultrasonic Test Equipment - Part 3: Combined Equipment3 Terms and DefinitionsWhat is defined in GB/T 12604.1, and the following terms and definitions are applicable to this document. 3.1 test object Test object refers to the component under test.4 Ultrasonic Testing System4.1 General Rules The testing adopts ultrasonic pulse reflection technique. For planar and volumetric discontinuities parallel to the test surface, a straight probe (single crystal or double crystal) and longitudinal waves shall be adopted for the testing. For discontinuities in other directions, longitudinal-wave double crystal angle probe or transverse-wave angle probe may be adopted for the testing. The nominal frequency of the probe shall be selected in accordance with the testing purpose and material characteristics. The probe frequency should be 2 MHz ~ 6 MHz. If the test verifies that the sensitivity satisfies the requirements, probes with other frequencies can also be used. The performance of the ultrasonic testing instrument shall comply with the requirements of ISO 22232-1. The performance of the probe shall comply with the requirements of ISO 22232-2. The combined performance of the testing system shall be regularly inspected in accordance with ISO 22232-3. 4.2 Requirements for Probes 4.2.1 Longitudinal-wave single crystal straight probe The depth range of optimal sensitivity depends on the dimensions of the crystal plate. The depth range should be determined based on the area where discontinuities are expected to be detected. 4.2.2 Longitudinal-wave double crystal straight probe The depth range of optimal sensitivity (see Appendix A) depends on the dimensions of the crystal plate and the roof angle. The depth range should be determined based on the area where discontinuities are expected to be detected. 4.2.3 Longitudinal-wave double crystal angle probe The longitudinal-wave refraction angle should be between 65 ~ 80. The selection of the tilt angle, shape and dimensions of the crystal plate shall ensure that the depth range of optimal sensitivity (see Appendix A) can cover the area where discontinuities are expected to be detected. Description of indexes: 1---probe; 2---focal zone length; 3---focal length; X---reflector depth; Y---echo height. NOTE: when using the reference test block in the Figure, it should be ensured that all reference reflector echoes with unmarked dimensions are effectively identified. Figure 2 -- Reference Test Block for the Determination of Focal Zone Length of Double Crystal Angle Probe 4.4.2 Sensitivity settings For sensitivity settings, the reference reflector (shape and dimensions) should be selected based on the type of discontinuities expected to be detected. The reference test block with the same or similar compound process as the test object shall be selected to adjust the sensitivity. The cladding thickness, surface state and shape of the reference test block shall be the same as those of the test piece (see Chapter 5). If the probe is surface matched with the test surface of the test object, the reference test block shall have a curved surface state that matches the probe, as shown in 4.2.5. For the testing of volumetric discontinuities, the reflector is a transverse hole, for example, a transverse hole with a specification of ϕ3 mm 30 mm located near the interface of the base material can be used (see Figure 3). For claddings connected by fusion welding, one transverse hole shall be perpendicular to the direction of the weld and the other transverse hole shall be parallel to the direction of the weld. For claddings connected by two or more layers of fusion welding, corresponding transverse holes shall be machined on each cladding. For the testing of discontinuities parallel to the test surface, when using a straight (single crystal or double crystal) probe, flat-bottomed holes should be used to set the sensitivity. For planar discontinuities perpendicular to the test surface, an angle probe should be used to set the sensitivity on the reflector groove. Position 1, Position 2 and Position 3 shown in Figure 3 represent the mode of generating reference reflector echoes when the ultrasonic testing instrument is used to set the testing sensitivity. The echo amplitude should be adjusted to 80% of the full screen. Description of indexes: 1---Position 1; 2---Position 2; 3---Position 3; 4---cladding; a---thickness of test block; b---width of test block; c---length of test block; d---the distance between the reflector and the edge of the test block; e---the distance between the reflector and the edge of the test block; A---self-transmitting and self-receiving straight probe; B---one-transmitting and one-receiving angle probe. NOTE: the selection of a, b, c, d and e dimensions should ensure good coupling between the probe and the test object, and the shape of the test block does not affect the gain setting. Figure 3 -- Sensitivity Settings of Reference Test Block with Cladding5 Test PreparationIf it is specified that discontinuities generated in a certain particular stage of the manufacturing process shall be tested, then, the testing shall be performed after the completion of that stage. Before the testing, the size of the test area shall be determined. In the test area, the test surface should be well prepared for the testing, so that the probe and the workpiece are well coupled. The surface condition shall satisfy the signal-to-noise ratio requirements specified in 4.4.2.6 Test Procedures6.1 General Rules When selecting the testing technique (probe, coupling area and probe scanning method), the type and direction of the typical discontinuities that may be present shall be considered based on the type of cladding. b) Basic information of test: 1) Testing personnel; 2) Testing date; 3) Testing instrument; 4) Probes; 5) Instrument gain; 6) Reference test block; 7) Test object (compound type, base material and cladding material); 8) Testing type (test area); 9) Condition of test surface; 10) Testing range; 11) Reference sensitivity (reference reflector / dB value), the sensitivity when the echo height of the reference reflector used in the testing is 80% of the screen height; display of sensitivity used to generate reference reflector echo that is 80% of screen height and recorded sensitivity used in the testing; 12) Signal-to-noise ratio (the difference between the echo height and the noise level that shall be recorded, expressed in dB). c) Information of discontinuities under test: 1) Position of discontinuities of the test object, which is recorded with coordinates (longitudinal / transverse); 2) Discontinuity depth and echo height (reference sensitivity dB); 3) Discontinuity length and width measured by the 6 dB method; 4) Unavoidable typical displays during the testing. (for example, caused by the surface conditions or the process structure or dimensions of the test object) ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 41655-2022 be delivered?Answer: The full copy PDF of English version of GB/T 41655-2022 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 41655-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 41655-2022_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 41655-2022 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 41655-2022?A step-by-step guide to download PDF of GB/T 41655-2022_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 41655-2022". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
