GB/T 42177-2022 PDF EnglishUS$425.00 · In stock · Download in 9 seconds
GB/T 42177-2022: Technical requirements and test methods for gaseous hydrogen valves used in hydrogen fuelling stations Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

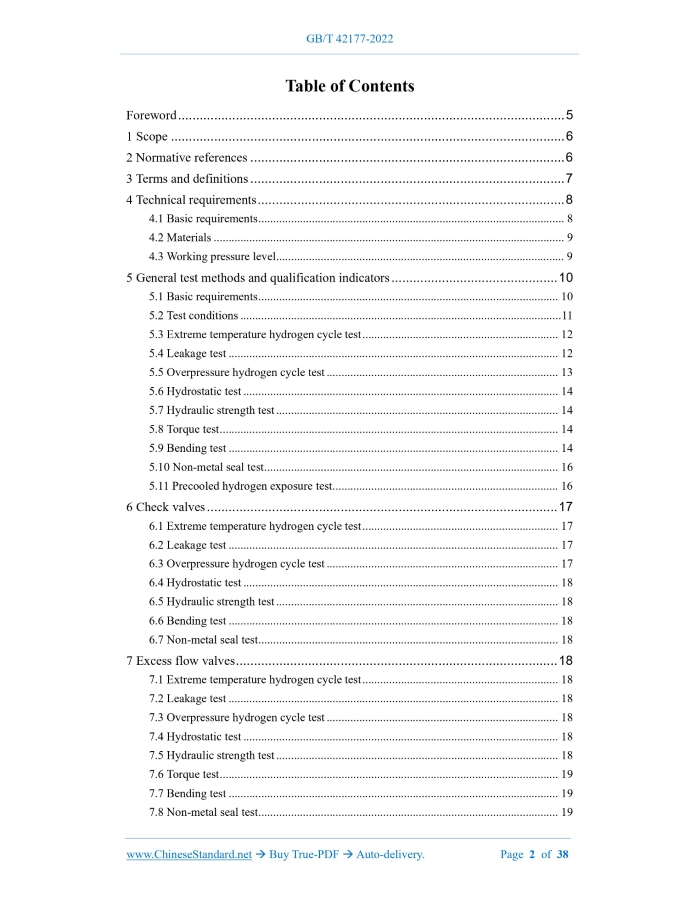

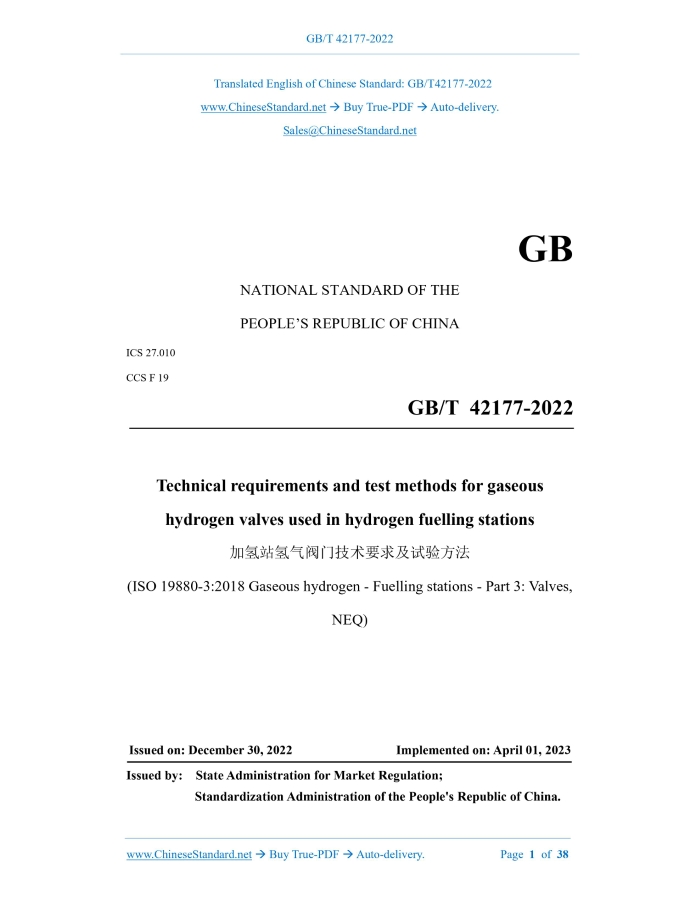

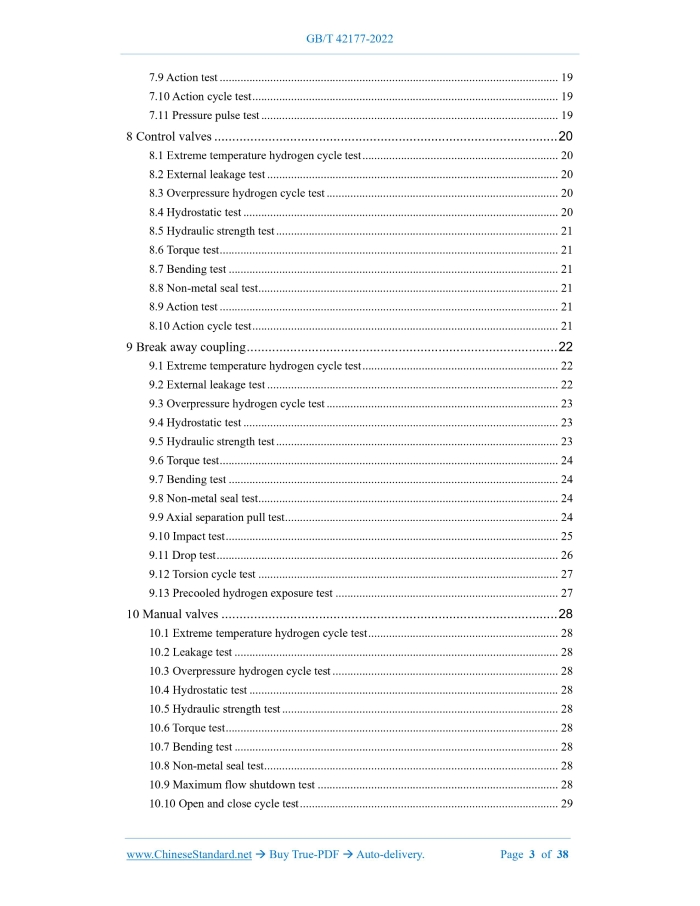

Similar standardsGB/T 42177-2022: Technical requirements and test methods for gaseous hydrogen valves used in hydrogen fuelling stations---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT42177-2022 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 27.010 CCS F 19 Technical requirements and test methods for gaseous hydrogen valves used in hydrogen fuelling stations (ISO 19880-3:2018 Gaseous hydrogen - Fuelling stations - Part 3: Valves, NEQ) ISSUED ON: DECEMBER 30, 2022 IMPLEMENTED ON: APRIL 01, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 5 1 Scope ... 6 2 Normative references ... 6 3 Terms and definitions ... 7 4 Technical requirements ... 8 4.1 Basic requirements ... 8 4.2 Materials ... 9 4.3 Working pressure level ... 9 5 General test methods and qualification indicators ... 10 5.1 Basic requirements ... 10 5.2 Test conditions ... 11 5.3 Extreme temperature hydrogen cycle test ... 12 5.4 Leakage test ... 12 5.5 Overpressure hydrogen cycle test ... 13 5.6 Hydrostatic test ... 14 5.7 Hydraulic strength test ... 14 5.8 Torque test ... 14 5.9 Bending test ... 14 5.10 Non-metal seal test ... 16 5.11 Precooled hydrogen exposure test ... 16 6 Check valves ... 17 6.1 Extreme temperature hydrogen cycle test ... 17 6.2 Leakage test ... 17 6.3 Overpressure hydrogen cycle test ... 17 6.4 Hydrostatic test ... 18 6.5 Hydraulic strength test ... 18 6.6 Bending test ... 18 6.7 Non-metal seal test ... 18 7 Excess flow valves ... 18 7.1 Extreme temperature hydrogen cycle test ... 18 7.2 Leakage test ... 18 7.3 Overpressure hydrogen cycle test ... 18 7.4 Hydrostatic test ... 18 7.5 Hydraulic strength test ... 18 7.6 Torque test ... 19 7.7 Bending test ... 19 7.8 Non-metal seal test ... 19 7.9 Action test ... 19 7.10 Action cycle test ... 19 7.11 Pressure pulse test ... 19 8 Control valves ... 20 8.1 Extreme temperature hydrogen cycle test ... 20 8.2 External leakage test ... 20 8.3 Overpressure hydrogen cycle test ... 20 8.4 Hydrostatic test ... 20 8.5 Hydraulic strength test ... 21 8.6 Torque test ... 21 8.7 Bending test ... 21 8.8 Non-metal seal test ... 21 8.9 Action test ... 21 8.10 Action cycle test ... 21 9 Break away coupling ... 22 9.1 Extreme temperature hydrogen cycle test ... 22 9.2 External leakage test ... 22 9.3 Overpressure hydrogen cycle test ... 23 9.4 Hydrostatic test ... 23 9.5 Hydraulic strength test ... 23 9.6 Torque test ... 24 9.7 Bending test ... 24 9.8 Non-metal seal test ... 24 9.9 Axial separation pull test ... 24 9.10 Impact test ... 25 9.11 Drop test ... 26 9.12 Torsion cycle test ... 27 9.13 Precooled hydrogen exposure test ... 27 10 Manual valves ... 28 10.1 Extreme temperature hydrogen cycle test ... 28 10.2 Leakage test ... 28 10.3 Overpressure hydrogen cycle test ... 28 10.4 Hydrostatic test ... 28 10.5 Hydraulic strength test ... 28 10.6 Torque test ... 28 10.7 Bending test ... 28 10.8 Non-metal seal test ... 28 10.9 Maximum flow shutdown test ... 28 10.10 Open and close cycle test ... 29 10.11 Torque cycle test ... 29 11 Filters ... 30 11.1 Extreme temperature hydrogen cycle test ... 30 11.2 Structural integrity and initial bubble point test ... 30 11.3 Filtration characteristic test of filter element ... 30 11.4 Pressure drop flow characteristic test ... 30 11.5 Flow fatigue characteristics test ... 31 11.6 Rated axial load test ... 31 11.7 Anti-rupture property test ... 31 12 Safety valves ... 31 12.1 Extreme temperature hydrogen cycle test ... 31 12.2 Leakage test ... 32 12.3 Overpressure hydrogen cycle test ... 32 12.4 Hydrostatic test ... 32 12.5 Torque test ... 33 12.6 Bending test ... 33 12.7 Non-metal seal test ... 33 12.8 Action test ... 33 13 Globe valve ... 34 13.1 Extreme temperature hydrogen cycle test ... 34 13.2 Leakage test ... 34 13.3 Overpressure hydrogen cycle test ... 34 13.4 Hydrostatic test ... 34 13.5 Hydraulic strength test ... 34 13.6 Torque test ... 34 13.7 Bending test ... 34 13.8 Non-metal seal test ... 35 13.9 Open and close cycle test ... 35 13.10 Maximum flow shutdown test ... 35 13.11 Precooled hydrogen exposure test ... 35 14 Marks ... 36 14.1 Mark information ... 36 14.2 Marking method ... 37 Bibliography ... 38 Technical requirements and test methods for gaseous hydrogen valves used in hydrogen fuelling stations1 ScopeThis document specifies the technical requirements, test methods, marks and other requirements for gaseous hydrogen valves used in hydrogen fuelling stations (hereinafter referred to as "valves"). This document applies to gaseous hydrogen valves used in hydrogen fuelling stations that meet the following conditions: a) The ambient temperature is -40℃~60℃; b) The hydrogen charging pressure does not exceed 70 MPa at 15°C.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 528, Rubber, vulcanized or thermoplastic -- Determination of tensile stress- strain properties GB/T 4213, Pneumatic industrial process control valves GB/T 12220, Industrial valves -- Marking GB/T 12241, Safety valves -- General requirements GB/T 14041.1, Hydraulic fluid power -- Filter elements -- Part 1: Verification of fabrication integrity and determination of the first bubble point GB/T 14041.3, Hydraulic fluid power -- Filter elements -- Part 3: Verification of collapse/burst pressure rating GB/T 14041.4, Hydraulic fluid power -- Filter elements -- Part 4: Method for rated end load test GB/T 17486, Hydraulic fluid power -- Filters -- Evaluation of differential pressure versus flow characteristics GB/T 17488, Hydraulic fluid power -- Filter elements -- Determination of resistance to flow fatigue using particulate contaminant GB/T 18853, Hydraulic fluid power filters -- Multi-pass method for evaluating filtration performance of a filter element GB/T 21465, Terminology for valves GB/T 24499, Technology glossary for gaseous hydrogen, hydrogen energy and hydrogen energy system GB/T 32808, Valves -- Model designation method GB/T 34542.2, Storage and transportation systems for gaseous hydrogen -- Part 2: Test methods for evaluating metallic material compatibility in hydrogen atmosphere GB/T 34542.3, Storage and transportation systems for gaseous hydrogen -- Part 3: Test method for determination of the susceptibility of metallic materials to hydrogen gas embrittlement (HGE) GB 50156, Code for design and construction of filling station GB 50516, Technical code for hydrogen fuelling station3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 12241, GB/T 21465, GB/T 24499 as well as the followings apply. 3.1 nominal size An alphanumeric dimensional designation for valves, consisting of the letters DN followed by a dimensionless integer number. NOTE: This dimensionless number is directly related to characteristic dimensions such as the bore diameter or outer diameter (expressed in millimeters) of the end fitting. Unless otherwise specified in the relevant standard, the dimensionless number following DN does not represent a measured value and shall not be used in calculations. [Source: GB/T 1047-2019, 2.1, modified] 3.2 check valve A valve that the opening and closing parts (valve disc) automatically prevent the reverse flow of the medium with the help of the force of the medium. 3.3 excess flow valve 4.1.2 Valves made of the same material under similar design conditions may not be re- tested according to the items specified in this document. 4.1.3 In addition to the test items specified in this document, other reliable test methods can be used to test the service performance of the valve in a high-pressure hydrogen environment. 4.1.4 The performance of pneumatic control valves shall comply with the requirements specified in GB/T 4213. Electrically controlled valves shall adopt explosion-proof electric mechanisms. The selection of explosion-proof grade shall comply with the requirements specified in GB 50156 and GB 50516. 4.1.5 The valve shall be reliably sealed and clean to prevent internal and external impurities from contaminating the hydrogen. 4.2 Materials 4.2.1 Valve materials shall consider corrosion resistance, wear resistance, aging resistance, electrical conductivity, impact strength, heat resistance, low temperature impact resistance, ultraviolet radiation resistance and hydrogen embrittlement resistance. 4.2.2 Metal materials shall have good hydrogen compatibility. The test methods shall be implemented in accordance with the requirements specified in GB/T 34542.2 and GB/T 34542.3. 4.2.3 Non-metallic materials shall have good hydrogen compatibility. Its fatigue performance, durability limit and creep strength shall meet the requirements of the design documents within the design life of the valve. 4.2.4 The service temperature range of non-metallic seal materials shall meet the requirements of the valve operating temperature. Its tensile strength and elongation after break shall be measured according to the requirements specified in GB/T 528 and meet the requirements of the design documents. 4.3 Working pressure level Working pressure level (HSL) is represented by "H+ value", in MPa. Its relationship with nominal working pressure (NWP), maximum working pressure (1.25 NWP), and maximum allowable working pressure (1.375 NWP) is shown in Table 1 . 5.2.3 Test medium The test medium shall meet the following requirements: a) The medium for the extreme temperature hydrogen cycle test, leakage test, overpressure hydrogen cycle test, bending test, non-metal seal test, pre-cooled hydrogen exposure test, action cycle test, pressure pulse test and opening and closing cycle test is hydrogen; b) The medium of hydrostatic test is water; c) The medium for other tests can be helium, nitrogen or dry clean air. 5.3 Extreme temperature hydrogen cycle test 5.3.1 Test method Block the valve outlet. Connect the valve inlet to the hydrogen source. The lower limit of circulating pressure shall not exceed 0.05 times the maximum allowable working pressure of the valve. The upper limit of circulating pressure shall be within the range of (1~1.03) times the maximum allowable working pressure of the valve. The frequency shall not exceed 10 times/min. Valve seals can be replaced after 16,000 pressure cycles. The test shall be carried out according to the following steps: a) Normal temperature: At normal temperature, the valve is continuously tested for 100,000 cycles; b) High temperature: The valve is continuously tested for 1,000 cycles at a test temperature of no less than 85°C; c) Low temperature: The valve is continuously tested for 1,000 cycles at a test temperature not higher than -40°C. 5.3.2 Qualification indicators The valve shall not leak or rupture within 102,000 pressure cycle tests. 5.4 Leakage test 5.4.1 Test methods 5.4.1.1 Test preparation Before testing, purge the valve with nitrogen. And seal it at 0.3 times the maximum allowable working pressure of the valve. For high and low temperature tests, the valve shall be left to stand at the specified temperature for at least 1 h before the test. shall comply with the requirements specified in 5.4.2. 5.10 Non-metal seal test 5.10.1 Test method Block the valve outlet. Connect the valve air inlet to the air source. At normal temperature, fill with hydrogen to the maximum allowable working pressure of the valve. After maintaining the pressure for 70 h, the test pressure was quickly reduced to atmospheric pressure. Afterwards, conduct a leakage test on the valve according to the test method specified in 5.4.1. 5.10.2 Qualification indicators Use special leak detection fluid to detect leaks. There shall be no bubbles generated within the specified test time. 5.11 Precooled hydrogen exposure test 5.11.1 Test method The test steps are as follows: a) Fill the valve with pre-cooled hydrogen gas at a temperature not higher than -40°C at a flow rate of not less than 30 g/s at normal temperature for at least 3 min. After that, stop inflating for 2 min. Repeat the above operation 10 times; b) Fill the valve with pre-cooled hydrogen gas at a temperature not higher than - 40°C at a flow rate of not less than 30 g/s at normal temperature for at least 3 min. After that, stop inflating for 15 minutes. Repeat the above operation 10 times; c) The valve shall be tested for leakage according to the test method specified in 5.4.1. NOTE: Only suitable for valves through which pre-cooled hydrogen flows. 5.11.2 Qualification indicators Use special leak detection fluid for leak detection, and no bubbles shall be generated within the specified test time. a) Connect the air inlet and outlet of the overflow valve to the pipeline. The air inlet pipeline is connected to the air source. The length of the connecting pipeline between the air inlet and the air outlet is at least 1 m; b) Before the test, the pressure at the air outlet and air inlet of the overflow valve shall be atmospheric pressure; c) Quickly charge hydrogen to the maximum allowable working pressure of the valve. Then release the pressure to atmospheric pressure. The number of cycles is 100 times; d) Fill the hydrogen gas in the opposite flow direction to c) to the maximum allowable working pressure of the valve. Then release the pressure to atmospheric pressure. The number of cycles is 100 times; e) Carry out action cycle test according to the provisions of 7.10. 7.11.2 Qualification indicators Use special leak detection fluid for leak detection, and no bubbles shall be generated within the specified test time.8 Control valves8.1 Extreme temperature hydrogen cycle test Carry out extreme temperature hydrogen cycle test in accordance with the provisions of 5.3. 8.2 External leakage test Carry out external leakage test according to the test method specified in 5.4.1.2. The test results shall comply with the requirements specified in 5.4.2. 8.3 Overpressure hydrogen cycle test Carry out overpressure hydrogen cycle test in accordance with the provisions of 5.5. 8.4 Hydrostatic test Carry out hydrostatic test in accordance with the provisions of 5.6. Where, t - the resting time, in hours (h); dmax - the maximum diameter of the break away coupling, in millimeters (mm). 9.2.2 Qualification indicators Use special leak detection fluid to detect leaks, and no bubbles shall be generated within the specified test time. 9.3 Overpressure hydrogen cycle test Carry out overpressure hydrogen cycle test in accordance with the provisions of 5.5. 9.4 Hydrostatic test Carry out hydrostatic test in accordance with the provisions of 5.6. 9.5 Hydraulic strength test 9.5.1 Test method Carry out the hydraulic strength test of the breakaway valve in accordance with the following requirements: a) For the assembled break away coupling: After purging the break away coupling with nitrogen, seal the outlet of the break away coupling. Apply a hydraulic pressure of 2.4 times the maximum allowable working pressure of the valve to its inlet at normal temperature, and maintain the pressure for 3 min; b) For the input side and output side of the break away coupling: The relief hole on the output side of the break away coupling shall be blocked. After purging the input and output sides of the break away coupling with nitrogen, apply a hydraulic pressure of 2.4 times the maximum allowable working pressure of the valve to the input and output sides at normal temperature, and maintain the pressure for 5 min. 9.5.2 Qualification indicators The break away coupling shall not break. When performing a hydraulic strength test on the assembled break away coupling, if the break away coupling separates during the pressurization process, and the pressure during separation is not less than 1.5 times the maximum allowable working pressure of the valve, a clamp shall be used to secure the input and output sides of the break away coupling. Repeat the hydraulic strength test. In addition, the assembled break away coupling shall not leak when the test pressure is gas to not less than 0.8 times the maximum allowable working pressure of the valve. Allow the manual valve to reach maximum flow and then close the valve. Afterwards, conduct a leakage test on the manual valve according to the test method specified in 5.4.1. 10.9.2 Qualification indicators The manual valve shall be able to be completely closed and shall meet the requirements specified in 5.4.2. 10.10 Open and close cycle test 10.10.1 Test method At the test temperatures of not higher than -40℃ and not lower than 85℃, follow the following steps: a) Connect the air inlet of the manual valve to the air source, and the air outlet to a ventilated place; b) Close the manual valve; c) Fill the hydrogen gas to the maximum allowable working pressure of the valve. Afterwards, open the valve to relieve pressure to atmospheric pressure; d) Repeat operations b) and c) 150 times; e) Carry out leakage test according to the test method specified in 5.4.1. 10.10.2 Qualification indicators Manual valves shall be free from leakage and rupture. 10.11 Torque cycle test 10.11.1 Test method Secure the manual valve with a clamp. Use a torque wrench or other device capable of setting torque to apply 1.5 times the design maximum torque to the closed manual valve to fully open it. The number of cycles is 20 times. Afterwards, perform a leakage test on the manual valve according to the test method specified in 5.4.1. NOTE: This test does not apply to manual ball valves. 10.11.2 Qualification indicators The manual valve shall not be deformed or broken, and shall meet the requirements ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 42177-2022 be delivered?Answer: The full copy PDF of English version of GB/T 42177-2022 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 42177-2022_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 42177-2022_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 42177-2022 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 42177-2022?A step-by-step guide to download PDF of GB/T 42177-2022_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 42177-2022". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
