GB/T 41061-2021 PDF EnglishUS$170.00 · In stock · Download in 9 seconds
GB/T 41061-2021: Test methods for creep properties of fiber reinforced plastics Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

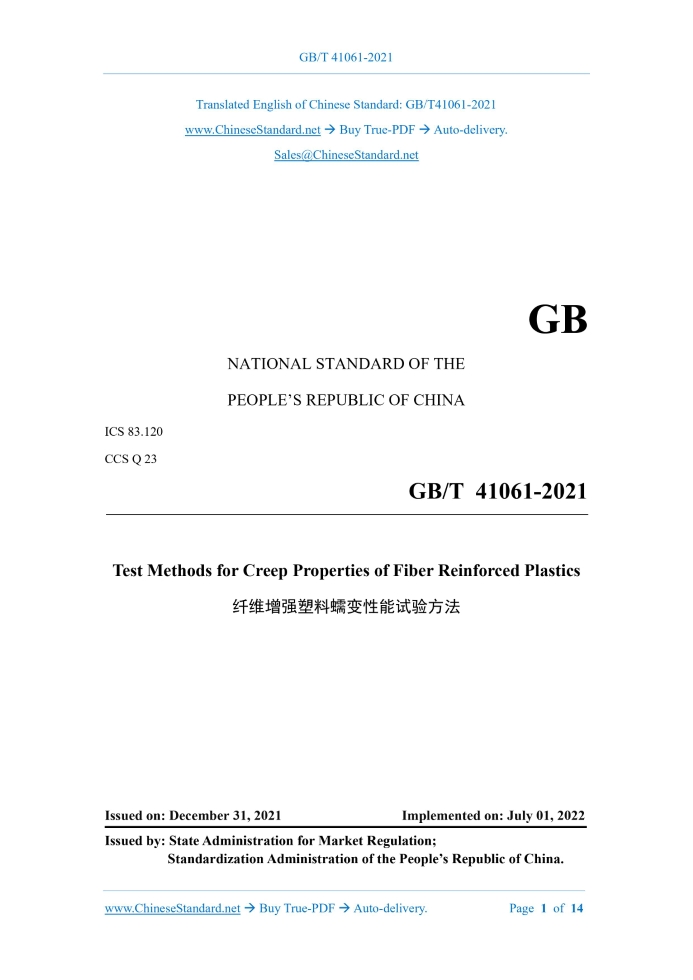

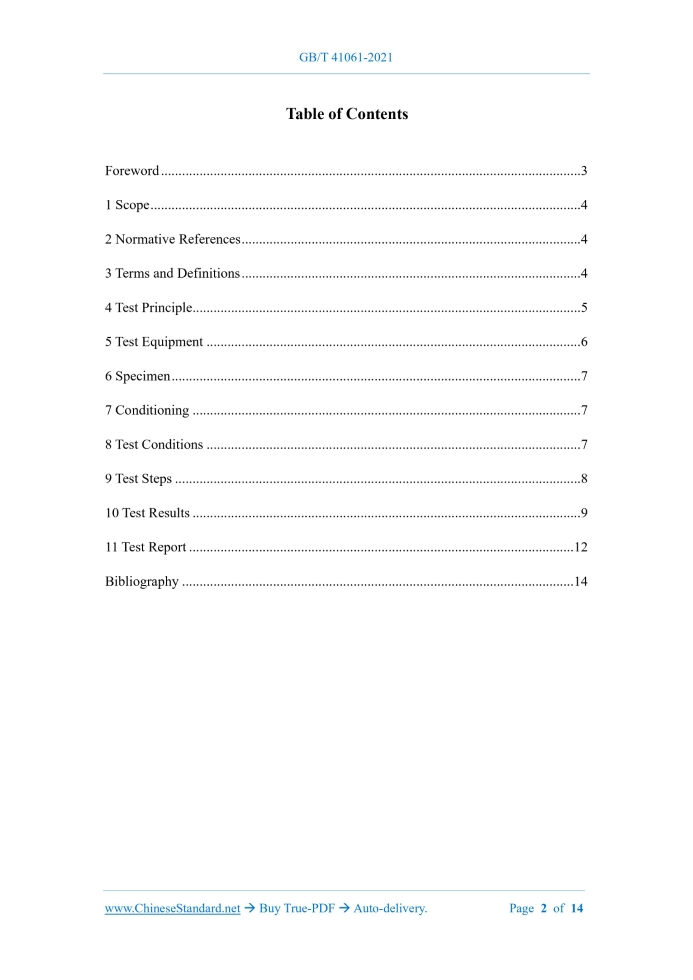

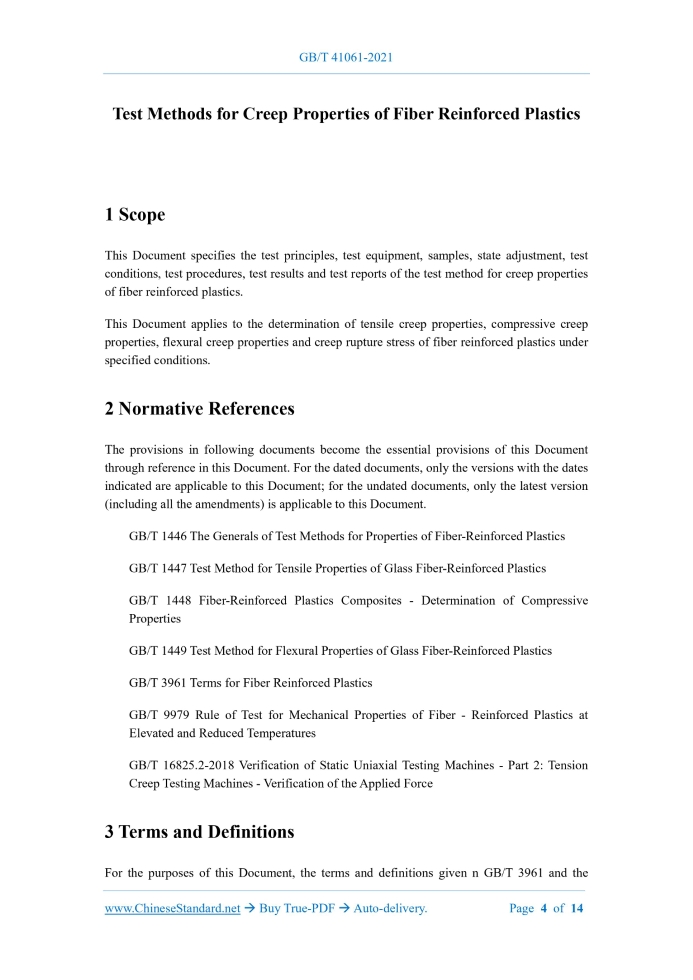

Similar standardsGB/T 41061-2021: Test methods for creep properties of fiber reinforced plastics---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT41061-2021NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.120 CCS Q 23 Test Methods for Creep Properties of Fiber Reinforced Plastics ISSUED ON: DECEMBER 31, 2021 IMPLEMENTED ON: JULY 01, 2022 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 Test Principle ... 5 5 Test Equipment ... 6 6 Specimen ... 7 7 Conditioning ... 7 8 Test Conditions ... 7 9 Test Steps ... 8 10 Test Results ... 9 11 Test Report ... 12 Bibliography ... 14 Test Methods for Creep Properties of Fiber Reinforced Plastics1 ScopeThis Document specifies the test principles, test equipment, samples, state adjustment, test conditions, test procedures, test results and test reports of the test method for creep properties of fiber reinforced plastics. This Document applies to the determination of tensile creep properties, compressive creep properties, flexural creep properties and creep rupture stress of fiber reinforced plastics under specified conditions.2 Normative ReferencesThe provisions in following documents become the essential provisions of this Document through reference in this Document. For the dated documents, only the versions with the dates indicated are applicable to this Document; for the undated documents, only the latest version (including all the amendments) is applicable to this Document. GB/T 1446 The Generals of Test Methods for Properties of Fiber-Reinforced Plastics GB/T 1447 Test Method for Tensile Properties of Glass Fiber-Reinforced Plastics GB/T 1448 Fiber-Reinforced Plastics Composites - Determination of Compressive Properties GB/T 1449 Test Method for Flexural Properties of Glass Fiber-Reinforced Plastics GB/T 3961 Terms for Fiber Reinforced Plastics GB/T 9979 Rule of Test for Mechanical Properties of Fiber - Reinforced Plastics at Elevated and Reduced Temperatures GB/T 16825.2-2018 Verification of Static Uniaxial Testing Machines - Part 2: Tension Creep Testing Machines - Verification of the Applied Force3 Terms and DefinitionsFor the purposes of this Document, the terms and definitions given n GB/T 3961 and the5 Test Equipment5.1 Loading system 5.1.1 The electronic testing machine shall comply with the provisions of the Class-1 testing machine in GB/T 16825.2-2018, the relative error of the load shall not exceed ±1%, and the repeatability error shall not exceed 1%. 5.1.2 The relative error of the load provided by the weight test device shall not exceed ±1%. 5.1.3 The loading system shall have a buffer device, and shall be kept away from external vibration and shock during installation. 5.1.4 The loading system shall ensure that the load can be applied smoothly without instantaneous overload, and the applied load shall be within ±1% of the required load. 5.1.5 During the test, the loading device shall be able to provide a constant load. In the creep rupture test, measures shall be taken to prevent the vibration generated when the specimen ruptures from being transmitted to the adjacent loading system. 5.2 Clamp 5.2.1 The tensile creep test fixture should ensure that the loading axis is consistent with the longitudinal axis of the sample as much as possible. It is recommended to use a fixture that can center and fix the sample before loading. 5.2.2 The compressive creep test fixture shall comply with the provisions of GB/T 1448. 5.2.3 The bending creep test fixture shall comply with the provisions of GB/T 1449. 5.3 Deformation measuring device 5.3.1 The deformation measuring device consists of a device capable of measuring the elongation, compression or deflection of the specimen under load. This device shall not influence the specimen through mechanical effects (deformation, indentation, etc.), physical effects (heating the specimen, etc.) and chemical effects on the sample. 5.3.2 The accuracy of the deformation measuring device is 0.001mm. 5.3.3 The deformation measuring device shall be fixed and shall not slip. 5.4 Dimension measuring tool The accuracy is 0.01mm. 5.5 Time measuring device The accuracy is 1min. 5.6 Automatic temperature control device The error shall not exceed ±2°C.6 Specimen6.1 Shape and size of specimen 6.1.1 The specimen for tensile creep test shall comply with provisions of GB/T 1447. 6.1.2 The specimen for compression creep test shall comply with the provisions of GB/T 1448. 6.1.3 The specimen for bending creep test shall comply with the provisions of GB/T 1449. 6.2 Number of specimens 6.2.1 The number of valid specimens at each test temperature and each stress level shall at least meet the following requirements: --- 2 pieces for no less than 4 stress levels; --- 3 pieces if there are less than 4 stress levels. 6.2.2 When testing creep rupture, test at least 2 specimens at each test temperature and each stress level. 6.2.3 When it is known that the size of the material shall change significantly under the influence of temperature, a comparison sample shall be added. At least 3 comparison specimens are tested at each test temperature.7 ConditioningExcept for special provisions, the conditioning of the sample shall be according to the provisions of GB/T 1446.8 Test Conditions8.1 Test temperature The choice of the test temperature depends on the purpose of the test, and is selected with reference to the following provisions. temperature and initial stress. 9.6 According to the provisions of GB/T 9979, preserve the heat of specimen. After the heat preservation, it shall be quickly and smoothly loaded to the test load, and the loading process should be completed within 10s. A series of tests of the same material shall use the same loading speed. Start timing when the test load is loaded. 9.7 Measure the elongation, compression or deflection of the specimen (and the comparison specimen). If the deformation measurement is not automatically and continuously recorded; measure the strain at the following time intervals: 1min, 6min, 12min, 30min, 1h, 2h, 5h, 20h, 50h, 100h, 200h, 500h, 700h and 1000h, etc. If the creep strain curve is discontinuous or interrupted with time, the reading frequency shall be increased. 9.8 Measure and record the test temperature, test environment temperature and humidity. If the temperature and humidity measurement is not automatically recorded, it shall be recorded when the deformation is measured. 9.9 When performing the stress test of 1% strain for 1000h, measure the strain generated for 1000h under at least 3 stress levels, then draw the isochronous stress-strain curve for 1000h; and obtain the stress value of 1% strain by interpolation method. 9.10 When performing the creep rupture test, measure the rupture time of the material; for materials with obvious yield characteristics before rupture, the rupture time is the starting time of the above yield characteristics. For creep rupture test the tensile method is recommended.10 Test Results10.1 Creep modulus 10.1.1 The tensile creep modulus shall be calculated as per Formula (1): Where: Et,T - tensile creep modulus at time t, in megapascals (MPa); P - load, in Newtons (N); A - initial cross-sectional area, in square millimeters (mm2); L0,T - initial gauge length, in millimeters (mm); (ΔL)t,T - the amount of elongation at time t, in millimeters (mm). ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 41061-2021 be delivered?Answer: The full copy PDF of English version of GB/T 41061-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 41061-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 41061-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 41061-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 41061-2021?A step-by-step guide to download PDF of GB/T 41061-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 41061-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
