GB/T 40406-2021: Standard test method for static modulus of elasticity and poisson’s ratio of carbon materials in compression Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

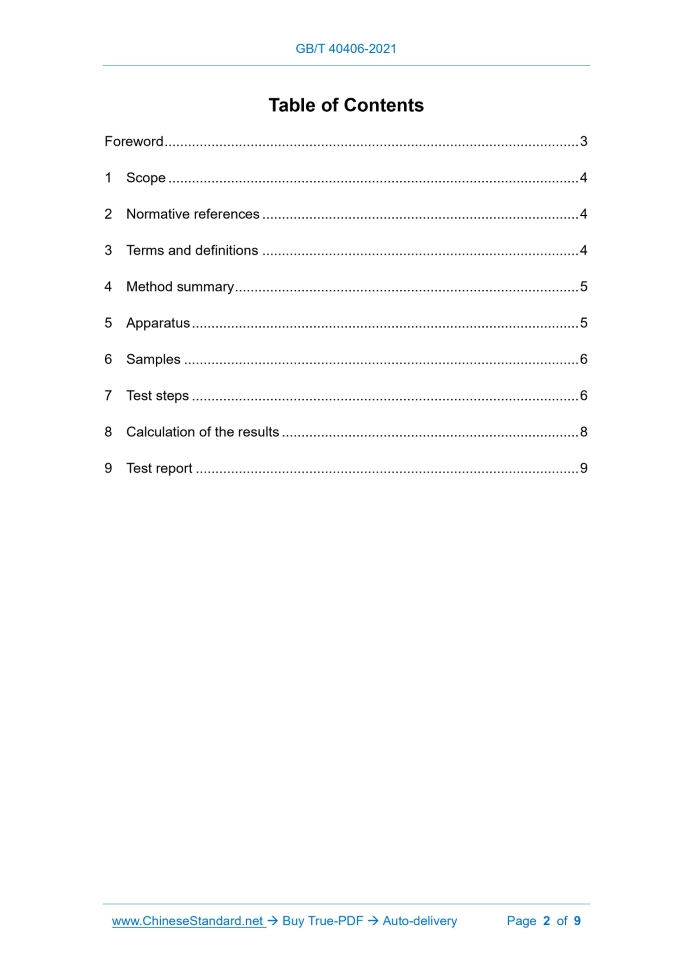

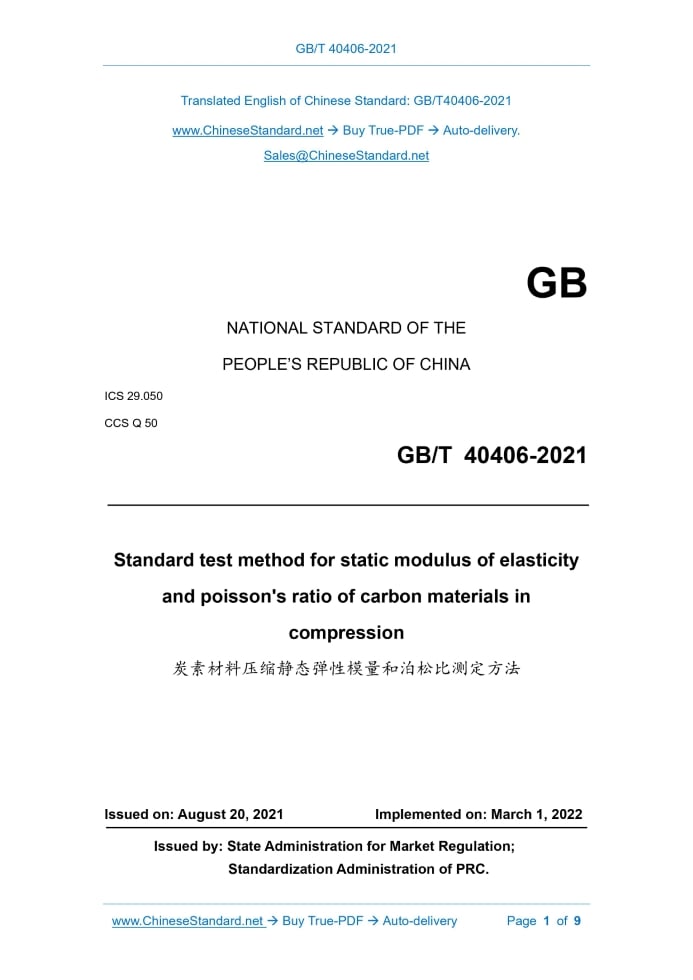

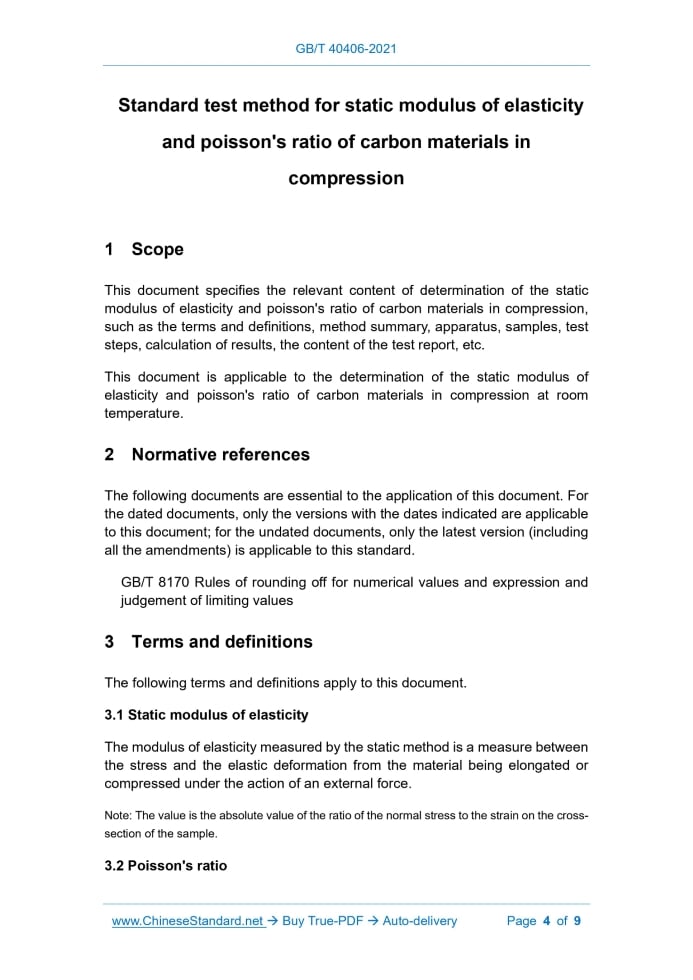

Similar standardsGB/T 40406-2021: Standard test method for static modulus of elasticity and poisson’s ratio of carbon materials in compression---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT40406-2021 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.050 CCS Q 50 Standard test method for static modulus of elasticity and poisson's ratio of carbon materials in compression ISSUED ON: AUGUST 20, 2021 IMPLEMENTED ON: MARCH 1, 2022 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Method summary ... 5 5 Apparatus ... 5 6 Samples ... 6 7 Test steps ... 6 8 Calculation of the results ... 8 9 Test report ... 9 Standard test method for static modulus of elasticity and poisson's ratio of carbon materials in compression1 ScopeThis document specifies the relevant content of determination of the static modulus of elasticity and poisson's ratio of carbon materials in compression, such as the terms and definitions, method summary, apparatus, samples, test steps, calculation of results, the content of the test report, etc. This document is applicable to the determination of the static modulus of elasticity and poisson's ratio of carbon materials in compression at room temperature.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 8170 Rules of rounding off for numerical values and expression and judgement of limiting values3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Static modulus of elasticity The modulus of elasticity measured by the static method is a measure between the stress and the elastic deformation from the material being elongated or compressed under the action of an external force. Note: The value is the absolute value of the ratio of the normal stress to the strain on the cross- section of the sample. 3.2 Poisson's ratio 5.4 Drying oven: the highest temperature is 300 °C, and the accuracy is ±5 °C. 5.5 Vernier caliper: measuring range 0 mm~200 mm, accuracy 0.02 mm. 5.6 Adhesive: It shall become a hard Adhesive after curing, such as 502 glue, etc. 5.7 Electric soldering iron, solder wire, PTFE film, fine sandpaper, tweezers, alcohol, etc.6 Samples6.1 Sizes: a cylindrical sample with a diameter of 20mm and a length of 75mm; machining accuracy ±0.1 mm. The sample shall be processed to be straight; the end faces of the cylinder shall be parallel to each other. The perpendicularity of the end faces to the length direction is within 0.001 mm/mm; the roughness is Ra6.3. 6.2 Requirements: There are no visible cracks, pits, or other defects in the sample patch position. The sample shall be placed in a glass container filled with distilled water or alcohol. After washing and removing the dust on the surface of the sample, take it out and place it in a clean tray; then put it in a drying oven at 105 °C ± 5 °C for 2 hours; eventually, store it in a desiccator to cool it to room temperature for measurement. 6.3 Quantity: Take 2 samples each time.7 Test steps7.1 Measurement of the sample's diameter Measure 4 times along the axial direction at the position in the middle of the sample (at 4/5 of the total length of the sample); rotate the sample 90° for each measurement; take the average value to calculate the area under pressure; the measurement error of the average cross-sectional area is within 0.5%. 7.2 Paste the strain gauge Take an appropriate amount of adhesive and apply it evenly on the surface of the position to be bonded; wipe the surfaces of the strain-gauges and terminals (binding posts) with the anhydrous ethanol cotton balls. After drying, apply a thin layer of adhesive. After the adhesive becomes thick, accurately paste the strain gauge's terminal on the surface of the sample, and cover it with a layer of PTFE film. Then, use your fingers to squeeze out the excess adhesive along the longitudinal direction of the strain gauge and discharge the bubbles in the adhesive layer. Do not touch the surface of the strain gauge with your hands during the entire operation; the two-way strain gauge shall be perpendicular or parallel to the force direction; the adhesive layer cannot have bubbles and impurities; the sensitive grid of the strain gauge cannot be broken or deformed. In order to prevent the pasted strain gauge from moisture, corrosion, and mechanical damage, certain protective measures shall be taken for the strain gauge. Note: In order to ensure a firm bonding, after applying a certain pressure on the PTFE film, carry out curing and stabilization treatment according to the temperature, time, and pressure indicated in the manual of the adhesive. 7.3 Welding of the strain gauge's wire 7.3.1 The strain gauge patch is pasted on the sample, after curing and stabilization treatment, the wire can be welded. 7.3.2 Use fine sandpaper to lightly polish solder feet and terminals of the strain gauge, to remove the adhesive and oxide layer on their surfaces. 7.3.3 Coat the soldering flux on the surfaces of the strain gauge's solder feet and the terminals; use an electric soldering iron to melt the solder wire, then weld to let the solder feet be connected with the terminals through the wire. 7.4 Measurements of stress and strain 7.4.1 For the welded sample, use the 1/4 bridge and common compensation wiring method, to connect the sample and the common compensation wire to the dynamic and static resistance strainmeter. Then, place the tested sample vertically on the compression platform of the universal material testing machine. 7.4.2 Measure 6 load values and the corresponding strains for each sample. The starting point of the load value shall be 6000 N (to ensure that the sample has a certain longitudinal and transverse strain); measure and record the sample's longitudinal strain ε longitudinal and transverse strain ε transverse at the load. Then, for every 1000 N added, respectively measure and record the corresponding longitudinal strain ε longitudinal and transverse strain ε transverse. The testing machine continuously loads without impact at a speed of 3 kN/cm2 per minute; the maximum load value is 40%~85% (11000N) of the pressure-bearing capacity (breaking strength) of the same material with the same diameter. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 40406-2021 be delivered?Answer: The full copy PDF of English version of GB/T 40406-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 40406-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 40406-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 40406-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 40406-2021?A step-by-step guide to download PDF of GB/T 40406-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 40406-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
