GB/T 37781-2019 PDF EnglishUS$230.00 · In stock · Download in 9 seconds
GB/T 37781-2019: Test methods for bending strength of glass Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

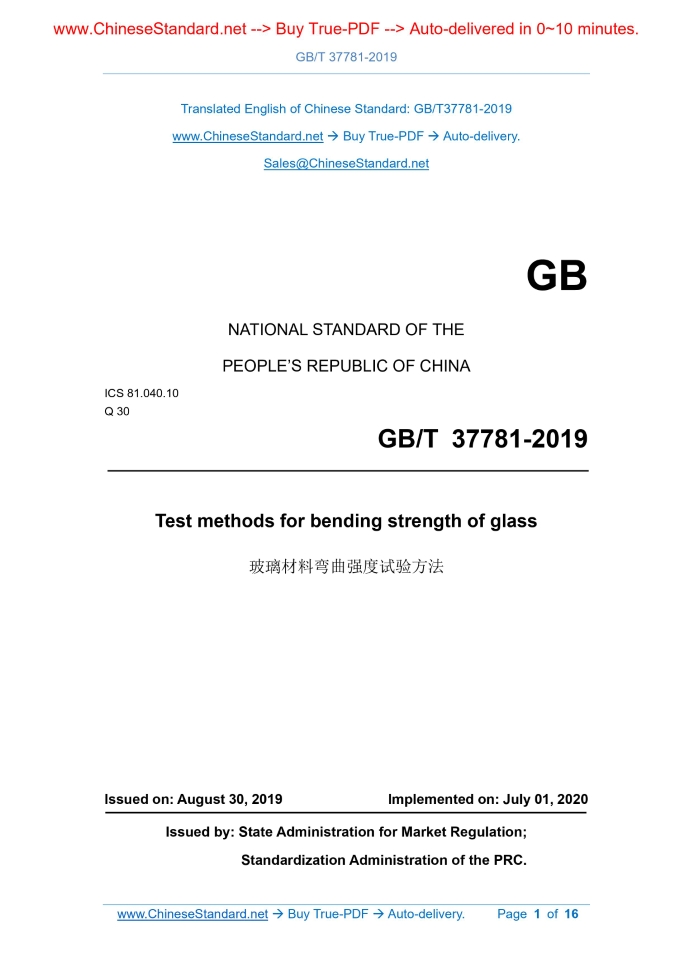

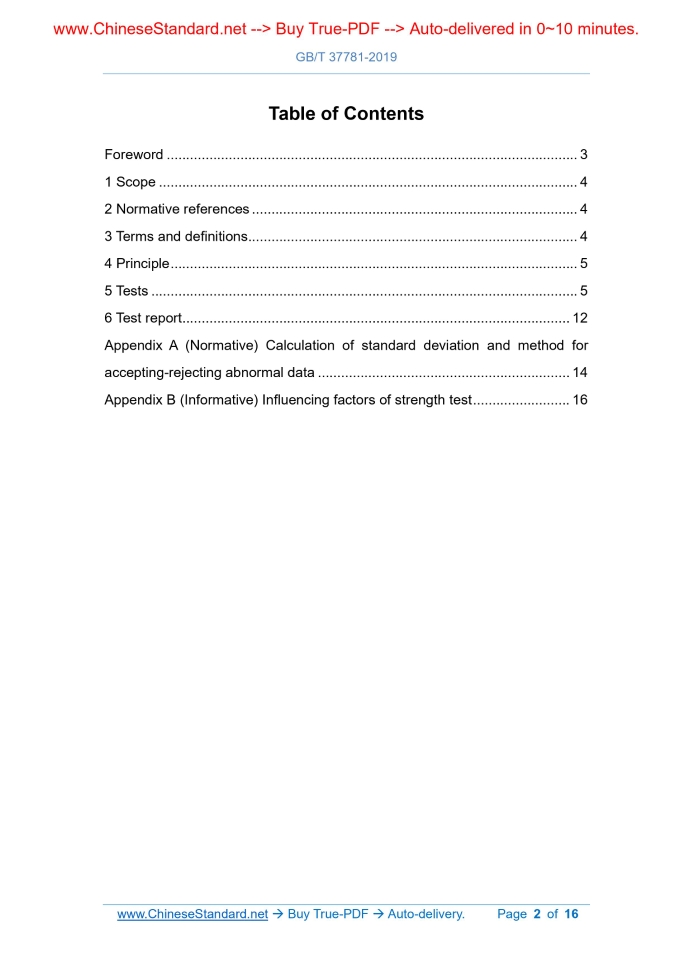

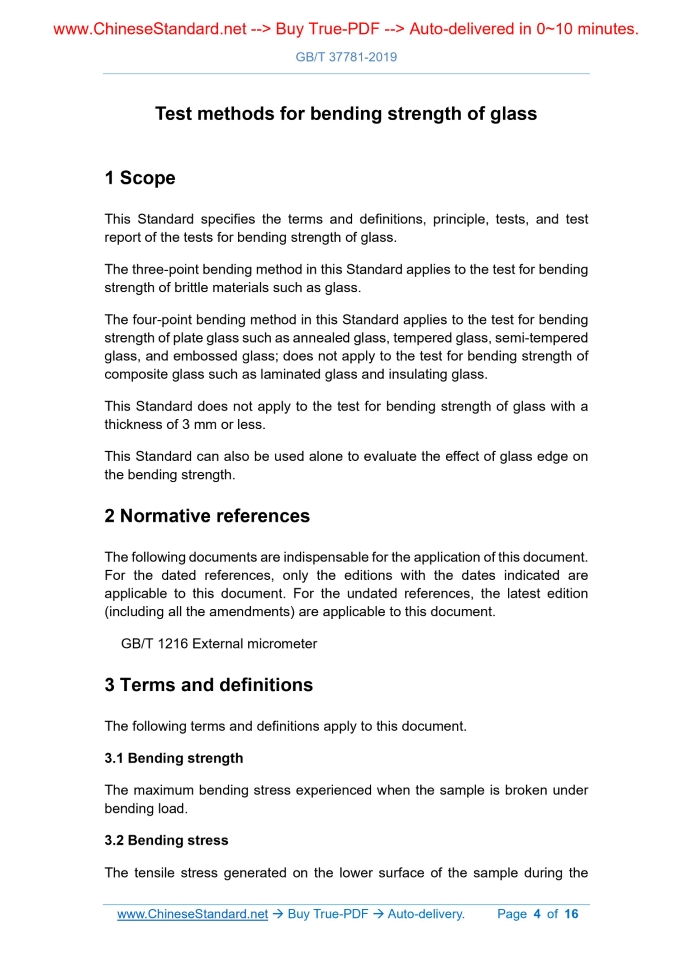

Similar standardsGB/T 37781-2019: Test methods for bending strength of glass---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37781-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 81.040.10 Q 30 Test methods for bending strength of glass ISSUED ON: AUGUST 30, 2019 IMPLEMENTED ON: JULY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Principle ... 5 5 Tests ... 5 6 Test report ... 12 Appendix A (Normative) Calculation of standard deviation and method for accepting-rejecting abnormal data ... 14 Appendix B (Informative) Influencing factors of strength test ... 16 Test methods for bending strength of glass1 ScopeThis Standard specifies the terms and definitions, principle, tests, and test report of the tests for bending strength of glass. The three-point bending method in this Standard applies to the test for bending strength of brittle materials such as glass. The four-point bending method in this Standard applies to the test for bending strength of plate glass such as annealed glass, tempered glass, semi-tempered glass, and embossed glass; does not apply to the test for bending strength of composite glass such as laminated glass and insulating glass. This Standard does not apply to the test for bending strength of glass with a thickness of 3 mm or less. This Standard can also be used alone to evaluate the effect of glass edge on the bending strength.2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB/T 1216 External micrometer3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Bending strength The maximum bending stress experienced when the sample is broken under bending load. 3.2 Bending stress The tensile stress generated on the lower surface of the sample during the 5.1.3.3 Before the test, it shall use a brush or a soft cloth to carefully clean the upper press roller and the sample support, to remove the broken glass slag. 5.1.3.4 LOAD at a displacement speed of 5 mm/min; RECORD the maximum load P at which the sample breaks. 5.1.4 Result calculation 5.1.4.1 The sample whose fracture occurs in the middle of the three equal parts of the longitudinal direction of the sample is an effective sample. Calculate only the bending strength of the effective sample. Calculate according to formula (1): Where: σb - The bending strength of sample, in megapascals (MPa); P - The maximum load at which the sample breaks, in Newtons (N); L - The distance between the sample supports, in millimeters (mm); b - Sample width, in millimeters (mm); d - Sample thickness, in millimeters (mm). 5.1.4.2 According to Appendix A, conduct data processing. USE the arithmetic mean and standard deviation of valid data to express. The result is accurate to 0.1 MPa. 5.2 Four-point bending method 5.2.1 Testing machine 5.2.1.1 It is capable of realizing continuous, uniform, stepless loading from zero to maximum load and minimizing vibration during loading. 5.2.1.2 The device shall be capable of loading at equal stress rate. 5.2.1.3 The load measuring device equipped with the instrument keeps the measurement error within ±2.0% of the range. 5.2.1.4 The schematic diagram of four-point bending test is shown in Figure 2. The backup roller and the bending roller have a diameter of 50 mm±1 mm and a length of not less than 365 mm. All the rollers can rotate freely. The distance Lb between the center lines of the two bending rollers is 200 mm±1 mm. The distance Ls between the center lines of the two backup rollers is 1000 mm±2 The side of the sample edge shall be perpendicular to the surface. The sample shall be prepared 24 h before the start of the test; before the test, stored in the test environment for at least 4 h. 5.2.3 Test procedures 5.2.3.1 Measurement of sample width The width measurement is accurate to 1 mm. The width is measured at least 3 times at different positions of the sample and averaged. 5.2.3.2 Measurement of sample thickness USE a Vernier caliper in accordance with GB/T 1216 to measure the sample thickness, accurate to 0.02 mm. The thickness is measured at the 4 corners of the sample and averaged. 5.2.3.3 Bending test According to the requirements of Figure 2, place the sample. In order to prevent the debris from scattering, a layer of self-adhesive film is attached to the upper surface of the sample, to facilitate the determination of the source of the fracture. PLACE a rubber mat [with a thickness of 3 mm, a hardness of (40±10)IRHC] between the sample and the bending roller and the backup roller. The bending test shall be carried out at an ambient temperature of (23±5)°C and a relative humidity of 40%~70%. In order to avoid the influence of thermal stress, during the test, the ambient temperature change shall not exceed 1 °C. During the test, at a loading rate of (2±0.4)MPa/s, apply a uniform load to the sample until the sample breaks. RECORD the maximum load Fmax and the time taken from the beginning of loading to the failure of the sample. 5.2.4 Result calculation 5.2.4.1 Bending strength of sample The bending strength σbB is calculated according to formula (2): Where: σbB - The bending strength of sample, in megapascals (MPa); k - Dimensionless factor (ks when starting from the failure of the surface; ke The choice of three-point bending method or four-point bending method to measure the bending strength of glass may be agreed between the supplier and the purchaser; may also be determined according to the influencing factors of the strength test. See Appendix B.6 Test reportIt shall include the following: a) Type, specification, quantity, and number of glass. b) Pretreatment and surface state of the surface of the sample under test, including the treatment sequence. For embossed samples, it shall indicate which surface is subjected to tensile stress (non-embossed or embossed surface). c) Edge processing method. d) Internal stress of annealed or prestressed glass samples, including stress properties. MARK the degree of prestress if possible. e) Loading rate. f) For each sample, it shall include the following information: 1) The thickness is accurate to 0.05 mm. For the embossed sample on one or both sides, it shall measure the maximum thickness (plate thickness), minimum thickness (center thickness), and average thickness, accurate to 0.05 mm; 2) The width is in millimeters, accurate to 1 mm; 3) The maximum load corresponding to the moment of break is accurate to 1 N; 4) Three-point bending strength σb, in megapascals, is accurate to 0.1 MPa; 5) Four-point edge bending strength σbB, in megapascals, is accurate to 0.1 MPa; 6) The time taken from loading to failure is in seconds, accurate to 1 s; 7) Whether the sample failure starts at the sample edge or starts at the center portion. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37781-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37781-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37781-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37781-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37781-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37781-2019?A step-by-step guide to download PDF of GB/T 37781-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37781-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
