GB/T 32061-2015 PDF EnglishUS$100.00 · In stock · Download in 9 seconds
GB/T 32061-2015: Testing method of laminated glass interlayer shear modulus Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

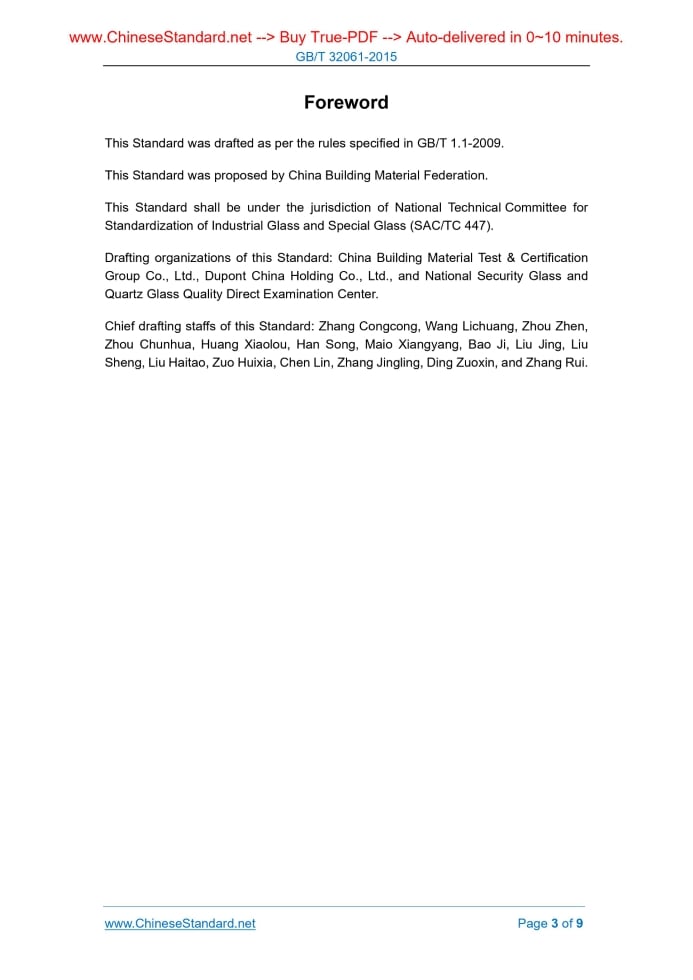

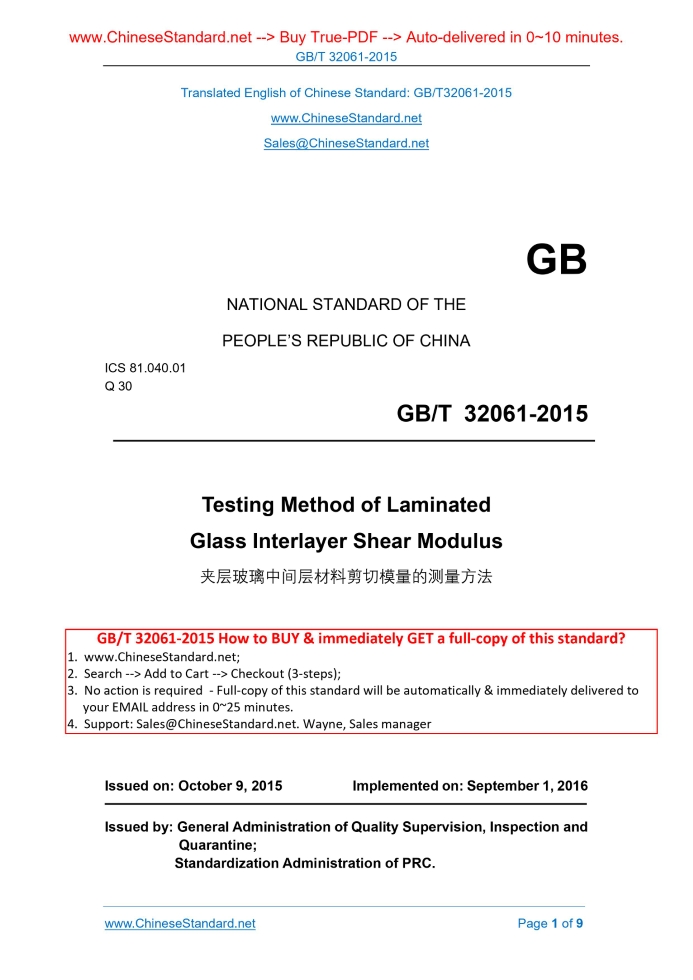

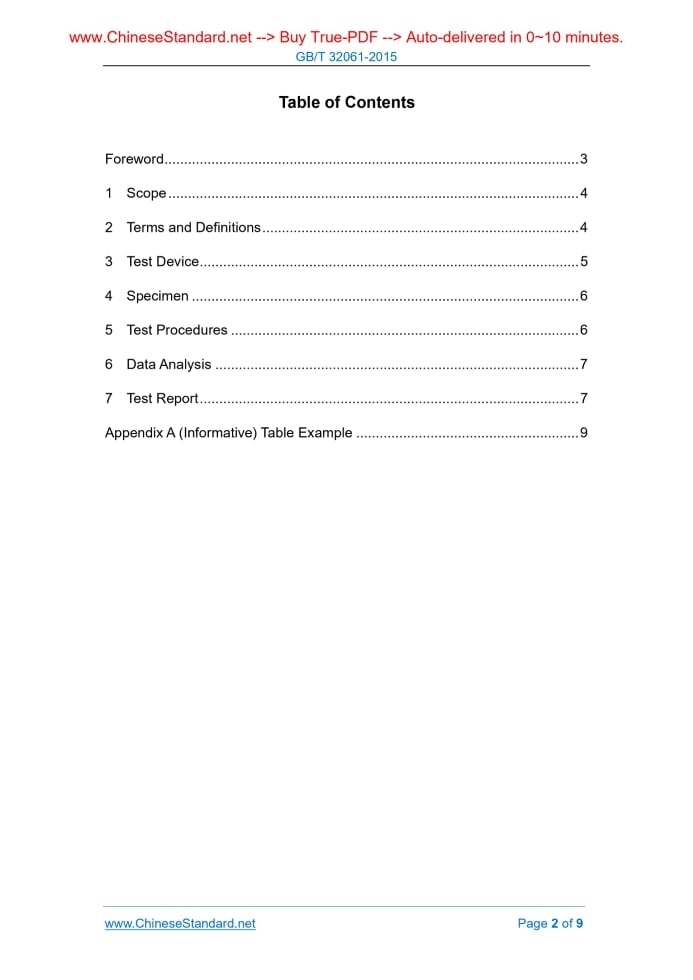

Similar standardsGB/T 32061-2015: Testing method of laminated glass interlayer shear modulus---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT32061-2015GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 81.040.01 Q 30 Testing Method of Laminated Glass Interlayer Shear Modulus Issued on: OCTOBER 9, 2015 Implemented on: SEPTEMBER 1, 2016 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Terms and Definitions ... 4 3 Test Device ... 5 4 Specimen ... 6 5 Test Procedures ... 6 6 Data Analysis ... 7 7 Test Report ... 7 Appendix A (Informative) Table Example ... 9ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. This Standard was proposed by China Building Material Federation. This Standard shall be under the jurisdiction of National Technical Committee for Standardization of Industrial Glass and Special Glass (SAC/TC 447). Drafting organizations of this Standard. China Building Material Test & Certification Group Co., Ltd., Dupont China Holding Co., Ltd., and National Security Glass and Quartz Glass Quality Direct Examination Center. Chief drafting staffs of this Standard. Zhang Congcong, Wang Lichuang, Zhou Zhen, Zhou Chunhua, Huang Xiaolou, Han Song, Maio Xiangyang, Bao Ji, Liu Jing, Liu Sheng, Liu Haitao, Zuo Huixia, Chen Lin, Zhang Jingling, Ding Zuoxin, and Zhang Rui. Testing Method of Laminated Glass Interlayer Shear Modulus1 ScopeThis Standard specifies the terms and definitions, test device, specimen, test procedures, data analysis and test report of laminated glass interlayer shear modulus (G). This Standard is applicable to the measurement of Polybutylene Butyral (PVB), Ethylene Vinyl Acetate Copolymer (EVA), laminated glass interlayer shear modulus including ionic interlayer film, and the measurement of other visoelastic material shear modulus can refer to this Standard.2 Terms and DefinitionsThe following terms and definitions are applicable to this document. 2.1 Young’s complex modulus When material is in the elastic limit, the ratio between normal stress and normal strain, which is expressed by E* in MPa. NOTE. Young’s complex modulus consists of real Young’s storage modulus (expressed by E’ in MPa) and imaginary Young’s storage modulus (expressed by E’’ in MPa); i.e.. E*= E’ + iE’’, thereof i is the imaginary unit. The Yong’s storage modulus indicates the energy stored by visoelastic material during the deformation due to elastic deformation. The Young’s loss modulus indicates the energy loss of the visoelastic material during the deformation due to plastic deformation (irreversible). 2.2 Shear modulus When material is in the elastic limit, the ratio between shear stress and shear strain, which is expressed by G in MPa. 2.3 Poisson’s ratio When material is dragged or compressed in one direction, the ratio between the absolute value of transverse positive strain and absolute value of axial positive strain, which is expressed by µ. 5.4 According to the tensile mode shown in Figure 1, measure it from the low to high temperature; obtain the original data. the Young’s storage modulus E’ and Young’s loss modulus E’’ of specimen under different temperature and different loading period. 5.5 Open the liquid nitrogen supply device for cooling till reach the lower limit of the set temperature.6 Data Analysis6.1 Analyze the original data obtained from 5.4, then draw the time-temperature equivalent principal curve for the interlayer material at different temperature. 6.2 According to the different temperature and time principal curve data, adopt linear interpolation method to select, on the principal curve, the Young’s complex modulus value with corresponding temperature and load cycle. Prepare the table of Young’s complex modulus corresponding to time and temperature, see Table A.1. 6.3 Use the mathematical relationship formula (1) among Shear Modulus G, Young’s Complex Modulus E*, and Poisson’s Ratio µ, and calculate the Shear Modulus G of interlayer material. Obtain the table of shear modulus corresponding to time and temperature, see Table A.2. NOTE. in the range of -40°C~80°C, the Value-µ of PVB, EVA and ionic interlayer film can be regarded as Constant 0.5.7 Test ReportThe test report shall contain the following contents at least. a) Specimen situation. name, type and source; b) Description of test device; c) Specimen dimension and thickness; d) Before test, the storage temperature, humidity and storage time of sample; e) Temperature- rise procedures include initial and final temperature and temperature-rise step length; f) Original test data; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 32061-2015 be delivered?Answer: The full copy PDF of English version of GB/T 32061-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 32061-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 32061-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 32061-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 32061-2015?A step-by-step guide to download PDF of GB/T 32061-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 32061-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
