GB/T 37429-2019 PDF EnglishUS$180.00 · In stock · Download in 9 seconds
GB/T 37429-2019: Guides for energy efficiency assessment of electric arc furnace process Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

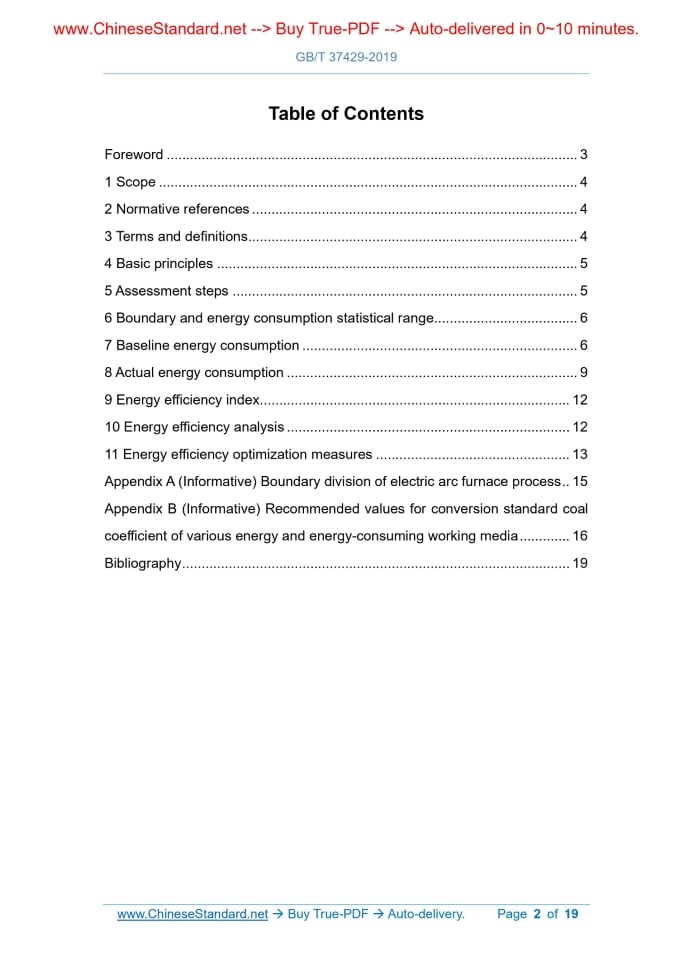

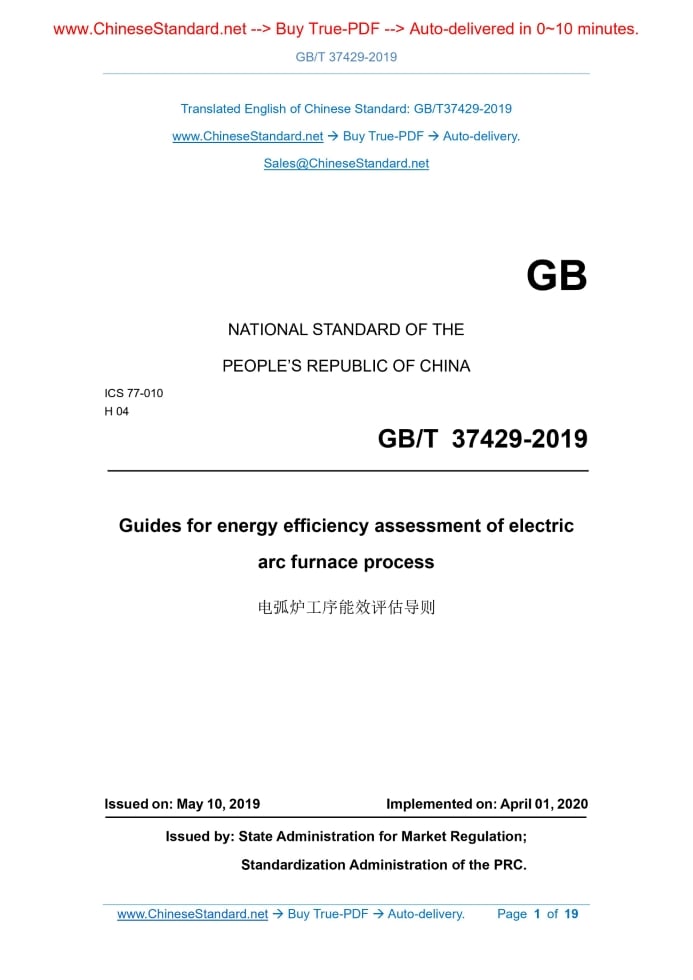

Similar standardsGB/T 37429-2019: Guides for energy efficiency assessment of electric arc furnace process---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37429-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77-010 H 04 Guides for energy efficiency assessment of electric arc furnace process ISSUED ON: MAY 10, 2019 IMPLEMENTED ON: APRIL 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Basic principles ... 5 5 Assessment steps ... 5 6 Boundary and energy consumption statistical range ... 6 7 Baseline energy consumption ... 6 8 Actual energy consumption ... 9 9 Energy efficiency index ... 12 10 Energy efficiency analysis ... 12 11 Energy efficiency optimization measures ... 13 Appendix A (Informative) Boundary division of electric arc furnace process .. 15 Appendix B (Informative) Recommended values for conversion standard coal coefficient of various energy and energy-consuming working media ... 16 Bibliography ... 19 Guides for energy efficiency assessment of electric arc furnace process1 ScopeThis Standard specifies the terms and definitions, basic principles, assessment steps, boundary and energy consumption statistical range, baseline energy consumption, actual energy consumption, energy efficiency index, energy efficiency analysis, and energy efficiency optimization measures for energy efficiency assessment of electric arc furnace process. This Standard applies to energy efficiency assessment and energy-saving potential analysis of electric arc furnace process in iron and steel enterprises.2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB 17167 General principle for equipping and managing of the measuring instrument of energy in organization of energy using GB/T 21368 Specification for equipping and managing of measuring instrument of energy in the iron and steel industry GB/T 23331 Energy management systems - Requirements GB/T 28924 Guides for calculating energy efficiency index of an iron and steel enterprise YB/T 4662 Guides for energy efficiency assessment of iron and steel enterprise3 Terms and definitionsThe terms and definitions defined in GB/T 23331, GB/T 28924, YB/T 4662 apply to this document.6 Boundary and energy consumption statistical range6.1 Process boundary division The electric arc furnace process boundary starts with the input of raw materials (scrap steel, cold pig iron, direct reduced iron, molten iron, etc.), energy, and energy-consuming working medium, and ends with the output of final product molten steel, by-product slag, and externally-supplied steam. See Appendix A for the boundary division of electric arc furnace process. 6.2 Energy consumption statistical range The statistical range of the energy consumption of electric arc furnace process is as follows: a) Electric arc furnace smelting, including electric arc furnace body, scrap steel preheating and baking system, raw material supply system, flue gas treatment system, second and third dust removal system, steel slag treatment system (excluding steel slag post-treatment), water treatment system, and ladle baking system, etc.; b) Include auxiliary production systems such as machine repair, inspection, test, measurement, transportation, production management and scheduling systems, heating or cooling, lighting, storage; c) Contain the loss of all kinds of energy in the electric arc furnace process interface. The above energy consumption statistical range shall deduct the steam recovered and supplied externally. It does not include energy consumed by facilities (such as canteens and lounges, etc.) that are not related to production and are used for living purposes. It does not include refining outside the furnace and continuous casting process.7 Baseline energy consumption7.1 Baseline conditions 7.1.1 The baseline conditions are a number of measurable factors that have a greater impact on the baseline energy consumption and may be divided into objective factors and subjective factors. 7.1.2 Objective factors refer to factors beyond the control of the process that are affected by inherent conditions outside the process boundary; mainly refer during statistical reporting period, etc.; b) Raw material conditions, including the amount and composition of scrap steel, molten iron, and cold pig iron, temperature of molten iron, etc.; c) Product conditions, including steel type, molten steel composition, tapping temperature, etc.; d) Consumption of energy and energy-consuming working medium, such as consumption of circulating water, electricity, compressed air, oxygen, nitrogen, argon, natural gas, gas, steam, etc.; e) Waste heat recovery, such as recovery steam parameters, scrap steel preheating parameters, etc.; f) Parameters of major energy-consuming units and important energy- consuming equipment, such as the main parameters of electric arc furnace body, scrap steel preheating and baking, flue gas treatment, secondary dust removal, water treatment, ladle baking and other systems; g) Ambient temperature. 8.2 Principles for valuing of conversion standard coal coefficient for energy and energy-consuming working medium 8.2.1 The actual fuel energy consumed by energy-using organizations shall, based on its low calorific value, be converted into standard coal. For those not measured, refer to Table B.1 in Appendix B. 8.2.2 Steam shall, based on its enthalpy value, be converted into standard coal. Refer to Table B.2. 8.2.3 For conversion of energy-consuming working medium to standard coal, refer to Table B.3. 8.2.4 The conversion relationship between standard coal and heat is 1 kgce=29307.6 kJ. 8.2.5 The electric power conversion standard coal coefficient takes the equivalent value, i.e., 1 kW • h=0.1229 kgce. 8.3 Calculation of actual energy consumption The actual energy consumption is calculated according to formula (3): c) Use situation of state and industry-recommended energy-saving new processes, new technologies, and new products. 10.2 Energy measuring instrument equipping and monitoring analysis The energy measuring instrument equipping and monitoring analysis shall include but not limited to the following: a) According to the requirements of GB 17167 and GB/T 21368, analyze the scientific and rationality of the energy measuring instrument equipping scheme of electric arc furnace process; b) The energy utilization status of electric arc furnace process may be monitored with reference to GB/T 15316. 10.3 Energy efficiency level analysis Energy efficiency level analysis shall include but is not limited to the following: a) Energy efficiency analysis of electric arc furnace process; b) Energy efficiency analysis of important equipment; refer to GB 18613, GB 30254, GB 19761, GB 19762; c) Energy unit consumption analysis; refer to GB 50439; d) Energy management and control analysis; refer to GB/T 30258; e) Rationality analysis of electric power utilization; refer to GB/T 3485; f) Rationality analysis of thermal energy utilization; refer to GB/T 3486; g) Energy-saving potential analysis and energy system optimization; refer to GB/T 30715.11 Energy efficiency optimization measuresThe electric arc furnace process can use, but not limited to, the following energy efficiency optimization measures: a) Improve the level of energy management and process operations; b) Ultra-high power electric arc furnace technology; c) Continuous feeding operation technology; d) Smelting technology of retained steel; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37429-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37429-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37429-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37429-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37429-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37429-2019?A step-by-step guide to download PDF of GB/T 37429-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37429-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
