GB/T 36607-2018 PDF EnglishUS$150.00 · In stock · Download in 9 seconds
GB/T 36607-2018: Ergonomics -- Motor vehicle driver head position Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

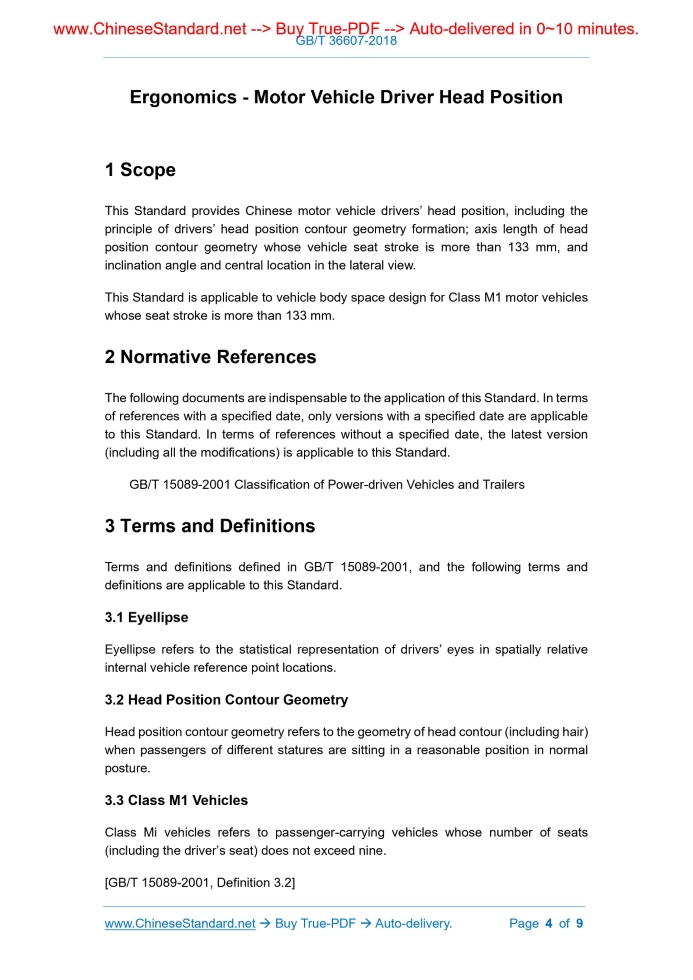

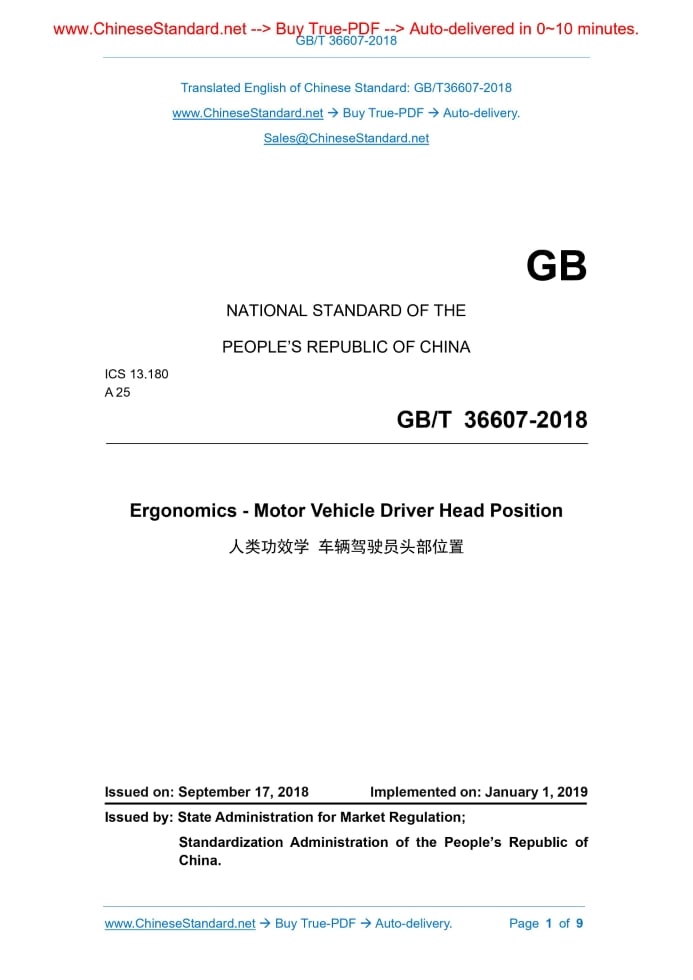

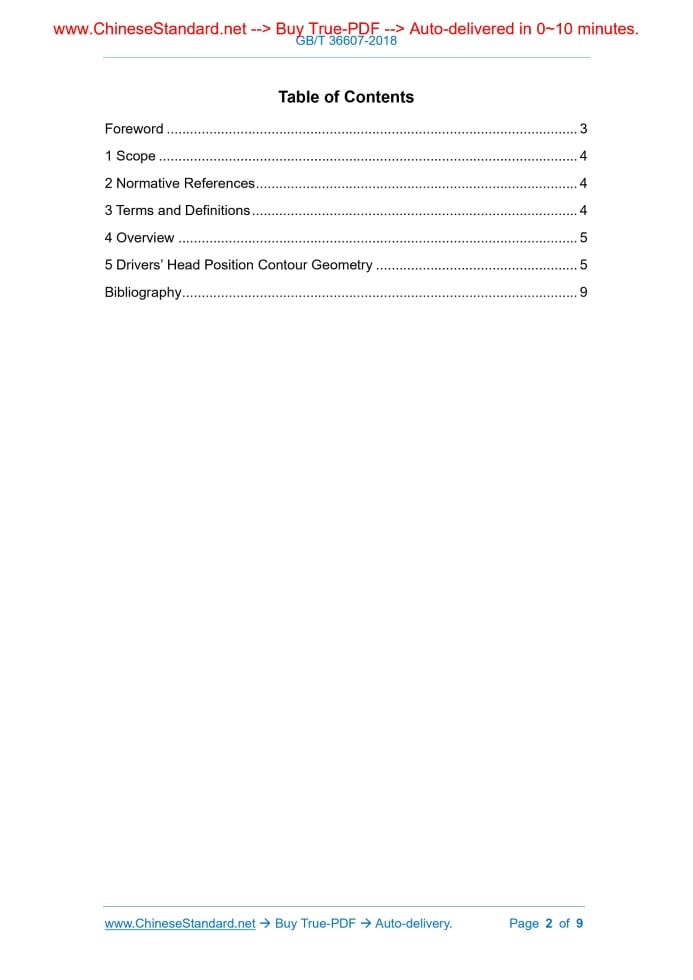

Similar standardsGB/T 36607-2018: Ergonomics -- Motor vehicle driver head position---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT36607-2018NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 13.180 A 25 Ergonomics - Motor Vehicle Driver Head Position ISSUED ON: SEPTEMBER 17, 2018 IMPLEMENTED ON: JANUARY 1, 2019 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 4 4 Overview ... 5 5 Drivers’ Head Position Contour Geometry ... 5 Bibliography ... 9 Ergonomics - Motor Vehicle Driver Head Position1 ScopeThis Standard provides Chinese motor vehicle drivers’ head position, including the principle of drivers’ head position contour geometry formation; axis length of head position contour geometry whose vehicle seat stroke is more than 133 mm, and inclination angle and central location in the lateral view. This Standard is applicable to vehicle body space design for Class M1 motor vehicles whose seat stroke is more than 133 mm.2 Normative ReferencesThe following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this Standard. GB/T 15089-2001 Classification of Power-driven Vehicles and Trailers3 Terms and DefinitionsTerms and definitions defined in GB/T 15089-2001, and the following terms and definitions are applicable to this Standard. 3.1 Eyellipse Eyellipse refers to the statistical representation of drivers’ eyes in spatially relative internal vehicle reference point locations. 3.2 Head Position Contour Geometry Head position contour geometry refers to the geometry of head contour (including hair) when passengers of different statures are sitting in a reasonable position in normal posture. 3.3 Class M1 Vehicles Class Mi vehicles refers to passenger-carrying vehicles whose number of seats (including the driver’s seat) does not exceed nine. [GB/T 15089-2001, Definition 3.2] Figure 3 -- Head Position Contour Geometry whose Seat Stroke is More Than 133 mm Along the side center plane (Y axis), divide the contour geometry into two halves. Meanwhile, maintain the correspondence between the ellipsoid central position and the internal part. Along X and Z curved surface of the ellipsoid midline part, establish a 23 mm-wide external segment. Place this part in the middle of the contour geometry being segmented. The internal boundary of this 23 mm tangent plane is in the same position as Y coordinate of the ellipsoid center. In terms of contour geometry whose seats are adjustable, from the lateral view, the front end of the front of X axis of drivers’ head position contour geometry inclines downward by 11; the remaining axes are parallel to vehicle’s grid line. 5.2 Central Point Calculation of Drivers’ Head Position Contour Geometry 5.2.1 Overview of positioning Head position contour geometry should be positioned in accordance with the middle eye point of eyellipse, or, be positioned directly from vehicle’s grid line. The relative position of head position contour geometry and the middle eye point of eyellipse is merely determined by seat stroke. The center of all head position contour geometries has the same coordinates as the central Y axis of the eyellipse. 5.2.2 Positioning in accordance with eyellipse center Respectively take Xh, Yh and Zh to represent the distance between the center of head position contour geometry and X axis, Y axis and Z axis of the middle eye point of eyellipse (please refer to Table 2 for the numerical value). In accordance with this relative distance, head position contour geometry can be positioned. Head Contour Center Head Contour Center ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 36607-2018 be delivered?Answer: The full copy PDF of English version of GB/T 36607-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 36607-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 36607-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 36607-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 36607-2018?A step-by-step guide to download PDF of GB/T 36607-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 36607-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
